AXBUCH-T16V

INSTALLATION INSTRUCTIONS

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product. Ensure

that all installation connections, especially the

air bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Cutting tool • Tape • Crimping tool

TABLE OF CONTENTS

Connections ............................................................2

Toyota Select Models 2012-2015

Toyota Backup Camera Retain/Add-On

• Retains the factory backup camera to an aftermarket radio

• Allows an aftermarket camera to be added to the factory screen*

• Includes the AXCSD-6V 12-volt to 6-volt converter

* Display and navigation model radios only

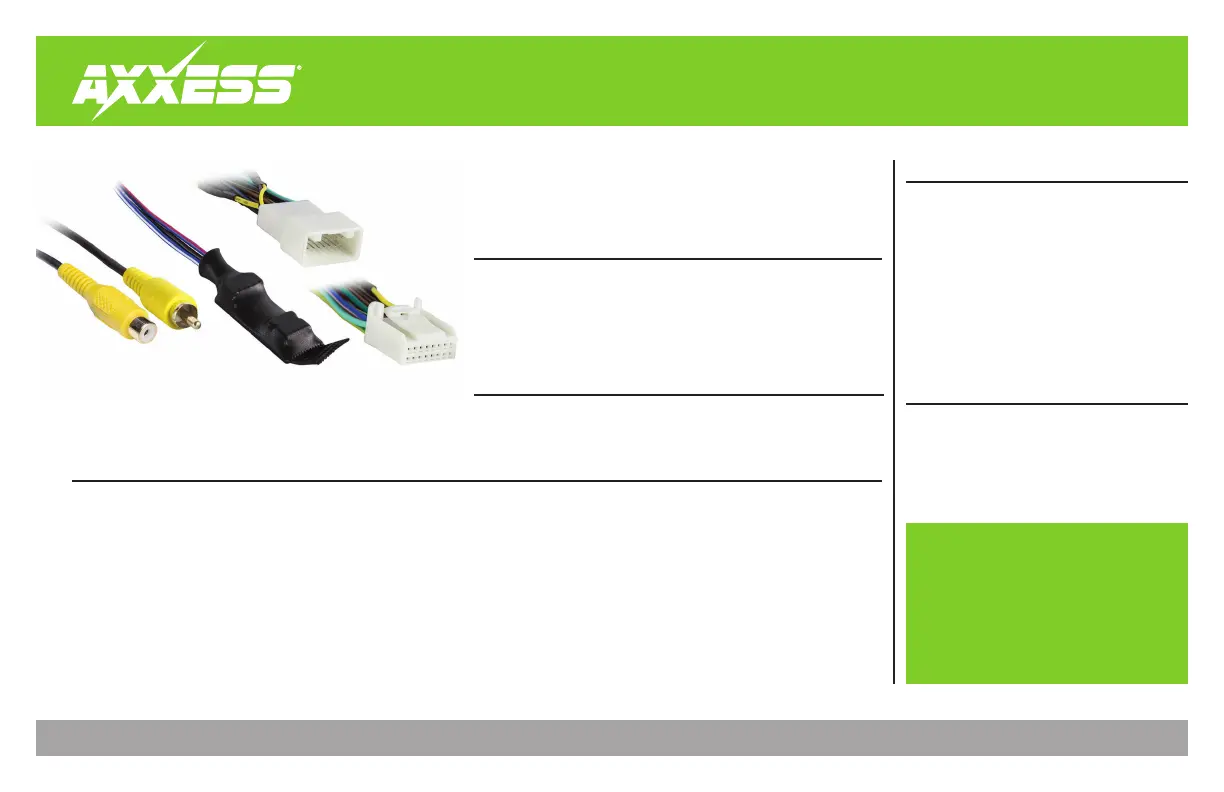

• AXBUCH-T16V harness

• AXCSD-6V 12-volt to 6-volt converter

For Dash Disassembly Instructions, refer to metraonline.com. Enter the year, make, and model of the vehicle in the Vehicle Fit Guide for Radio Install kits.

APPLICATIONS

Scion

FRS 2013-2015

iQ 2014-2015

tC 2014-2015

xB 2014-2015

xD 2014

Toyota

4-Runner

(w/o factory amp) 2012-2013

Avalon 2013-2014

Camry 2012-2013

Highlander 2013

Prius 2012-2015

Prius PHV 2012-2015

Prius V 2012-2014

Rav-4 (before build

date Nov. 2013) 2014

Rav-4 2013

Sequoia 2013

Tacoma (w/NAV) 2012-2013

Venza 2013-2014

CONNECTIONS

The AXBUCH-T16V can be connected two different ways:

To retain the factory backup camera to an aftermarket radio, connect as indicated:

• Black wire to chassis ground, and also to the Black wire of the AXCSD-6V.

• Yellow wire to the Blue/Red wire of the AXCSD-6V.

• Reverse wire from the aftermarket radio, to the reverse signal in the vehicle, and also to

the Blue/White wire of the AXCSD-6V.

• Yellow RCA jack (male) to the rear camera input of the aftermarket radio.

• Disregard the loose Green/Purple wire, it will not be used in this application.

To allow an aftermarket camera to be added to the OEM screen:

• Black wire to the ground wire of the aftermarket camera.

• Power wire of the aftermarket camera to accessory power.

• Tape off and disregard the Yellow wire, it will not be used in this application.

• Yellow RCA (female) jack to the aftermarket camera.

• The AXCSD-6V 12-volt to 6-volt converter will not be used in this application.

14 13 12 11 10 9 8 7 6 5 4 3 2 1

28 27 26 25 24 23 22 21 20 19 18 17 16 15

The following (2) steps are only required if a wire is not present in the factory harness.

*Except Avalon 2013-2014 and Venza 2013-2014

• If a wire is not present in pin-2 of the 28-pin connector of the factory radio, unplug the

connector, then insert the metal pin of the loose Green/Purple wire into it. Connect the

harness back into the radio.

• Connect the other end of the loose Green/Purple wire to the reverse wire of the vehicle.

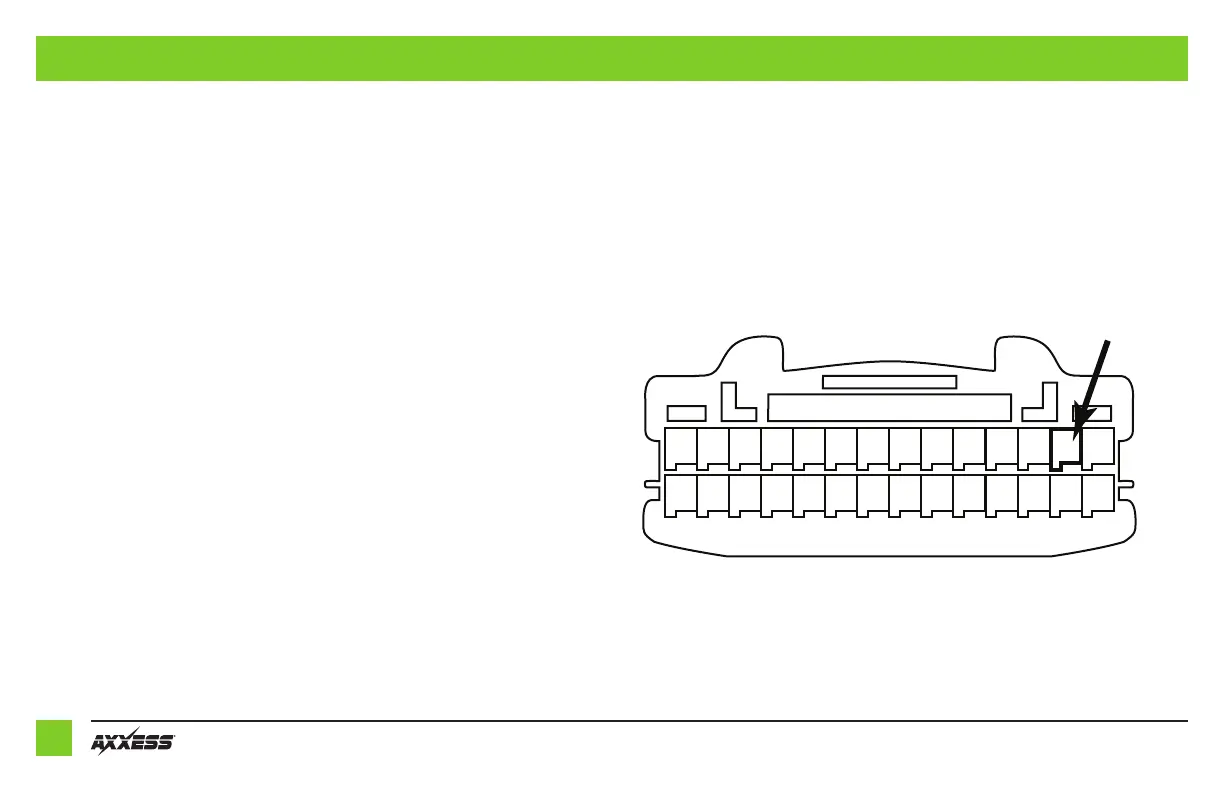

This is the wire view of the connector in the vehicle.

28 Pin Harness
