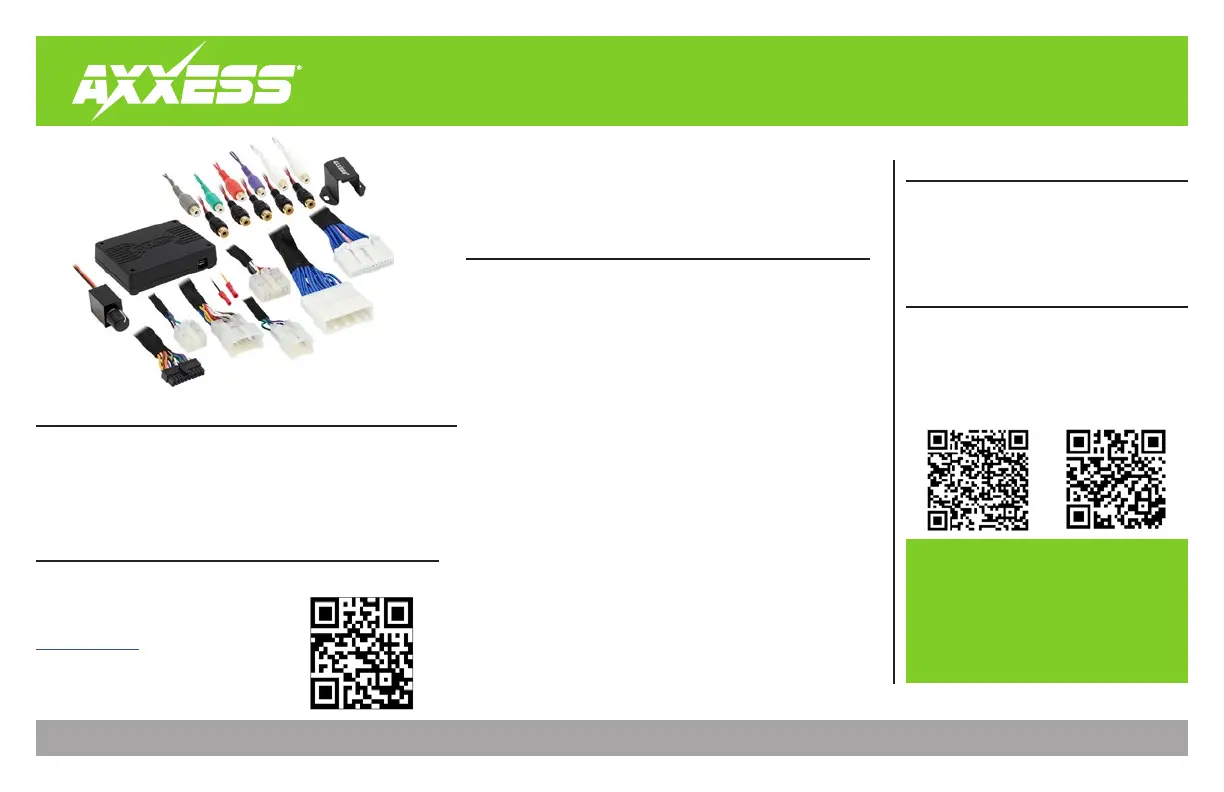

Side 1/8

A XDSPX-T Y4

INSTALLATION INSTRUCTIONS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip-ties • Multimeter

TABLE OF CONTENTS

Installation & Installation Options ........................2

Connections ........................................................3-4

Mobile App: Quick Setup ................................... 5-6

Specifications ......................................................... 7

INTERFACE COMPONENTS

• AXDSPX-TY4 interface

• AXDSPX-TY4 interface harness

• AXDSPX-TY4 vehicle T-harness

• Bass knob

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

INTERFACE FEATURES

DSP Data Interface with Pre-Wired Harness

Fits Select Lexus/Toyota Models 2011-2022

• Designed for amplified systems

• Selectable 31-band Graphic EQ or 5-band parametric EQ on each

channel with high pass, low pass, and bandpass filters

• 6 inputs and 10 individually assignable outputs

• Selectable slope (12, 24, 36, or 48db per octave)

• Selectable Graphic or Parametric EQ

• Independent equalization on each of the 10 outputs

• Each channel can be delayed independently up to 10 ms

• Clipping detection and limiting circuits

• Bass knob included

• Settings adjusted wirelessly in the free AX-DSP-XL app available

for smartphones and tablets

• Easy behind the radio installation

• Can be used with factory and aftermarket radios

• Read, write, and store configurations for future recall

• Password protect feature available in the app

• Micro “B” USB updatable

APPLICATIONS

Visit AxxessInterfaces.com for current application list

For Dash Disassembly Instructions, refer to

metraonline.com. Enter the year, make, and

model of the vehicle in the Vehicle Fit Guide

for Radio Install kits.

Download AX-DSP-XL App

iOS

12.1 or higherAndroid™ 9 or higher

Adding a subwoofer to a factory system:

This feature offers the ability to add a subwoofer to an amplified factory system. (Refer to Page 3)

Adding a full-range amplifier and subwoofer to a factory system:

This feature offers the ability to add a full-range amp and sub to a factory system. (Refer to Page 4)

Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing

multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps

combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.

1. Disassemble the dash, unplug all connectors, and then remove the factory radio.*

2. Install the AXDSPX-TY4 vehicle T-harness to the vehicle and make all necessary

connections, but leave the amp turn-on wire disconnected.

3. Plug the AXDSPX-TY4 vehicle T-harness to the AXDSPX-TY4 interface.

4. Plug the AXDSPX-TY4 interface harness to the AXDSPX-TY4 interface.

Download and install the

AX-DSP-XL app for your smart device.

6. Open the app then select the Bluetooth Connection tab. Follow the instructions to

pair the mobile device to the interface. Refer to Page 5 for more information.

7. Scroll to the Configuration tab then select the vehicle type. Press the Lock Down**

button to save the configuration. Refer to Page 6 for more information.

8. Connect the amp turn-on wire.

9. Adjust the settings in the app as desired. Press the Lock Down** button to save any

new configurations.

* For dash disassembly instructions, refer to metraonline.com. Enter the year, make,

and model of the vehicle in the Vehicle Fit Guide and find instructions under Metra

Radio Install kits.

** Anytime the interface is locked down the key must be cycled off then back on.
