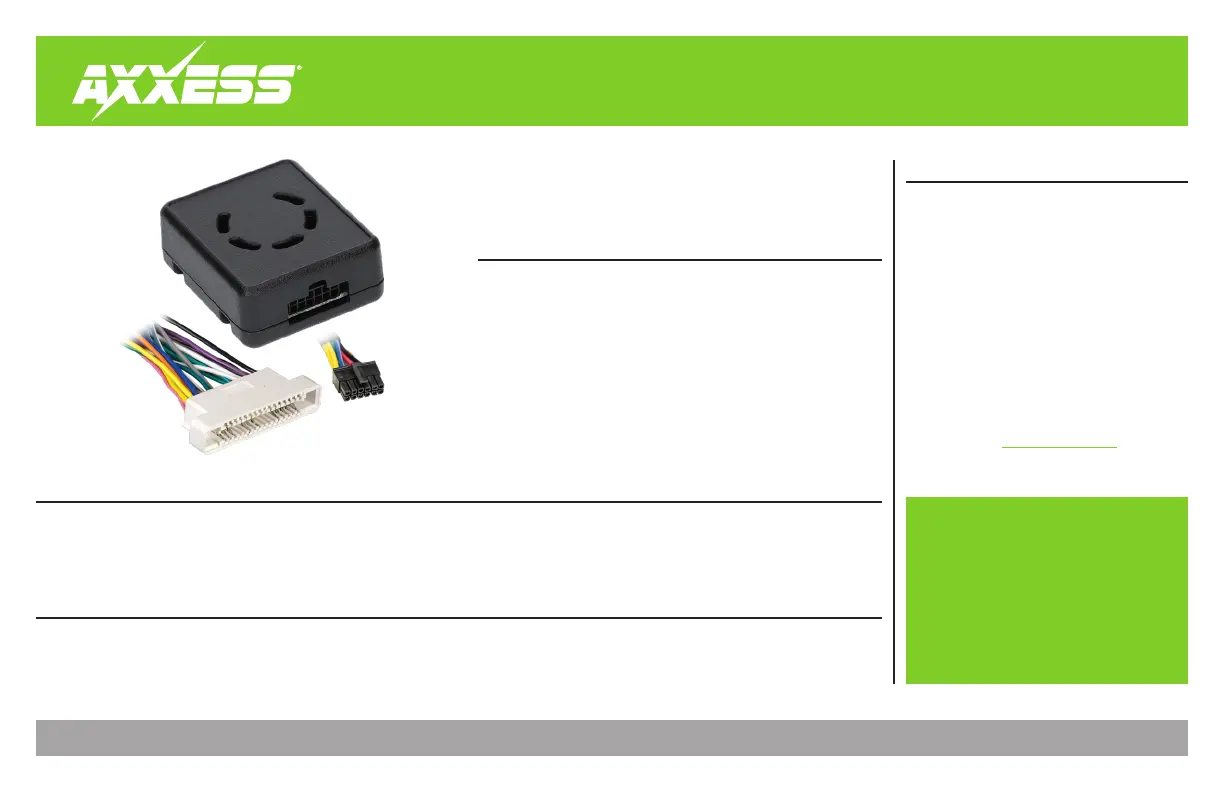

AXDI-GM4

INSTALLATION INSTRUCTIONS

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product.

Ensure that all installation connections,

especially the air bag indicator lights, are

plugged in before reconnecting the battery

or cycling the ignition to test this product.

NOTE: Refer also to the instructions

included with the aftermarket accessory

before installing this device.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Cutting tool • Tape • Crimping tool

• Connectors (i.e. butt-connectors, bell caps, etc.)

TABLE OF CONTENTS

Connections

LD-LCGM-O4 DIAGRAM .....................................2

Installation .............................................................3

Programming .........................................................3

GM Chime Interface 2000-2005

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (Retained Accessory Power)

•

Provides wires for multimedia radios (park brake, reverse, speed sense)

• Used in non-amplified models, or when bypassing a factory amplifier

• Used in models without OnStar

or when not retaining OnStar

• Retains all warning chimes

• High level speaker input

• Retains balance and fade

• Micro “B” USB updatable

• AXDI-GM4 interface

• LD-LCGM-04 harness

APPLICATIONS

Buick

LeSabre ........................................... 2000-2005

Oldsmobile

Aurora .............................................. 2001-2003

Pontiac

Bonneville ......................................2000-2005

Visit AxxessInterfaces.com

for more detailed information about the product

and up-to-date vehicle specific applications

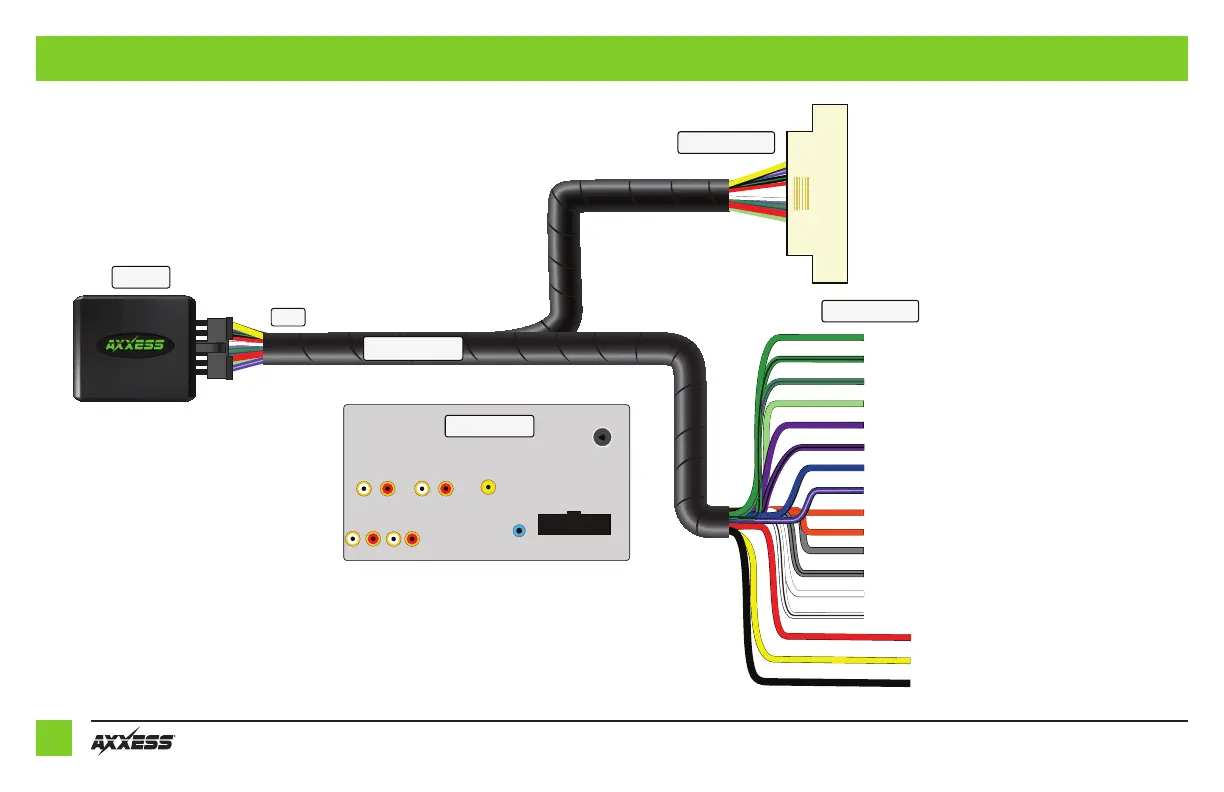

CONNECTIONS: LD-AXDI-GM4 DIAGRAM

12-Pin

AUX-IN

Rear View

SWC

Aftermarket Radio

Front

Rear

Sub

Vehicle Connector

Radio Connections

Interface

Blue - Antenna turn on

Blue/Pink - VSS/Speed-Sense

Orange - Illumination

Orange - No Connection

Gray - Front right + speaker

Gray/Black - Front right - speaker

White - Front left + speaker

White/Black - Front left - speaker

Red - Accessory power

Yellow - Battery wire

Black - Ground wire

Green - Rear left speaker + output

Green/Black - Rear left - speaker output

Green/Purple - Reverse backup camera

Light Green - Parking brake

Purple - Rear right + speaker output

Purple/Black - Rear right - output

(Your radio’s features may vary)

LD-LCGM-04

Note: Use either of the orange

wires and disregard the other one.

}
