AXDI-GMLN10

INSTALLATION INSTRUCTIONS

Product Info

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

OPTIONAL ACCESSORIES (sold separately)

Extension Harness: AXEXH-GM10

TABLE OF CONTENTS

Connections: LD-LCLAN-10 Harness ......................2

Installation .............................................................3

Programming .........................................................3

APPLICATIONS

INTERFACE COMPONENTS

• AXDI-GMLN10 interface • AXDI-GMLN10 harness

(1) With RPO code I0B • (2) With RPO code I0A

The IOA/IOB codes, if applicable, are in the Service Parts Identification labels in the following locations: Rear Compartment Floor: Malibu

Glovebox: Canyon/Colorado/Cruze/Equinox/Silverado/Sierra Note: RPO (QR codes) are in the driver door jam or “B Pillar” on the VIN label.

Data Interface

Fits Select Chevrolet/GMC Models 2016-2021

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip-ties

CHEVROLET

Camaro (1) ..........................2016-2018

Colorado (1) ........................ 2017-2021

Cruze (2) .............................. 2016-2018

Equinox (1) ...................................2018

Malibu (2) ............................ 2016-2018

Silverado (1) .......................2016-2018

Silverado LD (1) ...........................2019

Trax (2) ...............................2017-2020

GMC

Acadia (1) .................... 2017-2019

Canyon (1) ...........................2017-2018

Sierra (1) ..............................2016-2018

Sierra Limited (1) .........................2019

Sierra 2500/2500 HD (1) ....2016-2019

Terrain (1)............................2018-2019

Visit AxxessInterfaces.com for more detailed

information about the product and up-to-date

vehicle specific applications.

INTERFACE FEATURES

• Designed for non-amplified systems or bypassing a factory amplifier

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (Retained Accessory Power)

• Provides NAV outputs (parking brake, reverse, speed sense)

• NOT pre-wired for AXSWC

• Retains factory chimes

• Retains all warning chimes through onboard speaker

• Retains the factory backup camera, if equipped

• Retains balance & fade

• High-level speaker input

• Micro “B” USB updatable

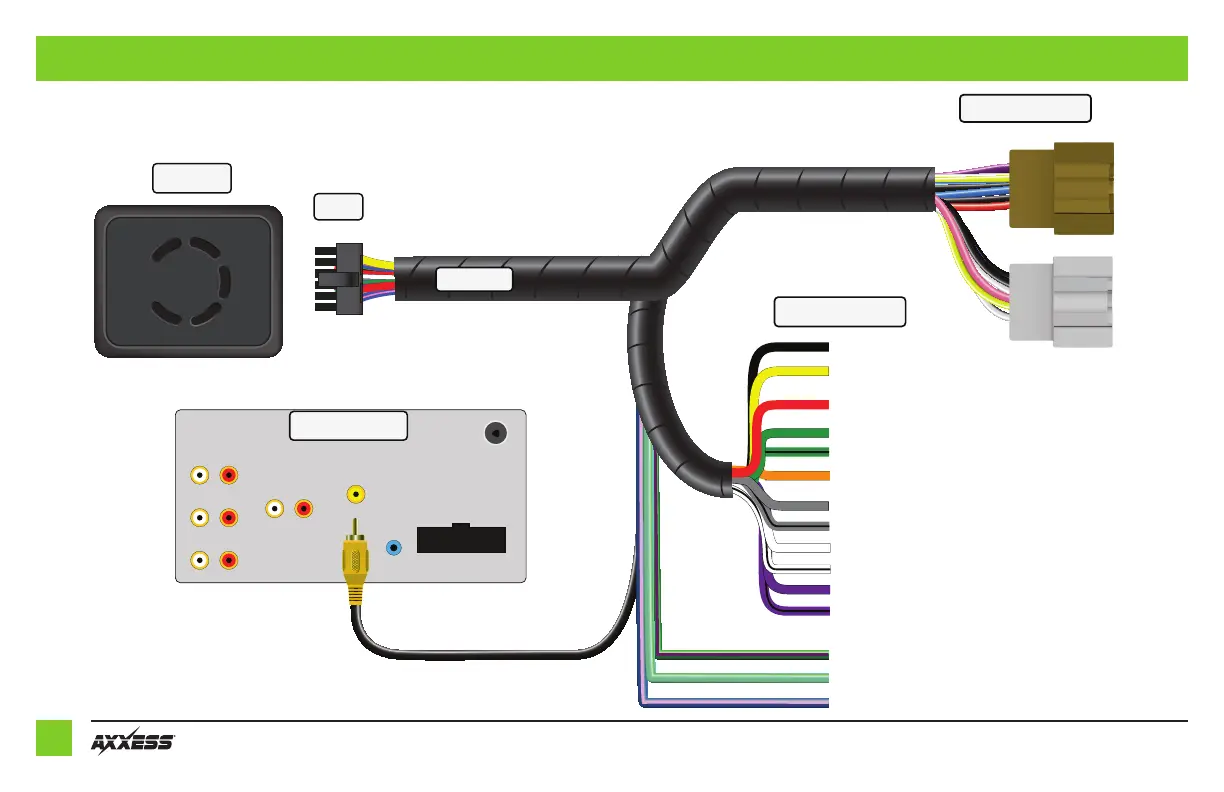

CONNECTIONS: LD-LCLAN-10 HARNESS

Black - Ground wire

Yellow - Battery wire

Red - Accessory power

Green - Rear left speaker + output

Green/Black - Rear left - speaker output

Orange - Illumination

Gray - Front right + speaker

Gray/Black - Front right - speaker

White - Front left + speaker

White/Black - Front left - speaker

Purple - Rear right + speaker output

Purple/Black - Rear right - output

Front

Rear

Sub

AUX-IN

Rear View

SWC

Aftermarket Radio

(Your radio’s features may vary)

LD-LCLAN-10

Green/Purple - Reverse backup camera

Light Green - Parking brake

Blue/Pink - VSS/Speed-Sense

16-Pin

Vehicle Connectors

Radio Connections

Interface
