Side 1/4

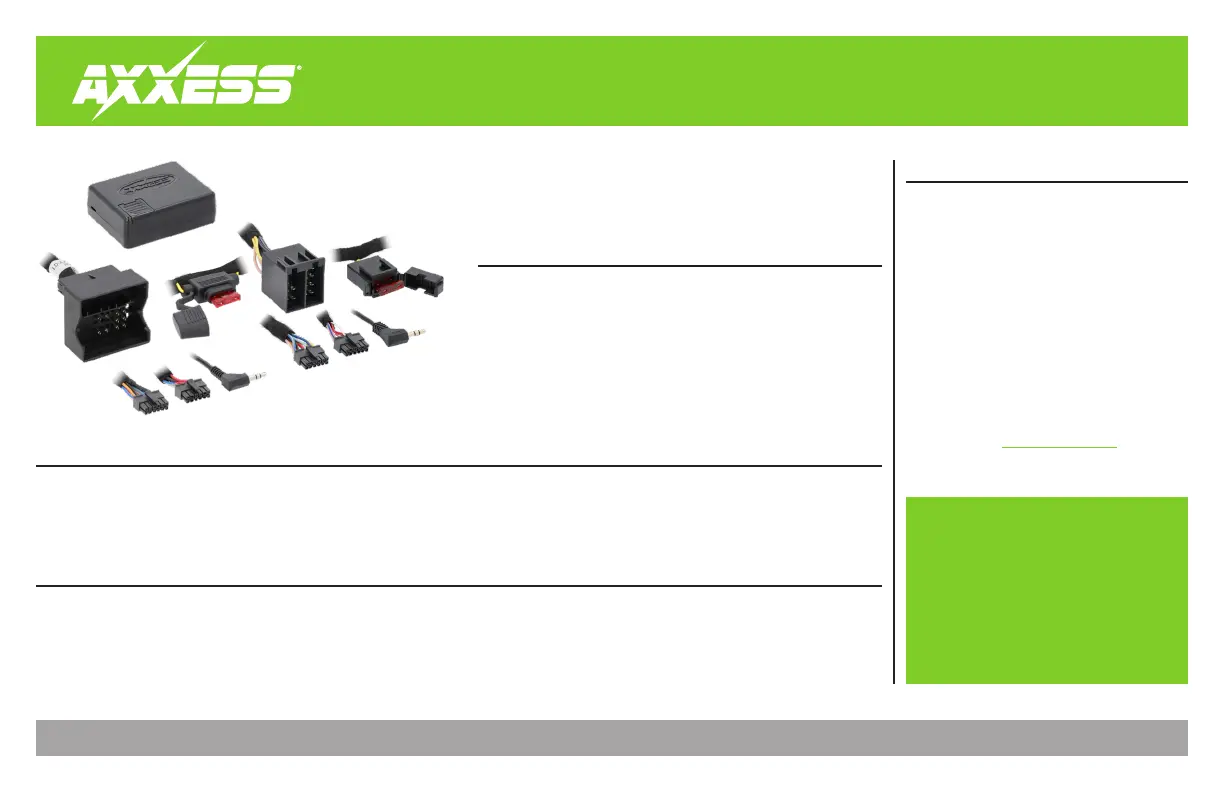

AXDI-SP1

INSTALLATION INSTRUCTIONS

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product.

Ensure that all installation connections,

especially the air bag indicator lights, are

plugged in before reconnecting the battery

or cycling the ignition to test this product.

NOTE: Refer also to the instructions

included with the aftermarket accessory

before installing this device.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties

TABLE OF CONTENTS

Connections ........................................................ 2-3

LD-AXVI-SP1 DIAGRAM ...................................... 2

LD-AXVI-SP2 DIAGRAM .....................................3

Installation .............................................................4

Programming .........................................................4

Dodge/Mercedes/Freightliner

Accessory and NAV Outputs 2007-UP

• Provides accessory (12-volt 10-amp)

• Retains R.A.P. (Retained Accessory Power)

•

Provides wires for multimedia radios (park brake, reverse, speed sense)

• Prewired AXSWC harness included+ (AXSWC sold separately)

• High level speaker input

• USB updatable

• AXDI-SP1 interface

• LD-AX-XSVI-SP1 harness

• LD-AX-XSVI-SP2 harness

APPLICATIONS

Dodge

Sprinter .................................................... 2007

Sprinter (Sound 5 radio) ...............2008-2009

Mercedes

Sprinter (Sound 5 radio) ................2010-2013

Freightliner

Sprinter .................................................... 2007

Sprinter (Sound 5 radio) ..................2008-UP

Visit AxxessInterfaces.com

for more detailed information about the product

and up-to-date vehicle specific applications

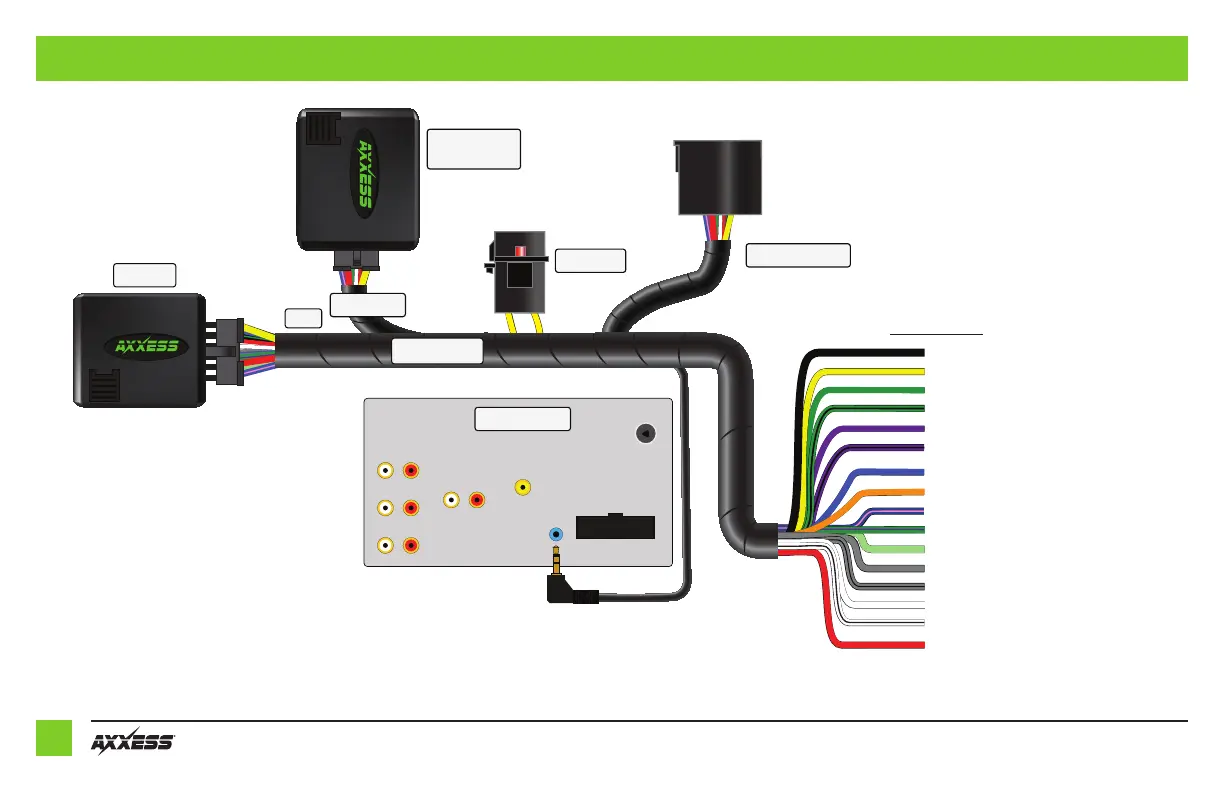

CONNECTIONS: LD-AXVI-SP1 DIAGRAM

Front

Rear

Sub

AUX-IN

Rear View

SWC

Aftermarket Radio

12-Pin

Vehicle Connectors

SWC Harness

Steering Wheel

Control (AXSWC)

(Sold Separately)

Fuse Holder

LD-AXVI-SP1

Interface

Orange - Illumination

Blue/Pink - VSS/Speed-Sense

Green/Purple - Reverse signal

Light Green - Parking brake

Gray - Front right speaker +

Gray/Black - Front right speaker -

White - Front left speaker +

White/Black - Front left speaker -

Red - Accessory power

Radio Connections

Black - Ground wire

Yellow - Battery wire

Green - Rear left speaker + output

Green/Black - Rear left - speaker output

Purple - Rear right + speaker output

Purple/Black - Rear right - output

Blue - Antenna turn on

For Vehicles equipped

with a Single DIN CD Player
