AXDI-VW1

INSTALLATION INSTRUCTIONS

ATTENTION: With the key out of the

ignition, disconnect the negative battery

terminal before installing this product. Ensure

that all installation connections, especially the

air bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip-ties

TABLE OF CONTENTS

Connections: LD-AX-XSVI-VW1 .............................2

Installation .............................................................3

Programming .........................................................3

Volkswagen Data Interface 2002-2017

APPLICATIONS

INTERFACE FEATURES

• Can be used in non-amplified, or analog amplified systems

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (Retained Accessory Power)

• Provides wires for multimedia radios (park brake, reverse, speed sense)

• Prewired AXSWC harness (AXSWC sold separately)

• Retains balance and fade*

• Micro-B USB updatable

*Excluding digital-(Fender) amplified models

Volkswagen

Beetle ................................................. 2012-2015

CC ....................................................... 2009-2017

EOS ....................................................2007-2016

Golf

(with double DIN factory radio) ........ 2002

Golf ................................................... 2003-2006

Golf, Golf R ........................................ 2010-2014

GTI .....................................................2002-2014

Jetta

(with double DIN factory radio)

.......2002

Jetta ..................................................2003-2015

Jetta GLI ............................................2006-2015

Jetta Sportwagen ............................ 2010-2014

Passat................................................2002-2015

R32 ...................................................2007-2008

Rabbit ..............................................2007-2009

Tiguan ...............................................2009-2015

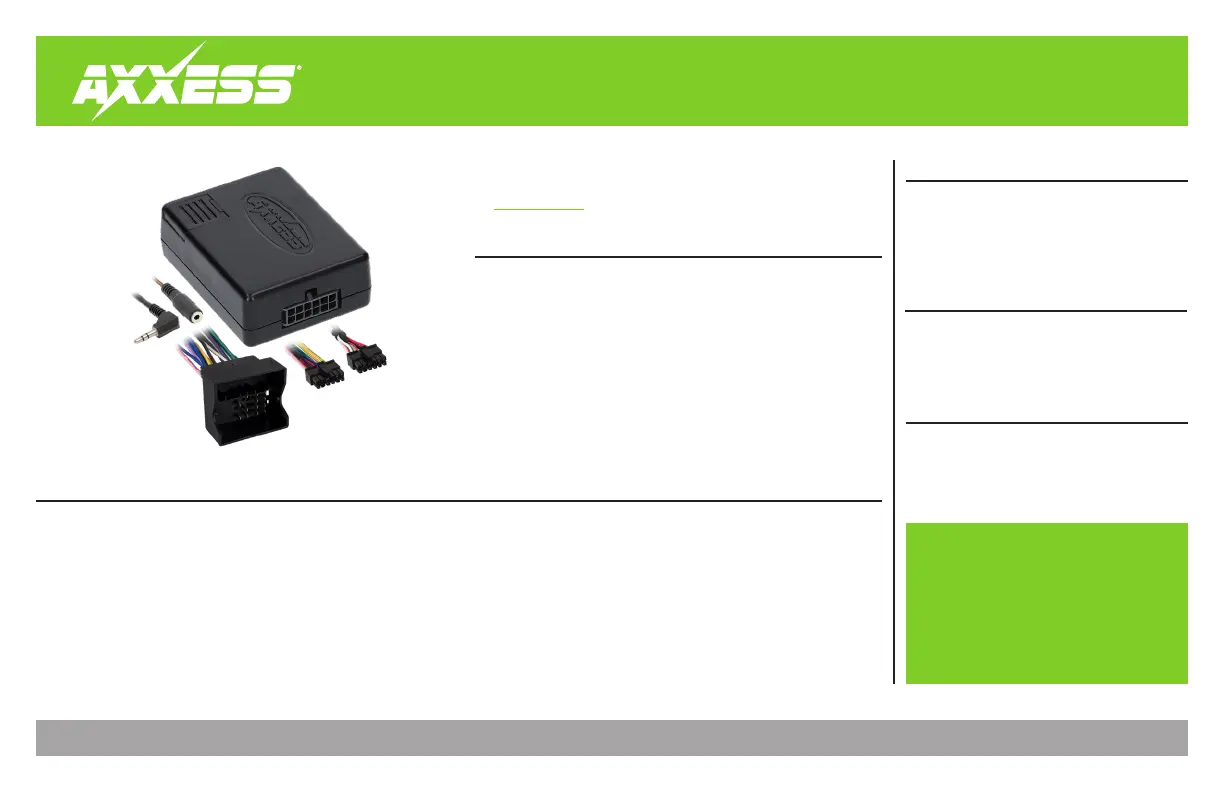

INTERFACE COMPONENTS

• AXDI-VW1 interface

• LD-AX-XSVI-VW1 harness

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date

vehicle specific applications

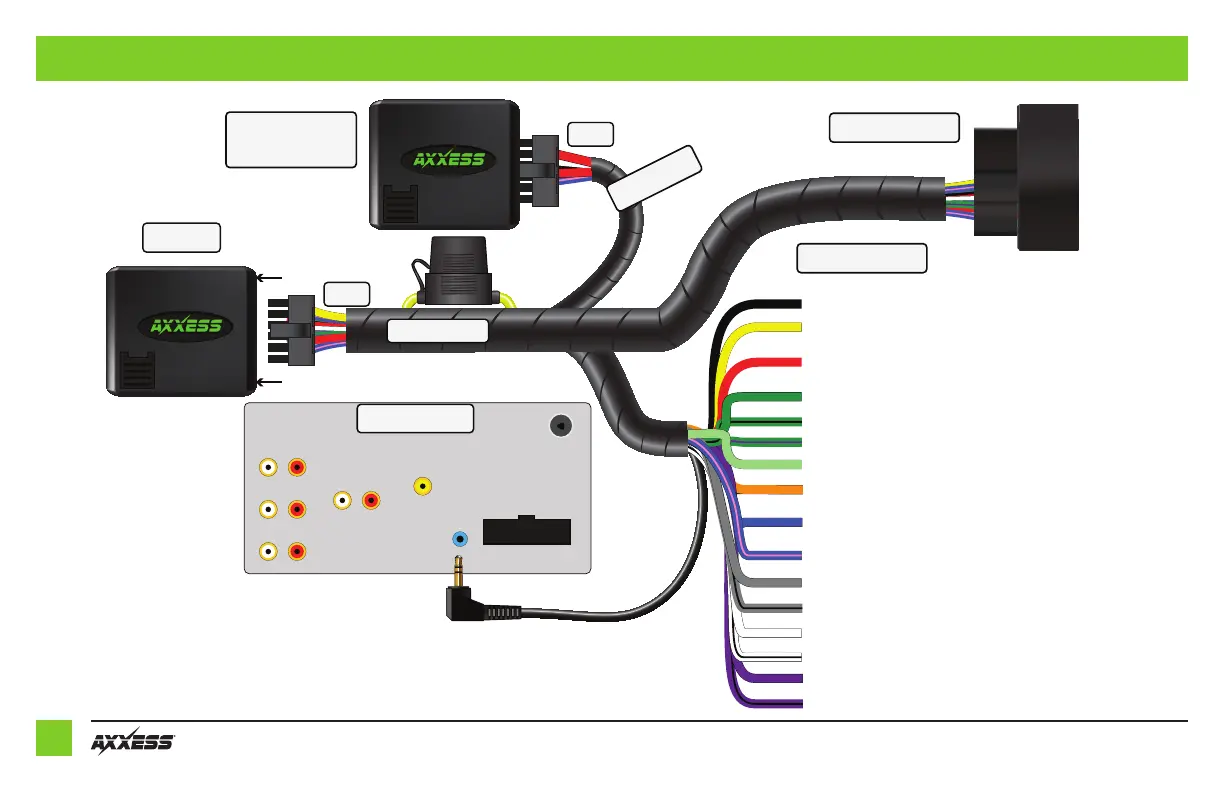

CONNECTIONS: LD-AX-XSVI-VW1

Steering Wheel

Control (AXSWC)

(Sold Separately)

Front

Rear

Sub

AUX-IN

Rear View

SWC

Aftermarket Radio

(Your radio’s features may vary)

LD-AX-XSVI-VW1

Black - Ground wire

Yellow - Battery wire

Red - Accessory power

Green - Rear left speaker + output

Green/Black - Rear left - speaker output

Green/Purple

- Reverse backup camera

Light Green - Parking brake

Orange - Illumination

Blue - Amp turn on

Blue/Pink - VSS/Speed-Sense

Gray - Front right + speaker

Gray/Black - Front right - speaker

White - Front left + speaker

White/Black - Front left - speaker

Purple - Rear right + speaker output

Purple/Black - Rear right - output

12-Pin

Vehicle Connector

Radio Connections

Interface

12-Pin

SWC Harness
