AXDIS-BW122

INSTALLATION INSTRUCTIONS

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

INTERFACE COMPONENTS

• AXDIS-BW122 interface • BLK-AXDIS-BW122 B harness

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties

TABLE OF CONTENTS

Connections: BLK-AXDIS-BW122 B Harness .........2

Steering Wheel Control (SWC) Chart ...................3

Installing the AXDIS-BW122 interface ..................4

Installing the Fiber Optic Cable.............................4

MOST25

Radio Replacement Data Interface

w/SWC Fits Select BMW Models 2004-2019

INTERFACE FEATURES

• Designed for MOST25 amplified systems

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (Retained Accessory Power)

• Provides NAV outputs (parking brake, reverse, speed sense)

• Retains audio controls on the steering wheel

• Easy to set DIP switches for SWC configuration

• Retains phone buttons (radio dependent)

• Retains factory features: date, time, temperature display

• Warning and parking sensor chimes are NOT retained

• Backup Camera NOT retained if equipped

• Micro “B” USB updatable

APPLICATIONS

BMW US Models

1 Series (E82, E87, E88) ......................................................2008-2013

3 Series (E90, E91, E92, E93) ..............................................2006-2012

5 Series (E60, E61) ............................................................ 2004-2010

X6 ........................................................................................ 2015-2019

X6 (E71) .............................................................................. 2008-2014

BMW World Models

1 Series (E82, E87, E88) ..................................................... 2004-2014

3 Series (E90, E91, E92, E93) ..............................................2005-2012

5 Series (E60, E61) ............................................................. 2004-2010

X6 (E71) .............................................................................. 2008-2014

Visit AxxessInterfaces.com for more detailed information

about the product and up-to-date vehicle specific applications.

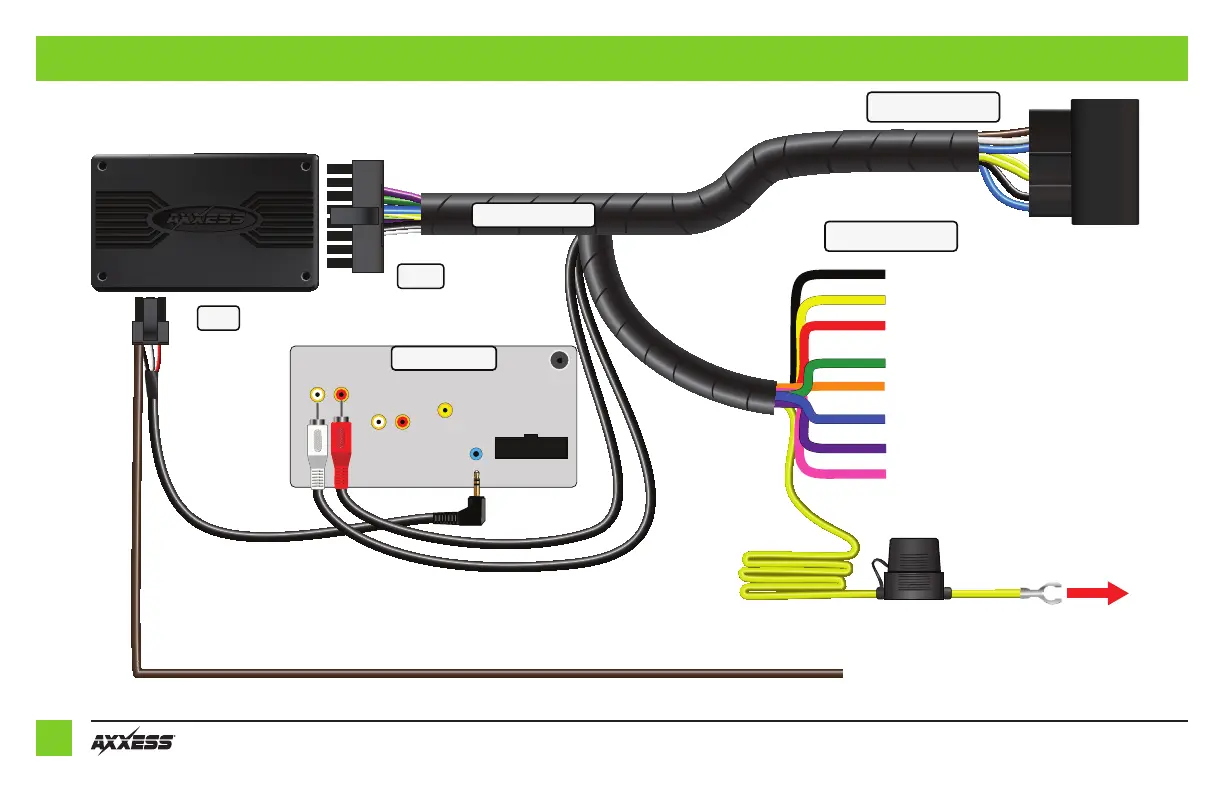

CONNECTIONS: BLK-AXDIS-BW122 B HARNESS

Front

Rear

Sub

AUX-IN

Rear View

SWC

Aftermarket Radio

(Your radio’s features may vary)

Black - Ground wire

Yellow - Battery wire

Red - Accessory power

Green - Reverse

Orange - Illumination

Blue - AMP Turn On

Purple - E-Brake

Pink - VSS

6-Pin

To Battery

16-Pin

Vehicle Connector

Radio Connections

BLK-AXDIS-BW122 B

Brown - Wired SWC

“Kenwood/JVC”
