AXDIS-CL2
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 5/15/25 INSTAXDIS-CL2
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
INTERFACE FEATURES
INTERFACE COMPONENTS
TABLE OF CONTENTS
Applications ...........................................................2
Tools Required .......................................................2
Connections
Non-Amplified Models .......................................3
Amplified Models ................................................ 4
Installation .............................................................5
Programming .....................................................5-6
Adjusting the AXDIS-CL2 ....................................... 7
Extra features ..................................................... 7-8
Steering wheel control settings ......................9-12
LED feedback .......................................................9
Changing radio type ......................................... 10
Remapping ........................................................ 10
Dual assignment instructions ..................... 11-12
Troubleshooting....................................................12
Radio Replacement Data Interface with SWC
Fits Select GM Models 2000-2014
APPLICATIONS
See inside front cover
•
Designed for non-amplified, or analog/digital amplified models
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
•
Retains OnStar
®
, OEM Bluetooth
®
connectivity, and satellite
radio if equipped
• Adjustable volume for OnStar
®
• Retains balance & fade (excludes digital amplified models)
• Retains chimes and factory AUX-IN jack
• Retains Rear Seat Entertainment (RSE must be activated by the
factory radio)
• Micro “B” USB updatable

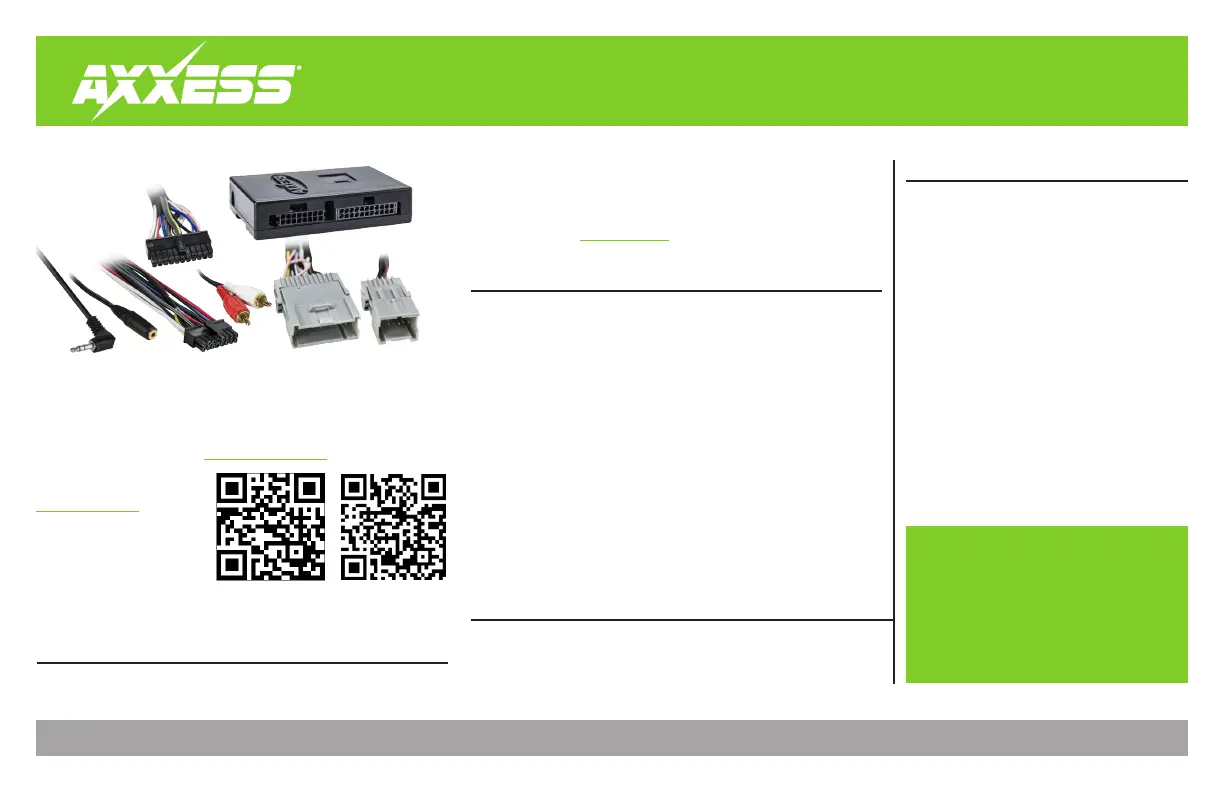

• AXDIS-CL2 interface • AXDIS-CL2 harness
• 16-pin harness with stripped leads • 4-pin to 4-pin resistor pad
• Female 3.5mm connector with stripped leads
Product Infowww.MetraOnline.com
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications.
For Dash Disassembly
Instructions, refer to
metraonline.com . Enter the
year, make, and model of
the vehicle in the Vehicle Fit
Guide for Radio Install kits.
2
• Wire cutter • Crimp tool • Tape • Small flat-blade screwdriver
• Crimping tool and connectors (example: butt-connectors, bell caps, etc.), or solder gun, solder
APPLICATIONS
BUICK
Allure ..................................................2005-2009
Century ............................................... 2004-2005
LaCrosse ..............................................2005-2009
Rainier ...............................................2004*-2007
Rendezvous .........................................2002-2007
Terraza ................................................ 2005-2008
CADILLAC
Escalade ESV & EXT*** ....................... 2003-2006
CHEVROLET
Avalanche** ....................................... 2003-2006
Cavalier ...............................................2000-2005
Colorado ..............................................2004-2014
Corvette ............................................... 2005-2013
Express Van (Full Size) .......................2003-2007
Impala .................................................2000-2005
CHEVROLET (CONT)
Malibu (2004-05 Classic Style only)
... 2001-2005
Monte Carlo ........................................ 2000-2005
Silverado ** ........................................ 2003-2006
Silverado Pickup Classic** ............................2007
SSR* ..................................................... 2003-2006
Suburban** ......................................... 2003-2006
Tahoe** ............................................... 2003-2006
Trailblazer* ......................................... 2002-2004
Trailblazer ...........................................2005-2009
Uplander ............................................. 2005-2008
Venture Van .......................................2000-2005
GMC
Canyon .................................................2004-2012
Envoy* ................................................ 2002-2004
GMC (CONT)
Envoy ..................................................2005-2009
Savana (Full Size Van) ........................2003-2007
Sierra /Sierra Classic** ........................2003-2007
Yukon / Yukon XL**/Denali ............... 2003-2006
HUMMER
H2*** ....................................................2003-2007
H3/H3t .................................................. 2006-2010
ISUZU
Ascender ............................................. 2003-2008
i-280 .............................................................. 2006
i-290.................................................... 2007-2008
i-350 .............................................................. 2006
i-370 .................................................... 2007-2008
OLDSMOBILE
Alero ....................................................2001-2004
Bravada* ............................................. 2002-2004
Intrigue ..........................................................2002
Silhouette ........................................... 2000-2004
PONTIAC
Aztec ....................................................2001-2005
Grand Am ............................................2001-2005
Grand Prix ...........................................2004-2008
Montana ..............................................2000-2005
Sunfire ................................................2000-2005
SAAB
9-7x .....................................................2005-2009
SATURN
Relay ....................................................2005-2007
*
These vehicles have a digital amp option. Please reference the “Service Parts Identification” sticker
located in the glove box for the RPO code UQA. If UQA is present, then the vehicle is equipped with a
digital amplifier.
**
These vehicles have a digital amp option. Please reference the “Service Parts Identification” sticker
located in the glove box for the RPO code Y91. If Y91 is present, then the vehicle is equipped with a
digital amplifier.
***
These vehicles are standard for a digital amplifier.
TOOLS REQUIRED
