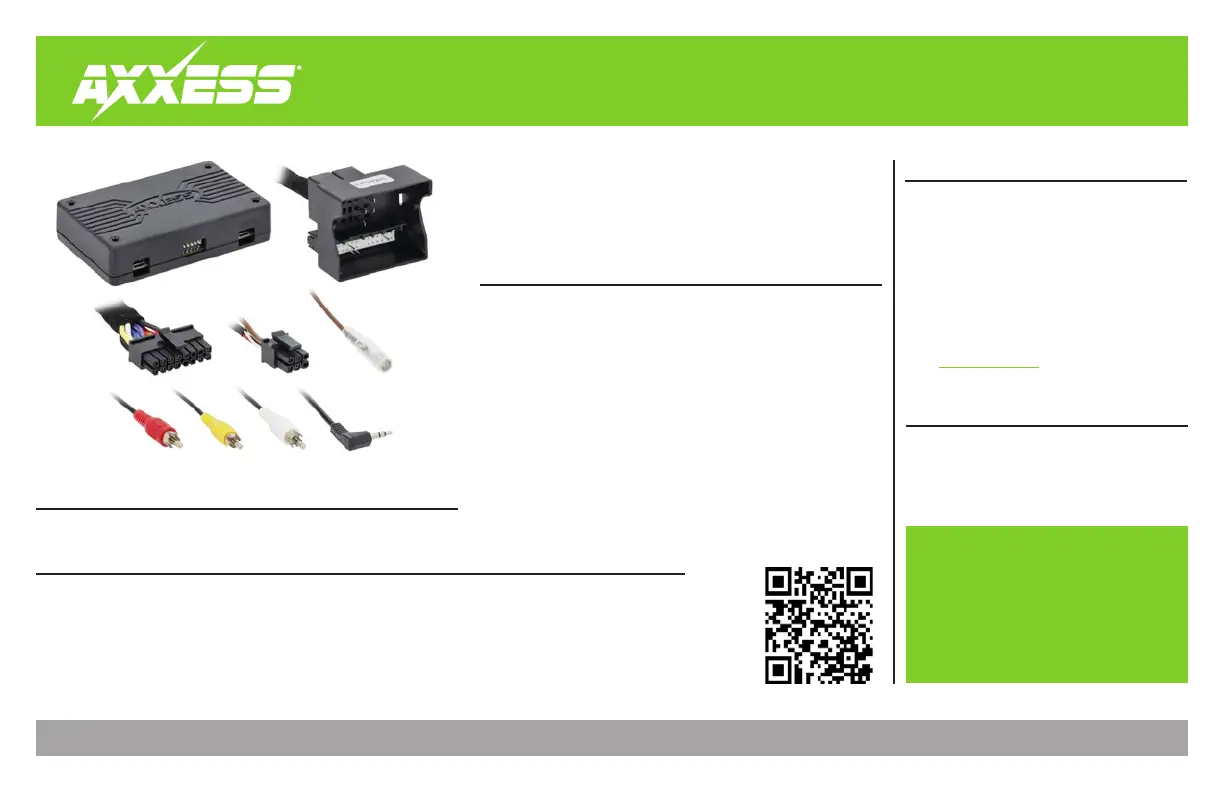

AXDIS-PO72
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 9/2/25 INSTAXDIS-PO72
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
• Designed for MOST25
®
amplified systems with PCM 3.1
• Provides accessory power (12-volt 10-amp)
• Retains R.A.P. (Retained Accessory Power)
• Provides NAV outputs (parking brake, reverse, speed sense)
• Retains audio controls on the steering wheel
• Easy to set DIP switches for SWC configuration
• Retains backup camera if equipped
• Micro “B” USB updatable
TOOLS REQUIRED
• Wire cutter • Crimp tool and connectors
(example: butt-connectors, bell caps, etc.) or
• Solder gun, solder, heat shrink
• Tape • Zip ties
TABLE OF CONTENTS
Connections: BLK-AXDIS-PO72 Harness ............... 2
Applicable Radio ....................................................3
SWC Chart Dipswitch Table ...................................4
Installing the AXDIS-PO72 Interface .....................5
Installing the Fiber Optic Cable.............................5
Installation Tips ...................................................... 6
MOST25
®
Radio Replacement Data Interface
w/SWC Fits Select Porsche Models 2010-2016*
INTERFACE FEATURES
INTERFACE COMPONENTS
• AXDIS-PO72 interface • AXDIS-PO72 harness
APPLICATIONS (Refer to radio image on Page 3 for Proper Vehicle Coverage)
Product Info
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications
* Not compatible with Burmester
®
Audio Systems
Porsche
911 (991) .....................................................2012-2016
911 (991 World Model) ...............................2012-2016
Cayenne (92A gen2) ..................................2011-2016
Cayenne (92A gen2 World model)...........2011-2016
Macan(95B) ...............................................2015-2016
Macan(95B World Model) .........................2015-2016
Panamera (970) ........................................2010-2016
Panamera (970 World model) ...............2010-2016
2

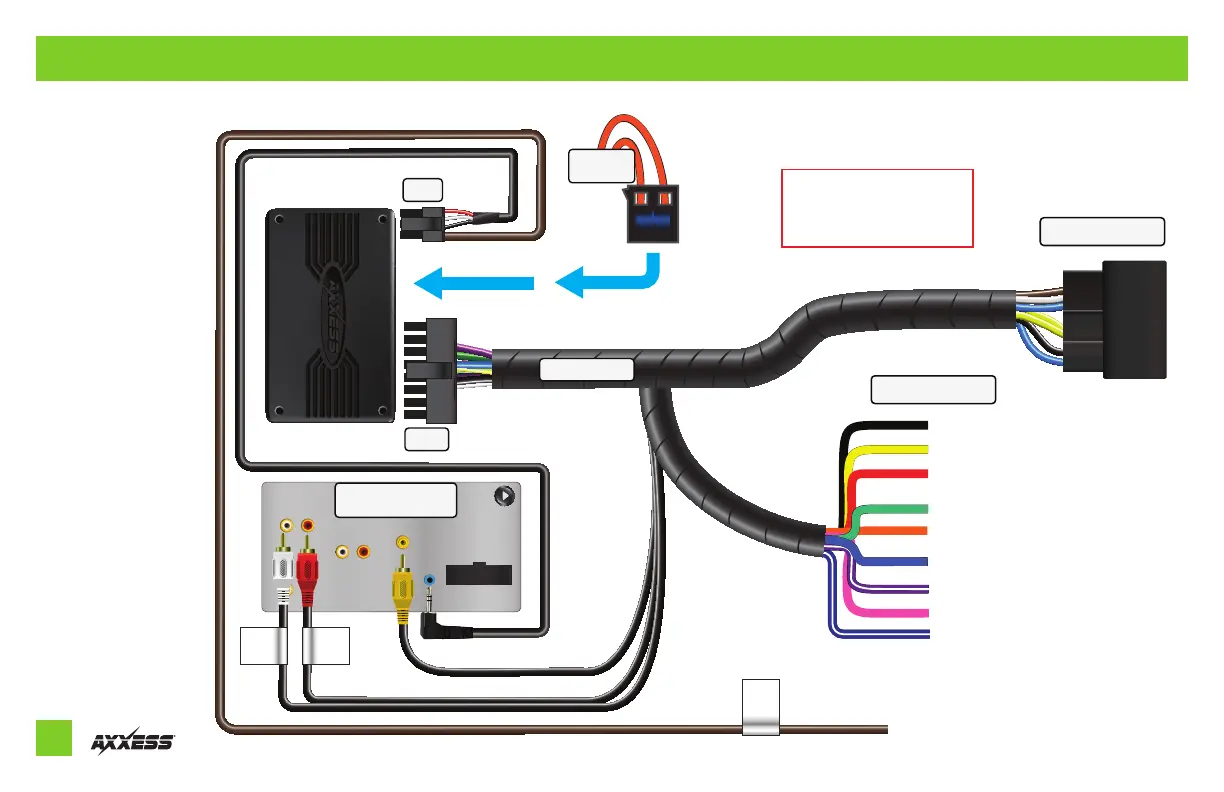

CONNECTIONS: BLK-AXDIS-PO72 HARNESS
Black - Ground wire
Yellow - Battery wire +
Red - Accessory power
Light Green - Brake
Orange - Illumination
Blue - AMP CON
Purple/White - Reverse
Pink - Speed
6-Pin
IR
Front
Right
Front
Left
Blue/White - ANT CON
16-Pin
Vehicle Connector
Radio Connections
BLK-AXDIS-PO72
Brown - Wired SWC
“Kenwood/JVC”
Installing the Fiber Optic Cable:
1.
Remove the OE Fiber Optic Cable for the factory Radio
Factory Fiber
Optic Connector
Refer to
Installing the Fiber Optic Cable
section on the next page
Aftermarket Radio
(Your radio’s features may vary)
*BACK*
Front
Rear
Sub
AUX-IN
Rear View
SWC
