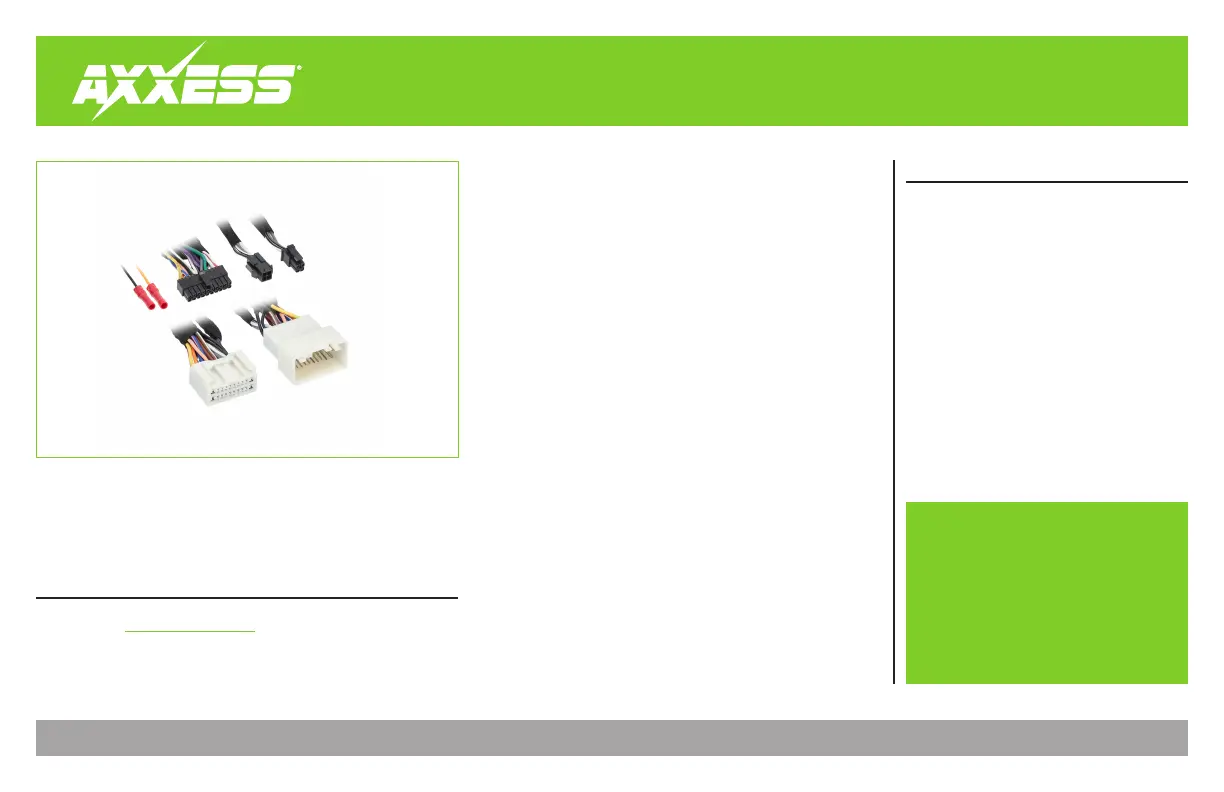

AXDSPH-TY1

INSTALLATION INSTRUCTIONS

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the

ignition to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before

installing this device.

TABLE OF CONTENTS

Installation Options ...............................................2

Installation .............................................................2

20-Pin Harness Pinout...........................................3

Adding A Subwoofer To A Factory System...........4

Adding A Full-Range Amp and

Subwoofer To A Factory System ........................5

AX-DSP T-Harness

The Axxess T-harness is a basic and simple plug-n-play harness for

easy installation of the AXDSP-X or AXDSP-L (sold separately) for

vehicle speciﬁc applications. Most T-harnesses created by Axxess

will have an 8-pin harness, with the speaker wires pinned. If you are

installing a 4-channel ampliﬁer with one of the AXDSP interfaces,

leave these connectors disconnected. The only reason for connecting

these harnesses together would be if the AXDSP interface is being

used for adding a subwoofer ampliﬁer only. Some T-harnesses

require additional wiring and/or installation steps, see page 2.

Refer to page 3 for a pinout legend for the 20-pin harness, and also

additional wiring and notes.

APPLICATIONS

Visit AxxessInterfaces.com for more detailed

information about the product and

up-to-date vehicle speciﬁc applications.

Visit Metraonline.com or AxxessInterfaces.com

for harness and interface options.

Visit

AxxessInterfaces.com

for current application list.

Adding a subwoofer to a factory system:

The diagram on Page 4 shows the connections that need to be made to add a subwoofer to the

factory system.

Note: RCA jacks sold separately.

Adding a full-range of amps and subwoofer to a factory system:

The diagram on Page 5 shows the connections that need to be made to add: Subwoofer (RCA jacks

sold separately)

Ampliﬁer (SPDT relay E-123 required) or

Additional Amp (RCA jacks sold separately).

Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing

multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps

combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.

1. Disassemble the dash, unplug all connectors, and then remove the factory radio.†

2. Install the AXDSPH-TY1 vehicle T-harness to the vehicle and make all necessary

connections, but leave the amp turn-on wire disconnected.

3. Plug the AXDSPH-TY1 vehicle T-harness to the AXDSPH-TY1 interface.

4. Plug the AXDSPH-TY1 interface harness to the AXDSPH-TY1 interface.

5. Download the AXDSP-XL app from the Google Play Store or Apple App store.

6. Refer to the AXDSP-X or AXDSP-L for tuning instructions.

† For dash disassembly instructions, refer to metraonline.com. Enter the year, make,

and model of the vehicle in the Vehicle Fit Guide and ﬁnd instructions under Metra

Radio Install kits.

INSTALLATION OPTIONS I N STALL AT I O N
