AXDSPX-HK4

INSTALLATION INSTRUCTIONS

DSP Data Interface with Amplifier

Bypass Harness

Fits Select Hyundai/Kia Models 2013-2023

INTERFACE FEATURES

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip-ties • Tone generator

TABLE OF CONTENTS

Installation & Installation Options ........................2

Connections ............................................................3

Mobile App: Quick Setup ................................... 4-5

Specifications /Speaker Assignment QR code.....6

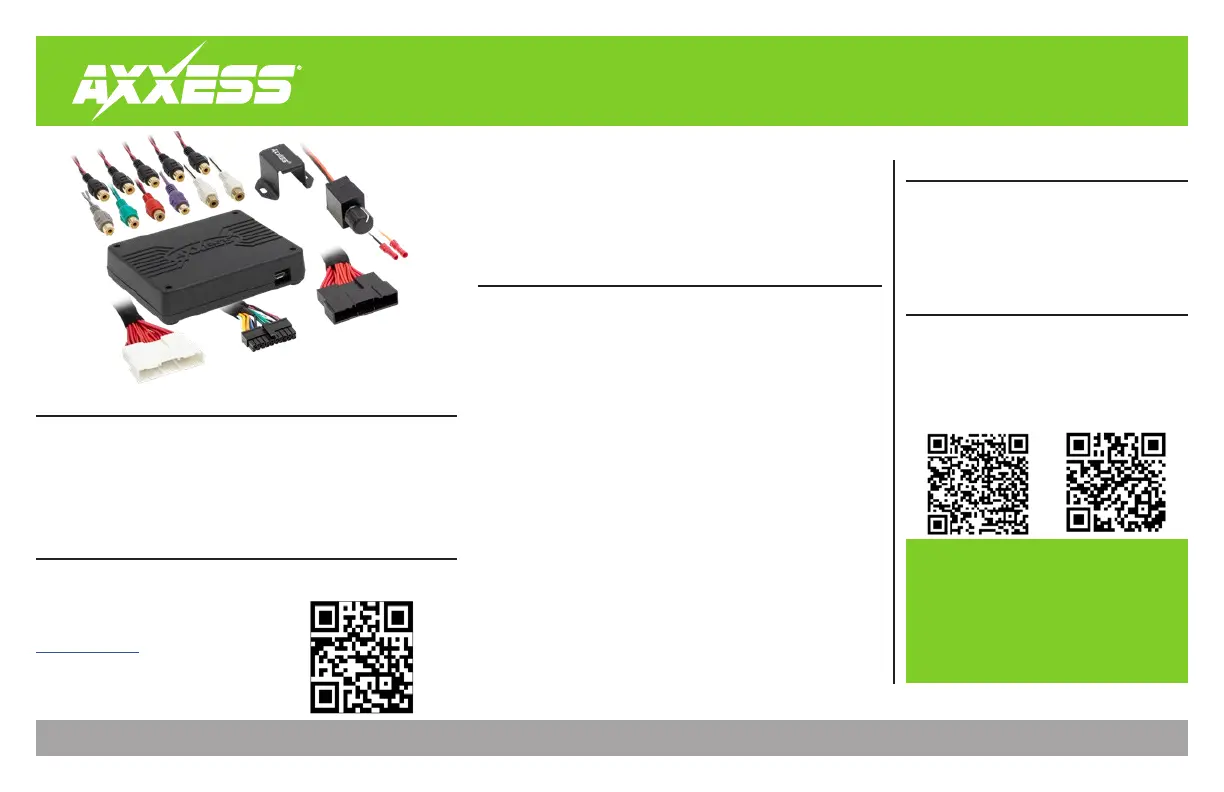

INTERFACE COMPONENTS

• AXDSP-X Interface

• AXBK-1 (Bass Knob)

• LD-DSP-HYKIA4 harness

• Amplifier bypass harness (integrated)

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

• Retains ability to work with S/PDIF

digitally controlled amplified

systems

• Selectable 31-band Graphic EQ or 5-band parametric EQ on each

channel with high pass, low pass, and bandpass filters

• 6 inputs and 10 individually assignable outputs

• Selectable slope (12, 24, 36, or 48db per octave)

• Selectable Graphic or Parametric EQ

• Independent equalization on each of the 10 outputs

• Each channel can be delayed independently up to 10 ms

• Clipping detection and limiting circuits

• Bass knob included

• Retains OE voice prompts (Blue Link

/Uvo

) if vehicle is equipped

• Settings adjusted wirelessly in the free AX-DSP-XL app available

for smartphones and tablets

• Read, write, and store configurations for future recall

• Password protect feature available in the app

• Micro “B” USB updatable

APPLICATIONS

Visit AxxessInterfaces.com for current application list

For Dash Disassembly Instructions, refer to

metraonline.com. Enter the year, make, and

model of the vehicle in the Vehicle Fit Guide

for Radio Install kits.

Download AX-DSP-XL App

iOS

12.1 or higherAndroid™ 9 or higher

1. Locate the factory amp, unplug all connectors, then remove the amp.

Note: Amp location is on the following page.

2. Install the LD-DSP-HYKIA4 harness and make all necessary connections, but leave

the amp turn-on wire disconnected.

3. Plug the 16-pin and 20-pin connectors from the LD-DSP-HYKIA4 harness into the

AXDSP-X.

4. Download and install the AX-DSP-XL app for your smart device.

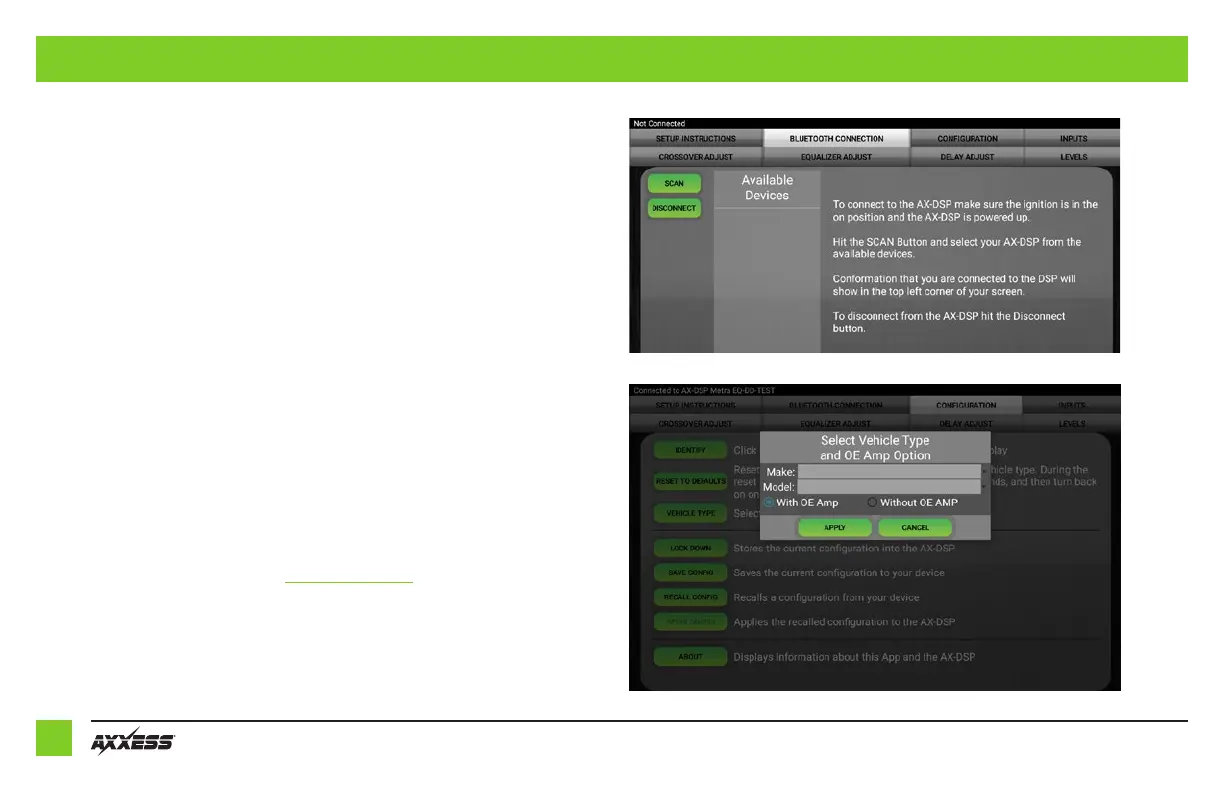

5. Open the app and follow the instructions on the Bluetooth

Connection tab to pair the

mobile device to the AXDSP-X. (Figure A)

6. Scroll to the Configuration tab then select the vehicle type. Press the Lock Down

button to save the configuration. (Figure B)

7. Connect the amp turn-on wire from the LD-DSP-HYKIA4 harness. Click the Identify

button to confirm that the AXDSPX-HK4 is connected properly. If so, a chime will

be heard from the front left speaker. Test all functions of the installation for proper

operation.

Note: The outputs may need to be configured within the Outputs tab.

8. Adjust the DSP settings in the app as desired. Refer to the instructions under the

Setup Instructions tab, or online at Axxessinterfaces.com for an explanation of each

tab in the app.

(Figure A)

(Figure B)

I N STALL ATI O N
