AXDSPX-HK5

INSTALLATION INSTRUCTIONS

Data Interface with Amplifier Bypass

Harness & DSP Fits Hyundai/Kia 2020-Up

INTERFACE FEATURES

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip-ties • Tone generator

TABLE OF CONTENTS

Connections ............................................................2

Mobile App: Quick Setup ................................... 3-4

Specifications /Speaker Assignment QR code.....5

APPLICATIONS

Visit AxxessInterfaces.com for current application list

INTERFACE COMPONENTS

• AXDSP-X Interface

• AXBK-1 (Bass Knob)

• LD-DSP-HYKIA5 harness

• Amplifier bypass harness (integrated)

www.MetraOnline.com

MetraOnline.com may be used to assist

with dash assembly instructions. Simply

enter your Year, Make, Model vehicle

into the Vehicle Fit Guide and look for the

Dash Kit Installation Instructions.

• Designed for SPDIF amplified sound systems

• Includes an amplifier bypass harness

• Retains BlueLink

/UVO voice prompts

• All chimes/voice prompts go through the aftermarket amp

• Micro-B USB updatable

Google Play Store Apple App Store

iOS 12.1 or higher

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator lights, are

plugged in before reconnecting the battery or cycling

the ignition to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

Visit AxxessInterfaces.com for more detailed information

about the product and up-to-date vehicle specific applications.

Android 9 or higher

AXDSP-X

An SPDT relay, Metra part number

E-123, must be used if the amp turn-on

current of all amps exceed 1-amp.

SUB

Factory Amp

(must be removed)

RCA Jacks

(sold separately)

AXBK-1

Blue/White - Amp Turn-On Wire

Red/White - Do Not Use

Additionable Outputs

For Optional Amps

Update Port

CH 6

CH 10

CH 7

CH 8

CH 9

Factory Amp Harness

AXBK-1

LD-DSP-HYKIA5

Note:

Refer to wiring

Amplified Legend Types

chart on page 5

Note:

Refer to wiring

Amplified Legend Types

chart on page 5

Note:

Refer to wiring

Amplified Legend Types

chart on page 5

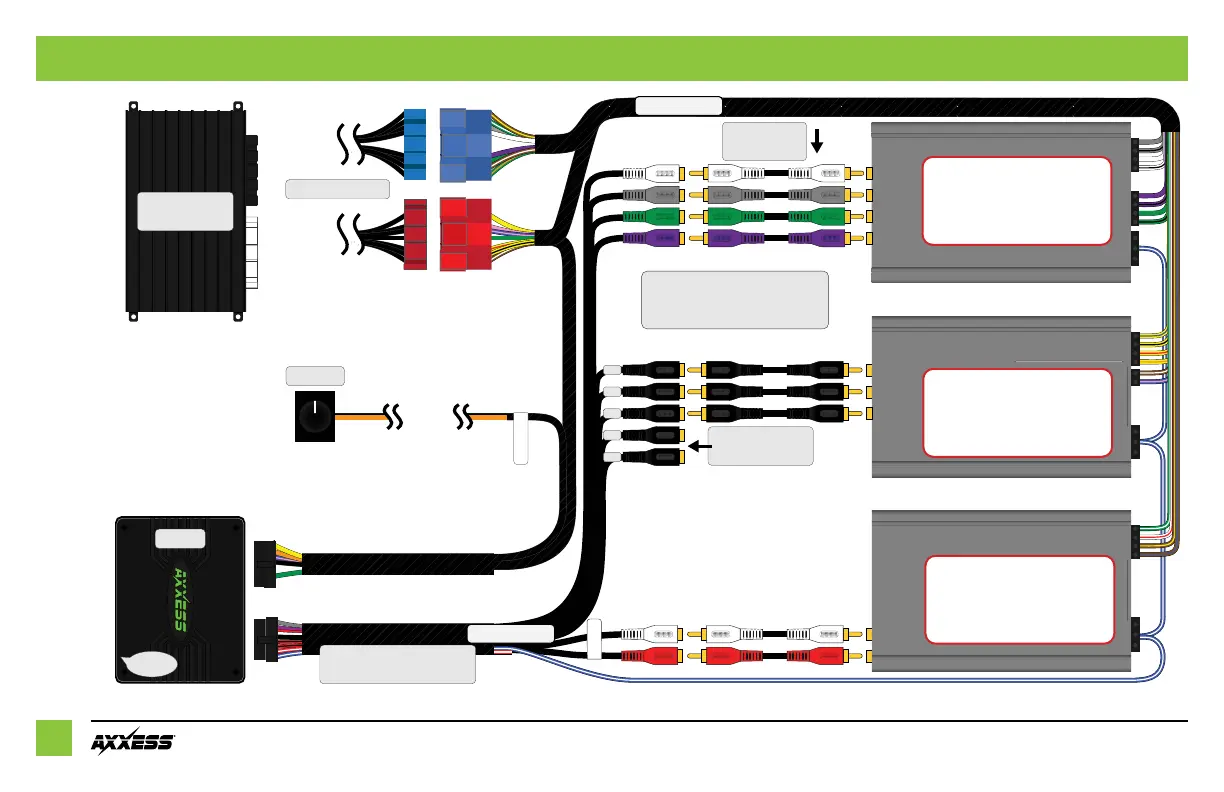

CONNECTIONS: LD-DSP-HYKIA5

Note: Refer to wiring

Amplified Legend Types

chart on page 5

Please see Speaker

Assignment QR Code located

on page 5 of instructions

Please see Speaker

Assignment QR Code located

on page 5 of instructions

Please see Speaker

Assignment QR Code located

on page 5 of instructions
