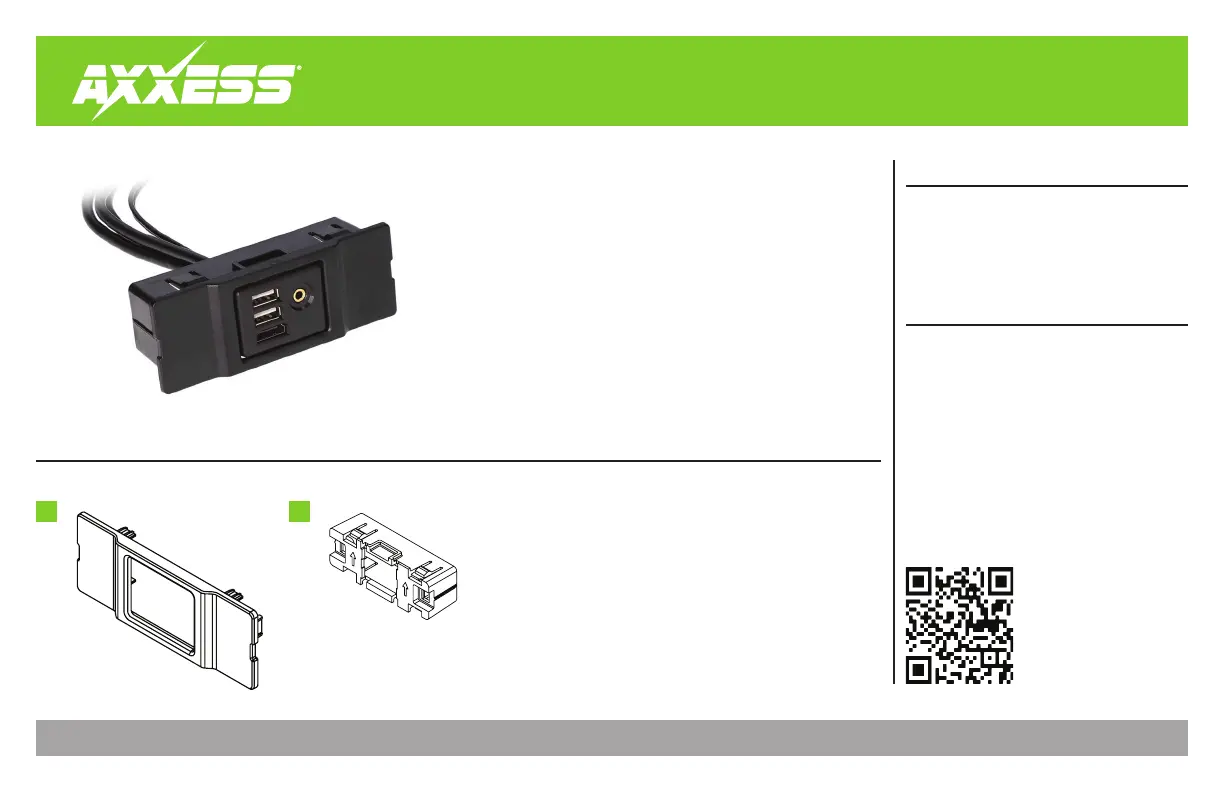

AXFD-USB3
AXFD-USB3
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 11/18/20 INSTAXFD-USB3
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 11/18/20 INSTAXFD-USB3
Product Info
Product Info
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Pry tool
TOOLS & INSTALLATION ACCESSORIES REQUIRED
Pry tool
TABLE OF CONTENTS
Connections ............................................................2
TABLE OF CONTENTS
Connections ............................................................2
Ford Edge 2011-2014
USB Media Hub Replacement
Ford Edge 2011-2014
USB Media Hub Replacement
A
A
B
B
KIT COMPONENTS
• A) Auxiliary source input front panel • B) Auxiliary source input back
KIT COMPONENTS
A) Auxiliary source input front panel B) Auxiliary source input back
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
®
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
toward a better tomorrow.
®
Metra recommends MECP
certified technicians
Metra recommends MECP
certified technicians
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 11/18/20 INSTAXFD-USB3
AxxessInterfaces.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 11/18/20 INSTAXFD-USB3
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS
AXFD-USB3
AXFD-USB3
Having difficulties? We’re here to help.
Contact our Tech Support line at:
386-257-1187
Or via email at:
techsupport@metra-autosound.com
Tech Support Hours (Eastern Standard Time)
Monday - Friday: 9:00 AM - 7:00 PM
Saturday: 10:00 AM - 7:00 PM
Sunday: 10:00 AM - 4:00 PM
Having difficulties? We’re here to help.
Contact our Tech Support line at:
386-257-1187
Or via email at:
techsupport@metra-autosound.com
Tech Support Hours (Eastern Standard Time)
Monday - Friday: 9:00 AM - 7:00 PM
Saturday: 10:00 AM - 7:00 PM
Sunday: 10:00 AM - 4:00 PM

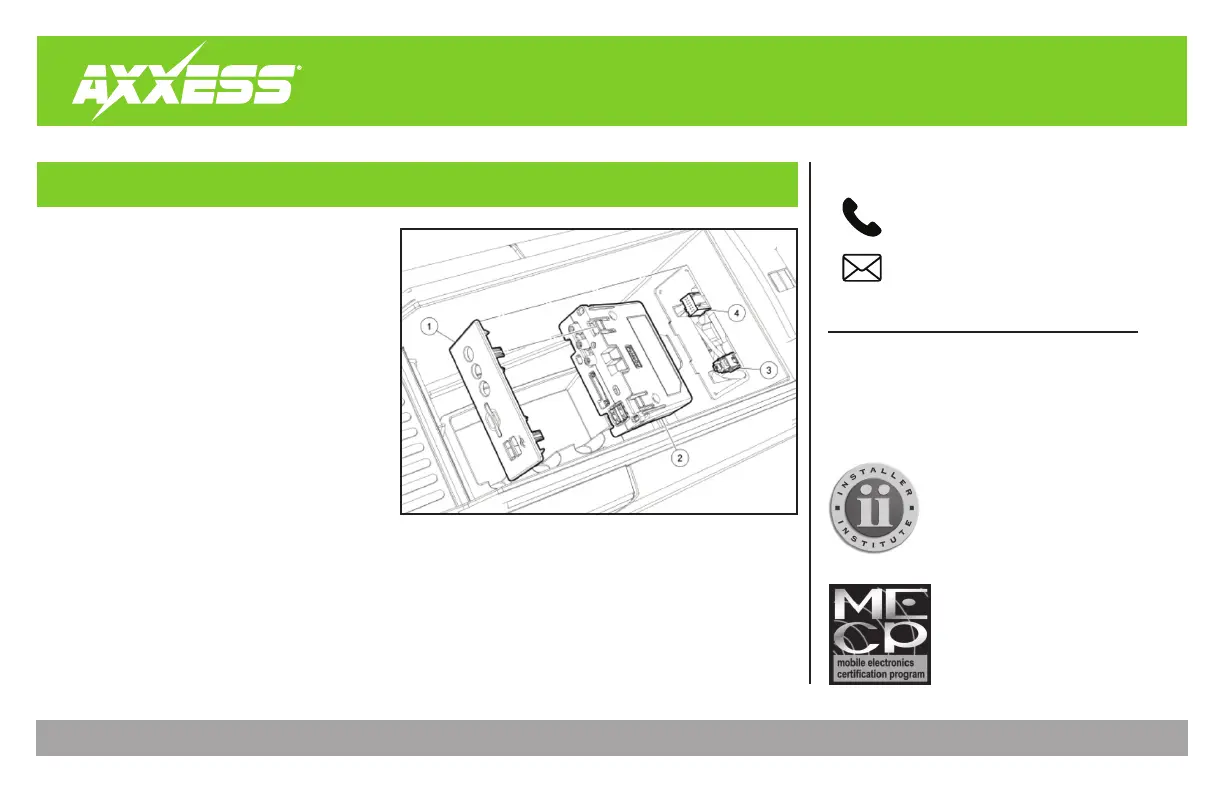

1. Using a suitable tool pry off the media hub bezel. (1)
2. Slide the media hub out from the opening. (2)
3. Disconnect the (2) electrical connectors. (3 & 4)
1. Take the AXUSB-GM3 and run the cables through the
inner housing until all slack is through and you can
snap the AXUSB-GM3 into place.
2. Run all cables through the center console to the
radio location and plug in desired connectors
3. Snap in the inner housing making sure the
arrows are facing up.
4. Put the panel clips on the outer trim and snap it on
to the inner housing.
1. Using a suitable tool pry off the media hub bezel. (1)
2. Slide the media hub out from the opening. (2)
3. Disconnect the (2) electrical connectors. (3 & 4)
1. Take the AXUSB-GM3 and run the cables through the
inner housing until all slack is through and you can
snap the AXUSB-GM3 into place.
2. Run all cables through the center console to the
radio location and plug in desired connectors
3. Snap in the inner housing making sure the
arrows are facing up.
4. Put the panel clips on the outer trim and snap it on
to the inner housing.
CONNECTIONS
CONNECTIONS
