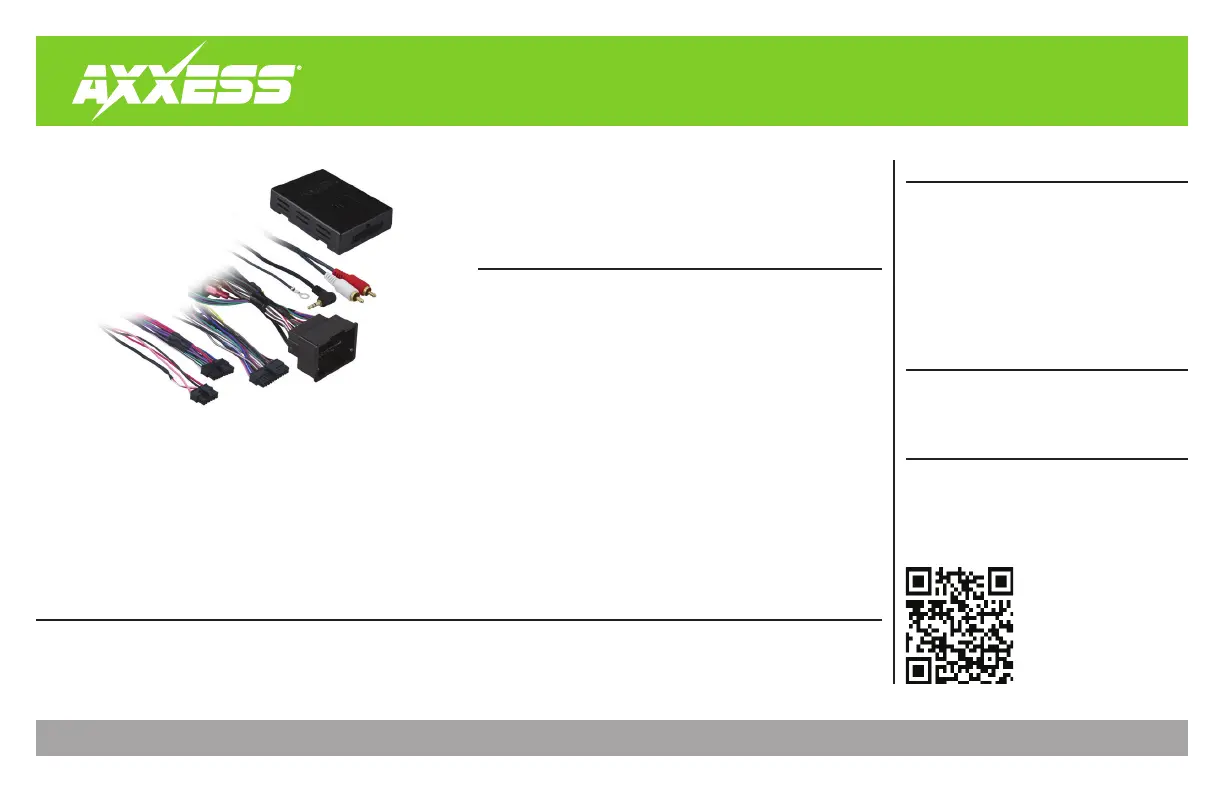

AXGM-044
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 10/16/19 INSTAXGM-044
Product Info
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties • Small flat-blade screwdriver
OPTIONAL ACCESSORIES
(sold separately)
AXSWC: Steering wheel control interface
ASWCSTALK: Steering wheel control add-on
TABLE OF CONTENTS
Connections .........................................................2-3
Installation .............................................................3
Programming .........................................................3
Adjustments ...........................................................4
Personalization Menu ............................................4
No OE Steering Wheel Controls ............................5
Chevrolet Cruze 2011-2015 / Cruze Limited 2016
(with monochrome screen)
Provides accessory power (12-volt 10-amp)
Retains R.A.P. (retained accessory power)
Used in amplified or non-amplified systems
Retains chimes
Provides NAV outputs (parking brake, reverse, mute, speed sense)
Prewired AXSWC harness (AXSWC sold separately)
Retains OnStar/OE Bluetooth
Adjustable volume for chimes and OnStar
High level speaker input
USB CAB cable updatable
Retains balance and fade
• AXGM-044 interface
• AXGM-044 harness
• 16-pin harness with stripped leads
2
CONNECTIONS
From the 16-pin harness with stripped leads to the aftermarket radio:
Connect the Red wire to the accessory wire.
Connect the Orange/White wire to the illumination wire. If the aftermarket radio doesn’t
have an illumination wire, tape off and disregard.
If equipped with a factory amplifier, connect the Blue/White wire to the amp turn on wire.
Connect the White wire to the left front positive speaker output.
Connect the White/Black wire to the left front negative speaker output.
Connect the Gray wire to the right front positive speaker output.
Connect the Gray/Black wire to the right front negative speaker output.
Connect the Brown wire to the mute wire. If the aftermarket radio doesn’t have a mute wire,
tape off and disregard.
The following (3) wires are only for multimedia/navigation radios that require these wires.
Connect the Blue/Pink wire to the VSS/speed sense wire.
Connect the Green/Purple wire to the reverse wire.
Connect the Light Green wire to the parking brake wire.
From the AXGM-044 harness to the aftermarket radio:
Connect the Black wire with a ring terminal to the radio chassis with the ISO screw supplied
with radio.
Note: This wire must be connected as instructed otherwise the interface will not function.
The Black/Yellow wire will be discussed later in the Adjustments section.
If the vehicle doesn’t come equipped with steering wheel controls, connect the Green/
Orange wire to the Green/Orange wire from the ASWCSTALK (sold separately) to retain the
personalization features. Refer to the section titled No OE Steering Wheel Controls for more
information and wiring for the ASWCSTALK.
Connect the Black wire to the ground wire.
Connect the Yellow wire to the battery wire.
Connect the Green wire to the left rear positive speaker output.
Connect the Green/Black wire to the left rear negative speaker output.
Connect the Purple wire to the right rear positive speaker output.
Connect the Purple/Black wire to the right rear negative speaker output..
Connect the RCA jacks to the audio AUX-IN jacks (if applicable).
Note:
(a) This will allow you to retain the 3.5 AUX-IN jack in the console.
(b) The 3.5 jack can only be used if it is a single AUX-IN jack.
(c) If the AUX-IN jack has a USB port, neither can be used.
Continued on the next page
