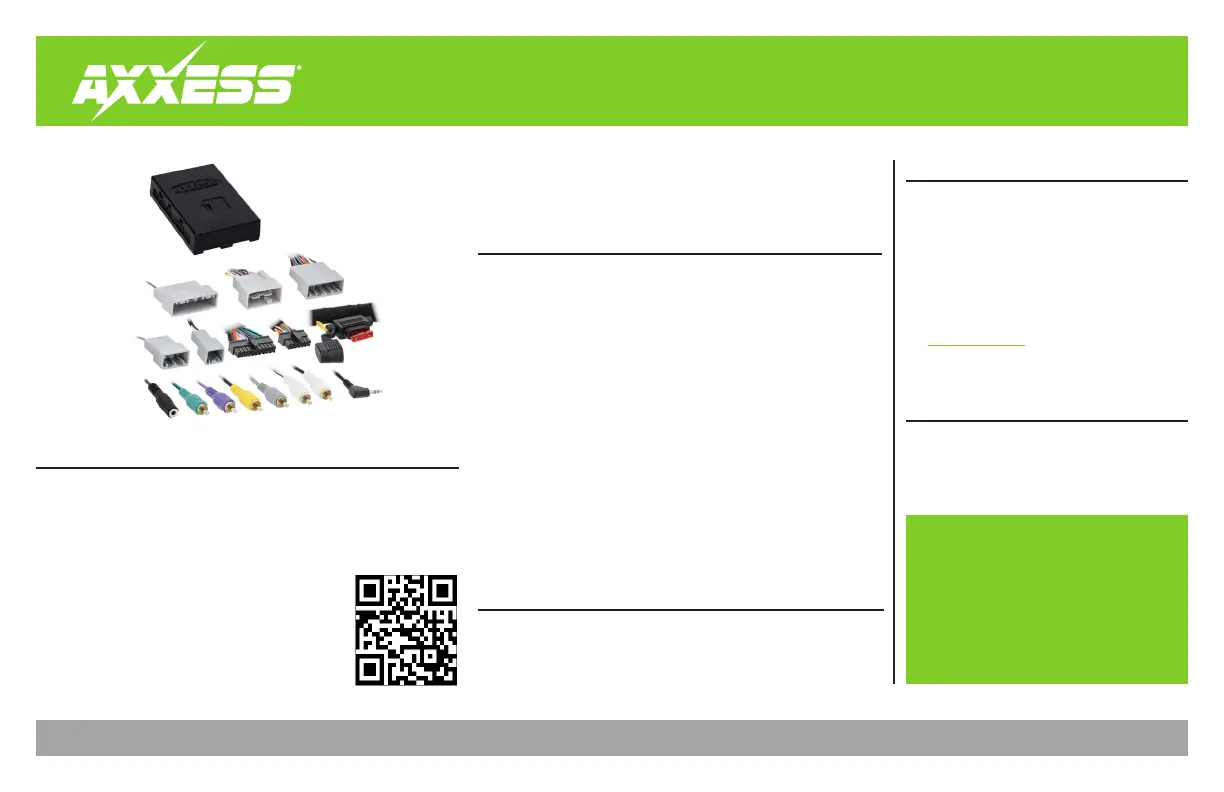

AXHN-3

INSTALLATION INSTRUCTIONS

INTERFACE FEATURES

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip ties

TABLE OF CONTENTS

Interface Connections............................................2

Programming .........................................................3

Radio LED Feedback...............................................4

APP instructions .....................................................5

Troubleshooting.....................................................8

Camera Retention Interface

Fits Select Honda Accord Models 2013-2017

INTERFACE COMPONENTS

• AXHN-3 interface

• LD-ACD1 harness

• 3.5mm adapter

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before

installing this device.

Visit AxxessInterfaces.com for more detailed information about

the product and up-to-date vehicle specific applications.

• Designed for amplified and non-amplified systems

• Provides accessory power (12-volt 10-amp)

• Retains R.A.P. (Retained Accessory Power)

• Provides NAV outputs (parking brake, reverse, and speed sense)

• Retains audio controls on the steering wheel

• Retains the factory backup and LaneWatch™ camera

• Retains the factory AUX-IN jack

• Retains balance and fade

• Does not retain factory clock and date

•

Retains and controls personalization settings via Bluetooth

wireless

technology when used with the AX-CUSTOM-BT app for smartphones

and tablets

• Micro “B” USB updatable

APPLICATIONS

HONDA

Accord EX, EX-L, and Touring ........................................2013-2015

Accord LX and LX-S ........................................................ 2013-2017

For Dash Disassembly Instructions, refer to

metraonline.com. Enter the year, make, and model

of the vehicle in the Vehicle Fit Guide for Radio

Install kits.

Black - Ground wire

Yellow - Battery wire

Red - Accessory power

Orange - Illumination

Green/Purple

- Reverse backup camera

Light Green - Parking brake

Blue/White- Amp Turn On

White/Green - TBD

White/Red - TBD

Front

Rear

Sub

AUX-IN

Rear View

SWC

BACKUP CAM

SUB

LD-ACD1

For NON-AMPLIFIED models ONLY

remove RCAs from the GREEN, GREEN/BLACK,

PURPLE, PURPLE/BLACK

GREY, GREY/BLACK,

WHITE & WHITE/BLACK Wire(s).

Green/Black - Rear left - speaker output

Green - Rear left speaker + output

Purple - Rear right + speaker output

White/Black - Front left - speaker

Purple/Black - Rear right - output

Gray - Front right + speaker

Gray/Black - Front right - speaker

White - Front left + speaker

-Purple RCA

-Green RCA

-Gray RCA

-White RCA

Vehicle Connectors

Radio Connections

Interface

22-Pin

14-Pin

Vehicle Connectors

3.5mm Adapter (for aftermarket

radios with a wire for SWC)

Boss (with SWC wire): Key 1 (Gray) - Brown

Kenwood / JVC (with SWC wire): Blue/Yellow - Brown

XITE: SWC-2 - Brown

Key-A or SWC-1 - Brown

Key-B or SWC-2 - Brown/White

* After programming, assign SWC buttons within radio menu

Universal

Radio*

{

32 Pin

16 Pin

8 Pin

24 Pin

APPLICATIONS W/B

TOUCHSCREEN

W/NAVIGATION

LOCATION

CONNECTO

2013-2015

YES

BELOW HAZARD BUTTON, ABOVE

POCKET

32 PIN

2013-2015

YES

BELOW HAZARD BUTTON, ABOVE

POCKET

32 PIN

2013-2017

AT RADIO

16 PIN

HANDS

FREE

MODULE

LOCATION

Aftermarket Radio

(Your radio’s features may vary)

*BACK*

REV. 5/19/25 INSTAXHN-3

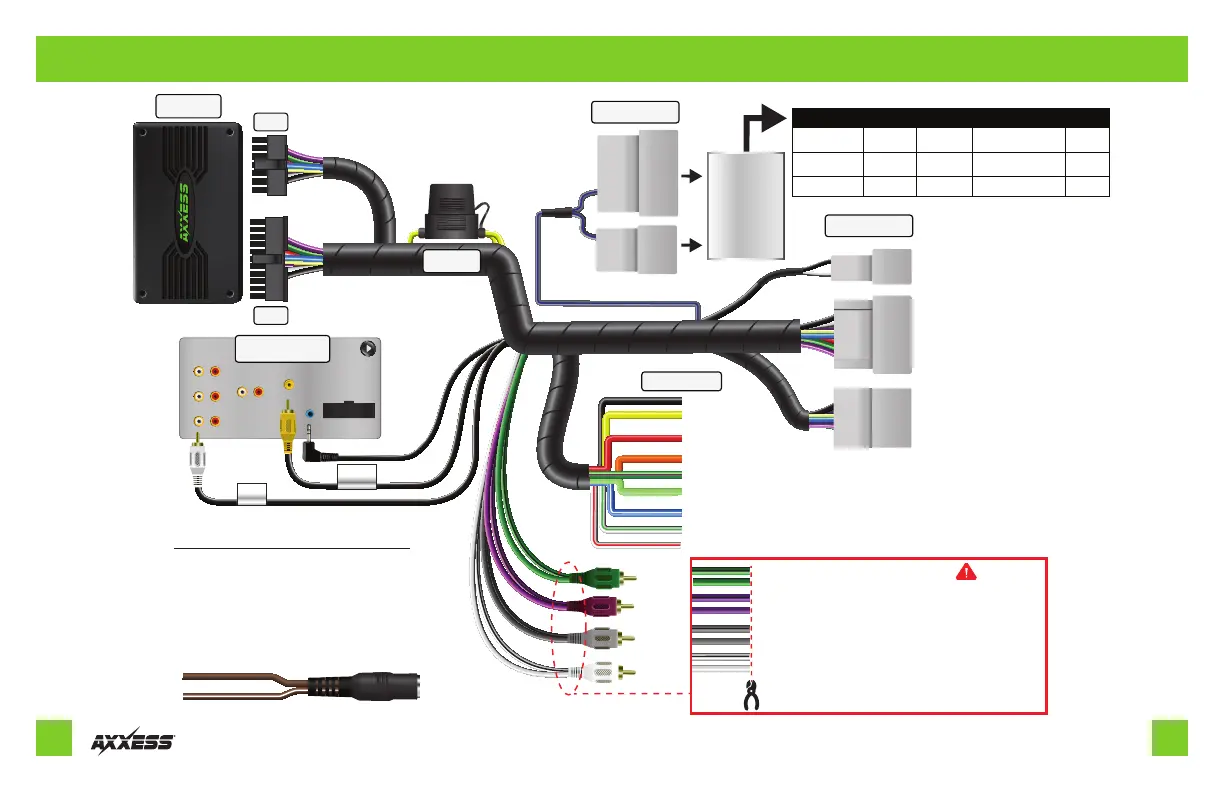

INTERFACE CONNECTIONS: LD-ACD1
