AXM50-GM1

INSTALLATION INSTRUCTIONS

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Zip-ties • Cutters (for zip-ties)

TABLE OF CONTENTS

Connections ........................................................ 2-3

GM MOST50 Amp Retention Interface

2014-2021

APPLICATIONS

• Designed for amplified models

• Add-on amp interface to be used with Axxess interface AXGMLN-09

• Retains the Bose amp in GM vehicles

• Retains balance

• Micro-B USB updatable

Cadillac

Escalade ...........................................2015-2019

Chevrolet

Camaro (RPO IO5/IO6) .....................2016-2018

Cheyenne ........................................2014-2019

Colorado ..........................................2015-2018

Corvette ............................................ 2014-2019

Equinox (RPO IO5/IO6) ................... 2018

Chevrolet cont.

Impala ..............................................2014-2018

Silverado...........................................2014-2018

Spark .................................................2016-2017

Suburban ......................................... 2015-2021

Tahoe ...............................................2015-2020

Traverse (RPO Code IO5 / IO6) ........ 2018

GMC

Acadia (RPO IO5/IO6) ......................2017-2019

Canyon (RPO IO5 / IO6) ..................2015-2018

Sierra ................................................2016-2018

Sierra 1500 .......................................2014-2015

Sierra 2500/3500 ............................2015-2018

Yukon ...............................................2015-2020

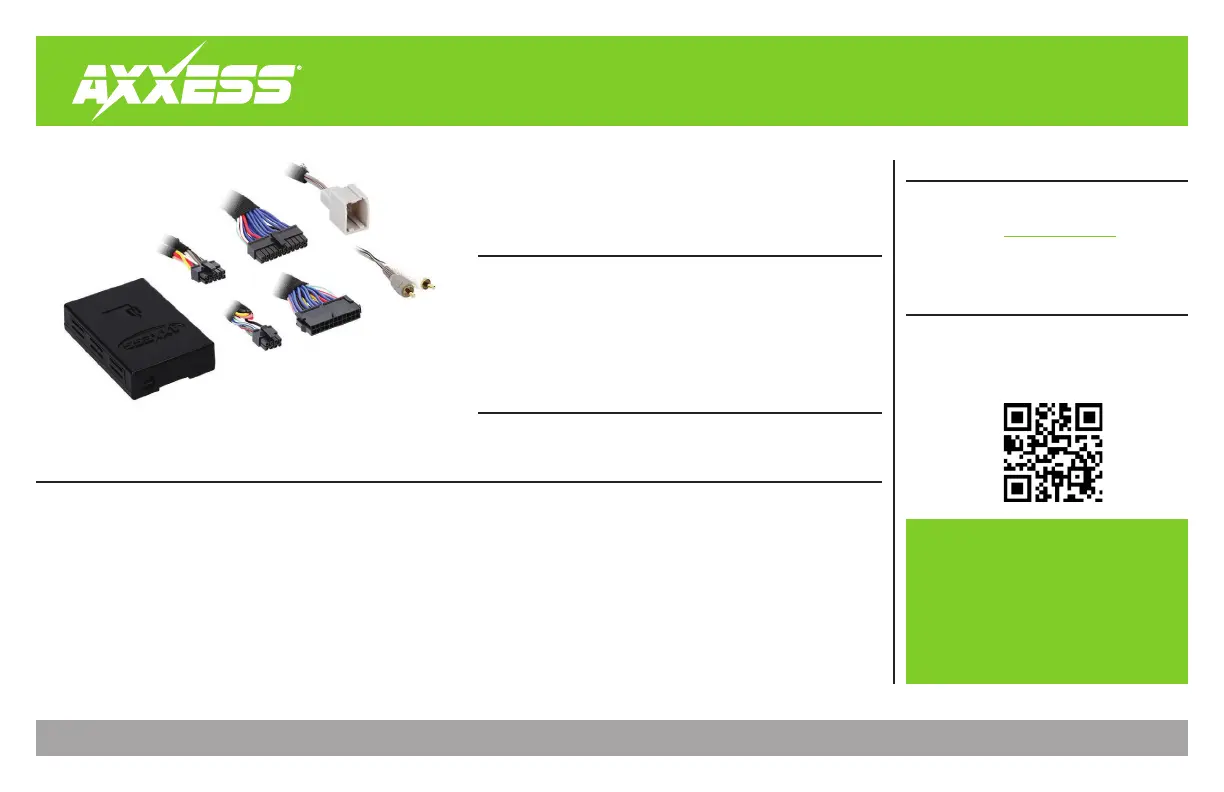

• AXM50-GM1 interface • LD-MOST2-ADAPT harness

• AXM50-GM1 T-harness

Product Info

Visit AxxessInterfaces.com

for more detailed information about the product

and up-to-date vehicle specific applications

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal before

installing this product. Ensure that all installation

connections, especially the air bag indicator

lights, are plugged in before reconnecting the

battery or cycling the ignition to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before installing

this device.

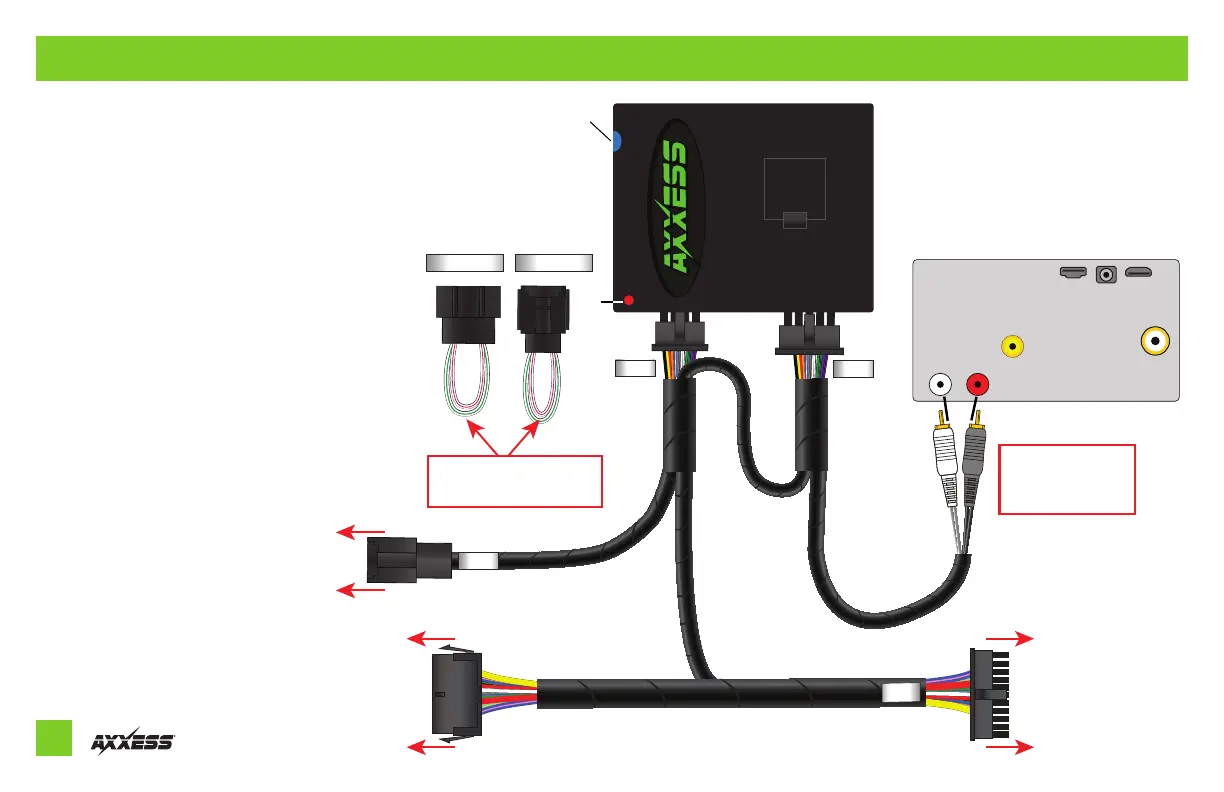

CONNECTIONS

4-PIN MIC HDMI

CONNECT TO RADIO

To AXGMLN-09

Harness

LD-JUMP 10 PIN

LD-JUMP 12 PIN

Overall Gain Potentiometer*

RADIO

Plug into the Connector you

unplugged from the CD Player.

Cut RCAs and wire

to speaker level

if you have low sound.

22 Pin

8 Pin

10 Pin

LED

INITIALIZATION STEPS : These steps are to be done right after

AXGMLN-09 has been programmed.

1. After all connections are made, turn on the ignition

2. Look at the LED on the AXM50-GM1 and wait for the LED to go solid RED

3. Once LED is solid RED, cycle ignition and test

Rear View

RCAs

Connect to the 8 PIN MOST

connector at tuner

To AXGMLN-09

Interface

From the 10-pin or 12-pin jumper harness to the vehicle:

If the vehicle

does not

have a CD or DVD-Drive, disregard these steps.

For models

without

rear seat entertainment:

• Connect the female Black 10-pin jumper harness, to the male

Black 10-pin harness removed from the CD-Drive.

For models

with

rear seat entertainment:

• Connect the female Black 12-pin jumper harness, to the male

Black 12-pin harness removed from the DVD-Drive.

Note: Even though this step must be done for models with rear

seat entertainment, the rear seat entertainment system will not be

retained by this interface

*To Adjust Overall Gain:

1. With a small flat-blade screwdriver, adjust the potentiometer

clockwise to raise the audio level; counterclockwise to lower the

audio level.

2. Once at a desired level, audio level adjustment is complete.
