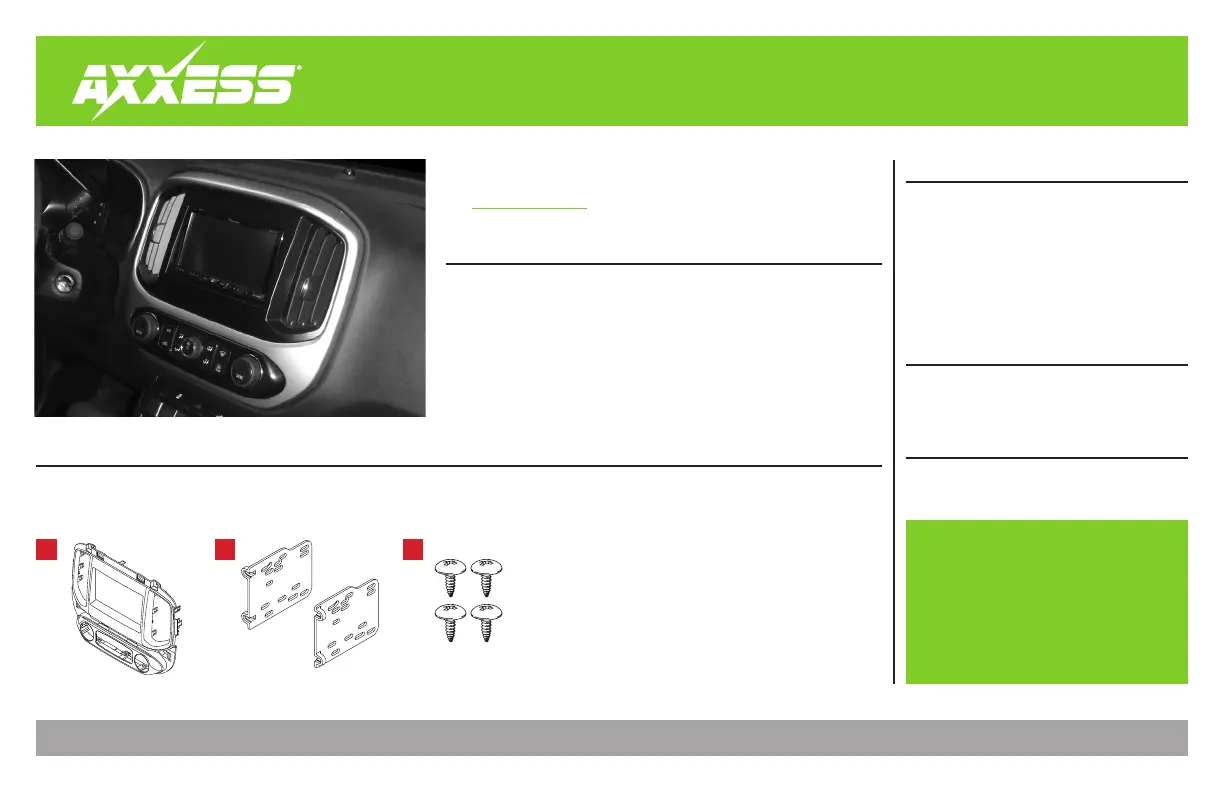

AXPIO-COL1

INSTALLATION INSTRUCTIONS

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

TABLE OF CONTENTS

Speaker Installation...............................................2

Dash Disassembly .................................................. 3

Connections ........................................................4-5

Kit Preparation ....................................................... 6

Kit Assembly ..........................................................7

Radio Operations ............................................... 8-9

Chevrolet Colorado/GMC Canyon 2016-2018

KIT FEATURES)

• Designed for Pioneer DMH-W4600NEX/W4660NEX or

DMH-WC5700NEX receivers

• Allows for the retention and adjustment of the factory personalization

menu through the Pioneer radio

• Provides a visual view of HVAC and gauges on the Pioneer screen (cannot

be adjusted via the screen)

(cont. on page 2)

WIRING & ANTENNA CONNECTIONS

•

RGB Extension Cable: Pioneer part # CD-RGB150A

(not sold by Metra)

TOOLS REQUIRED

• Panel removal tool • Phillips screwdriver

• 9/32" socket wrench

KIT COMPONENTS

• A) Radio trim panel • B) Brackets • C) #8 x 3/8" Phillips pan-head screws (4)

Not Shown: Radio Interface, LD-LAN09-PIO, LD-LAN10-PIO, LD-GMSWC, LD-BACKCAM-MOST, AD-EU5, 40-GPS-PIO, PR04AVIC-PIO / PRO4-PIORCA, LD-AX-SPK

A B C

Visit AxxessInterfaces.com for more detailed information about the product and

up-to-date vehicle specific applications.

KIT FEATURES (cont. from cover)

• Complete Plug-n-Play installation

• Includes dash kit with Axxess interface and

vehicle-specific T-harness

• Includes radio antenna adaptor for GPS

• Provides accessory power (12-volt 10-amp)

• Provides NAV outputs (parking brake,

reverse, speed sense)

• Retains audio controls on the steering wheel

• Works in both single and dual-zone vehicles

• Retains safety chimes through an included

off-board speaker

• USB Micro B updatable

•

Dash kit is painted scratch-resistant matte

black to match the factory finish

• For non-amplified vehicles only

KIT FEATURES

(CONT.)

SPEAKER INSTALLATION

Install the provided speaker in the dash prior to assembling the radio components.

Note: Make sure this is mounted in a location suitable for the driver to hear. (Audio level for the

speaker can be changed via the radio, once installed.)
