Side 1/8

CAUTION!

All accessories, switches, climate

controls panels, and especially air bag indicator

lights must be connected before cycling the

ignition. Also, do not remove the factory radio

with the key in the on position, or while the

vehicle is running.

A XSWC-TL

INSTALLATION INSTRUCTIONS

INTERFACE FEATURES

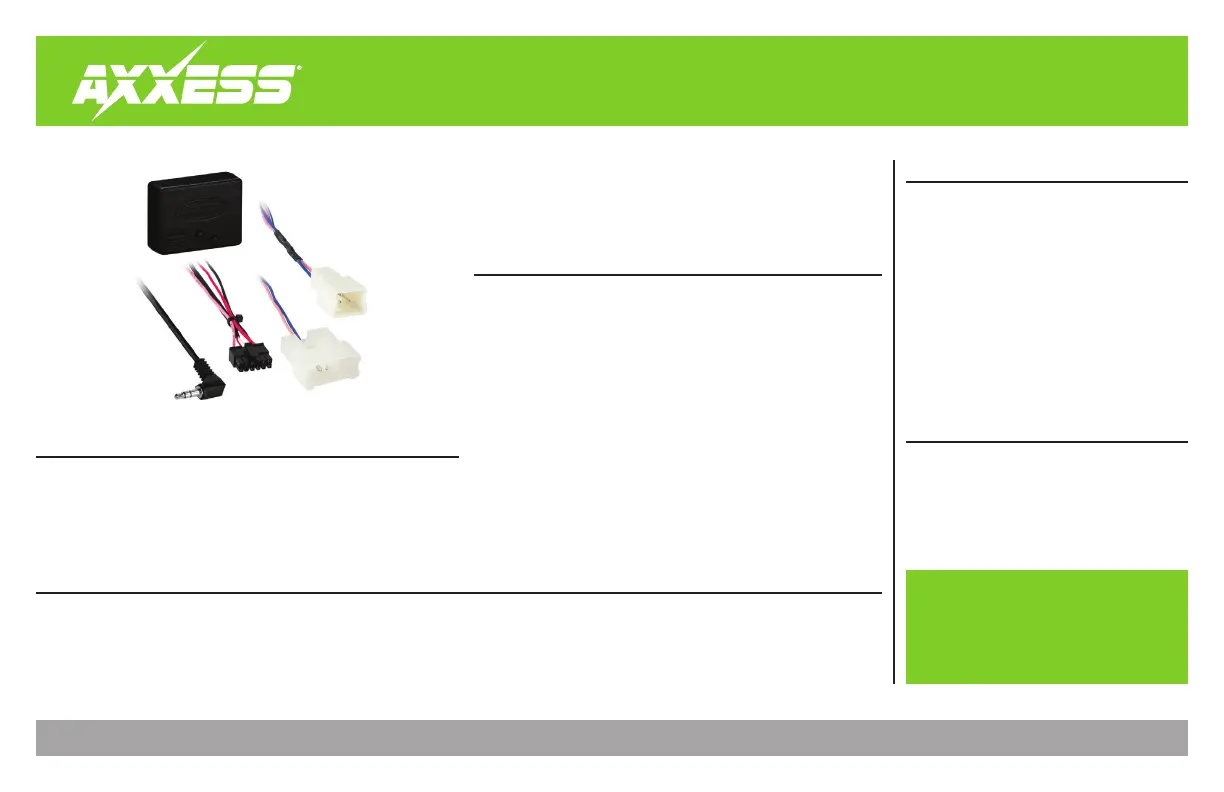

INTERFACE COMPONENTS

TOOLS REQUIRED

• Cutting tool • Crimping tool • Tape

• Connectors (example: butt-connectors, bell

caps, etc.)

TABLE OF CONTENTS

Connections to be made

–Into the vehicle .................................................2

–To the radio .......................................................2

Programming .........................................................3

Radio legend ..........................................................3

Troubleshooting .....................................................3

Extra Features ........................................................4

Resetting the AXSWC-TL ........................................4

Axxess Steering Wheel Control interface

Toyota/Lexus Select vehicles 1999-2009

APPLICATIONS

• One Interface does it all - No additional interfaces needed

• Automatically programs the audio buttons on the steering wheel

• Auto detects what radio it’s connected to

• Works with most major radio brands

• Micro-B USB updatable

• All connections are made behind the radio

• Non-volatile memory retains settings even if the battery is

disconnected or the interface is removed from the vehicle

TOYOTA

Avalon 2003-2004

Prius 2001-2003

Sienna 1999-2003

LEXUS

GS300 / GS430 2001-2005

LX470 2001-2002

SC430 2002-2009

• AXSWC-TL interface

• AXSWC-TL harness

• Female 3.5mm connector with Brown and Brown/White wires

CONNECTIONS TO BE MADE

Into the vehicle

With the key in the off position:

1. Connect the Black wire of the AXSWC-TL to ground.

2. Connect the (2) Red wires of the AXSWC-TL to accessory power.

3. For all vehicles EXCEPT the Lexus SC430, connect ONLY the 12-pin connector to the

mating connector in the vehicle. The 6-pin connector on the AXSWC-TL harness WILL

NOT be used in the application.

4. For the 2002-2005 Lexus SC430, connect ONLY the 6-pin connector to the mating

connector in the vehicle. The 12-pin connector on the AXSWC-TL harness WILL NOT

be used in the application.

Note:

Disregard the 12-pin connector in the vehicle.

5. For the 2006-2009 Lexus SC430, connect BOTH the 6-pin and 12-pin connectors to

the mating connectors in the vehicle.

To the radio

1. For the radios below, connect the included female 3.5mm connector with the Brown

and Brown/White wires into the male 3.5mm connector of the AXSWC-TL harness.

•

For Eclipse radios: Connect the Eclipse steering wheel control wires (normally

Brown and Brown/Black) to the Brown and Brown/White wires of the AXSWC-TL.

Brown of the AXSWC-TL goes to the Brown/Black of the Eclipse and Brown/White

of the AXSWC-TL goes to the Brown of the Eclipse.

•

For Metra OE:

Connect the SWC Key 1 wire

(Gray)

to the

Brown

wire of the

AXSWC-TL. Isolate and tape the

Brown/White

wire, it will not be used.

•

For Kenwood or select JVC’s

with a

Blue/Yellow

steering wheel control wire

Connect the Kenwood/JVC steering wheel control wire to the

Brown

wire of the

AXSWC-TL. Isolate and tape the

Brown/White

wire, it will not be used.

Note:

Some of the newer Kenwood radios will auto detect as a JVC. If this is

the case, use a 12k ohm resistor in line between the Blue/Yellow and Brown

wire of the female 3.5mm jack during programming only (remove resistor once

programmed).

2. For Parrot Asteroid Smart or Tablet: Connect the AXSWC-TL male 3.5mm jack into

the AXSWCH-PAR (sold separately) female 3.5mm jack and plug the 4-pin end into

the corresponding SWC plug on the radio.

Note:

AXSWCH-PAR required (sold separately) and radio MUST BE updated to rev

2.1.4 or higher.

3. For XITE radios: Connect the steering wheel control SWC-2 wire from the radio to

the Brown wire of the AXSWC-TL.

4. For all other radios: Connect the 3.5mm jack of the AXSWC-TL into the jack on the

aftermarket radio designated for an external steering wheel control interface.

Please refer to the aftermarket radios manual if in doubt as to where the 3.5mm

jack goes into.
