Side 1/4

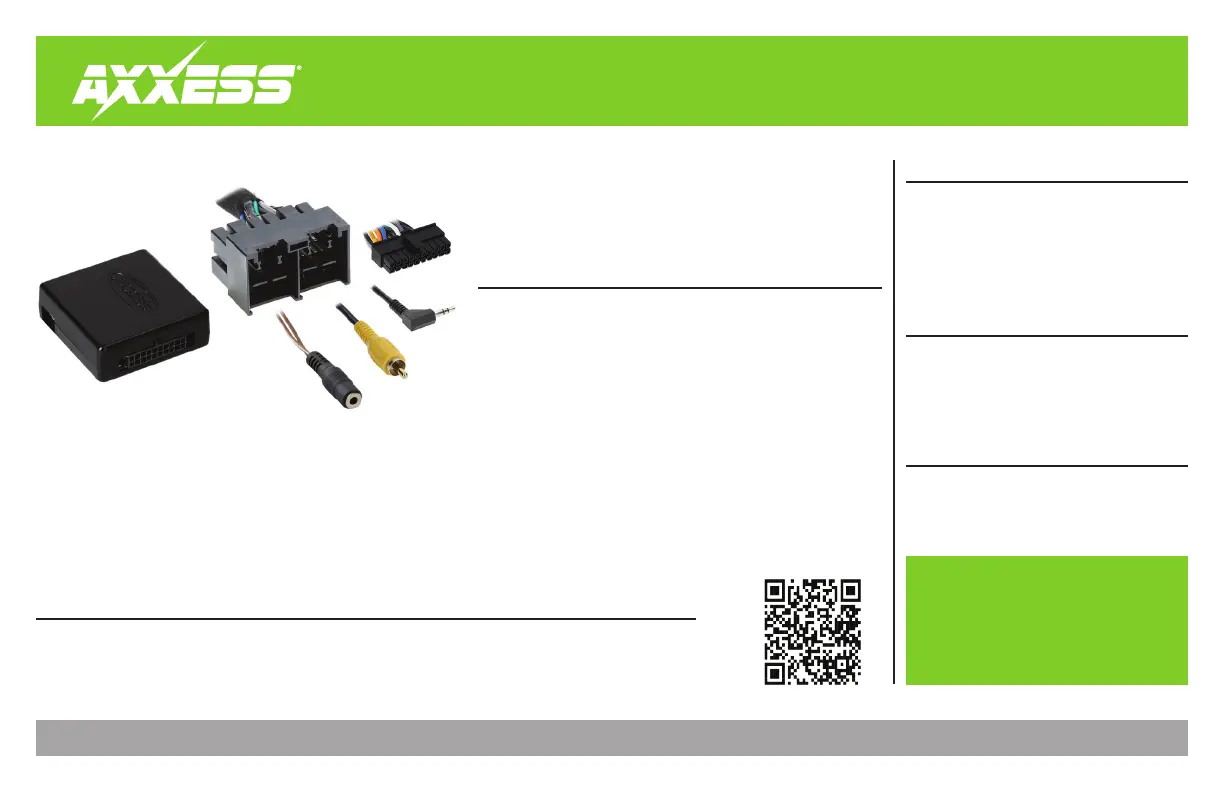

AXTC-FD3

INSTALLATION INSTRUCTIONS

Product Info

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections are secure before

cycling the ignition to test this product.

NOTE: Refer also to the instructions included

with the aftermarket radio.

INTERFACE FEATURES

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip-ties

TABLE OF CONTENTS

Connections ............................................................2

Programming .........................................................3

Troubleshooting .....................................................4

Ford SWC (Steering Wheel Control)

and Data Interface 2019-Up

APPLICATIONS

• Provides accessory power

(10-amp)

• Provides wires for multimedia

radios (park brake, reverse,

speed sense)

• Retains audio controls on the

steering wheel

• Designed for non-ampliﬁed

models only

• Designed to be compatible

with all major radio brands

•

Auto detects vehicle type, radio

connection, and preset controls

• Ability to dual assign steering

wheel control buttons

• Retains memory settings even

after battery disconnection

or interface removal (non

volatile memory)

• Provides illumination output

• Micro-B USB updatable

Ford

E Series ...........................2021-Up

Eco Sport ........................2020-Up

Escape ............................2020-Up

F250/F350/F450/F550 ...2020-Up

Transit ............................2020-Up

Transit Connect .............. 2019-Up

INTERFACE COMPONENTS

• AXTC-FD3 interface

• AXTC-FD3 harness

• 3.5mm adapter

Note: The AXTC-FD3 does not retain SYNC.

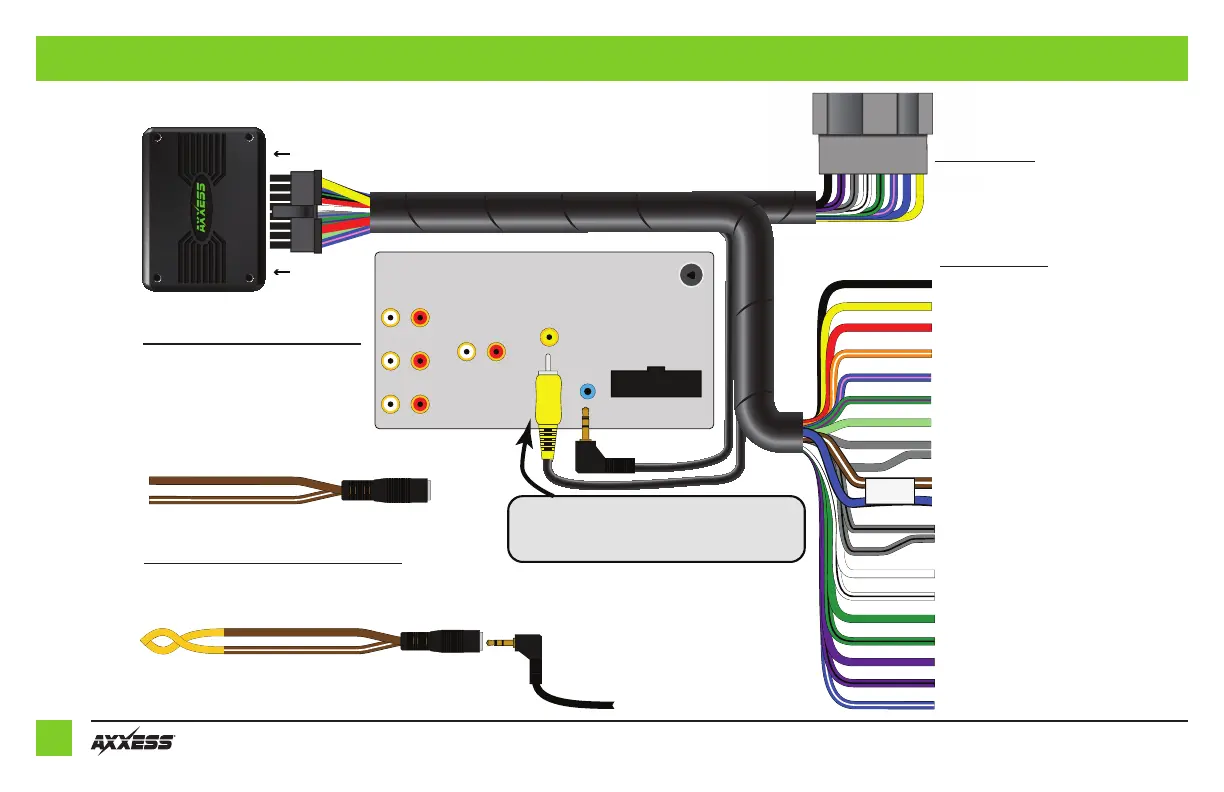

CONNECTIONS

Brown/White (NOT USED)

Blue Ground on Non-SYNC

application for reverse camera

Front

Rear

Sub

AUX-IN

Rear View

SWC

This is to be done only in the Ford Transit/Transit Connect

2019-Up without SYNC. To retain backup camera in anyother

application you must purchase the AXBUCH-FD1.

CENTER

Radio Connections

Black - Ground

Yellow - Battery power

Red - Accessory power

Orange/White - Illumination

Blue/Pink - VSS/Speed-Sense

Green/Purple - Reverse signal

Light Green - Parking brake

Gray - Front right speaker +

3.5mm Adapter (for vehicles without Steering wheel

controls or aftermarket radios with a wire for SWC)

Boss (with SWC wire): Key 1 (Gray) - Brown

Kenwood / JVC (with SWC wire): Blue/Yellow - Brown

XITE: SWC-2 - Brown

Key-A or SWC-1 - Brown

Key-B or SWC-2 - Brown/White

* After programming, assign SWC buttons within radio menu

Universal

Radio*

{

3.5mm Adapter for Vehicles without Steering wheel controls

1) From the 3.5mm adapter, tie the Brown and Brown/White wires together with tape or conntector

2) Connect the 3.5mm adapter to the 3.5mm jack from the AXTC-FD3 Harness.

3) Program the AXTC-FD3 per the instructions on page 3. Disregard steps 4 & 5

Gray/Black - Front right speaker -

White - Front left speaker +

White/Black - Front left speaker -

Green - Rear left speaker +

Green/Black - Rear left speaker -

Purple - Rear right speaker +

Purple/Black - Rear right speaker -

Blue/White - Amp turn on from radi

Aftermarket Radio

(radio’s features may vary)

Reset Button

LED Light

Vehicle Connectors
