AXTC-HN1

INSTALLATION INSTRUCTIONS

INTERFACE FEATURES

TOOLS & INSTALLATION ACCESSORIES REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink • Tape • Wire cutter

• Zip ties

TABLE OF CONTENTS

Connections ............................................................2

Programming .........................................................3

Troubleshooting.....................................................4

Honda SWC (Steering Wheel Control)

and Data Interface 2016-2024

APPLICATIONS

• Provides illumination, parking

brake, reverse, and speed

sense outputs

• Retains the factory backup

camera, and also includes an

12-volt to 6-volt step-down

converter (AXCSD-6V)

• Retains audio controls on the

steering wheel

• Designed to be compatible

with all major radio brands

• Auto detects vehicle type, radio

connection, and preset controls

• Ability to dual assign steering

wheel control buttons

• Retains memory settings even

after battery disconnection or

interface removal (non volatile

memory)

• Micro-B USB updatable

Honda

Civic (with 7” screen) ...........................................2022-2024*

Civic (Coupe, Sedan) LX, LX-P ............................... 2016-2021

*Type R, Touring, Si, and Hybrid not supported

Civic (Hatchback) LX, Sport ................................... 2017-2021

Fit ...........................................................................2018-2020

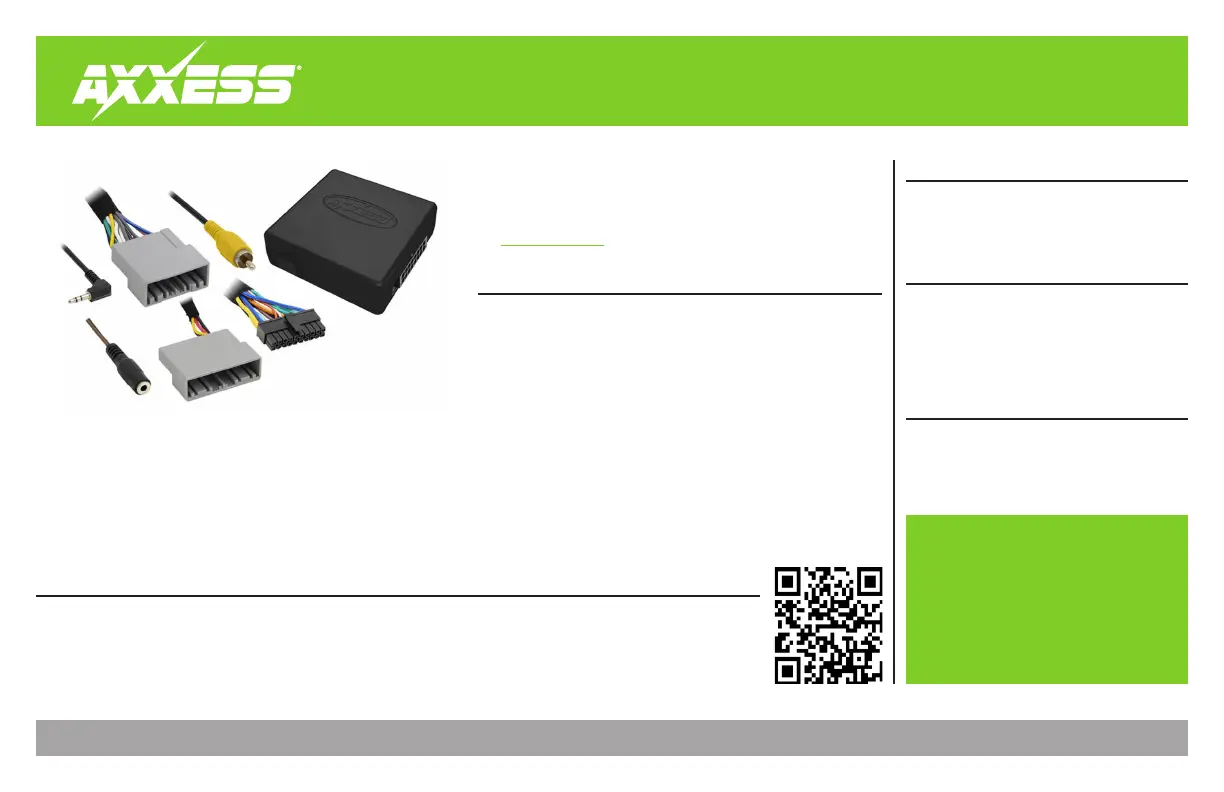

INTERFACE COMPONENTS

• AXTC-HN1 interface

• AXTC-HN1 harness

• 3.5mm adapter

•

AXCSD-6V

Product Info

ATTENTION: With the key out of the ignition,

disconnect the negative battery terminal

before installing this product. Ensure that all

installation connections, especially the air

bag indicator lights, are plugged in before

reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included

with the aftermarket accessory before

installing this device.

Visit AxxessInterfaces.com for more detailed information about the product and up-to-

date vehicle specific applications.

Front

Rear

Sub

AUX-IN

Rear View

SWC

Aftermarket Radio

(radio’s features may vary)

Reset Button

LED

LD-AFDI-5V *

Gray - Front right speaker +

Gray/Black - Front right speaker -

White - Front left speaker +

White/Black - Front left speaker -

Green - Rear left speaker +

Green/Black - Rear left speaker -

Purple - Rear right speaker +

Purple/Black - Rear right speaker -

Blue/Pink - VSS/Speed-Sense

Green/Purple - Reverse signal

Light Green - Parking brake

Blue/White - Amp turn-on

Orange - Illumination

Yellow - Battery power

AXTC-HN1

Red & Blue/White - Accessory power

Red (CAMERA POWER 6V) & Blue/Red - Camera Power

3.5mm Adapter (for vehicles without Steering wheel

controls or aftermarket radios with a wire for SWC)

Boss (with SWC wire): Key 1 (Gray) - Brown

Kenwood / JVC (with SWC wire): Blue/Yellow - Brown

XITE: SWC-2 - Brown

Key-A or SWC-1 - Brown

Key-B or SWC-2 - Brown/White

* After programming, assign SWC buttons within radio menu

Universal

Radio*

{

3.5mm Adapter for Vehicles without Steering wheel controls

1) From the 3.5mm adapter, tie the Brown and Brown/White wires together

with tape or connector

2) Connect the 3.5mm adapter to the 3.5mm jack from the AXTC-HN1 Harness

3) Program the AXTC-HN1 per the instructions on page 3. Disregard steps 4 & 5

VEHICLE CONNECTORS

RADIO CONNECTIONS

Black & Black X2 - Ground

CAMERA POWER 6V

SWC GROUND

(Connect All Grounds Together)

*Harness #

AXCSD-6V

NOTE: If the vehicle’s Steering Wheel Controls do not function after the

AXTC-HN1 has completed its programing sequence, unplug connector E1

from connector E and connect E2 to E. Once completed, hit the reset button

on the interface to restart the programming sequence and test. Refer to LED

Feedback Chart for programming information if needed.

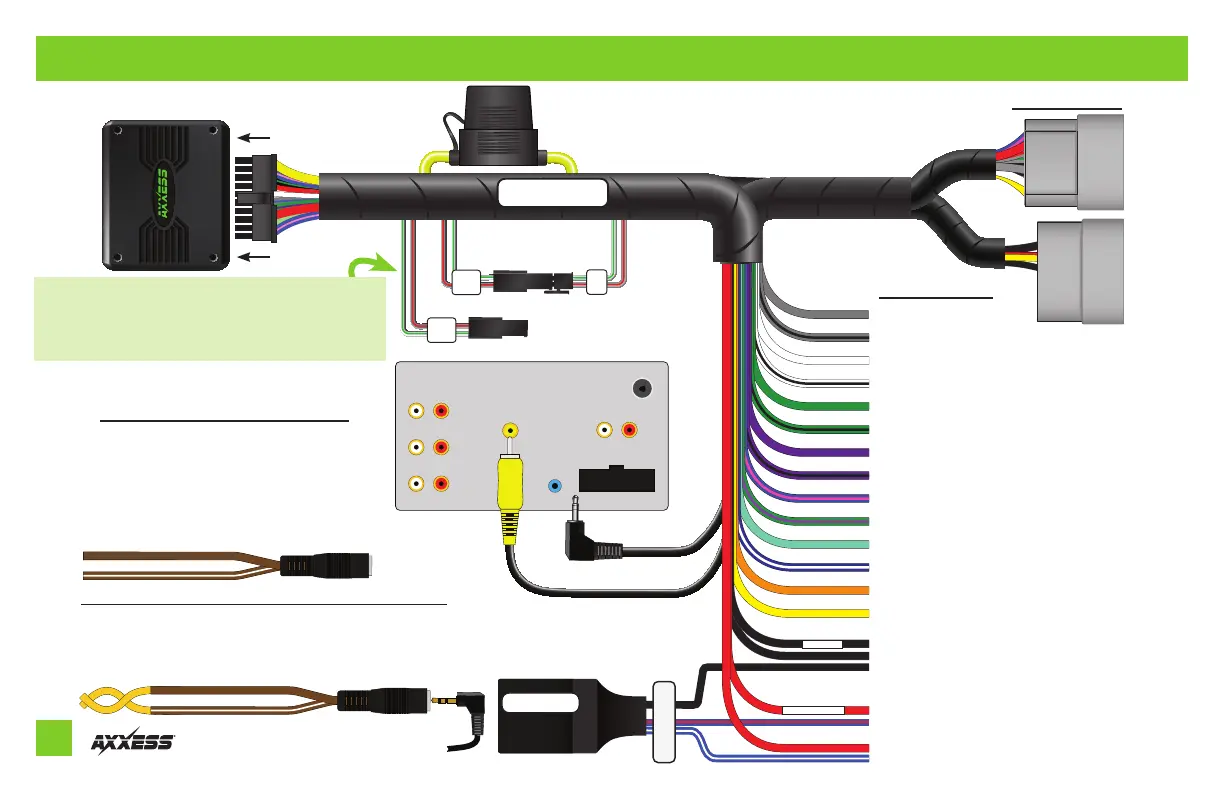

CONNECTIONS
