Side 1/4

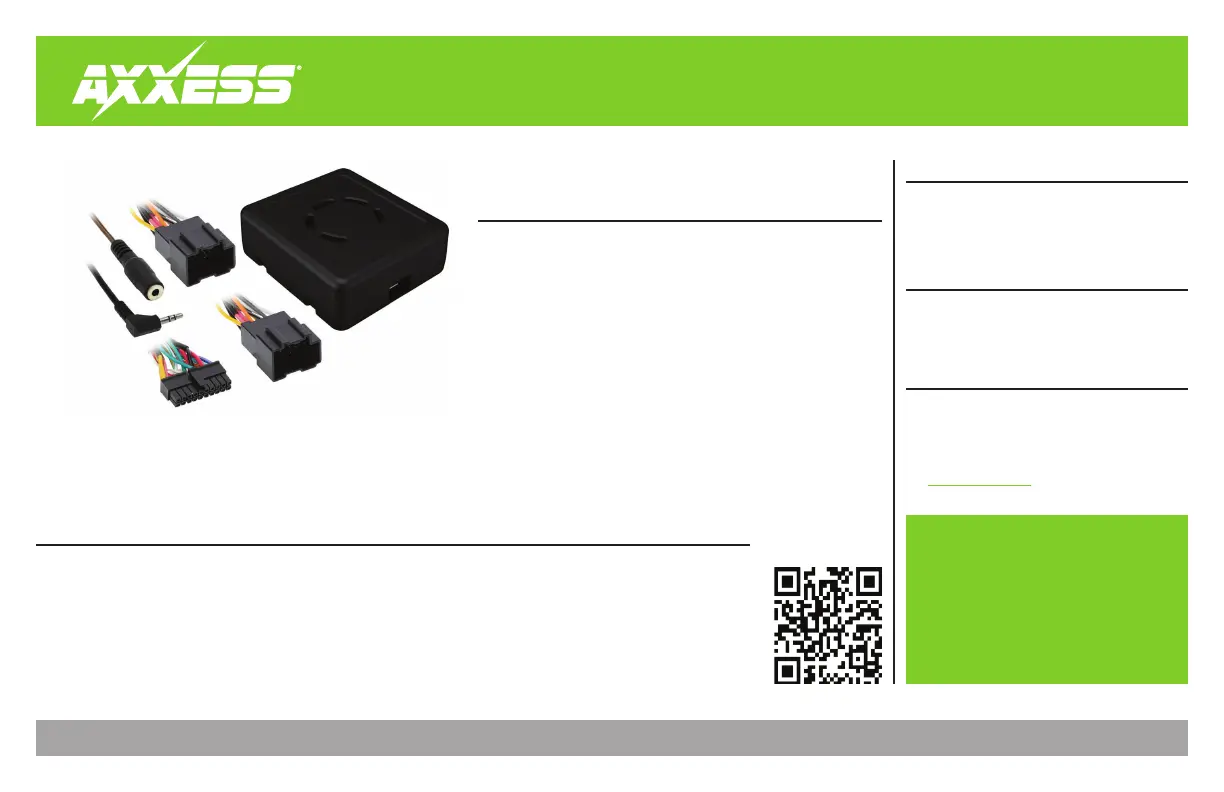

AXTC-LN11
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 4/7/23 INSTAXTC-LN11
INTERFACE FEATURES
INTERFACE COMPONENTS
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections ............................................................2
Programming .........................................................3
Troubleshooting.....................................................4
GM Data Interface with SWC 2006-2012
APPLICATIONS
• Provides retained accessory
power (10-amp)
• Provides illumination, parking
brake, reverse, and speed sense
outputs
• Retains warning chimes
through an onboard speaker
• Retains audio controls on the
steering wheel
• Designed to be compatible with
all major radio brands
• Auto detects vehicle type, radio
connection, and preset controls
• Ability to dual assign steering
wheel control buttons
• Retains memory settings even
after battery disconnection or
interface removal (non volatile
memory)
• Designed for non-amplified
models, or when bypassing a
factory amplifier
• Retains balance and fade
• Micro-B USB updatable
Chevrolet
Cobalt ............2007-2010
HHR ................2006-2011
Malibu ...........2008-2012
Pontiac
G5 .................2007-2009
G6 (1) ..................... 2009
G6 ............................2010
Solstice ......... 2006-2009
Saturn
Aura .............2007-2009
Sky................2007-2009
• AXTC-LN11 interface
• AXTC-LN11 harness
• 3.5mm adapter
(1) 5th digit of VIN must be a J, K, or L
Product Info
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the ignition
to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
Visit AxxessInterfaces.com for more detailed information
about the product and up-to-date vehicle specific applications.
2

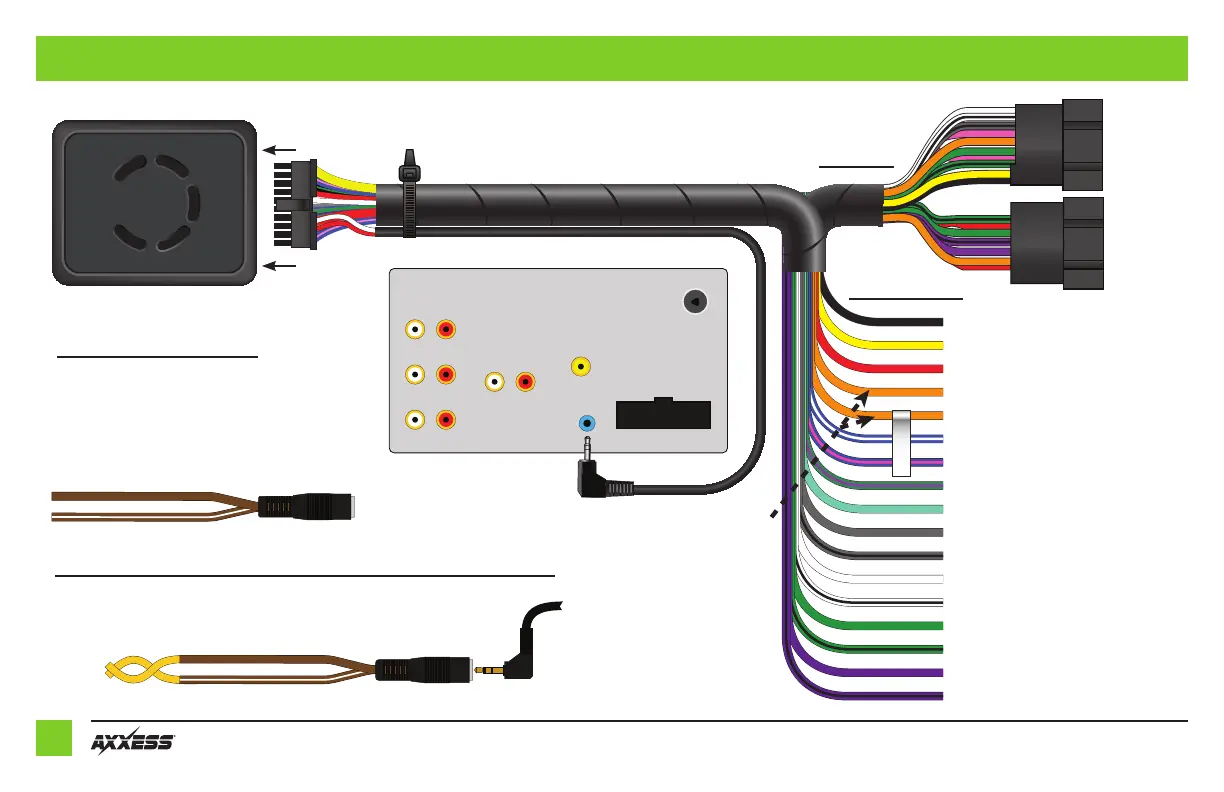

CONNECTIONS
Front
Rear
Sub
AUX-IN
Rear View
SWC
IFACE ILL
*IMPORTANT: Only use one Orange wire!
If either one of the Orange wires on the
main harnesses are populated on the
factory side, use the unlabeled Orange
wire. If not populated, use the Orange
wire labeled IFACE ILL.
3.5mm Adapter (for vehicles without
Steering wheel controls or aftermarket
radios with a wire for SWC)
Boss (with SWC wire): Key 1 (Gray) - Brown
Kenwood / JVC (with SWC wire): Blue/Yellow - Brown
XITE: SWC-2 - Brown
Key-A or SWC-1 - Brown
Key-B or SWC-2 - Brown/White
* After programming, assign SWC buttons within radio menu
Universal
Radio*
{
1) From the 3.5mm adapter, tie the Brown and Brown/White wires together with tape or connector
2) Connect the 3.5mm adapter to the 3.5mm jack from the AXTC-LN11 Harness
3) Program the AXTC-LN11 per the instructions on pages 4 and 5. Disregard steps 4 & 5
3.5mm Adapter for Vehicles without Steering wheel controls
Black - Ground
Yellow - Battery power
Red - Accessory power
Orange - Illumination*
Orange (labeled IFACE ILL) - Illumination *
Blue/White - Amp turn-on
Blue/Pink - VSS/Speed-Sense
Green/Purple - Reverse signal
Light Green - Parking brake
Gray - Front right speaker +
Gray/Black - Front right speaker -
White - Front left speaker +
White/Black - Front left speaker -
Green - Rear left speaker +
Green/Black - Rear left speaker -
Purple - Rear right speaker +
Purple/Black - Rear right speaker -
Aftermarket Radio
(radio’s features may vary)
Vehicle
Connectors
Reset Button
LED
Radio Connections
