AXVI-6524
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2023 METRA ELECTRONICS CORPORATION REV. 2/24/23 INSTAXVI-6524
INTERFACE FEATURES

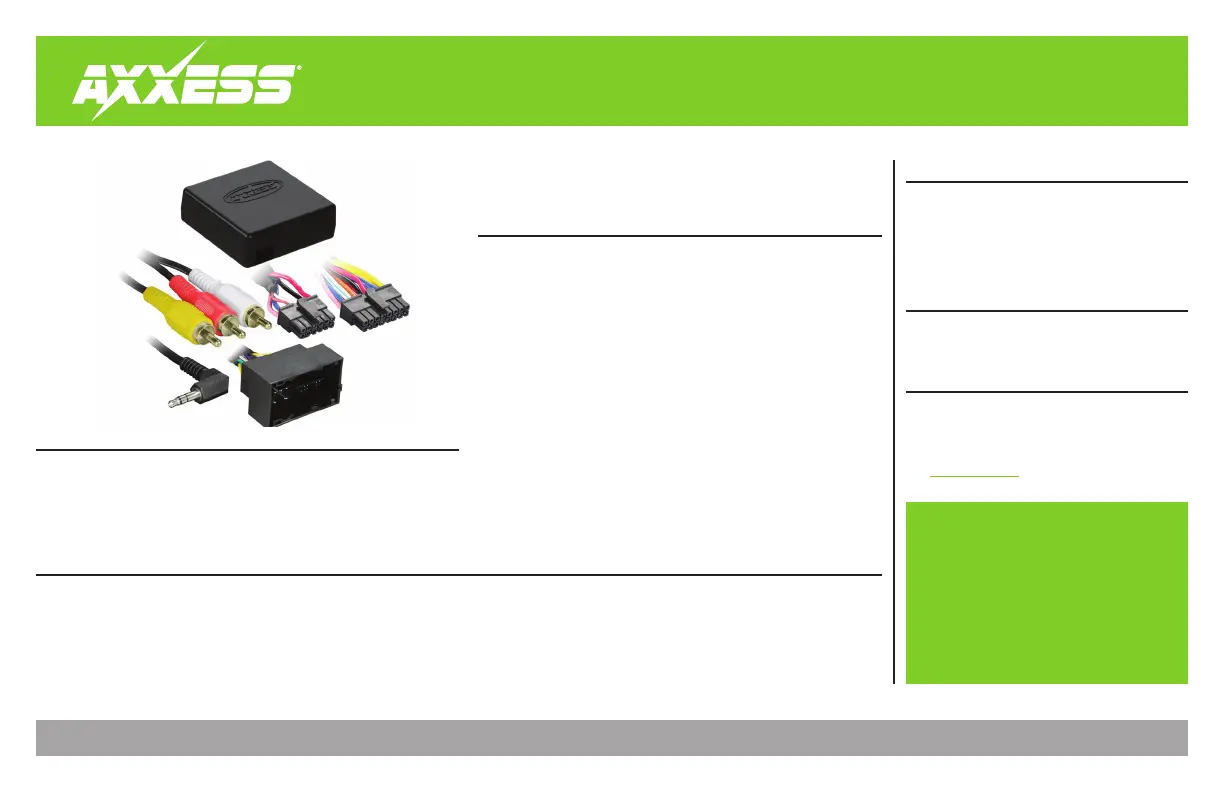

INTERFACE COMPONENTS
TOOLS REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip ties
TABLE OF CONTENTS
Connections .........................................................2-3
Installation .............................................................3
Programming .........................................................3
App Instructions .................................................4-5
Jeep/Ram Select Models Data Interface 2014-Up
• Provides accessory power
(12-volt 10-amp)
• Retains R.A.P. (retained
accessory power)
• Provides NAV outputs (parking
brake, reverse, speed sense)
• Pre-wired AXSWC harness
(AXSWC sold separately)
• Retains the factory backup
camera (Not retained on
Wrangler JL or Gladiator)
• Retains balance and fade
•
Designed for non-amplified
models
• Retains the factory AUX-IN jack
• Allows retention and adjustment
of the Personalization Options*
• Adjust Personalization Options
through a Bluetooth application*
•
Smartphone application offering
full control from either Android or
Apple mobile devices
• Micro-B USB updatable
• AXVI-6524 interface
• AXVI-6524 harness
• 2-pin CAN harness
OPTIONAL ACCESSORIES
(sold separately)
Steering wheel control interface:
AXSWC OBD T-harness: AX-IL-OBD2
APPLICATIONS
* Actual options available vary per vehicle and per trim.
(Refer to owner’s manual for options available in vehicle)
Jeep
Gladiator* 2020-Up
Renegade 2015-2017
Renegade Sport 2018
Wrangler* JL (Base model) 2018-Up
Ram
Promaster (w/color screen) 2014-Up
Promaster City 2015-Up
*Note: Camera will not be retained
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal
before installing this product. Ensure that all
installation connections, especially the air
bag indicator lights, are plugged in before
reconnecting the battery or cycling the
ignition to test this product.
NOTE: Refer also to the instructions included
with the aftermarket accessory before
installing this device.
Visit AxxessInterfaces.com for more detailed information about the
product and up-to-date vehicle specific applications
