Residual current circuit-breaker

2844 01

Operation and installation instructions

Safety instructions

Electrical equipment may only be installed and assembled by qualied electricians.

Failure to comply with these instructions may result in damage to the device, re, or oth-

er hazards.

Function

The residual-current circuit-breaker is used to protect persons against residual electrical cur-

rents.

The residual-current circuit-breaker is a safety protective device with voltage-independent resid-

ual-current triggering as per VDE 0664.

The residual-current protected outgoing feeders (see Figure 5) are used to connect socket-out-

lets or other loads.

The residual-current protection encompasses all devices and cables connected to the residu-

al-current circuit-breaker.

The electrical wiring upstream of the device is not protected.

Operation

Getting the system ready for operation

Figure 1

 Press push-button ((a), Figure 1).

(a)

(b)

Residual current circuit-breaker

6LE002821A

Page 2/5 01-2017

Performing a functional test

The functional test must be carried out at regular intervals.

Recommendation: 1 x per month

The operating voltage is connected.

 Switch on residual-current circuit-breaker with push-button ((a), Figure 1).

Voltage is present at the downstream socket-outlets and loads.

 Press test button T ((b), Figure 1).

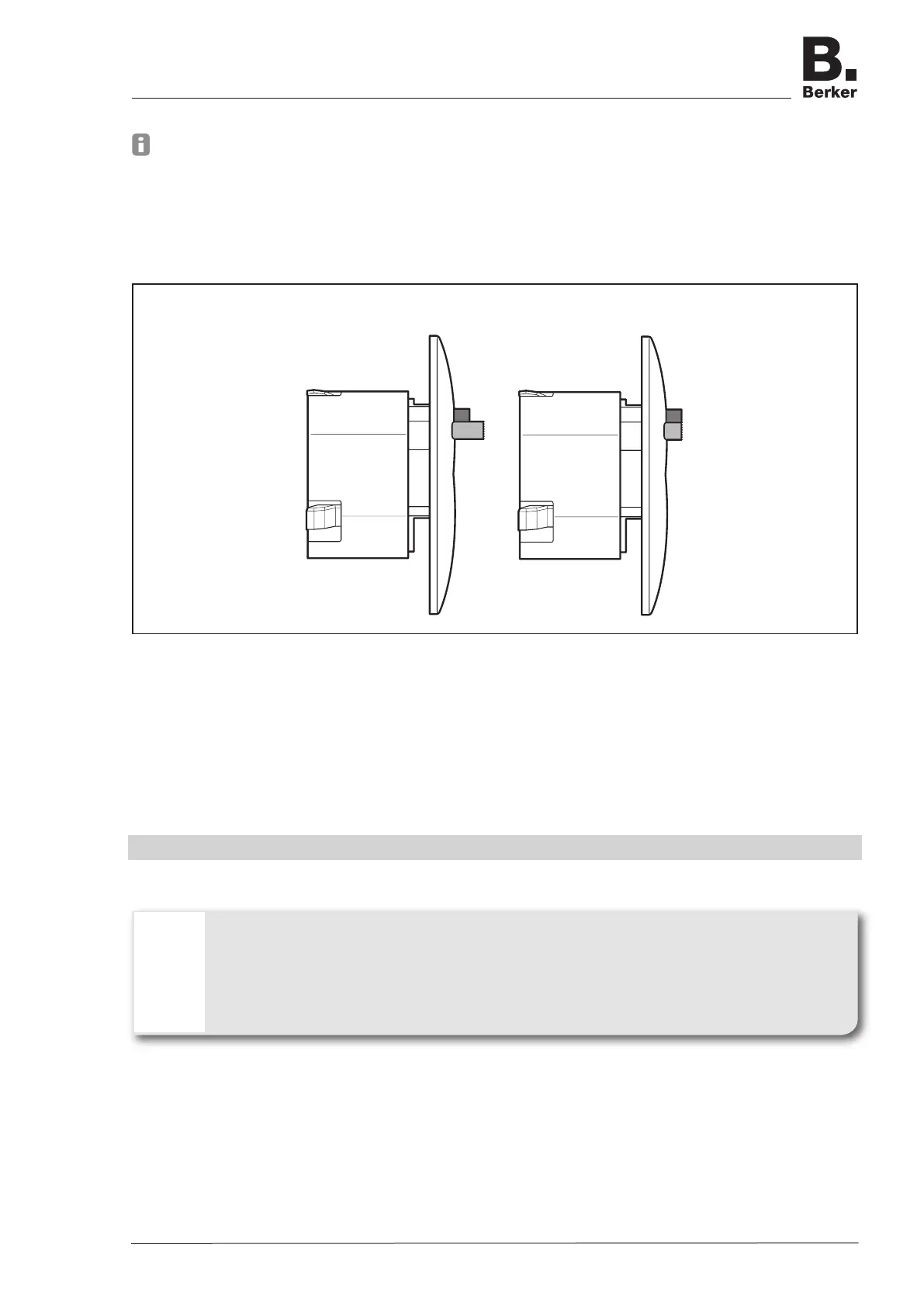

Figure 2

The residual current circuit-breaker trips and the push-button moves to the “Off” position

(Figure 2). Downstream socket outlets/loads are de-energised. The functional test has been

passed.

or:

The residual current circuit-breaker does not trip and the push-button remains in the “On”

position (Figure 2).Residual-current circuit-breaker is now ready for operation.

Replace the residual-current circuit-breaker and repeat the functional test.

Information for electricians

Installation and electrical connections

DANGER!

Touching live parts can result in an electric shock!

An electric shock can be lethal!

Disconnect the connecting cables before working on the device and cover all

live parts in the area!

The wiring must be adapted to the existing power mains. Check the power mains before any

wiring work.

Off

Desconectado

Conectado

På

Residual current circuit-breaker

6LE002821A
