Test the work of the controller by clicking the left or right half of the ON / OFF

button, paying attention to the behavior of the connected loads. If you have

connected a wall push-button, check its work. In the default conguration for

monostablepush-button, holding down the button should cause that the

load switch on, releasing button the load will switch o. To change this

behavior, go to “settings”(button at the top-right corner of the screen) and

then "set actions triggered by input", select the appropriate input ("1" or "2")

and for the corresponding action select the appropriate action type for the

trigger. Is possible to set 5 actions for each button. For example, to switch on /

o the lighting each time you press the button, select the action type as

"toggle state" and as trigger select “short click”.

Also check the selection in the "state after restart" option, which determines

how the controller behaves after a restart caused by, for example, a power

failure. You can choose whether the load should be on, o, remain as before

the restart (if it was o then it has to continue o), or take the opposite state,

Independently for each of the "1" or "2" outputs.

CONTROL DEVICES FROM ANY PLACE IN THE WORLD

Disconnect theinstallation supply voltage before installing the controller.

Remember that any mounting works should be carried out when the mains

voltage is disconnected (switch o the mains fuse or disconnect the power

cord from the mains socket).

The controller should be installed in a place protected against adverse

environmental conditions, protected from third party access - in the ush box

or inside the enclosure of the controlled device. Remember that metallic

elements (wires, housing parts) have a negative inuence on the range of the

device, and consequently the comfort of use. It is recommended that the

device be mounted in a stable and xed position. Due to the operating

voltage of the device it is necessary that the connectors of the controller be

protected against accidental contacts or short circuits, which could cause

electric shock or damage to the device.

Unlock your phone or tablet and download the free wBox application. If you

have an Android mobile device, you will nd the application in the Play Store.

For iOS devices the application is in the App Store. For phones with Windows

Phone, you can download the application from the Windows Phone Store.

By using your mobile phone or tablet, connect it to the device wireless

network. To do this, enter to your smartphone or tablet settings, then go to

setting of the WiFi network and nd the network name „switchBoxD-

-xxxxxxxxxx” where xxxxxxxxxx is the serial number of the device. Connect to

this network.

Turn on the wBox application. A device will appear at the top of the screen. To

add it to the application, click on "plus" on the right side of the name. To

pre-congure the controller, click on the default device name.

You can also set the conguration using the web browser

of your phone / tablet. After connecting to the wireless

network of the controller, turn on the browser and go to:

http://192.168.4.1

Read the diagram and then proceed to install the controller. Pay particular

attention to the designation of the controller connectors. Start with power

wires - phase L (usuallybrown) and neutral N (blue). Then, connect the load. If

you only want a local control with a wall switch, connect the wall push-button

according to the diagram. To control using only your phone or Tablet, it is not

necessary to install the wall push-button.

The controller supports all types of doublemonostablepush-button. The order

of connection of the S1 / S2 input, to the right / left push-button does not

matter at the installation stage - it can be set at a later stage of the controller

conguration.

After e making sure that the device is connected in accordance with th

diagram and that there are no metal components near the controllerwhich

may accidentally cause short-circuit, start the device by turning on the power

(turning on the mains fuse or connecting the power cord to the power outlet).

double smart switch for electric devices

with μWiFi technology

CONNECTION DIAGRAM

INSTALLATION - BASICS

FIRST START

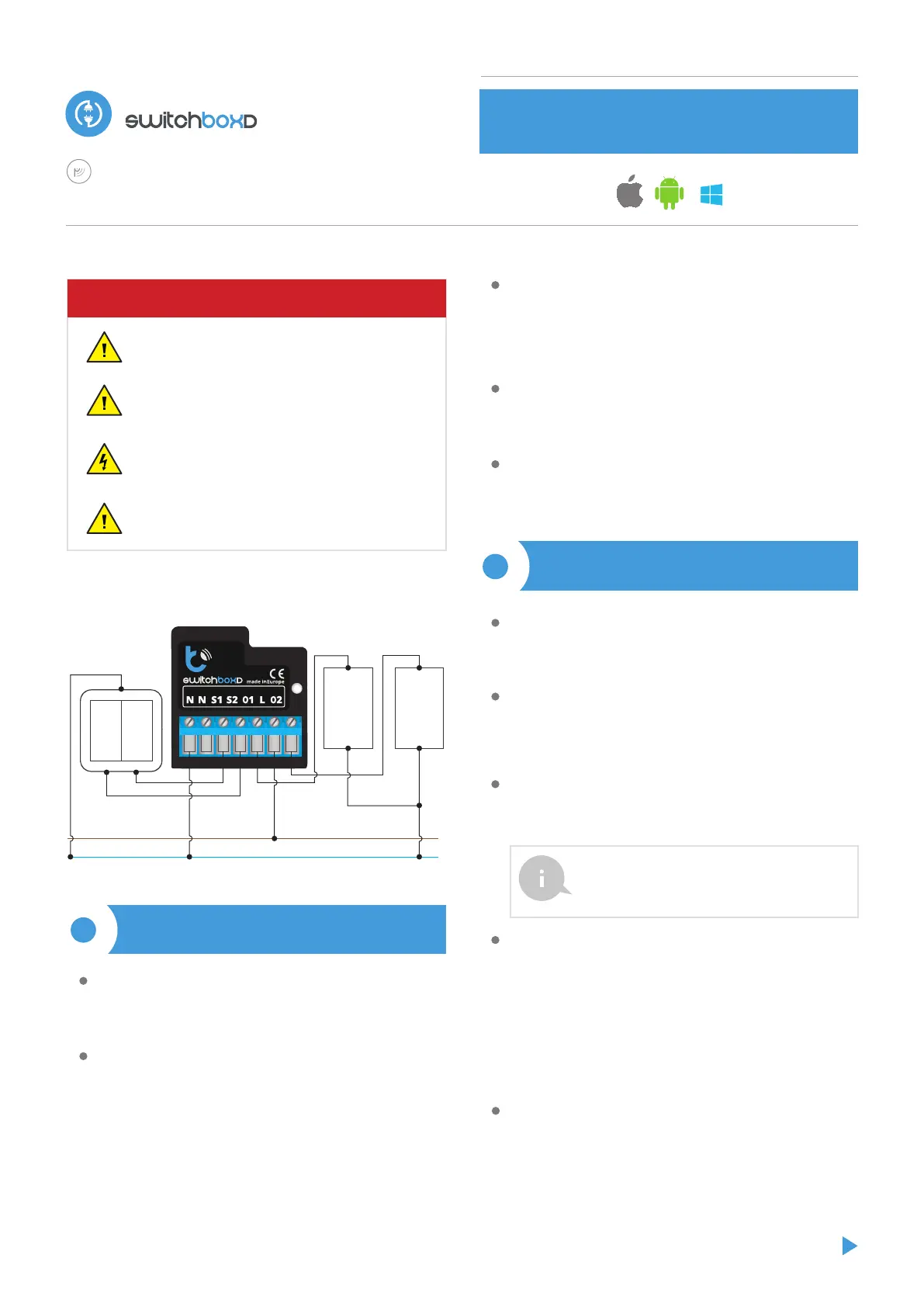

User manual

switchBoxD 2.0

2.0

double μWiFi switch 230 V AC, 2 x 5A max

Device 1

Device 2

Connect only in accordance with the diagram presented in the

manual. Improper connections may be dangerous, it can damage

the controller, and loss of the warranty.

Do not connect the device to loads exceeding the permitted

values.

The installation of the device to a power mains that does not

meet the quality requirements dened by PN-EN 50160, will

result in the loss of the warranty.

DANGER!: Risk of electric shock! Even with the device turned o,

the outputs may be live. All assembly work should be ALWAYS

performed with the disconnected power circuit.

SAFETY RULES

Once you turn on the controller for the rst time, you can proceed to its

further conguration. Being connected to the WiFi network emitted by the

device, in the control panel of the wBox application select the device, then go

to “settings” (button at the top-right corner of the screen).

You can change the name of the device that is displayed in the wBox

application. In addition, you can change the name and password of its

generated WiFi network. Remember that changing the network name or

password will disconnect the device immediately after you click the "save"

button, so re-connect to the device using the newly assigned network name

and password.

You can add the controller to your home WiFi network to control it through

this home network or from anywhere in the World. To do this, in the "Connect"

settings section, select a network name from the list and press "Connect". If is

required, enter the WiFi network password. During the connection of the

controller to your home network, the phone / tablet may disconnected from

the network. In this case, you will need to reconnect your phone / tablet to the

controller network.

Please remember that in order to control the device outside the local WiFi

network, from anyplace in the World by using the wBox application, the

option "Remote access enabled" in the controller settings must be set to "yes".

Once you've nished conguring the WiFi network, you can disconnect your

phone/tablet from the controller network and connect your mobile device

directly to your home WiFi network. The control from the wBox application

will work the same way as when the phone / tablet is connected to the

controller network. If the user leaves the local network, for example, leaving

home or using the mobile data, the wBox application will signal this state as

"remote mode". In this case, the devices can be controlled, but for security

reasons settings are not available.

direct connection (as access point), Wi-Fi

connection via a standard router,

connection with access from any location in

the world (requires access to the Internet)

Apple iPhone, Apple iPad, iPad Mini,

Android, Windows Phone, computers and

mobile devices operating a fully HTML5,

Apple watch support coming soon

Communication mode

Control with

ACCESS POINT AND WIFI NETWORK SETTINGS

TECHNICAL SPECIFICATIONS

For more information visit our website

www.blebox.eu

Or send us an email to: info@blebox.eu

Support is available at support@blebox.eu

ADDITIONAL INFORMATION

SOFTWARE UPDATE

LOCATION AND TIME OF THE DEVICE,

SCHEDULE

To update the software in the controller, connect it to your home WiFi network

(see "Access Point and WiFi settings" section) which is connected to the

Internet. Go to “settings” (button at the top-right corner of the screen) and

click the "get new rmware" button in the nal section on settings. Wait about

1 minute, do not close the interface and don’t perform other actions. The

device will download the latest software. The software version number,

hardware version and device identier can be read at the bottom of the

settings screen.

The controller has the ability to work according to a given schedule. To make

this possible, set the device's time. Go to settings in the "device time" section,

click "change timezone". Then select your region and location from the list,

conrm your selection clicking the "save" button. The device will synchronize

its time with the server time (if the controller is in a WiFi network with access

to Internet) or it will download time from the phone / tablet. It is recommen-

ded that the controller is always connected to a WiFi network with Internet

access so that it can automatically synchronize its clock.

To be able to control devices using the local sunrise and sunset, you must also

select the location of the controller. You can specify the location of the device

using a smartphone or tablet. In the section "device location", click "set

locations". Browser will ask whether to share locations - allow. In the "coordina-

tes" eld,should appear the approximate coordinates of your location. If the

"set locations" button blinks red with the word "error", or the "coordinates"

eld did not change the value from "not set" to numeric data, a failurehas

occurred during the location download. You should make sure that the phone

/ tablet has a GPS module and that the sharinglocation service is enabled on

the phone.

Adding schedule entries can be performed by clicking the "add item" button

in the "schedule" section of settings. You can select the days in which the task

will be performed, the type of entry (at a specic time, or relative to sunrise /

sunset - only having a correctly set location) and set the parameters of the

task. The set tasks will be visible as a list, individual entries can be edited or

deleted.

made of polyurethane composition not

containing halogens, self-extinguishing for

thermal class B (130 °C)

Supply voltage 230V

Maximum current (total) 10A

5AMaximum current (channel)

Max load 2000W

Inputs number 2

Input type logical, to N

Inputs voltage 230V

Galvanic isolation No

Housing

Power consumption

Outputs number

Output type

less than 1W

relay

bi-directional, encrypted

Protection rating IP20

Transmission frequency 2.4GHz

μWiFi, compatible with WiFi, 802.11gCommunication standard

Dimensions

Transmission

39 x 42 x 24 mm
