E N G L I S H

S P E C I F I C A T I O N S

GENERAL

Power Supply DC 11 -14V

Polarity Negative Ground

Speaker impedance 4 ohms

Power Output 4 x 70W

CD PLAYER

System Compact disc audio system

Usable disc Compact disc

Sampling frequency 44.1KHz

No of quantization bits 1bit

Frequency 5-20,000Hz

Number of channels 2 stereo

S/N Ratio 70dB

RADIO SECTION

Frequency Range 87.5-108 Mhz

Intermediate Frequency 10.7 MHz

Usable Sensitivity Better than 15dB at S/N 30 dB

Stereo Separation 25 dB at 1KHz

S/N Ratio 50 dB

AM/MW

Frequency Range 522-1620 Khz

Intermediate Frequency 450KHz

Usable Sensitivity Better than 45dB

S/N Ratio 40 dB

REMARK :

Specifications subject to change without notice.

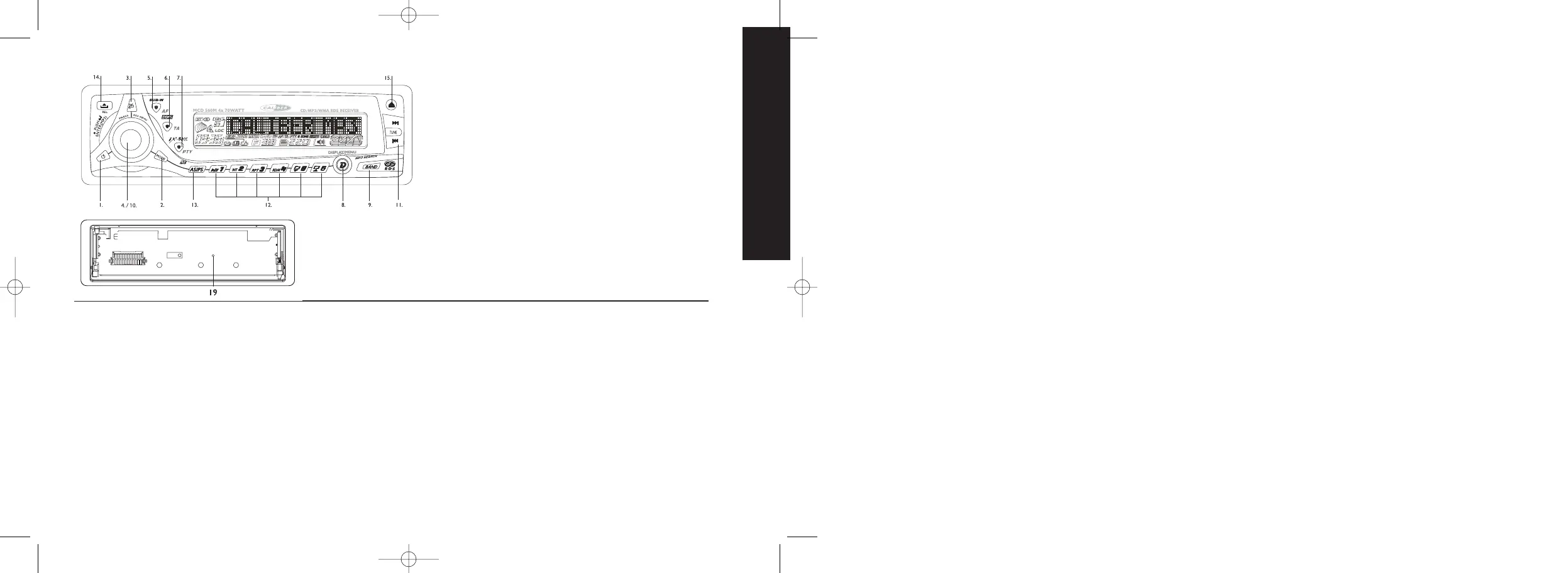

1. POWER BUTTON

2. MODE BUTTON

3. MUTE BUTTON

4. ROTARY VOLUME KNOB

5.AF BUTTON/SUBWOOFER BUTTON

6.TA BUTTON/ iEQ5 BUTTON (PRESET EQUALIZER BUTTON)

7. PTY BUTTON/ X-BASS BUTTON

8. DISPLAY BUTTON/ MENU BUTTON

9. BAND BUTTON/ MP3 SEARCH BUTTON

10.AUDIO SELECT BUTTON/ MP3 ENTER BUTTON/RDS MENU

11.TUNING UP/DOWN,TRACK UP / DOWN BUTTONS

12. PRESET STATIONS BUTTONS (M1~M6)

13.AUTOMATICALLY STORE / PRESET SCAN (AS/PS) BUTTON

/ MP3-ID3-TAG INFORMATION BUTTON

14. PANEL RELEASE BUTTON

15. PANEL OPEN BUTTON

19. RESET BUTTON

RESET

MCD 560M manualCompleet 10-03-2006 12:55 Pagina 1

E N G L I S H

D I S C P L A Y

P R E C A U TI O N S

• Use only in a 12-volt DC negative-ground electrical system.

• Disconnect the vehicle's negative battery terminal while mounting and connecting the

unit.

• When replacing the fuse, be sure to use one with an identical amperage rating.

• Using a fuse with a higher amperage rating may cause serious damage to the unit.

• DO NOT attempt to disassemble the unit. Laser beams from the optical pickup are dan-

gerous to the eyes.

• Make sure that pins or other objects do not get inside the unit; they may cause mal-

functions, or create safety hazards such as electrical shock or laser beam exposure.

• If you have parked the car for a long time in hot or cold weather, wait until the tem-

perature in the car become normal before operating the unit.

• Keep the volume at a level at which you can hear outside warning sounds (horns

sirens, etc.).

CD N OTE S

• Playing a defective or dusty CD can cause dropouts in sound.

• Hold CDs as illustrated.

• DO NOT touch the unlabeled side.

• DO NOT attach any seal, label or data protection sheet to either side of a disc.

• DO NOT expose a CD to direct sunlight or excessive heat.

• Wipe a dirty CD from the center outward with a cleaning cloth.

• Never use solvents such as benzine or alcohol.

• This unit cannot play 3-inch ( 8cm ) CDs.

• NEVER insert a 3-inch CD contained in the adapter

or an irregularly shaped CD.

• The unit may not be able to eject it, resulting in a

malfunction.

B E F OR E O P E R ATION

• DO NOT raise the volume level too much, as this

will block outside sounds, making driving dangerous.

• Stop the car before performing any complicated

operation.

C A U T I O N

DO NOT open covers and do not repair by yourself.

Consult the dealer or an experienced technician for help.

Installation procedures

First complete the electrical connections, and then

check them for correctness.

Anti-Theft System

This unit is equipped with a detachable panel.

Removing this panel makes the radio totally inoperable.

Removing the panel

1. Press power button more than 2 seconds to switch off

the power of the unit.

2. Remove the detachable panel (REL button).

3. Press the button of the case and open the cover. Place

the panel into the case and take it with you when you

leave the car.

Install detachable panel

1.Fix right part of face panel in the right part of panel slot

of the unit.

2.Press down the left side of the face panel until it clicks

into the panel slot of the unit.

Remove the unit

Switch of the power of the unit.

1. Remove the panel and the trim plate.

2. Insert both T-Keys into hole in front of the set until they lock.

3. Pull out the unit.

5. BAS IC OP E R ATIONS

14) PANEL RELEASE BUTTON (REL)

Press this button to remove the face panel.

1) POWER ON/OFF BUTTON

Press POWER button or any other button on the front of the radio (except

Open/Eject)to turn the unit on. Press POWER button again to turn the unit off.

2) MODE BUTTON (MODE)

Press MODE button to select a different mode of operation as indicated on the display

panel.Available modes include Tuner, CD, MP3/WMA and in Aux mode .

3) MUTE BUTTON (MUTE)

Press the mute button momentarily to mute the audio volume, and "Mute" will flash in

the display. Press the mute button again to restore volume to the previous setting.

4) VOLUME KNOB

To increase the volume rotate the volume knob clockwise,to decrease the volume rota-

te the volume knob counterclockwise.

10) AUDIO BUTTON (AUDIO/ENTER)

Press the AUDIO button , the display will be displayed first option is Volume, followed

by Subwoofer (only if the Subwoofer feature is currently activated),Bass( only if EQ5 is

currently deactivated),Treble( only if EQ5 is currently deactivated), Balance, Fader and

back to Volume.

When adjusting audio functions, the unit will automatically exit audio control mode

after 5 seconds of inactivity. Use the volume knob to adjust the settings.

7) IX-BASS BUTTON (iX-BASS)

Press PTY button more than 3 seconds to activate the iX-BASS feature.This feature will

boost the bass and treble ranges. Press PTY button again to select "iX-BASS Off".

6) PRESET EQUALIZER BUTTON (iEQ5)

Press TA button more than 3 seconds to activate the IEQ5 feature.

The equalizer function applies preset sound effects to the unit's audio output signal.

Press EQUALIZER button repeatedly to step through the following equalizer options:

Off, Pop, Jazz, Classical, Beat and Rock.

8) DISPLAY (DISP)

Press DISPLAY/MENU momentarily to navigate through the following animation

options: EQ animation,Animation Display ,PTM (personal text message) and back to the

default display.

MENU FUNCTION LIST (MENU)

Press DISPLAY/ MENU for more than 3 seconds to access the menu. Navigate the menu

by pressing DISPLAY/ MENU momentarily to

move forward to the next option.The menu can also be navigated by using the Tuning

Up or Tuning Down Button to move to the next or previous option. The following

options are adjusted through this menu feature.

• CONTRAST

• DIMMER

• CLOCK FORMAT

• TIME SET

• LOCAL / DISTANCE SELECTOR

• AREA (TUNER FREQUENCY SPACING)

• PROGRAMMABLE TURN-ON VOLUME (VOL PGM)

• BEEP TONE ON/OFF

• ILLUMINATION COLOR (COLOR)

This option allows selection between two colors for the backlight illumination of the

unit; "COLOR 1" blue backlight. "COLOR 2” red backlight.

• SELECTABLE CLOCK DISPLAY (CLK ON LCD)

To select the clock and greeting not to be displayed when the unit is powered off, use

volume knob to select "CLK ON LCD Off".

• KEY ILLUMINATION ON/OFF (KEY LIGHT)

When the Key Light feature is deactivated with the unit turned off and the ignition

switch turned on, the front panel buttons will not illuminate.

• PERSONAL TEXT MESSAGE

Press the MENU button repeatedly until you see the “PTM” on the display,this will allow

the user to input his favor greeting note on the display.The “INPUT MESSAGE” will be

displayed by default. User is allowed to input max. 20 characters or symbols for the

“PTM” to be displayed on the LCD.

When “PTM” is displayed on the display, Press “ENTER” button to start up the “PTM”

enter process. Use the volume up/down button to input A & Z 0-9, +/- ! etc. Press

“ENTER” button to confirm the first letter input. Repeat the procedure and enter the

rest of the others letter input. If you want to change the inputted letters ,you can press

Tuning up /down button to move, the cursor backwards to change the inputted letters.

If no more button pressing after 7 seconds the inputted letters will be automatically set

as PTM.The previous PTM will be erased automatically once a new PTM is inputted.

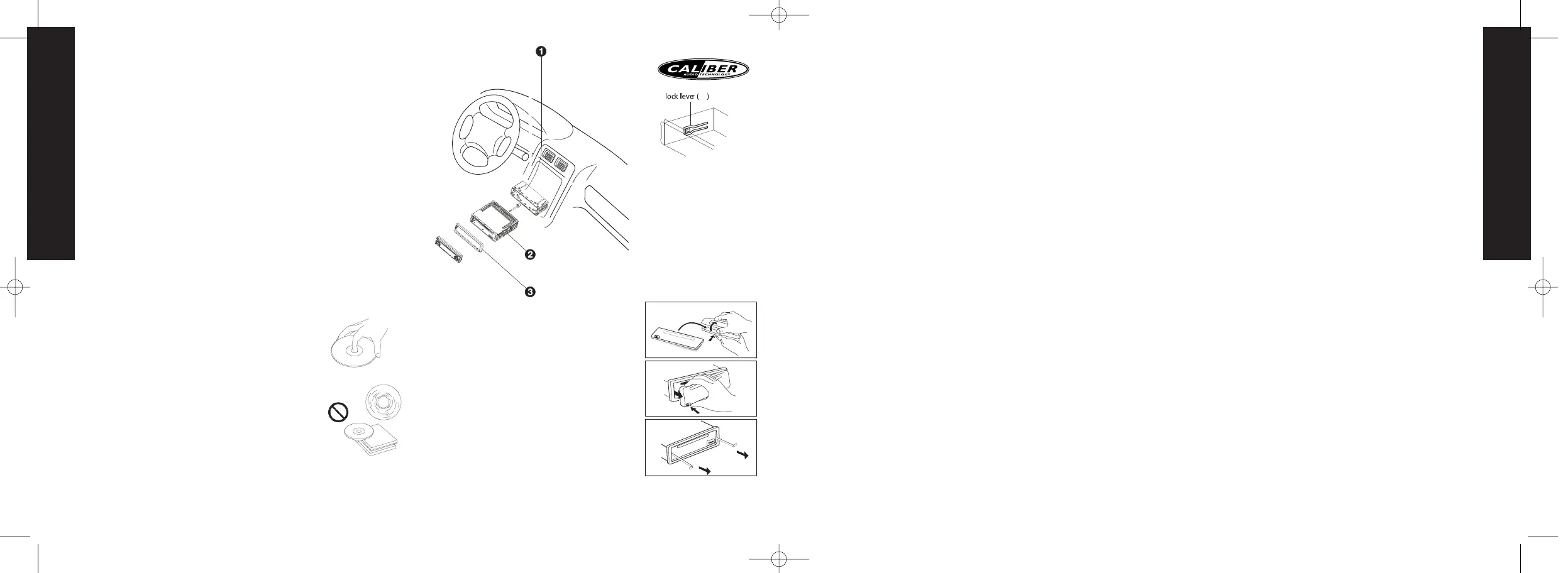

1. Insert mounting bracket into the

dashboard, and bend the mounting

tabs out with a screwdriver. (Make

sure that lock lever is flush with

the mounting bracket. Not projec-

ting outward)

2. Secure the rear of the unit After

fixing mounting bolt and power

connector, fix the rear of the unit

to the car body by rubber cushion.

3. Insert trimplate

MCD 560M manualCompleet 10-03-2006 12:55 Pagina 2
