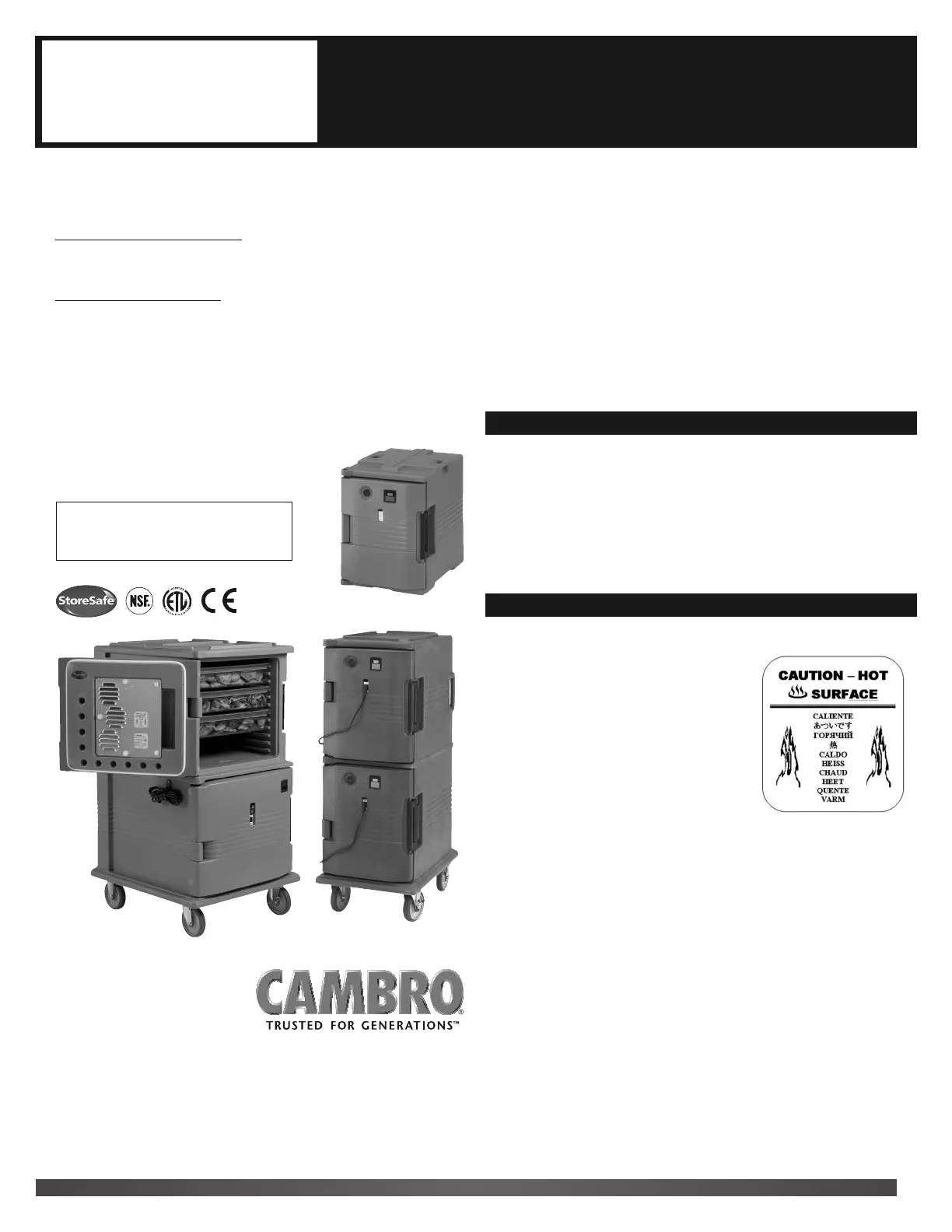

Cambro UPCHT16002 Manual

Cambro Ikke kategoriseret UPCHT16002

Læs gratis den danske manual til Cambro UPCHT16002 (36 sider) i kategorien Ikke kategoriseret. Denne vejledning er vurderet som hjælpsom af 4 personer og har en gennemsnitlig bedømmelse på 4.3 stjerner ud af 2.5 anmeldelser. Har du et spørgsmål om Cambro UPCHT16002, eller vil du spørge andre brugere om produktet?

Download PDF

Side 1/36

UPCH400

UPCH4002

UPCH800

UPCH8002

UPCH1600

UPCH16002

This owner’s manual applies to all variations of models

in the following categories:

Ultra Pan Carrier

H-Series

UPCH400 / 4002

Ultra Camcart

H-Series

UPCH800 / 8002

UPCH1600 / 16002

Heated Replacement Doors ONLY

For Replacement

Or Retrofit Non-Electric

Ultra Pan Carriers

or Ultra Camcarts

Note: All models ending in “2” indicate 220V.

All instructions in this manual refer to both

110V and 220V models.

OWNER’S

MANUAL

CAMBRO

ELECTRIC HOT HOLDING ULTRA PAN CARRIER

H-SERIES

ULTRA CAMCART

H-SERIES AND HEATED REPLACEMENT DOORS

Languages

English ...........................................................................................................1

Español ...........................................................................................................5

Français ..........................................................................................................9

Italiano

.........................................................................................................13

Deutsch ........................................................................................................17

Polski .............................................................................................................21

Русско ............................................................................................................25

日本語 ........................................................................................................29

中文 ............................................................................................................33

I. Introduction

Congratulations on the purchase of your new Cambro Electric Hot Holding Ultra Pan

Carrier or Ultra Camcart. This Owner’s Manual provides you with a step-by-step guide

to operating and maintaining your new insulated transporter. If you have any further

questions, please contact your Cambro Sales Representative, visit www.cambro.com

or call our Customer Service Department at (800) 833 3003. International customers

please call (714) 848 1555.

II. Safety Instructions

IMPORTANT: Read all instructions prior to use and save for future reference.

• Follow all warnings marked on unit.

• Use only type of power supply

(voltage, phase, frequency) indicated on

the heater unit label.

• Do not use if power cord is frayed or damaged.

• Connect unit to properly grounded power source.

• Use only manufacturer authorized power cord

and replacement parts.

• Warning! Do not use this equipment in wet

or damp conditions.

• Warning! Unplug unit prior to cleaning or service.

• Warning! Remove power cord from heater prior to cleaning.

Clean with damp cloth only.

• Warning! Do not submerge heater in water and never spray water on or near it.

• Warning! Do not get the thermometer wet in any way.

• Warning! Unplug the power cord before removing the heater from the door.

• Warning! Only Cambro Authorized Service Agent or qualified foodservice

equipment technician should open the inner cover of the heater for servicing.

• During normal operation, check the heater thumbscrews for tightness at least

once a week.

• Any operating problems not identified and corrected by instructions in this

manual should be referred to qualified service personnel

(electrician or foodservice equipment technician).

NOTE:

For service please contact Cambro at (800) 854 7631 X4118. Units under

warranty should be serviced by Cambro Authorized Service Agent Only.

I121137

CAMBRO U.S.A.

5801 Skylab Road, Huntington Beach, CA 92647

P.O. Box 2000, Huntington Beach, CA 92647-2000

TEL: (714) 848 1555 F AX: (714) 843 2630

C.E.L.

TEL: (31) 168 707 210

FAX: (31) 168 707 211

NORTH IRELAND & UK

TEL: 0800 587 0057 Toll Free

FAX: 0845 280 3411

IRELAND

TEL: 1800 509 046 Toll Free

FAX: 01 633 55 76

UPCH400, UPCH800

(110V)

UPCH1600 (110V)UPCH4002, UPCH8002

(220V)

UPCH16002 (220V)

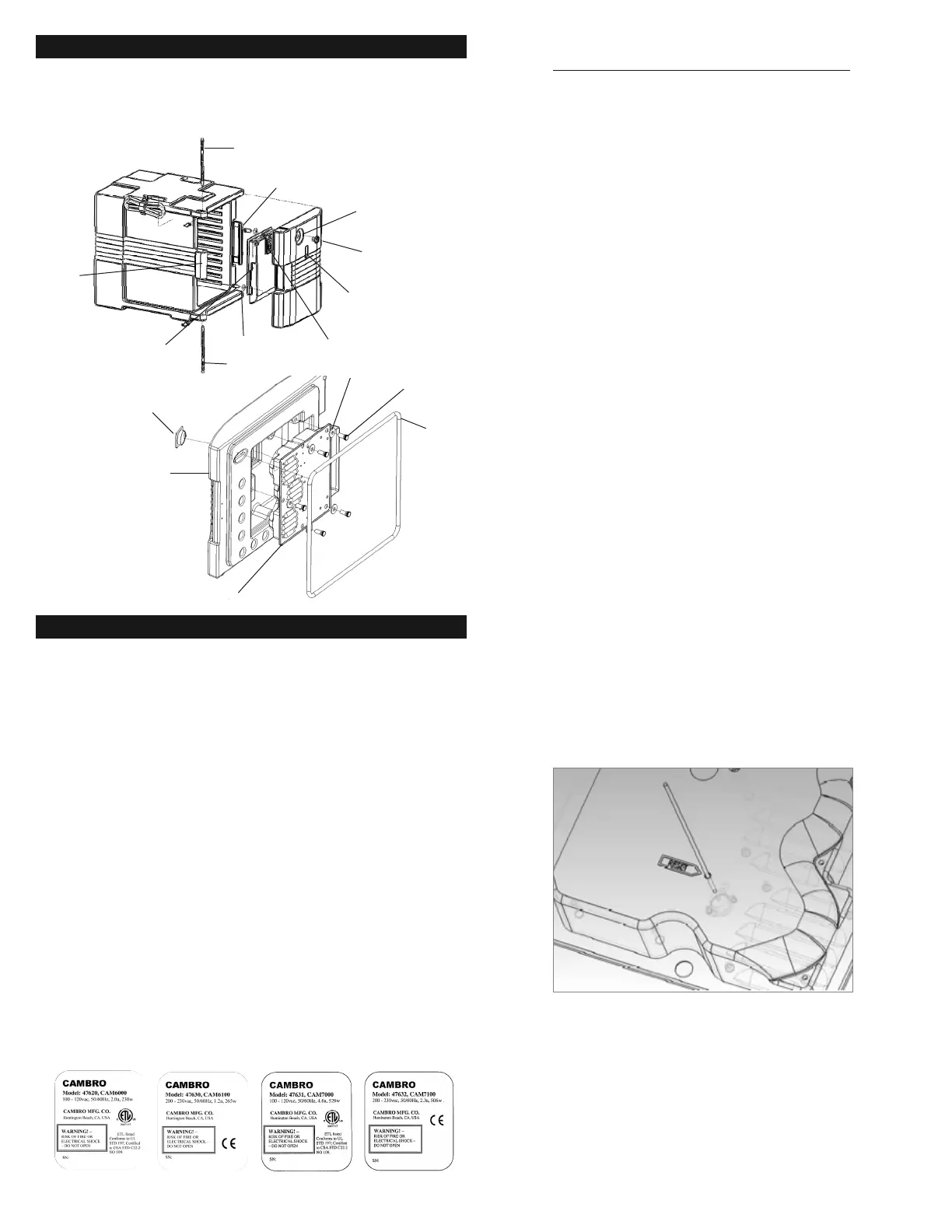

III. Assembly and Exploded Product Views

All UPCH400, UPCH800 and UPCH1600 products are factory assembled for your

convenience. No assembly is required.

NOTE: Remove packing tape, tags or documents from inside compartments

before operating.

UPCH400 Diagram

UPCH1600

Door Diagram

Digital

Thermometer

UPCH1600 Door

UPCH1600 Heater

110V or 220V Door

Nylon

Washer

5ea.

Nylon

Thumbscrew

5ea.

White

Door

Gasket

Hinge Pin

Door Latch

Thermometer

Socket

Thermometer

AC Inlet

Opening

Thumb Screw

Heater

AC Inlet

Door Hinge

Knuckle

Hinge Pin

IV. Operating Instructions

NOTE: Units are designed to hold pre-heated hot food only. NEVER use to pre-heat

or re-heat food.

WARNING!

Never use in wet or damp conditions. Refer to Section II for Safety

Instructions and Warnings.

1. Plug into main power supply 100-120 VAC (UPCH400/800/1600 models) or 200-230VAC

(UPCH4002/8002/16002 models) 50/60 HZ. Product label located on the heating unit inside

each door clearly indicates power supply information (see label samples below).

2. Red light on front of heated door indicates power ON for UPCH400 and UPCH800 models

– there is no power switch, unit turns on automatically when plugged into outlet. Power is

activated on UPCH1600 models by ipping power switch on front of heated door and will turn

red when power is ON. An amber light on the same switch indicates heater is active. This will

remain on until heater reaches factory set temperature and then will turn off. NOTE – heater

will switch on and off as necessary during operation to maintain factory set temperatures.

3. Pre-heat compartment(s) empty with door(s) closed for 45 minutes prior to loading hot food.

When inside door thermometer reads 150˚F (65˚C), insert pans of hot food into the carrier or

cart and latch door(s) to close tightly. NOTE: Cool metal pans or sheet pans to 250˚F (121,1˚C)

prior to placing onto plastic rails.

4. When transporting carrier/cart lled with hot food, unplug cord(s) and store on cord strap(s)

located on side of carrier or cart prior to moving. Insulated units will hold hot food hot for

4+ hours unplugged*.

5. If necessary, open pop vent located in door to release moisture/steam (UPCH400 and

UPCH800 doors only). Firmly grasp and pull outward until it clicks. To close vent,

push in until it clicks. UPCH1600 models have built in passive vent.

*Based on test with 6" (10 cm) each deep H-Pans with GripLids

lled with approx. 15 qts.

(14,2 L) of 190˚F (87,7˚C) water held in compartment with door shut. Water temperature

dropped to 183˚F (83,9˚C) in 4 hours.

CAUTION: Electrical Shock Hazard!

Before attempting to reset the hi-limit thermostat, unplug the heater power cord from

the power source. Only use “non-metal” tools to depress the reset button.

Do not bypass or alter the thermostats in any way.

1. Remove the power cord from the wall outlet or power supply and remove the other

end from the front of the heater.

2. Open the door of the Cambro product and hold the heater rmly while you remove

the 5 thumb screws with washers holding the heater to the inner face of the door.

This may also be done after removing the door from the Cambro product or by

having another person hold the heater for you.

3. Once you have the heater on a stable surface with the metal section facing down,

locate the small round hole in the cover with RESET next to the hole (the RESET

word may not be on some units).

4. Using a small diameter round, non-metal item such as a rigid plastic stir stick,

guide it through the hole and depress the button on the hi-limit thermostat as

seen in the gure below.

5. Remove the item you used to depress the button and return the heater to the door,

replace the screws with the washers and tighten.

6. Plug the cord into the door front and then to the power source. Switch on the heater

(if required) and verify it is heating up to the normal temperature.

NOTE: Normal operation of the door heater is controlled by an automatic cycling "control

thermostat." Failure of the control thermostat may cause the temperature inside the

Cambro product to rise to temperatures that could cause damage to the plastic. A

manually resettable Hi-limit thermostat, set at 195˚F (90,6˚C) is built into the heater

circuit. This device will effectively remove power to the heater in the heating unit and

will not return it to normal operation until the temperature is lower than 185˚F (85˚C)

and the button on the hi-limit thermostat is depressed. Other factors can cause the

hi-limit thermostat to open up, such as fan failure or placing food pans with

temperatures higher than 190˚F (87,8˚C).

NOTE: After resetting the hi-limit thermostat, please verify that all fans are operating

and that the temperature does not go above 185˚F (85˚C). If the fans are not operat-

ing, the hi-limit will be activated again after the heat in the heater enclosure reaches

the set-point temperature. If the original cause was failure of the control thermostat

to limit the temperature to 170˚F (76,7˚C), the hi-limit will be activated again after the

heat in the heater enclosure reaches the set-point temperature. If the heater does not

work after depressing the reset button, try the procedure again or if it continues to stop

working after some time heating, do not bypass or alter the thermostats in any way

and contact your Cambro representative.

Directions: This document covers door heaters manufactured with manually resettable

hi-limit thermostats only. Door heaters with this feature will have an access

hole in the cover of the heating unit and shall have a label "RESET" located

near the hole.

Instructions for Resetting UPCH Heaters
