USERS MANUAL
CL 200 RB
ROTATABLE BARNDOOR FOR CAMEO CL 200
You can find our current warranty conditions and limitation of liability at:
https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_CAMEO.pdf
To request warranty service for a product, please contact Adam Hall GmbH, Adam-HAll-Str. 1,
61267 Neu Anspach / Email Info@adamhall.com / 49 (0) 6081 / 9419-0
PROPER DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT) (Valid in the European Union and other European
countries with waste separation)
This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be
treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste
disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable
economic activity.
Household users should contact either the retailer where they purchased this product, or their local government
office, for details on where and how they can recycle this item in an environmentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This
product should not be mixed with other commercial wastes for disposal
D
C
A
B
INTRODUCTION
The optionally available CLCL200RB barn door was specially developed for the Cameo CLCL200 spotlight, is easy to install, and can be continuously rotated to any position.
SAFETY INFORMATION
1. Please read this user manual carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Only use the barn door as properly intended.
5. Never operate the spotlight with a completely closed barn door.
KEEP AWAY FROM CHILDREN! THE PRODUCT CONTAINS SMALL PARTS AND PACKAGING MATERIAL
THAT COULD BE SWALLOWED! PLASTIC BAGS MUST BE KEPT OUT OF THE REACH OF CHILDREN!
ASSEMBLY INSTRUCTIONS
To install the rotatable barn door, first disconnect the spotlight from the power supply (pull out the

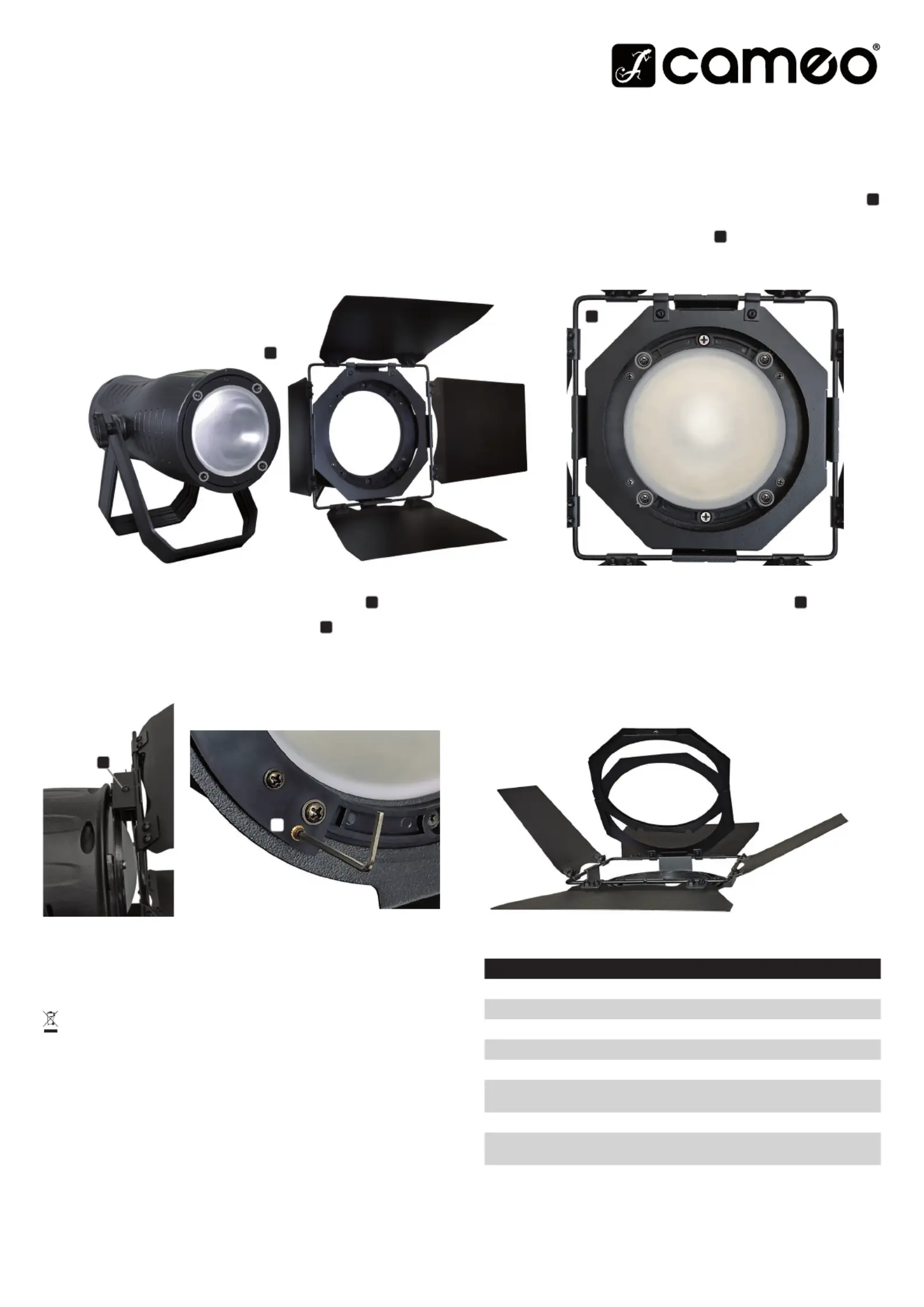

power plug), remove the four screws in the spotlight lens holder frame (see markings in Figure
A
), and put the barn door on the holder frame so that the four screw holes in the barn door and the
four threads in the spotlight align exactly on top of each other. Now use the enclosed M4 screws to
screw the barn door tightly to the spotlight frame (Figure
B
).
To rotate and lock the barn door, remove the filter frame’s locking screw (Figure
C
), fold the filter
frame holder forward, and use a 0.08 inch Allen key to screw one of the two enclosed grub screws
about halfway into the corresponding thread in the barn door (Figure
D
). Move the barn door into
the desired position and then lock it by tightening the grub screw. Fold the filter frame holder back
into the operational position and secure it with the previously removed locking screw.
To insert a color filter into the filter frame, unscrew the locking screw (Figure
C
) from the filter
frame, fold the filter frame holder up, and pull the filter frame out of the holder. Insert the desired
filter in the filter frame, push the frame back into the holder, fold it down, and use the previously
loosened locking screw to secure the filter frame in place.
Article number: CLCL200RB
Product type: Spotlight accessory
Type: rotatable barn door with 4 flaps
Compatible spotlights: CLCL200
Color: black
Material: metal/plastic
Dimensions
(W × H, closed):
9.29 × 8.23 inches
Weight: 1.92 lbs
Additional features: Filter frame,
4 mounting screws, and 2 grub screws included
SPECIFICATIONS

Produkt Specifikationer

Mærke: Cameo
Kategori: Lys
Model: CL 200 RB
