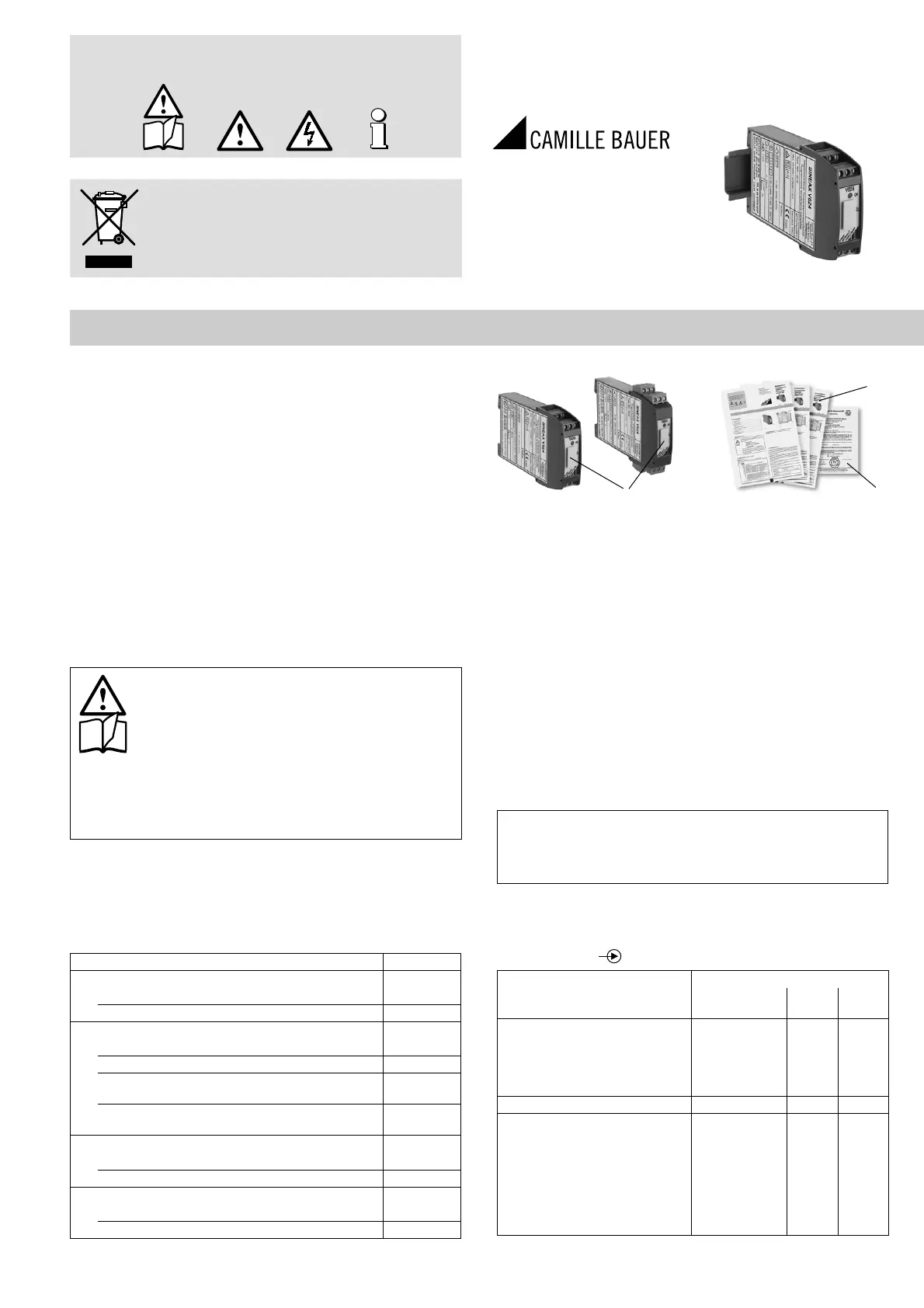

Side 1/4
1
Contents
1. Read fi rst and then ...............................................................................1
2. Scope of supply ....................................................................................1
3. Brief description ....................................................................................1
4. Technical data .......................................................................................1
5. Mounting ...............................................................................................2
6. Electrical connections ...........................................................................2
7. Confi guring the transmitter ...................................................................3
8. Commissioning .....................................................................................4
9. Maintenance .........................................................................................4
10. Releasing the transmitter ......................................................................4
11. Dimensional drawings ...........................................................................4
12. Declaration of conformity ......................................................................4
1. Read fi rst and then …
The proper and safe operation of the device assumes that the
Operating Instructions are read and the safety warnings given
in the various Sections
5. Mounting
6. Electrical connections
7. Confi guring the transmitter
8. Commissioning
are .observed
The device should only be handled by appropriately trained personnel who
are familiar with it and authorised to work in electrical installations.
Unauthorized repair or alteration of the unit invalidates the warranty!
2. Scope of supply (Figs. 1 and 2)
Transmitter, one of the two versions (1)
Order-Code: Signifi cance of the 1st to 4th digits
Description Order Code
1. Housing 624 -
Housing with screw terminals, not pluggable 3
Housing with screw terminals, pluggable 9
2. Version / Power supply
Standard/Power supply 24 … 60 V DC, AC 1
Standard/Power supply 85 … 230 V DC, AC 2
[Ex ia Ga] IIC and [Ex ia Da] IIIC
Power supply 24 … 60 V DC, AC
3
[Ex ia Ga] IIC and [Ex ia Da] IIIC
Power supply 85…110 V DC, 85…230 V AC
4
3. Output variable
Current (end value max. 20 mA) 1
Voltage (end value max. 10 V) 2
4. Confi guration
Basic confi guration programmed 0
Confi gured to order 1
Programmable
Temperature
Transmitter
SINEAX V 624
V624 Be 142 159-05 05.15
Camille Bauer Metrawatt LTD
Aargauerstrasse 7
CH-5610 Wohlen/Switzerland
Phone +41 56 618 21 11
Fax +41 56 618 21 21
info@cbmag.com
www.camillebauer.com
Operating Instructions
The instruments must only be disposed of in the
correct way!
Safety precautions to be strictly observed are marked with following
symbols in the Operating Instructions:
Fig. 1 Fig. 2
1 Operating Instructions (2) each in German, French and English
1 Type Examination Certifi cate (3), only for Intrinsically safeexplosion-
proof devices
3. Brief description
The programmable SINEAX V624 is designed for measuring temperature in
combination with thermocouples or resistance thermometers. Thermocouple
non-linearities are automatically compensated.
The input variable and measuring range are programmed with the aid of a PC, a
programming cable and the corresponding software. Speci c measured variable
data such as output signal, transmission characteristics, active direction and
open-circuit sensor supervision data can also be programmed.
The sensor circuit is monitored for open and short-circuits and the output
responds in a defi ned manner if one is detected.
Explosion-proof “Intrinsically safe” [Ex ia Ga] IIC and [Ex ia Da] IIIC versions
rounds off the series of transmitters.
Transmitters supplied as standard versions are confi gured as follows:
– Measuring input:
– Measuring range:
– Measuring output:
– Open-circuit supervision:
– Mains ripple suppression:
Pt100 for wire connectionthree-
0 … 600 °C
4 … 20 mA resp. 0 … 10 V, acc. to order
Output 21.6 mA resp. 11 V, acc. to order
50 Hz
4. Technical data
Measuring input Input variable and measuring range confi gured
Input variables
Measuring ranges
Limits Min.
span
Max.
span
Temperatures with
resistance thermometers
for ortwo, three
four-wire connection
Pt100, IEC 60751 200 to 850 °C 50 K 850 K
Ni100, DIN 43760 – 60 to 250 °C 50 K 250 K
Temperatures with
thermocouples
Type B, E, J, K, N, R, S, T
acc. to IEC 60584-1
Type L and U, DIN 43710
Type W5 Re/W26 Re,
Type W3 Re/W25 Re
acc. to ASTM E 988-90
acc. to type 2 mV 80 mV
(1)
(2)
(3)
2
Cold junction compensation
Internal: With incorporated Pt100
or
with Pt100 connected to the terminals
External: Via cold junction thermostat
0 … 60 °C, confi gurable
Measuring output
DC current*: Confi gurable between
0 and 20 resp. 20 and 0 mA
minimum span 2 mA
External resistance: Rext max. 600 Ω with 20 mA output
DC voltage*: Confi gurable between
0 and 10 resp. 10 and 0 V
minimum span 1 V
Load capacity: Rext min. 2 kΩ with 10 V output
Programming connector on the transmitter
Interface: RS 232 C
Open and short-circuit sensor circuit supervision
Signalling modes: Output signal confi gurable to
the value the output had immediately prior to
the open or short-circuit** (hold value)
a value between 5 and 110% of output
span
Power supply
DC, AC power pack (DC or 50…400 Hz)
Rated voltages and permissible variations
Nominal voltage UNTolerance Instruments version
24 … 60 V DC, AC DC – 15 … + 33%
AC ± 15% Standard (Non-Ex)
85 … 230 V*** DC, AC
24 … 60 V DC, AC DC – 15 … + 33%
AC ± 15% Type of protection
“Intrinsic safety”
[Ex ia Ga] IIC
[Ex ia Da] IIIC
85 … 230 V AC ± 10%
85 … 110 V DC – 15 … + 10%
Power consumption: 1.0 W resp. 2.1 VA
Light emitting diodes
Green LED: Light after switching on the power supply
Intrinsically safe
Type examination certi cate: ZELM 00 ATEX 0027 and 1st supplement
Identifi cation: II (1)G [Ex ia Ga] IIC
II (1)D [Ex ia Da] IIIC
5. Mounting
The SINEAX V624 can be mounted on a top-hat rail.
When deciding where to install the transmitter (measuring
location), take care that the limits of the operating tempe-
rature are kept:
25 and + 55 °C
* The type of output variable (current or voltage) is not confi gurable
** The short-circuit indicator is only active for the RTD ≥ 100 Ω at 0 °C,
three and four-wire measuring mode
*** Caution! Observe note in Section 6.3.
Table 1: Measuring input
Simply clip the device onto the top-hat rail (EN 50022) (see Fig. 3).
Fig. 3. Mounting onto top-hat rail 35 15 or 35 7.5 mm.× ×
6. Electrical connections
The connections for the leads are xed or plug-in screw terminals, depending
on the device execution. These are easily accessible at the front of the trans-
mitter and are suitable for a wire cross-section of max. 2.5 mm
2.
Make sure that the cables are not live when making the
connections!
The 230 V power supply is
potentially dangerous.
Also note that, …
the data required to carry out the prescribed measurement
must correspond to those marked on the nameplate of
SINEAX V624 ( measuring input, measuring output
and power supply)!
the resistance in the output circuit may not the overrange
current output value
Rext max. [kΩ] = 12 V
IAN [mA]
(IAN = current output value)
and not underrange the voltage output value
Rext min. [kΩ] = UAN [V]
5 mA
(UAN = voltage output value)!
the measurement input and output cables should be twisted
pairs and run as far as possible away from heavy current
cables!
In all other respects, observe all local regulations when selecting
the type of electrical cable and installing them!
In the case of explosion-proof, the supple-“Intrinsically safe”
mentary information given on the type examination certifi cati-
on, the EN 60079-14 and also local regulations applicable to
electrical installation in explosion hazard areas must be taken
into account!
6.1 Alternative measurement connections
Connect the measuring leads to suit the application as given in Table 1.
ϑ
Rw1
Rw2
ϑϑϑ
2
1
4
TC
Internal
cold junction
compensation
with incorporated
Pt100
TC
Internal
cold junction
compensation
with Pt100
connected to
the terminals
TC
External
cold junction
compensation
RTD
Four-wire
connection
RTD
Three-wire
connection
RTD
Two-wire
connection
ON
Green LED for
operating status
5
1 2
4 5
7 8
10
11 12
3
6
9
ON
2
1
4
5
2
1
4
5
2
1
4
5
2
1
4
5
2
1
