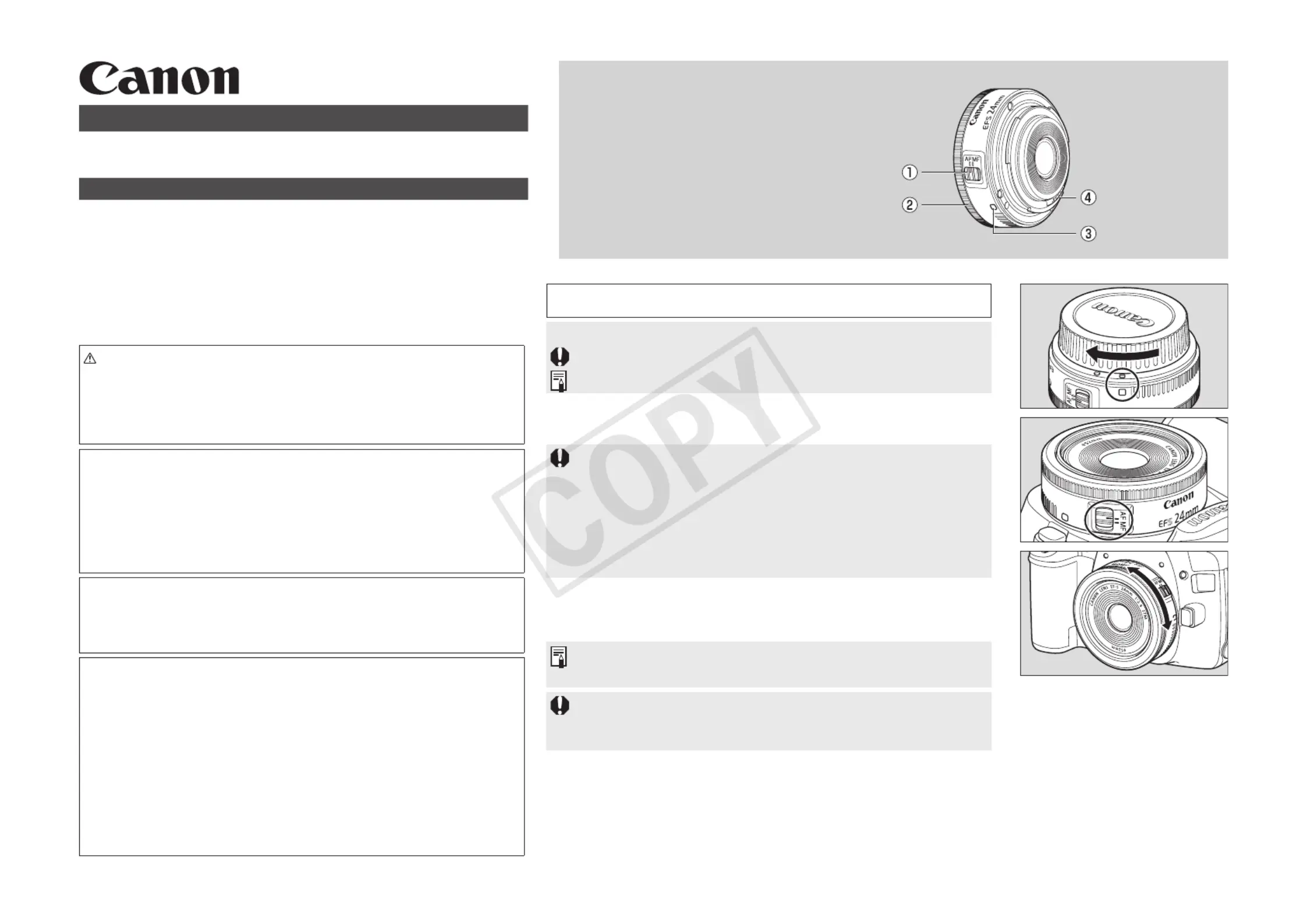

Thank you for purchasing a Canon product.

EF-S24mm f/2.8 STM is a compact, lightweight, low-proﬁle high quality wide-

angle lens.

●

“STM” stands for Stepping Motor.

Safety Precautions

●

Do not look at the sun or a bright light source through the lens or

camera. Doing so could result in loss of vision.

Looking at the sun directly through the lens is especially hazardous.

●

Whether it is attached to the camera or not, do not leave the lens under

the sun without the lens cap attached.

This is to prevent the lens from

concentrating the sun’s rays, which could cause a ﬁre.

Handling Cautions

●

If the lens is taken from a cold environment into a warm one,

condensation may develop on the lens surface and internal parts.

prevent condensation in this case, ﬁrst put the lens into an airtight plastic

bag before taking it from a cold to warm environment. Then take out the lens

after it has warmed gradually. Do the same when taking the lens from a warm

environment into a cold one.

●

Do not leave the lens in excessive heat such as in a car in direct sunlight.

High temperatures can cause the lens to malfunction.

Usage Precautions

●

When using this lens, please check the Canon website for the latest camera

ﬁrmware. If the camera’s ﬁrmware is not the latest version, be sure to update

to the latest ﬁrmware.

●

For details on updating ﬁrmware, please check the Canon website.

Cautions during shooting

●

This lens uses a stepping motor to drive the focusing lens (the lens that has

the job of focusing the shot).

1. Cautions when the power is o

Since the motor does not operate when the camera is o or has been

turned by the auto power-o function, take note of the following points.

•Thefocuscannotbeadjustedinmanualfocusmode.

2. Cautions when the lens is in sleep mode

This lens has a sleep mode separate from the camera auto power-o

function for saving power when the lens has not been operated for a period

of time.

Since the motor does not operate when the lens is in sleep mode, even if

the camera is turned on, take note of the following points.

•Thefocuscannotbeadjustedinmanualfocusmode.

•Torecoverthelensfromsleepmode,presstheshutterbuttonhalfway.

●

To retract the lens if extended, keep the lens attached to the camera, and

then autofocus at inﬁnity or turn the focusing ring.

Conventions used in this instruction

Warning to prevent lens or camera malfunction or damage.

Supplementary notes on using the lens and taking pictures.

1. Mounting and Detaching the Lens

See your camera’s instructions for details on mounting and detaching the

lens.

●

After detaching the lens, place the lens with the rear end up to prevent

the lens surface and contacts from getting scratched.

●

If the contacts get soiled, scratched, or have ﬁngerprints on them,

corrosion or faulty connections can result. The camera and lens may not

operate properly.

●

If the contacts get soiled or have ﬁngerprints on them, clean them with a

soft cloth.

●

If you remove the lens, cover it with the dust cap. To attach it properly,

align the lens mount index and the

□

index of the dust cap, and turn

clockwise

●❶

. To remove it, reverse the order.

2. Setting the Focus Mode

To shoot in autofocus (AF) mode, set the focus mode switch to AF

❷

To shoot in manual focus (MF) mode, set the focus mode switch to MF, and turn

the focusing ring to set the focus

❸

When the camera AF mode is ONE SHOT AF, focus manually by pressing

the shutter button halfway and turning the focusing ring. (Full-time manual

focus)

●

When turning the focusing ring suddenly, the focus adjustment may be

delayed.

●

The focus cannot be adjusted in MF mode while the camera is o.

●

Do not touch the front rotating parts of the lens while autofocus is active.

Nomenclature

●①

Focus mode switch

●②

Focusing ring

●③

Lens mount index

●④

Contacts

EF Lenses

EF-S24mm f/2.8 STM

Instructions

CT1-8602-000 1407SZ © CANON INC. 2014

●❹

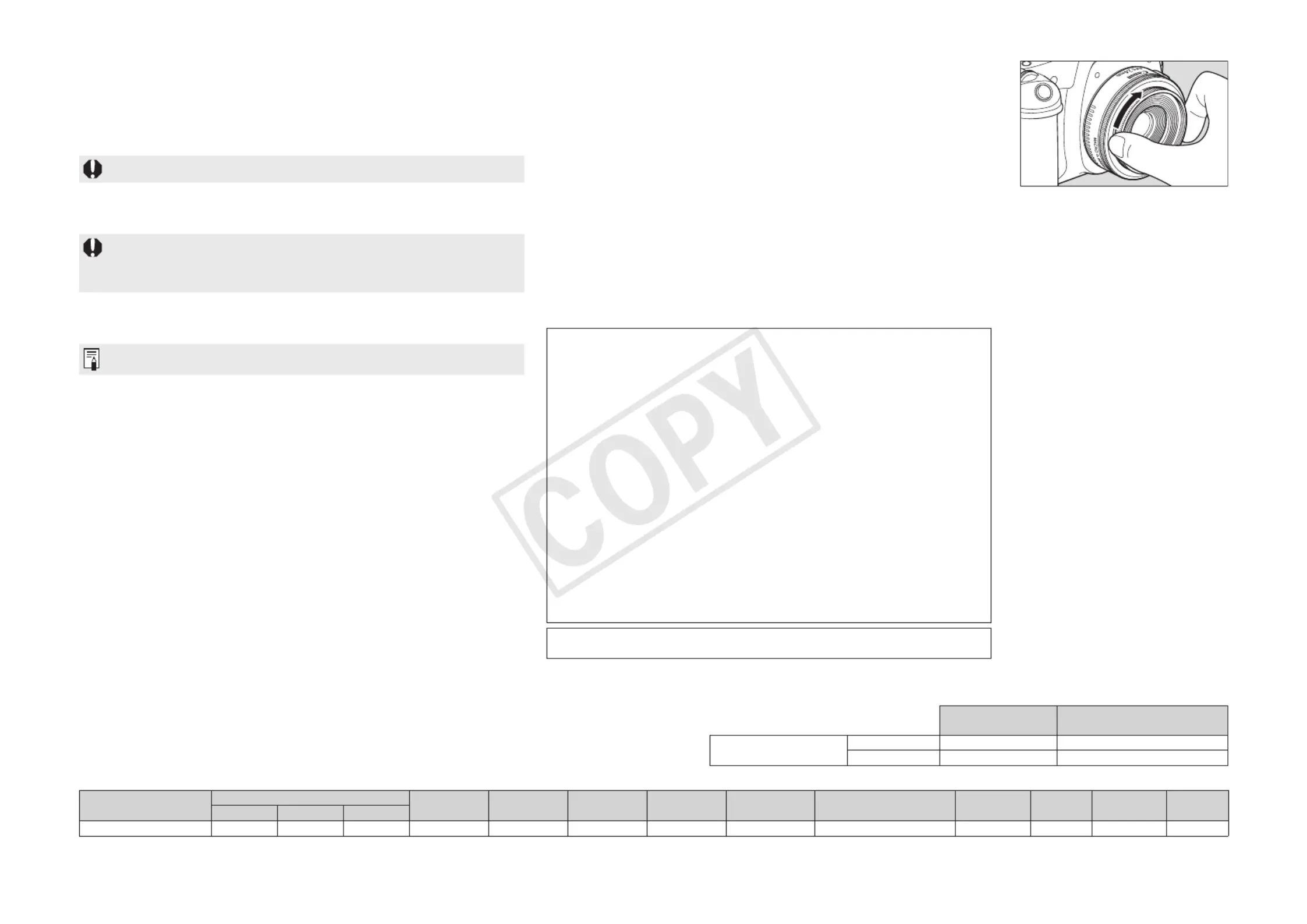

3. Hood (Sold Separately)

The ES-52 hood can keep unwanted light out of the lens, and also protects the

lens from rain, snow, and dust.

When attaching the hood, securely attach it to the ﬁlter mounting thread (ø52mm)

on the front of the lens, or to the thread (ø52mm) on the front of the ﬁlter that is

already ﬁtted to the lens (excluding older Canon circular polarizing ﬁlters that do

not have a ﬁlter mounting thread on the front)

❹

Part of the picture may be blocked if the hood is not attached properly.

4. Filters (Sold Separately)

You can attach ﬁlters to the front of the lens, or to the ﬁlter mounting thread

(ø52mm) on the front of the hood.

●

Only one ﬁlter may be attached.

●

Use the Canon Circular Polarizing Filter PL-C B (ø52mm) as the

polarizing ﬁlter.

●

You can use hoods and ﬁlter attached in any order.

5. Extension Tubes (Sold Separately)

You can attach extension tube EF12 II or EF25 II for magniﬁed shots. For

shooting distance and magniﬁcation, see the extension tube speciﬁcations.

MF mode is recommended for accurate focusing.

●

The lens length is measured from the mount surface to the front end of the

lens. Add 23.9 mm when including the lens cap and dust cap.

●

The extenders cannot be used with this lens.

●

The close-up lenses cannot be used with this lens. (The end of the lens will

become heavy, causing the focus to become unstable.)

●

CASE (Sold Separately) LP811

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including interference

that may cause undesired operation.

Do not make any changes or modiﬁcations to the equipment unless otherwise

speciﬁed in the instructions. If such changes or modiﬁcations should be made,

you could be required to stop operation of the equipment.

This equipment has been tested and found to comply with the limits for a class

B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and

can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment o and

on, the user is encouraged to try to correct the interference by one or more of

the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dierent from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

CAN ICES-3(B)/NMB-3(B)

Speciﬁcations

* Sold Separately

Angle of view

Lens

construction

Minimum

aperture

Max.

magniﬁcation

Min. focusing

distance

Filter diameter Max. diameter and length Weight Hood* Lens Cap Case*

Diagonal Vertical Horizontal

EF-S24mm f/2.8 STM 59°10’34°55’50°35’5-6 22 0.27x 0.16m/0.52ft 52mm 68.2x22.8mm (2.7”x0.9”) 125g/4.4oz. ES-52 E-52 II LP811

Extension Tube Speciﬁcations

(Sold Separately)

Magniﬁcation

(X)

Focusing Distance Range

(mm) (inch)

EF-S24mm f/2.8 STM

EF12 II 0.77-0.50 114-125 (4.5-4.9)

EF25 II 1.38-1.11 115-112 (4.5-4.4)

Produkt Specifikationer

Mærke:	Canon
Kategori:	Linse
Model:	EF-S 24mm f/2.8 STM
Vægt:	125 g
Diameter:	68.2 mm
Grænseflade til montering af objektiv:	Canon EF, Canon EF-S
Længde:	22.8 mm
Nærmeste fokuseringsafstand:	0.16 m
Maksimale blænderåbning tal:	2.8
Fast brændvidde:	24 mm
Komponent til:	SLR
Kameramærker kompatibilitet:	Canon
Objektivstruktur (elementer/grupper):	6/5
Objektivtype:	Bred linse
Filterstørrelse:	52 mm
