Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Catalog No. 04-530900013-01 Printed in U.S.A. Form 09DP-3SI Pg 1 612 9-11 Replaces: 09DP-1SI
Installation, Start-Up and Maintenance
Instructions
CONTENTS
Page
SAFETY CONSIDERATIONS . . . . . . . . . . . . . . . . . . . . . . 1
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-36
Step 1 — Inspect Shipment . . . . . . . . . . . . . . . . . . . . . . 2
Step 2 — Rig and Place Unit . . . . . . . . . . . . . . . . . . . . . 2
DOMESTIC UNITS
EXPORT UNITS
•PLACING UNITS
Step 3 — Complete Refrigerant Piping . . . . . . . . . . 19
GENERAL
EVACUATION AND DEHYDRATION
REFRIGERANT LINE SIZING
PRESSURE RELIEF
REFRIGERANT RECEIVER
•LIQUID LIFT
Step 4 — Make Electrical Connections . . . . . . . . . . 23
GENERAL
•POWER WIRING
CONTROL CIRCUIT WIRING
FIELD CONTROL WIRING
Step 5 — Check Condenser Fans. . . . . . . . . . . . . . . . 30
Step 6 — Configure Optional Motormaster
®
V
Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Step 7 — Install Accessories . . . . . . . . . . . . . . . . . . . . 34
LOW-AMBIENT OPERATION
MISCELLANEOUS ACCESSORIES
START-UP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37,38
System Evacuation and Dehydration . . . . . . . . . . . . 37
Preliminary Charge. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Adjust Refrigerant Charge . . . . . . . . . . . . . . . . . . . . . . 37
Head Pressure Control . . . . . . . . . . . . . . . . . . . . . . . . . . 37
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Recommended Maintenance Schedule . . . . . . . . . . 39
Microchannel Heat Exchanger (MCHX)
Condenser Coil Maintenance and Cleaning
Recommendations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
SAFETY CONSIDERATIONS
Installing, starting up, and servicing this equipment can be
hazardous due to system pressures, electrical components, and
equipment location (roofs, elevated structures, etc.).
Only trained, qualified installers and service mechanics
should install, start up, and service this equipment.
Untrained personnel can perform basic maintenance func-
tions, such as cleaning coils. All other operations should be
performed by trained service personnel.
When working on the equipment, observe precautions in the
literature, and on tags, stickers, and labels attached to the
equipment and any other safety precautions that may apply.
Follow all safety codes.
Wear safety glasses and work gloves.
Use care in handling, rigging, and setting bulky
equipment.
WARNING
Open all remote disconnects before servicing this equip-
ment. Failure to do so could result in personal injury from
electric shock.
DANGER
Separate power sources (main and control power circuits)
are used for these units. Be sure both main and control
power circuits are disconnected before servicing. Failure to
do so could result in personal injury from electric shock.
WARNING
DO NOT USE TORCH to remove any component. System
contains oil and refrigerant under pressure.
To remove a component, wear protective gloves and gog-
gles and proceed as follows:
a. Shut off electrical power to unit.
b. Recover refrigerant to relieve all pressure from sys-
tem using both high-pressure and low pressure ports.
c. Traces of vapor should be displaced with nitrogen
and the work area should be well ventilated. Refrig-
erant in contact with an open flame produces toxic
gases.
d. Cut component connection tubing with tubing cutter
and remove component from unit. Use a pan to catch
any oil that may come out of the lines and as a gage
for how much oil to add to the system.
e. Carefully unsweat remaining tubing stubs when nec-
essary. Oil can ignite when exposed to torch flame.
Failure to follow these procedures may result in personal
injury or death.
CAUTION
DO NOT re-use compressor oil or any oil that has been
exposed to the atmosphere. Dispose of oil per local codes
and regulations. DO NOT leave refrigerant system open to
air any longer than the actual time required to service the
equipment. Seal circuits being serviced and charge with
dry nitrogen to prevent oil contamination when timely
repairs cannot be completed. Failure to follow these proce-
dures may result in damage to equipment.
GEMINI™ SELECT
09DPS018-030, 09DPM035-130
Air-Cooled Condensing Units
50/60 Hz
o
o
2
INSTALLATION
Step 1 — Inspect Shipment —
Inspect unit for dam-
age upon arrival. If damage is found, immediately file a claim
with the shipping company. Verify proper unit delivery by
checking unit nameplate data and the model number nomen-
clature shown in Fig. 1. See Tables 1-6 for unit physical data.
Step 2 — Rig and Place Unit — All units are de-
signed for overhead rigging, and it is important that this meth-
od be used. Lifting holes are provided in the frame base rails. It
is recommended to use shackles in the lifting holes (see rigging
label on the unit and Fig. 2 and 3 for rigging weights and center
of gravity). All panels must be in place when rigging.
Use spreader bars or frame to keep the cables, chains, and
straps clear of the unit sides. Leave standard coil protection
packaging in place during rigging to provide protection to
coils. Remove and discard all coil protection after rigging ca-
bles are detached.
IMPORTANT: To maintain unit stability while lifting,
use 4 cables, chains or straps of equal length. Attach one
end of each cable to shackle attachment point and the
other end of each cable to the overhead rigging point.
CAUTION
All panels must be in place when rigging. Failure to com-
ply could result in equipment damage.
CAUTION
For unit sizes 018 to 060 when handling with a forklift,
handle only through fork pocket holes. Failure to follow
this caution could result in equipment damage or personal
injury.
CAUTION
For unit sizes 065 to 130, do not forklift the unit unless unit
is attached to a skid designed for forklifting. Failure to fol-
low this caution could result in equipment damage or per-
sonal injury.
09DP M 035 6 4 0 0 0 0 0
09DP Split System Condenser Packaging/Security Options
0 Std Packaging
4 Security Grilles/Hail Guards Only
8Bottom Skid Only
Ambient/SCCR Options
0 Std Ambient, Std Interrupt
3 Std Ambient, High Interrupt
6 Low Ambient, Std Interrupt
9 Low Ambient, High Interrupt
Not Used
Electrical Options
0 Single Point Power, Terminal Block
1 Single Point Power,
Non-Fused Disconnect
Refrigeration Circuit Options*
M Multiple Refrigeration Circuit
S Single Refrigeration Circuit
Revision Level
Current Revision Level
ylppuS rewoP
1 – 575-3-60
2 – 380-3-60
5 – 208/230-3-60
6 – 460-3-60
9 – 380/415-3-50
Condenser Coil/Low Sound Options
4 MCHX, No Sound Treatment
5 E-coat, MCHX, No Sound Treatment
C MCHX, Low Sound Fan(s)
D E-coat MCHX, Low Sound F
an(s)
Unit Size
D Bottom Skid, Security Grilles/Hail Guards
J Bottom Skid, Top Crate, Bag
N Bottom Skid, Top Crate, Bag,
Security Grilles/Hail Guards
018
040 085
020
050 095
030 065
035 075
060 115
130
Not Used
LEGEND
*09DPS units available in sizes 018-030. 09DPM units
available in sizes 035-130.
Quality Assurance
Certified to ISO 9001:2000
MCHX Microchannel Heat Exchanger
a09-575

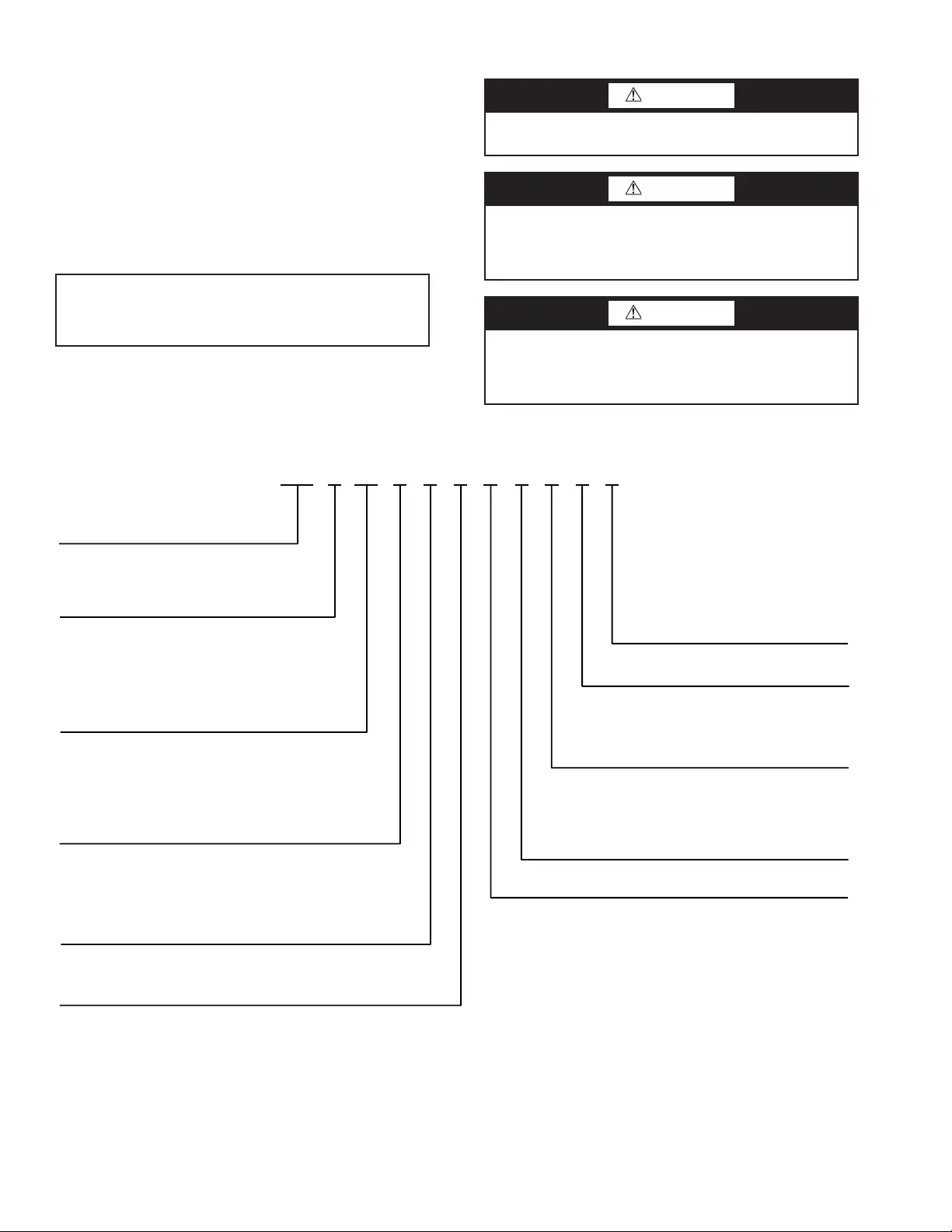

Fig. 1 — Model Number Nomenclature
