Side 1/9

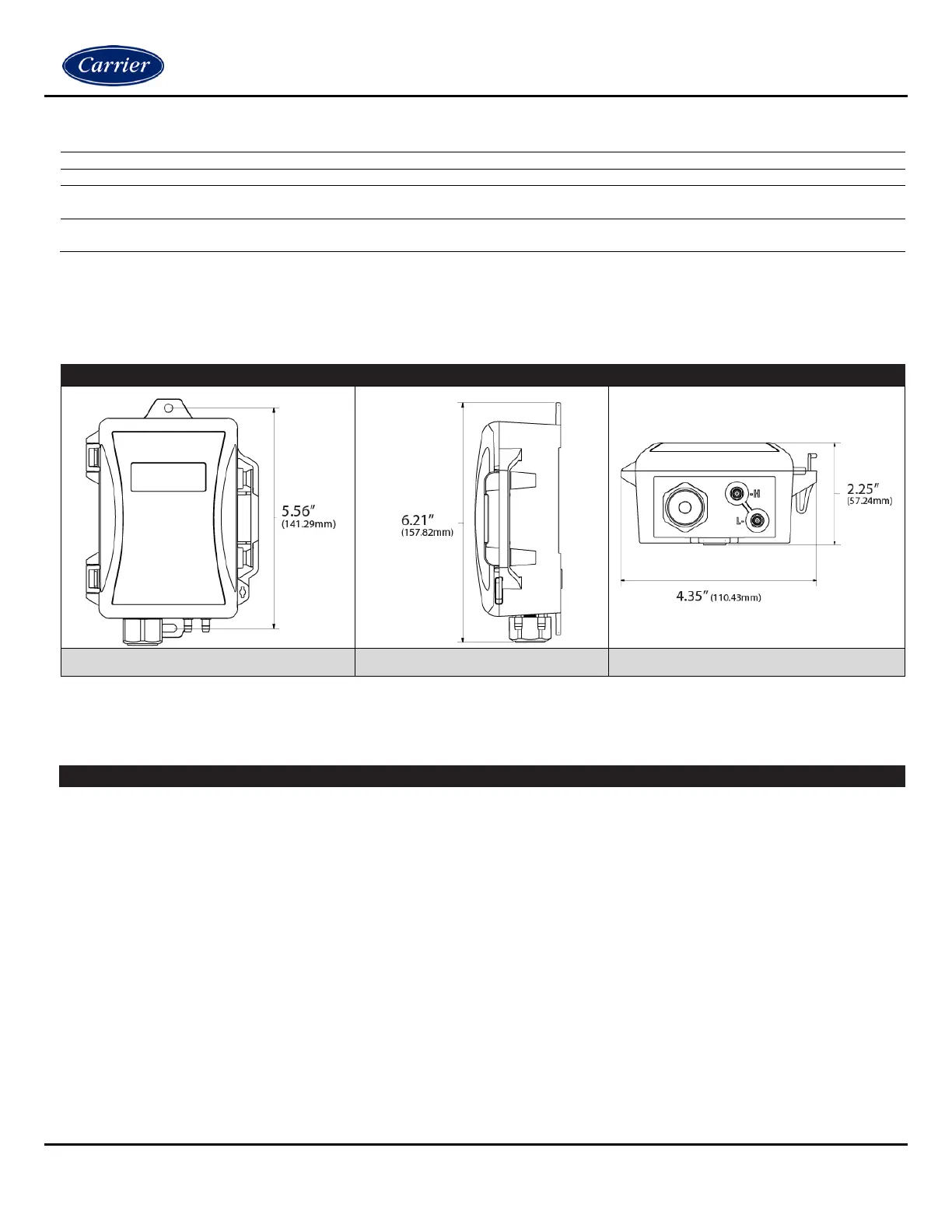

Differential Low Pressure

Installation and Operation

#NSA-HH/DLP-001-W-U-D-A-3-C, NSA-HH/DLP-001-W-U-N-A-0-C, NSA-HH/DLP-010-W-U-D-A-3-C

NSA-HH/DLP-010-W-U-N-A-0-C, NSA-HH/DLP-040-W-U-D-A-3-C, NSA-HH/DLP-040-W-U-N-A-0-C – 11/14/2019

Specifications subject to change without notice.

Catalog No. 11-808-753-01 Page 1 of 9

Overview

The DLP Series is based on a piezoresistive, silicon sensing element which senses Differential

Pressure and provides an analog output. The hinged cover on the DLP can be easily opened using

the integrated locking tab on the side of the enclosure. This allows for easy access to the zero

function and field selectable ranges and outputs. The DLP Series also includes an optional, five digit

LCD for installation and monitoring support. Field selectable analog outputs include 0-5 and 0-10

VDC, or 4-20 mA which correlate to a uni or bi-directional pressure range from 0-0.1” up to 0-40” of

water column, depending on your model selection. Each unit has up to 8 field selectable, uni or bi-

directional ranges. Options include a Pitot Tube or Din Rail Clip.

Applications: Building and Duct Static Pressure, Filter Monitoring, Air Flow Measurement, and

Process Control

Part Numbers

NSA-HH/DLP-001-W-U-D-A-3-C NSA-HH/DLP-001-W-U-N-A-0-C NSA-HH/DLP-010-W-U-D-A-3-C

NSA-HH/DLP-010-W-U-N-A-0-C NSA-HH/DLP-040-W-U-D-A-3-C NSA-HH/DLP-040-W-U-N-A-0-C

Specifications

Supply Voltage:

4-20 mA Output: 16-36 VDC (250 Ohm Load max.) / 22-36 VDC (500 Ohm Load max)

0-5 VDC / 0-10 VDC Output: 16-36 VDC / 24 VAC (+/- 10%)

Supply Current:

4-20 mA Output: 24 mA min (0.83 VA) | 0-5 VDC / 0-10 VDC Output: 6 mA max (0.18 VA)

Output Signals:

Current Output: 4-20 mA, 2-Wire Loop Powered (Default); Current limited to 21.5 mA max

Voltage Signals: 0-5 VDC / 0-10 VDC Field Selectable, 3-Wire; Output limited @ 5.25 & 10.5 VDC

Response Time (0-100%

FSO):

4 seconds

Output Update Rate:

0.5 second intervals

Pressure Ranges:

(Defaults in bold)

NSA-HH/DLP-001: 0-0.1", 0.2", 0.5", 1" ±0.1", ±0.2", ±0.5", ±1"

NSA-HH/DLP-010: 0-1", 2", 5", 10" ±1", ±2", ±5", ±10"

NSA-HH/DLP-040: 0-10", 20", 30", 40" ±10", ±20", ±30", ±40"

Maximum Pressure

NSA-HH/DLP-001: 1WC | NSA-HH/DLP-010: 10 WC | NSA-HH/DLP-040: 40 WC

Accuracy

+/- 0.50% FSO

Zero Function:

Pushbutton Zero Function

Thermal Effects

+/- 0.067% FSO / °F (0.12% FSO / °C)

Proof Pressure | Burst

Pressure:

NSA-HH/DLP-001: Proof: 270 inWC (67.2 kPa) | Burst: 415 inWC (103.3 kPa) for 1 inWC (249.8 Pa)

NSA-HH/DLP-010: Proof: 350 inWC (87.12 kPa) | Burst: 550 inWC (136.9 kPa) for 10 inWC (2490.8

Pa)

NSA-HH/DLP-040: Proof: 562 inWC (140 kPa) | Burst: 1004.7 inWC (250 kPa) for 40 inWC (9963.6

Pa)

Operating Temp Range:

-4 to 185°F (-20 to 85°C)

Compensated Temp

Range:

32 to 122°F (0 to 50°C)

Storage Temp Range:

-22 to 185°F (-30 to 85°C)

Operating Humidity

Range:

10 to 95% RH, non-condensing

Media Types:

Intended for use with non-corrosive, non-ionic gases, such as air and other dry gases

Enclosure Material |

Flammability Rating:

Flame Retardant Polycarbonate; UL94-5VA

Wiring Connections:

Finger Pushbutton (Spring) Terminal Blocks; accepts 16-24 AWG wires

Conduit Knockouts:

Watertight Cordgrip Installed (1/2" NPT Conduit fittings accepted when Cordgrip removed)

Pressure Fitting Material:

Nickel Plated Brass or Stainless Steel
