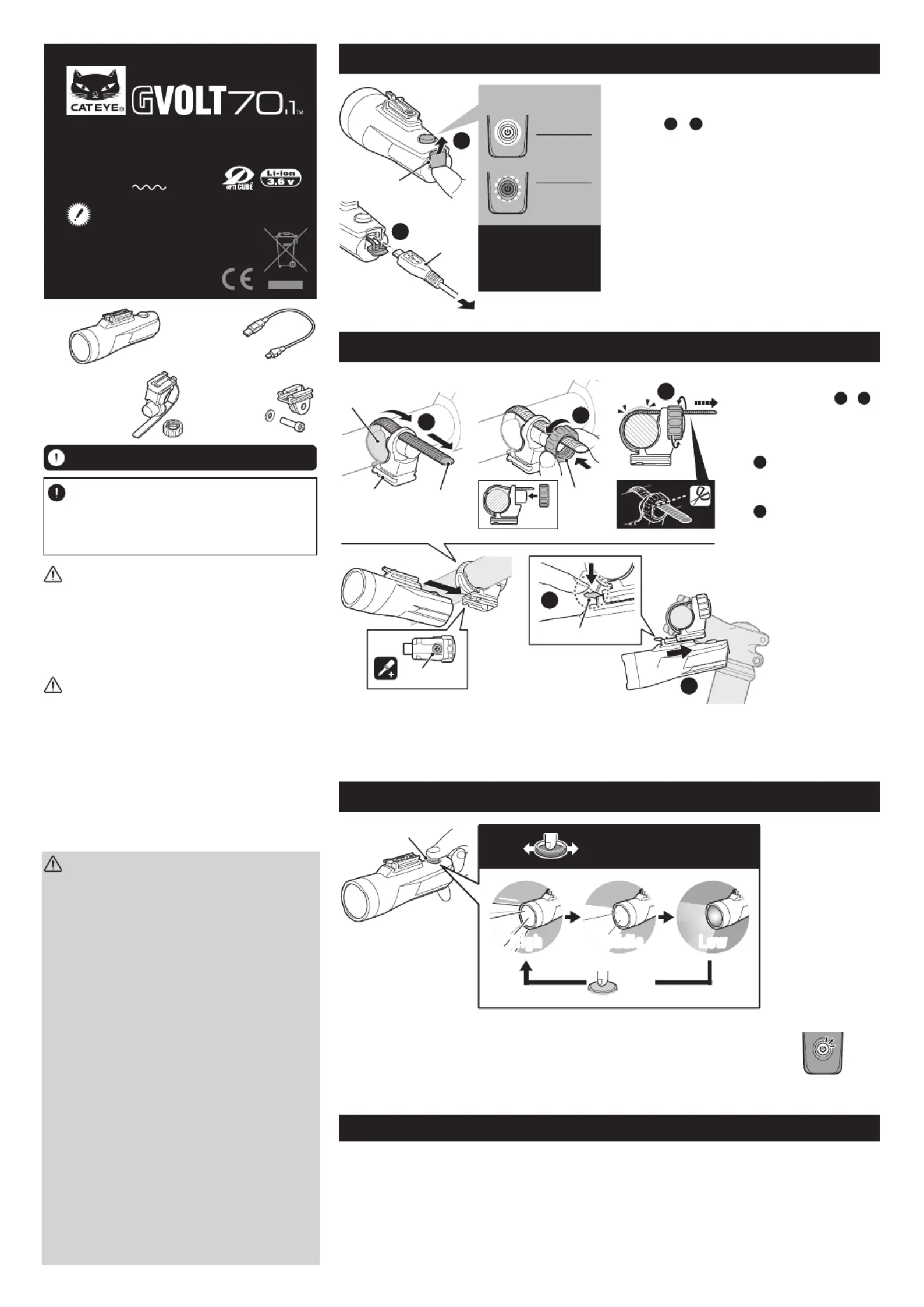

RECHARGEABLE HEADLIGHT

HL-EL552G RC

Under The Handlebar Mount Model

K 1703

Click

ENG

WARNING!!!

• Be sure to direct the light beam downward so the

driver approaching does not get dazzled.

• Before your trip, please make sure the light is firmly

mounted to the bracket and it lights up.

• Always attention to the remaining battery power by

checking the indicator periodically while using.

CAUTION!

• Do not place it within children’s reach.

• In preparation for unexpected battery shutoff, we

recommend you carry a spare light.

• This device is rated IPX4 based on JIS C0920. Do not

immerse the device in water. Doing so may cause a

malfunction. Wipe off any moisture after using the

device in rainy weather.

• If the light unit or parts become dirty with mud, etc.,

clean with a soft cloth which is moistened with mild

soap. Never apply paint thinner, benzine or alcohol;

damage will result.

LITHIUM-ION BATTERIES

Cautions on recharging

• Avoid charging in direct sunlight or in a vehicle

parked under direct sunlight, and make sure to

charge only when the ambient temperature is

between 41°F and 104 °F

(

5 and 40°C

)

• Before charging, be sure that no dust or other foreign

objects attach to the USB plug.

• Do not subject the light to vibrations while charging.

• Once charging is complete, be sure to disconnect the

USB plug.

Cautions in use

• Charging, discharging, and storing in high

temperatures will cause the rechargeable battery to

deteriorate faster. Do not place the light inside a

vehicle or near a heater.

• If the illumination time is significantly reduced even

after proper charging, the rechargeable battery may

be nearing the end of its service life. Dispose of the

battery as described in “Cautions for dispose”.

Cautions on storage

Cool and dry storage is recommended. For long period

storage, it is important to charge the battery 30

minutes every 6 months.

Cautions for dispose

When disposing of the light unit, remove the internal

rechargeable battery and dispose of it according to

local regulations.

Standard charging time

Approx.

5 h

(

)

HOW TO CHARGE

HOW TO MOUNT TO A BICYCLE

SWITCH OPERATION

Always charge the product before use.

1. Connect the light unit to your PC or a commercial

USB battery charger using the USB cable.

(

Fig 1 –

)

The switch indicator turns on and charging starts.

* When your PC is in sleep state, the unit cannot be

charged.

* We recommend using 1+A USB battery charger.

2. After charging is completed, remove the USB cable,

and install the charge jack cover.

* Charging and lighting times are approximate values,

and will vary by environmental and user conditions.

Light unit

FlexTight™ bracket

(

H-34N

)

Before using the light, read this

manual thoroughly and keep it

for future reference.

USB cable

(

MICRO USB

)

To PC or

USB battery charger

USB cable

Charge

jack cover

Switch

(

Indicator

)

Charging

Off

Charging is

completed

Bracket DialStrap

Release button

Screw

Rubber pad

1 2

Can only be mounted under the handlebar.

Indicator

(

Light up

)

ONOFF

Switch (indicator)

LowHigh Middle

Switch : Press and hold

SPECIFICATIONS

Light source High-intensity LED x 1

Battery type Li-ion 3.6 v - 3400 mAh

Charge Micro USB plug

Operating time High : Approx.4 hours

Middle : Approx. 5.5 hours

Low : Approx. 25 hours

* Average runtime at 20˚C.

1. Mount the bracket to the

handlebar.

(

Fig 2 –

)

2. Insert the light unit into

the bracket until it clicks,

and adjust the beam angle.

(

)

3. To remove the light unit,

depress the release button

(

)

on the top of the unit

and pull the unit forward.

To re-adjust the beam angle,

loosen the dial enough to

move the bracket, and firmly

tighten it after adjustment.

Remaining battery capacity:

When the switch (indicator) lights up, the remaining battery power is 20% or less.

* It is no longer functioning properly according to the German Road Traffic

Licensing Regulations (StVZO). Please charge as soon as possible.

*2 : When turning the

light on, it lights

up in the mode

that was used last

time.

(

Mode

memory function

)

Before Initial Use

This unit is shipped with a small charge to check

the light. Be sure to charge it before use,

according to the instructions “HOW TO CHARGE”.

CAUTION!:

•

Be sure to tighten the dial by hand. When you tighten it too hard with a tool, the screw thread may be stripped.

• Check the dial and screw (*1) on the bracket periodically, and use them without any loosening.

• Round off the cut edge of the bracket strap to prevent injury.

Mounting height : 400 – 1200 mm

Design Pat. Pending

HLEL552GRC-210109

Standard charging time

Approx. 5 hours (1 A)

Temperature range Charging : 41˚F – 104˚F (5˚C – 40˚C)

Operating : 14˚F – 104˚F (-10˚C – 40˚C)

Recharge/discharge number of times

About 300 times (until the rated capacity drops to 70%)

Dimensions/weight 1-27/64” x 4-3/16” x 1-53/64”

(36 x 106.5 x 46.5 mm) / 3.5 oz (100 g)

* The specifications and design are subject to change without notice.

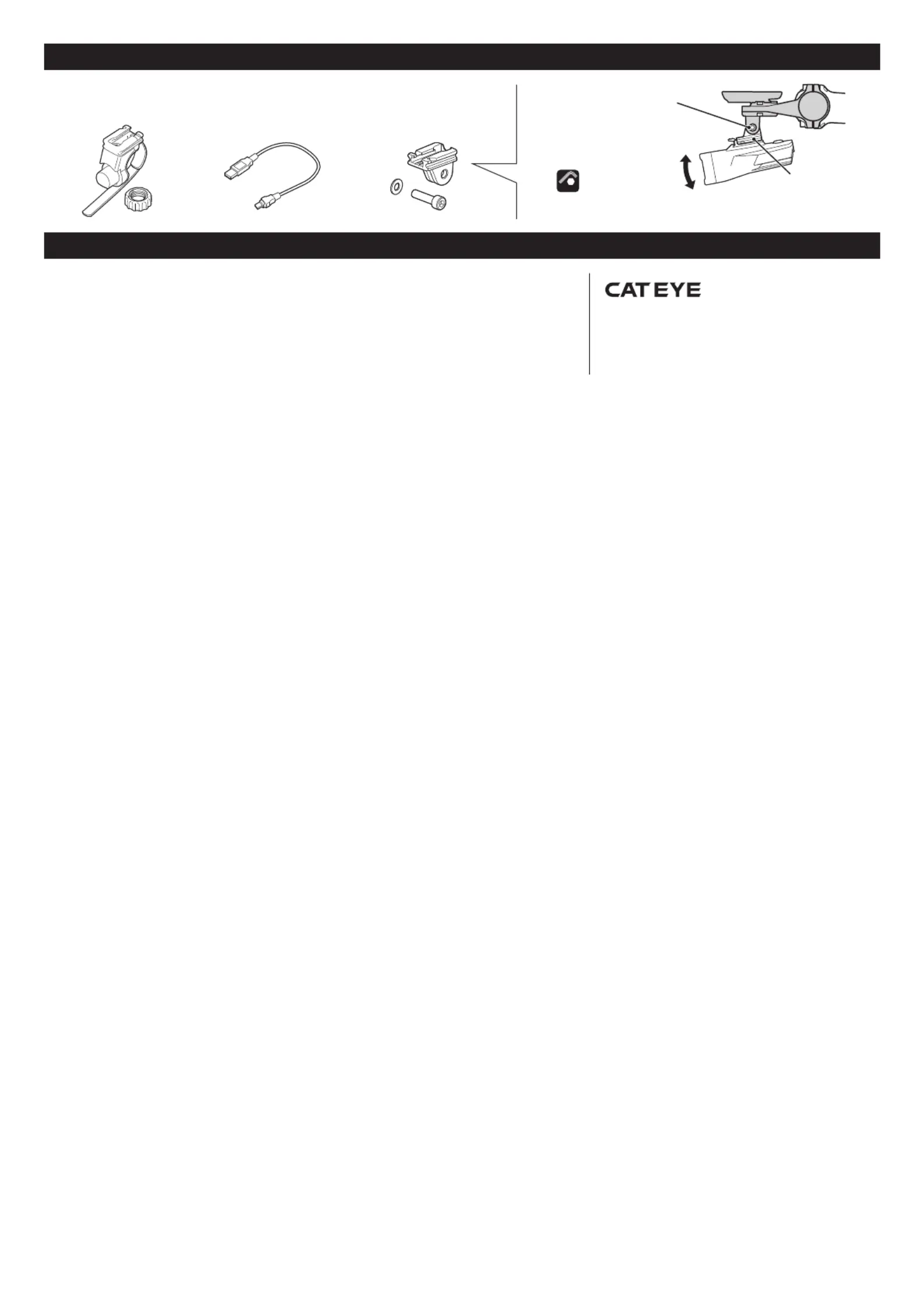

GP bracket

5342730

USB cable

(

MICRO USB

)

5338827N

FlexTight™ bracket

(

H-34N

)

SPARE / OPTIONAL PARTS

LIMITED WARRANTY

2-year Warranty: Light unit only

(

excludes battery deterioration

)

CatEye products are warranted to be free of defects from materials and workmanship for a period of 2 years

from original purchase. If the product fails to work during normal use, CatEye will repair or replace the

defect at no charge. Service must be performed by CatEye or an authorized retailer. To return the product,

pack it carefully and enclose the warranty certificate

(

proof of purchase

)

with instruction for repair. Please

write or type your name and address clearly on the warranty certificate. Insurance, handling and

transportation charges to CatEye shall be borne by person desiring service.

2-8-25, Kuwazu, Higashi Sumiyoshi-ku, Osaka 546-0041 Japan

Attn : CATEYE Customer Service Section

Phone : (06)6719-6863

Fax : (06)6719-6060

E-mail : support@cateye.co.jp

URL : www.cateye.com

., LTD.

5445340

GP bracket

Tightening torque :

2 N•m

4 mm

Angle adjustment screw
