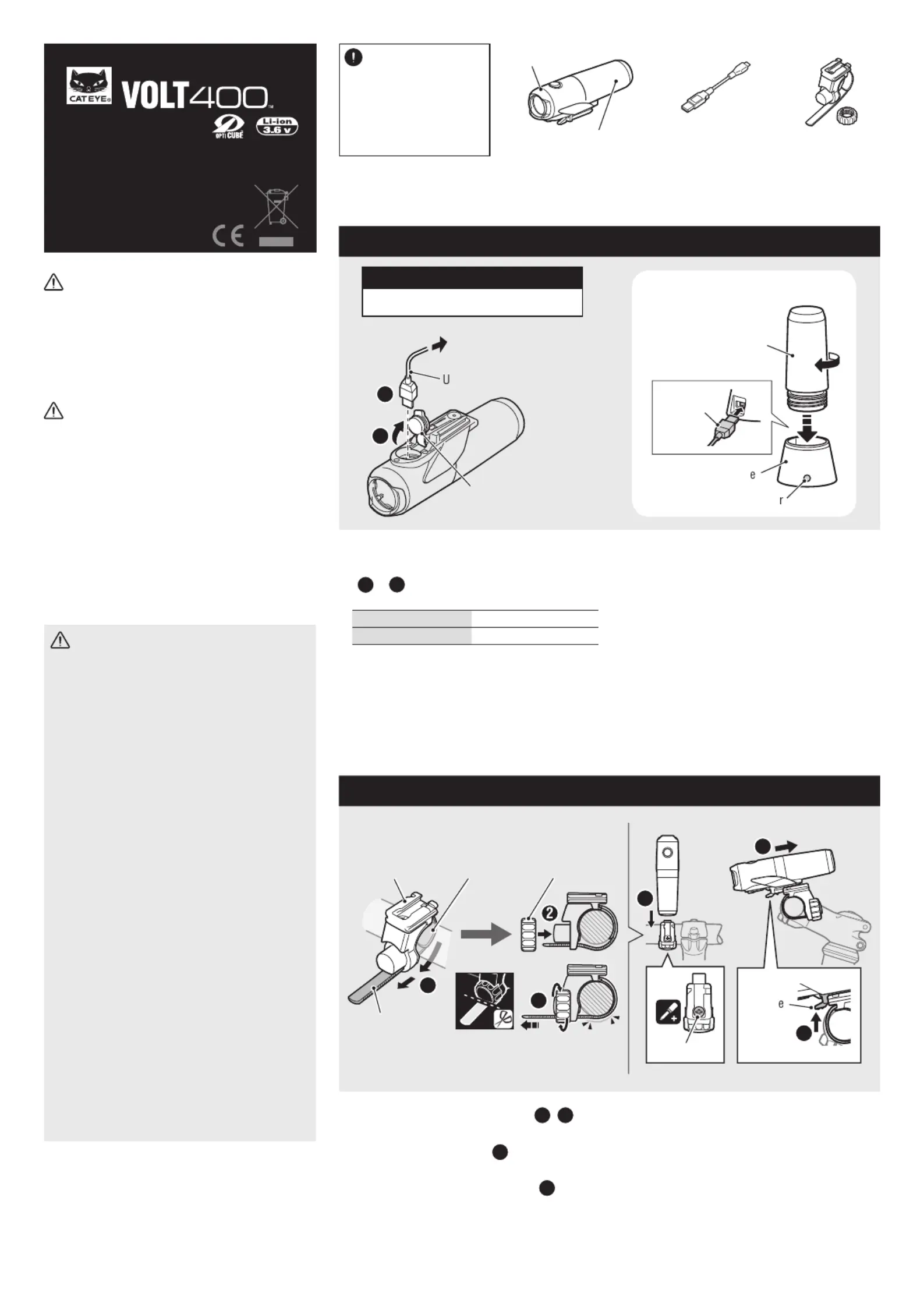

Side 1/2
RECHARGEABLE HEADLIGHT
HL-EL461RC
Before using the light, read this
manual thoroughly and keep it for
future reference.
Manual
WARNING!!!
• Be sure to direct the light beam downward so the
• Before your trip, please make sure the light is firmly
mounted to the bracket and it lights up.
• Always attention to the remaining battery power by
checking the indicator periodically while using.
CAUTION!
• Do not place it within children’s reach.
• In preparation for unexpected battery shutoff, we rec-
ommend you carry a spare cartridge battery and light.
• Mounting the light unit too close to a wireless comput-
er may adversely affect the reading of the computer.
• This product is water-resistant under normal daily use
and can be used in the rain. However, do not inten-
tionally submerge it in water.
• If the light unit or parts become dirty with mud, etc.,
clean with a soft cloth which is moistened with mild
soap. Never apply paint thinner, benzine or alcohol;
damage will result.
LITHIUM-ION BATTERIES
Cautions on recharging
• Avoid charging in direct sunlight or in a vehicle
parked under direct sunlight, and make sure to
charge only when the ambient temperature is
between 41°F and 104 °F (5 and 40°C).
• Before charging, be sure that no dust or other
foreign objects attach to the USB plug.
• Do not subject the light to vibrations while charging.
• Once charging is complete, be sure to disconnect
the USB plug.
Cautions in use
• Charging, discharging, and storing in high tem-
peratures will cause the rechargeable battery to
deteriorate faster. Do not place the light inside a
vehicle or near a heater.
• When the operating time decreases significantly,
the battery life is close to an end. Replace the
cartridge battery with a new one.
Cautions on storage
• Cool and dry storage is recommended. For long
period storage, it is important to charge the battery
30 minutes every 6 months.
• When you store the cartridge battery alone, be sure
to install the cap. Otherwise, damage or a fire may
be caused by short circuit.
Cautions for dispose
Dispose of used cartridge batteries appropriately
according to local regulations.
Before Initial Use
This unit is shipped with a
small charge to check the
light. Be sure to charge it
before use, according to
the instructions “HOW TO
CHARGE”.
1. Connect the light unit to your PC or a commercial
USB battery charger using the USB cable.
(
1
–
2
). The switch or the indicator on the
cradle lights up, and charging starts.
Indicator light: On Charging
Indicator light: Off Charging is completed
* When your PC is in sleep state, the unit cannot
be charged.
* We recommend using 500+mA (USB2.0) USB
battery charger.
2. After charging is completed, remove the USB cable,
and install the charge jack cover.
* Charging time is approximate values, and will
vary depending on the environmental and usage
conditions.
* The cartridge battery can be fast-charged by us-
ing the optional charging cradle (about 3 hours of
charging time). Use a 1A or higher USB charging
adapter when charging by the cradle.
Standard charging time
Approx.
6 h
(USB 2.0)
1. Mount the bracket to the handlebar. (
1
-
3
)
2. Insert the light unit into the bracket until it clicks,
and adjust the beam angle. (
4
)
3. To remove the light unit, pull out it forward while
pressing down on the release button (
5
).
* To re-adjust the beam angle, loosen the dial
enough to move the bracket, and firmly tighten it
after adjustment.
* The light can be mounted under the handlebar.
CAUTION!:
• Be sure to tighten the dial by hand. When you
tighten it too hard with a tool, the screw thread
may be stripped.
• Check the dial and screw (*1) on the bracket pe-
riodically, and use them without any loosening.
• Round off the cut edge of the bracket strap to
prevent injury.
2 HOW TO MOUNT
1 HOW TO CHARGE
4
1
3
2
1
5
4
Design Pat. Pending
Copyright© 2018 CATEYE Co., Ltd.
EL461RC-180221 3
Cartridge battery
(BA-2.2)
FlexTight™ bracket
(H-34N)
USB cable
(MICRO USB)
Light unit
ENG
SB cable
Charge jack cover
Cartridge battery
USB cable
Cradl
Indicato
To PC or USB battery charger
Charging on the cradle
( )CRA-001
DialRubber padBracket
Strap
Releas
button
Screw
*1
SPECIFICATIONS
Light source High-intensity LED x 1
Cartridge battery BA-2.2 : Li-ion 3.6v 2200 mAh
Charge Micro USB plug
Operating time
High : Approx. 3 hours
Middle : Approx. 8 hours
Low : Approx. 18 hours
Daytime HyperConstant : Approx. 11 hours
Flashing : Approx. 60 hours
* Average runtime at 20˚C.
Standard charging time Approx. 6 hours (USB2.0)
Temperature range
Charging : 41˚F – 104˚F (5˚C – 40˚C)
Operating : 14˚F – 104˚F (-10˚C – 40˚C)
Recharge/discharge number of times
About 300 times
(until the rated capacity drops to 70%)
Dimensions/weight
4-3/8” x 1-5/8” x 1-13/64”
(111.3 x 41.3 x 30.6 mm) / 4.23 oz (120 g)
(Including the cartridge battery)
* The specifications and design are subject to change without notice.
LIMITED WARRANTY
2-year Warranty: Light unit only
(Deterioration of the cartridge battery is out of warranty)
CatEye products are warranted to be free of defects from materials and
workmanship for a period of 2 years from original purchase. If the product
fails to work during normal use, CatEye will repair or replace the defect at no
charge. Service must be performed by CatEye or an authorized retailer. To
return the product, pack it carefully and enclose the warranty certificate (proof
of purchase) with instruction for repair. Please write or type your name and
address clearly on the warranty certificate. Insurance, handling and transporta-
tion charges to CatEye shall be borne by person desiring service.
For UK and REPUBLIC OF IRELAND consumers, please return to the place of
purchase. This does not affect your statutory rights.
SPARE/OPTIONAL PARTS
4
HOW TO REPLACE THE CARTRIDGE
BATTERY
Turn the cartridge battery counterclockwise to remove from the unit. To install, screw
the cartridge battery into the light unit until it clicks.

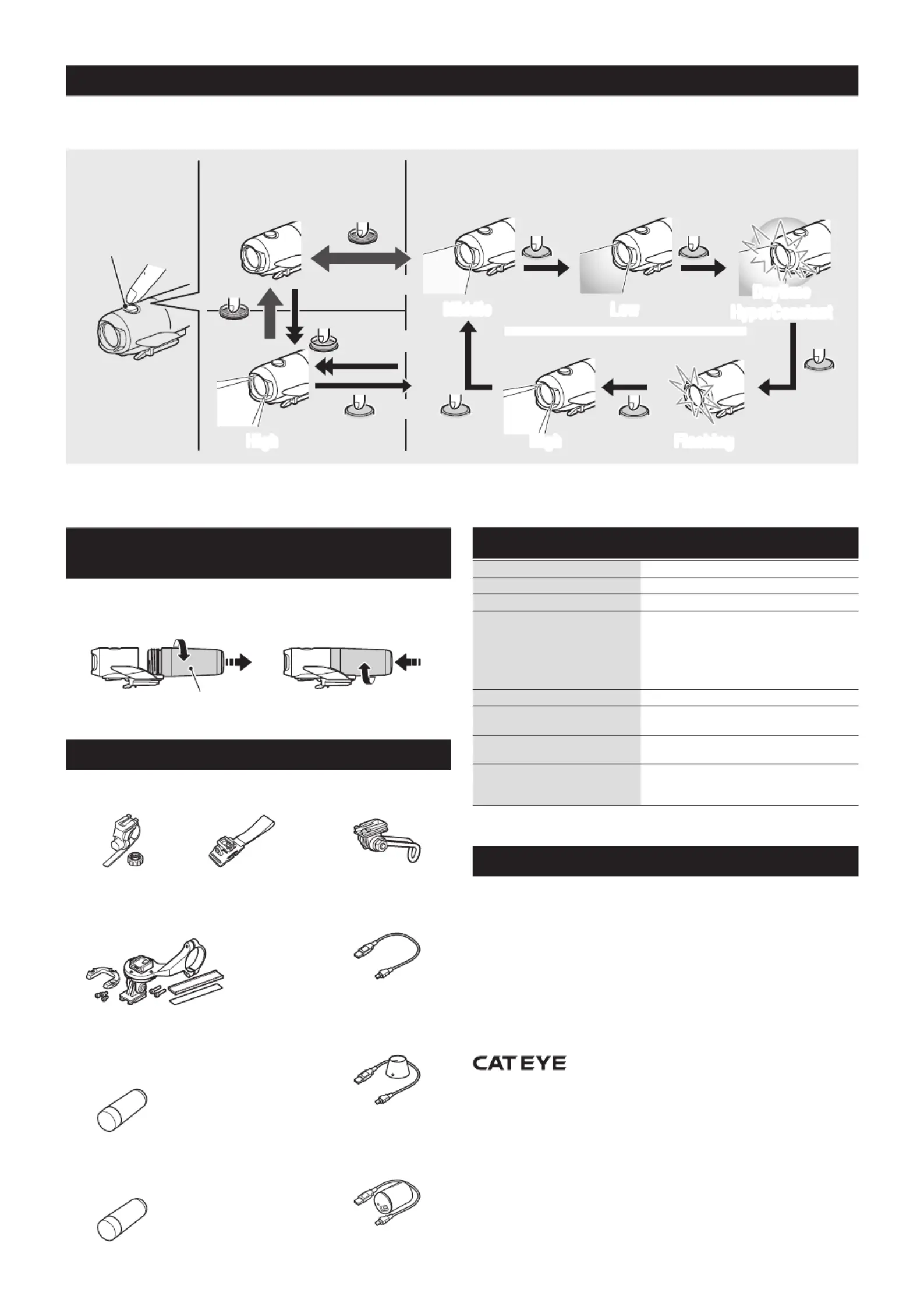

3 SWITCH OPERATION (SWITCHING THE LIGHTING MODE)
The ON/OFF and lighting modes are selected using a switch.
*2 When you turn the light on, it lights up in the last lighting mode you used. (Mode memory function)
5342440
Center fork bracket
5342730
USB cable
5342720
Fast charging cradle
(USB cable attached)
5342620
Fast charging cradle 2
(USB cable attached)
5342710
Cartridge battery
(Li-ion3.6v 2200mAh )
5342681
Cartridge battery
(Li-ion3.6v 3400mAh )
5338827N
FlexTight™ bracket
5341831N
Helmet mount
1604110
Out-front bracket 2
(BA-2.2)
(BA-3.4)
(H-34N)
(OF-200)
(CFB-100)
(MICRO USB)
(CRA-001)
(CRA-002)
Remaining battery capacity
When the switch (indicator) lights up, the remaining battery power is 20% or less. Please charge as soon as possible.
CO
.,LTD.
2-8-25, Kuwazu, Higashi Sumiyoshi-ku,
Osaka 546-0041 Japan
Attn: CATEYE Customer Service Section
Phone : (06)6719-6863
Fax : (06)6719-6033
E-mail : support@cateye.co.jp
URL : http://www.cateye.com
[For US Customers]
CATEYE AMERICA, INC.
2825 Wilderness Place Suite 1200,
Boulder CO 80301-5494 USA
Phone : 303.443.4595
Toll Free : 800.5.CATEYE
Fax : 303.473.0006
E-mail : service@cateye.com
Switch (indicator)
Cartridge battery
Double-click
*2
*2
Press
and hold
Press and hold
OFF ON
Click
Click
High High
Middle
Low
Daytime
HyperConstant
Flashing
Approx. Approx. Approx. 8 h 18 h 11 h
Approx. 60 hApprox. 3 h
Remove Install
