I N S T A L L A T I O N I N S T R U C T I O N S
Legrand | AV and its affiliated corporations and subsidiaries (collectively “Legrand | AV”), intend to make this manual accurate and complete. However, Legrand | AV makes no claim
that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this
product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand | AV makes no representation of warranty, expressed or
implied, regarding the information contained herein. Legrand | AV assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.
Chief, a brand of Legrand
6436 City West Parkway, Eden Prairie, MN 55344
• P: 800.582.6480 / 952.225.6000 • F:877.894.6918 / 952.894.6918
The FHB hardware kits are designed for use with Chief® Series
Mounts. See the specific installation instructions provided with the
mount for additional installation information.
Unpack and verify kit contents. If any listed parts are missing,
immediately contact a Chief Customer Service representative.
WARNING: IMPROPER INSTALLATION CAN LEAD TO
EQUIPMENT FALLING CAUSING SERIOUS PERSONAL
INJURY AND DAMAGE TO EQUIPMENT! DO NOT substitute
hardware. Use only hardware supplied by manufacturer!
WARNING: OVER TIGHTENING OF SCREWS CAN DAMAGE
PARTS AND CAN LEAD TO SERIOUS PERSONAL INJURY
AND DAMAGE TO EQUIPMENT! DO NOT over tighten screws
when installing interface brackets.
NOTE: Properly sized screws will easily and completely thread into
display mounting holes. If spacers are required, be sure to
use longer screws of the same diameter.
®Chief is a registered trademark of Legrand AV Inc.

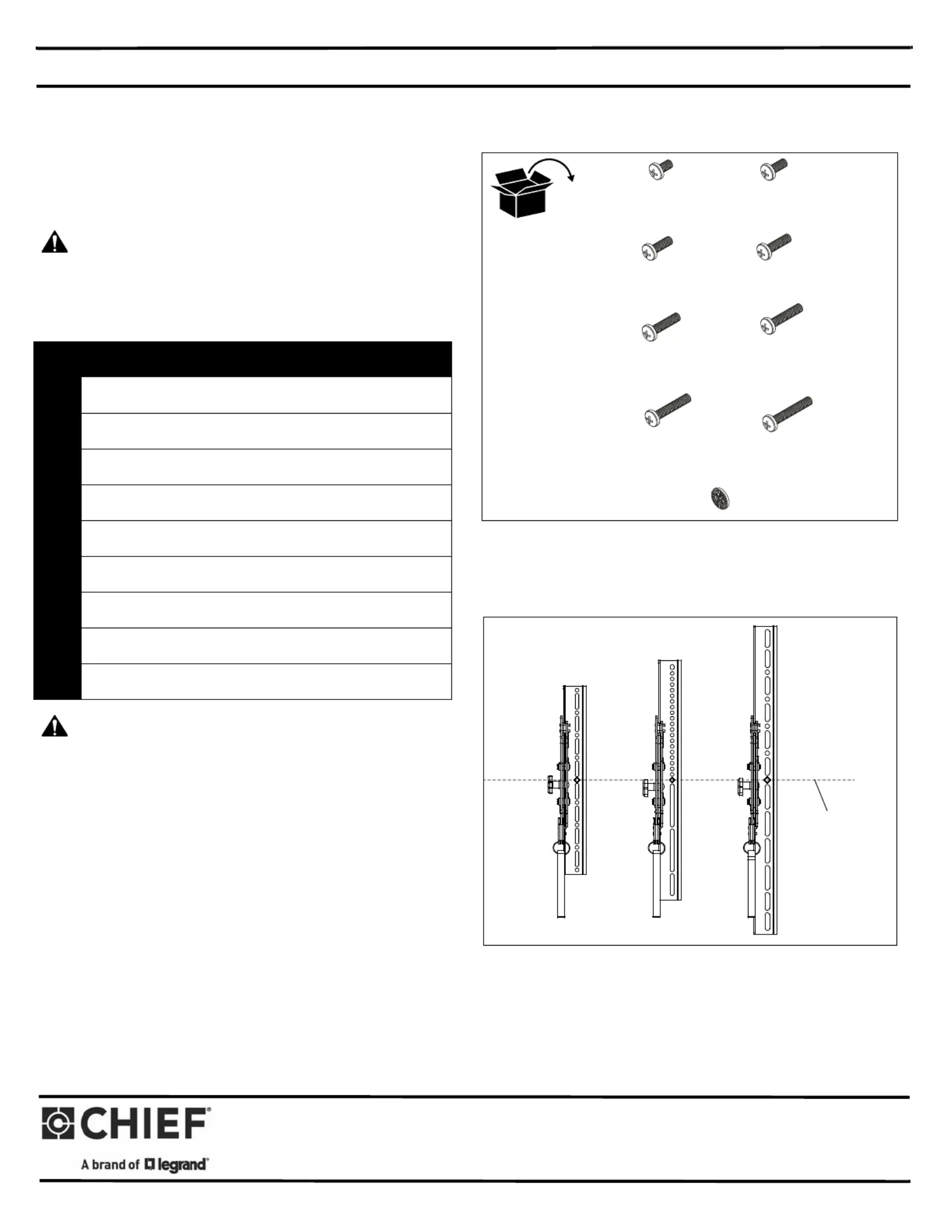

1. Attach interface brackets to back of display using the provided
hardware, and noting where the centerline of display should be
located against the interface bracket. (See Figure 1)
2. Continue installation following the instructions included with the
(4) Screw, Phillips pan screw, Machine, M8 x 16mm
(4) Screw, Phillips pan screw, Machine, M8 x 20mm
((4) Screw, Phillips pan screw, Machine, M8 x 25mm
(4) Screw, Phillips pan screw, Machine, M8 x 30mm
(4) Screw, Phillips pan screw, Machine, M8 x 35mm
(4) Screw, Phillips pan screw, Machine, M8 x 40mm
(4) Screw, Phillips pan screw, Machine, M8 x 45mm
(4) Screw, Phillips pan screw, Machine, M8 x 50mm
