I N S T A L L A T I O N I N S T R U C T I O N S

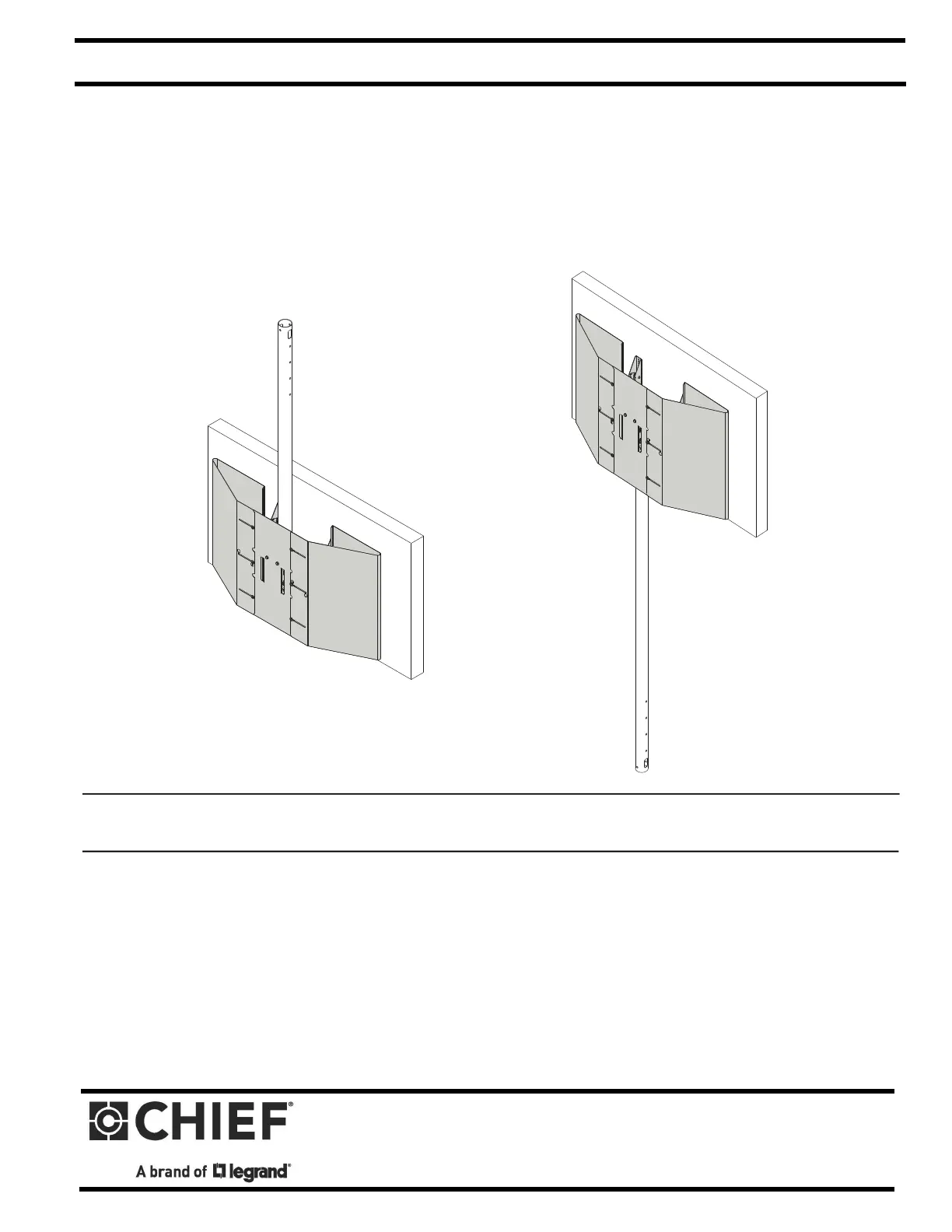

Large Outdoor Floor/Ceiling Mount

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

OLCM1U

OLCM1U Installation Instructions

DISCLAIMER

Legrand | AV and its affiliated corporations and subsidiaries

(collectively “Legrand | AV”), intend to make this manual

accurate and complete. However, Legrand | AV makes no claim

that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Legrand | AV

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Legrand | AV

assumes no responsibility for accuracy, completeness or

sufficiency of the information contained in this document.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the

primary Chief product to which an accessory and/or component

is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief

product which is attached to a primary Chief product, and may

have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item

designed to be attached or resting on an accessory or mounting

system such as a video camera, CPU, screen, display,

projector, etc.

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all mounting systems

are properly assembled and installed using the instructions

provided.

WARNING: Failure to provide adequate structural strength

for this mounting system can result in serious personal injury

or damage to equipment! It is the installer’s responsibility to

make sure the structure to which this mounting system is

attached can support five times the combined weight of all

equipment. Reinforce the structure as required before

installing the mounting system.

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all components located within the mounting system of the

OLCM1U mounts does not exceed 250 lbs (113.4 kg).

NOTE: "Moment" ratings have NOT been evaluated by UL.

WARNING: Exceeding the maximum moment can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the mounting system

does not exceed a moment of 2000 ft-lbs. See table below for

specific column specifications.

WARNING: Never operate this mounting system if it is

damaged. Return the mounting system to a service center for

examination and repair.

WARNING: Use this mounting system only for its intended

use as described in these instructions. Do not use

attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is

damaged. Return the mounting system to a service center for

examination and repair.

WARNING: Use this mounting system with other outdoor

products only.

WARNING: Always use two people or a mechanical lifting

device to safely lift and position equipment.

NOTE: The OLCM1U flat panel floor/ceiling mounts are

intended to be used with UL Listed ODAC Series

columns (not included): ODAC0203, ODAC0304,

ODAC0405, ODAC0506, ODAC0708.

--SAVE THESE INSTRUCTIONS--

COLUMN

MODEL

Weight

capacity

Moment

Length (IN)

(ML)

Max

Design

Moment

(FT-LBS)

(MDM)

ODAC0203B

300 lbs (136 kg) 23 min - 36 max 2000

ODAC0304B

300 lbs (136 kg) 33 min - 48 max 2000

ODAC0405B

300 lbs (136 kg) 45 min - 60 max 2000

ODAC0506B

300 lbs (136 kg) 57 min - 72 max 2000

ODAC0708B

300 lbs (136 kg) 81 min - 96 max 2000

Produkt Specifikationer

Mærke:	Chief
Kategori:	Ikke kategoriseret
Model:	OLCM1U
Vægt:	113400 g
Antal pr. pakke:	1 stk
Produktfarve:	Sort
VESA montering:	Ja
Panel montering grænseflade:	200 x 100,800 x 400 mm
Certificering:	UL Listed
Monteringstype:	Væg
Formål:	Fladt panel
Hældningsvinkelområde:	-20 - 7.6 °
Skærmstørrelse kompatibilitet:	42 - 65 "
Maksimal vægtkapacitet:	- kg
Maksimal skærmstørrelse kompatibilitet:	65 "
Minimal skærmstørrelse kompatibilitet:	42 "
Montering interface kompatibilitet (min.):	200 x 100 mm
Montering interface kompatibilitet (maks.):	800 x 400 mm
