Thank you for choosing COLBOR product. Please read this manual
carefully before use and follow all instructions mentioned herein.
CL60 Video Light User Manual
Safety Instructions
Please read and fully understand this manual before using the product.
Please remove the COB protective lm to avoid damage by overheat before
rst use.
Please remove the COB protective cover to avoid damage by overheat
before every use.
Do not use the product under moist environment or with wet hands. Do not
allow the product to be splashed or soaked in water.
Keep the product away from corrosive chemicals and liquid to avoid
damage.
Keep the product out of children’s reach during use. Do not leave the
product unattended.
When the product is working, the COB and heat sink will produce high
temperature. Do not block, turn upside down and touch with hands.
To ensure the service life, the cooling system still runs for a while after
shutdown until the COB is below 45℃ .
Please disconnect the power supply and put away the power cord when it is
not in use.
During use, arrange the power cord in order to avoid tripping and cutting o
the power or damaging the product.
Let the product cool completely before storage. Remove the power cable
from the product and put it in the corresponding position of carrying bag
after cooling down.
Do not disassemble the product by yourself, otherwise the warranty will be
invalid. If any fault occurs, please refer it to an authorized technician for
inspection or maintenance.
Recommend to use the original parts of COLBOR. If the product is damaged
due to the use of the non-original parts, it is not included in the warranty of
our products.
Drop or external impact may cause product failure. Articial damage is not
covered by warranty.
COLBOR reserves the right of nal interpretation of the products. The
product design and specications are subject to change without notice.

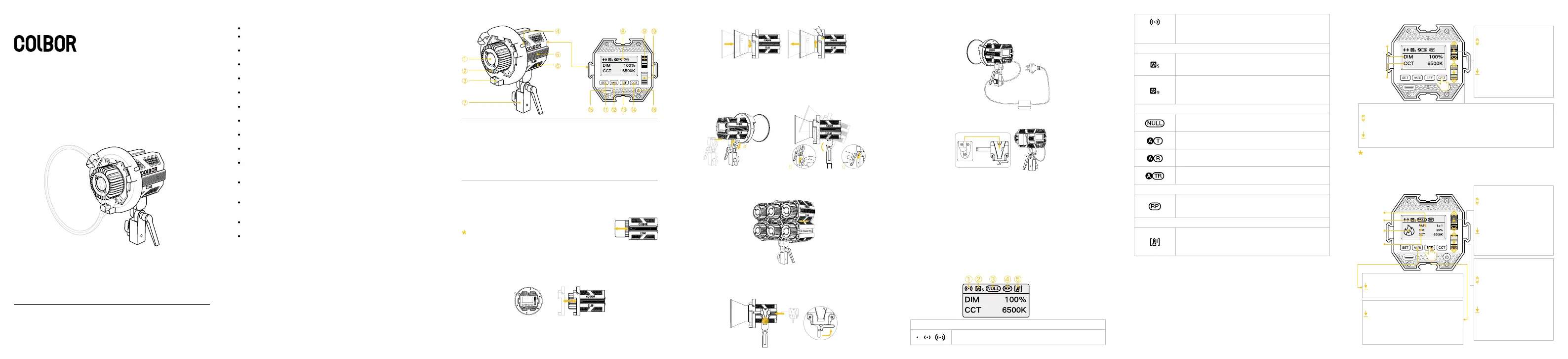

Product Instructions
① COB Bead
② Bead Heat Sink
③ Bowen Mount Adapter
④ Ejector Pin
⑤ Rail
⑥ Vent
⑦ Quick-mount Holder
⑧ LCD Display Screen
⑨ Brightness Control
Wheel
⑩ Color Temperature
Control Wheel
⑪ Settings Button
⑫ EFF Rate Option
Button
⑬ EFF Mode Button
⑭ CCT Mode Button
⑮ Type-C Power
Input
⑯ Power Button
Installation & Disassembly
Hold the COB protective cover and pull it out as the
arrow shows.
Note: Make sure remove the cover before every use
to avoid heat damage.
① Align the inner frame of adapter ring with the outer frame of light, and
push the adapter ring into the light from the head. Fasten two marbles on the
adapter ring to the chute.
When disassembling, push the adapter ring towards the head of the light.
① Slide the quick-mount holder into the chute under the light and rotate the
knob a tightly.
② Install tripod into the quick-mount holder and rotate the knob b tightly.
③ Adjust the light to the desired angle and rotate the knob c tightly.
Slide the rail of one light into the chute of the other until the pins inlay.
When disconnecting, slide the light out of the chute.
Slide VM2 into the chute of light, determine the xed position and adjust the
lever to lock.
When removing, adjust the level to unlock and slide out of the light.
(1) DC power supply
Connect power adapter with Type-C power input and turn on.
(2) Battery power supply
Turn on power after installing V-mount and battery.
Operation Instructions
1. Remove COB protective cover
2. Install adapter and reector
3. Fixing of the video light
4. Multi-light connection & disassembly
5. Install VM2
6. Power supply
1. Before using the product for the rst time, please be sure to tear o the
protective lm in front of the COB bead.
2. Power On: connect the power cord with the power adapter, plug the
connector of adapter into the xture’s power input, then attach to an
electricity supply.
3. long press the power button, then the power button lights up. The Function:
product enters operation interface.
( CCT)Factory default mode:
4. press the power button.Power O:
After selecting wireless connection in Settings menu, the
icon will be displayed dynamically.
The icon is always on to indicate successful pairing with
mobile APP.
The icon disappears to indicate mobile APP pairing
failure, or the product is unpaired.
Smart Mode. The product will adjust the fan speed
according to the internal detected temperature to ensure
that it is in optimal working condition.
Status Icon Description
① APP Connection Status Icon
② Fan Status Icon
Quiet Mode. The fan keeps running at low speed for
minimum noise, and overheating protection will be
activated if the product temperature is higher than the
alarm value.
None grouping status. The product defaults to the factory
status, and will not be aected by other groups.
If the icon is always on, it means that Repeater function
is turned on, and if the icon disappears, it means the
function is turned o.
If the icon ashes, it means that the internal temperature
of the product is too high, and cooling measures need
to be taken. If the icon disappears, it means that the
operation is normal.
③ Group Status Icon
④ Repeater Status Icon
⑤ Product Overheated Alarm Icon
A stands for Group A. There are fteen groups (A~O). T
stands for Tx.
A stands for Group A. There are fteen groups (A~O). R
stands for Rx.
A stands for Group A. There are fteen groups (A~O). TR
stands for TxRx.
Brightness
Color
Temperature
Roll the wheel upwards
or downwards to adjust
brightness (DIM) within
0%~100%
Press down the wheel to
quickly switch the preset
brightness, 0%, 25%, 50%,
75%, and 100%
Roll the wheel upwards or downwards to adjust color temperature (CCT)
within 2700K~6500K
Press down the wheel to quickly switch the preset color temperature,
2700K, 3200K, 4000K, 5600K, and 6500K
CCT Mode (Short press CCT Mode Button to enter)
Brightness Control Wheel
Color Temperature Control Wheel
Rolling the wheel will enlarge the current setting parameter value, and
it will automatically return to the main screen after 1.5 seconds of no
operation
Brightness
Rate
Special
Eect
Color
Temperature
Roll the wheel upwards
or downwards to adjust
brightness (DIM) within
0%~100%
Press down the wheel to
quickly switch the preset
brightness, 0%, 25%, 50%,
75%, and 100%
Roll the wheel upwards or
downwards to adjust color
temperature (CCT) within
2700K~6500K
Press down the wheel to
quickly switch the preset
color temperature, 2700K,
3200K, 4000K, 5600K, and
6500K
Press the button to switch eect rate
from Lv.1 to Lv.5. Max rate: Lv.5
Press the button to switch special
eect: Fire → CCT Chase → Pulsing
→ → →TV Explosion Faulty Bulb
→ → Strobe →Welding Lightning
→ SOS
EFF Mode (Short press EFF Mode Button to enter)
Brightness Control Wheel
Color Temperature Control
Wheel
EFF Rate Option Button
EFF Mode Button
② Align the reector with the adapter ring and insert it. The ejector pin is
pinched by reector. Rotate the reector tightly clockwise and the ejector pin
springs back.
When disassembling, push the ejector pin and rotate the reector
anticlockwise.
RATE: Lv.1 - Lv.5
DIM: 0%-100%
CCT: 2700K-6500K
RATE: Lv.1 - Lv.5
DIM: 0%-100%
CCT: LOCK
RATE: Lv.1 - Lv.5
DIM: 0%-100%
CCT: 2700K-6500K
RATE: Lv.1 - Lv.5
DIM: 0%-100%
CCT: 2700K-6500K
Fire
CCT Chase
Faulty Bulb
Welding
EFF
RATE: Lv.1 - Lv.5
DIM: 0%-100%
CCT: 2700K-6500K
RATE: Lv.1 - Lv.5
DIM: 0%-100%
CCT: 2700K-6500K
Pulsing Strobe
COMM.
RP
CURVE
RX
ON
LINEAR
BT
FAN
GROUP
RESET
SMART
A
Settings
1. Short press Settings Button to enter settings menu.
2. Roll the Brightness Control Wheel to choose setting.
3. Roll the Color Temperature Control Wheel to adjust corresponding setting
(Wireless connection adjust need short press).
Fan Mode
Wireless Connection
Communication
Settings Options
SMART/ QUIET
(SMART—The product will detect
the current internal temperature to
adjust the fan speed by itself.
QUIET—The fan will run at low
speed. If the product temperature
reaches the alarm value, it will
start the power-o protection
mechanism. )
RESET
TX/ RX/ TXRX (TX by default)
Group NULL/ A~O (NULL by default)
Repeater ON/ OFF (OFF by default)
Curve
LINEAR (L.CURVE, E.CURVE,
S.CURVE will be available soon
through upgrade.)
RATE: Lv.1 - Lv.5
DIM: 0%-100%
CCT: LOCK
RATE: Lv.1 - Lv.5
DIM: 0%-100%
CCT: 2700K-6500K
RATE: Lv.1 - Lv.5
DIM: 0%-100%
CCT: 2700K-6500K
RATE: LOCK
DIM: 0%-100%
CCT: 2700K-6500K
TV
Explosion
Lightning
SOS
EFF
Response
Language
Product INFO.
SHARP / SMOOTH (SMOOTH by
default)
EN/ CN
Short press the Color Temperature
Control Wheel to enter the
production information interface.
Long press the Color Temperature
Control Wheel to settings menu.
① Hardware Version
② Firmware Version
③ Protocol Version
④ MAC Address
When Group function is on, if the product is operated after a period
of time, it takes time to connect between products, so there will be
millisecond delay.
The eective distance of transmitter(TX), receiver (RX), transmitter &
receiver (TXRX) is 10 meters.
Repeater (RP) function is the auxiliary function to enhance the signal of
light control and the eective distance of light control. However, too many
uses of RP function can aect product response time due to environmental
factors.
If the distance between lights in a group is more than 10 meter, it is
recommended to set a light in the middle as a signal RP point to increase
the control distance. In addition, in the state of multi-light connection, the
response of the product can be eectively improved when the RP function
of one light is turned on if connected lights are more than ve, the RP
function of two lights are turned on if there are more than ten, and so on.
Restore factory settings: long press two wheels together for 5 seconds
and the product reboots to restore the factory default mode.
RESP.
LANG.
ProductINFO.
SHARP
EN

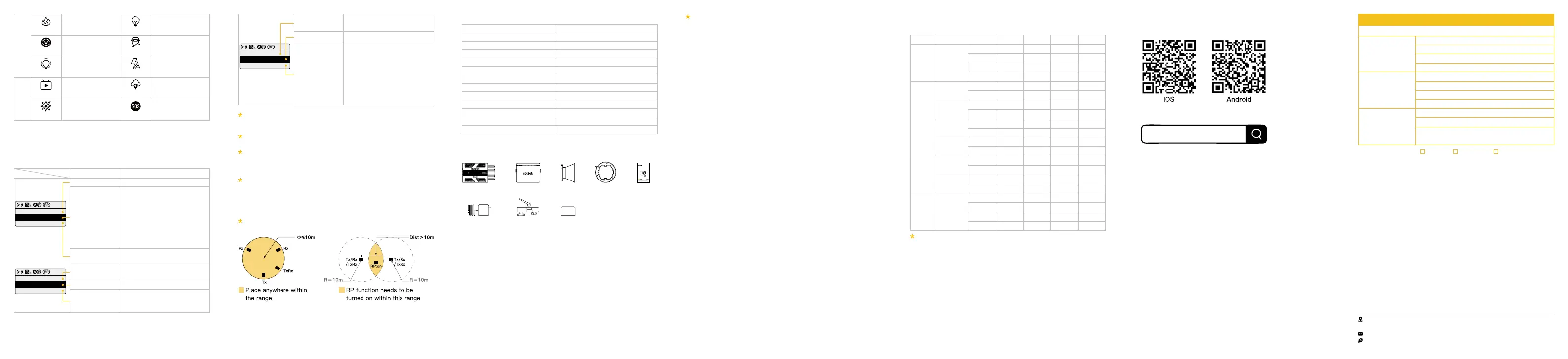

Specications
Color Rendering Index
Color Temperature Range
Beam Angle
Illumination
COB Output Power
Rated Power
Light Working Voltage
Cooling Mode
Connector
Body Material
Light Dimension (mm)
Weight
Operating Environment Temperature
97+
2700K-6500K(±200)
≈∠ 120° Reector ≈∠ 15°
See the Form Below
＞ 60W
80W (Max)
DC 20V 4A
SMART/QUIET
Type-C, supports PD3.0 20V 4A
Aluminum Alloy+ABS
140*80*90 (Light Base Not Included)
Light: 550g Light Base: 160g
-10~50℃
Packaging List
CL60 Video Light
x1
Standard Adapter
(Bowens Mount)
x1
Light Base x1
Bowen Mouth
Reector x1
COB protective
cover x1
Power Adapter x1
Carrying Bag
x1
User Manual
x1
WARRANTY
Warranty Period
Thank you for purchasing COLBOR products.
1. Customers are entitled to free replacement or repair service in case of
quality defect(s) found in the product under normal use within 30 days upon
receipt of the product.
2. Original COLBOR products are entitled to 12-month limited warranty service.
The warranty period begins on the date of purchase of brand new, unused
products by the rst end-user.
Within the warranty period, if product defect or failure is attributable to material
defection or technological problem, the defective product or defective part will
be repaired or replaced without charge (service and materials fee).
Warranty Exclusions and Limitations
1. Faults resulted from inappropriate use of a product without following its
operation specication
2. Articial damage, e.g. crash, squeeze, scratch, soaking, exposing to rain or
damp
3. Modications to a product by its user or a third party without prior written
consent of COLBOR, e.g. replacement of element or circuit, label alteration
4. The code on product is inconsistent with that of warranty certicate, or the
code on the product or warranty certicate is altered or torn o
5. All consumable accessory attached to a product, like cable, cover
6. Faults as a result of force majeure, such as re, ood, lightning, etc.
Warranty Claim Procedure
1. If failure or any problem occurs to your product after purchase, please
contact a local agent for assistance, or you can always contact COLBOR’s
customer service through email.
2. Please retain your sales receipt and warranty certicate as proof of
purchase. If any of these documents is missing, only sales return or chargeable
service will be provided.
3. If the COLBOR product is out of the warranty coverage, the service and the
parts cost will be charged.
About Product
1. After the test, the product with assembly structure has bearing capacity of
4kg. Customers need to use according to actual conditions.
2. It is recommended to use the original power adapter for power supply.
The malfuction will not be included in the warranty if use other equipment to
power the product.
3. When more than ve lights are assembled into a light matrix, turning
on the RP function in one of them to provide better control stability. If the
number of lights reaches 10, enable the RP function for two of them，and so
on.
Form 1
The data is given from testing in a laboratory.
Illumination
Light Base
Light Base
Light Base
Light Base
Light Base
Reector
Reector
Reector
Reector
Reector
0.5m
LUX
FC
LUX
FC
LUX
FC
LUX
FC
LUX
FC
LUX
FC
LUX
FC
LUX
FC
LUX
FC
LUX
FC
9085
853
56695
5277
9706
902
60375
5612
10419
968
66010
6130
11006
1022
70610
6567
11259
1045
72795
6772
323
30
1564
145
366
34
1691
156
397
37
1863
173
424
39
1990
185
435
40
2059
191
2475
230
16155
1502
2579
239
16790
1564
2701
251
18055
1679
2843
265
19665
1829
2888
268
20240
1886
187
17
618
57
199
19
666
62
217
20
733
68
230
21
781
73
237
22
807
75
3m1m 5mCCT
2700K
3200K
4300K
5600K
6500K
Download COLBOR Studio ™ APP
1.Scan the following QR code to install.
2.Search COLBOR STUDIO on App Store or Google Play.
COLBOR STUDIO
WARRANTY CERTIFICATE
USER
INFORMATION
SALES
INFORMATION
REPAIR RECORD
RESULT
Please register your warranty. Meanwhile, you are welcomed to contact us via Email.
Customer Name:
Phone Number:
Email:
Address:
Service Date:
Technician:
Issue:
Sales Date:
Model:
Product Code:
Dealer:
Solved Unsolved Returned(Replaced)
Room 2401, 24 / F, South Tower, Lisheng Plaza, No. 68 Huadi Avenue, Liwan District,
Guangzhou, China, 510000
support@colborlight.com
www.colborlight.com
Guangzhou Zhiying Technology Co., Ltd

Produkt Specifikationer

Mærke: COLBOR
Kategori: Lettelse
Model: CL60

Har du brug for hjælp?

Hvis du har brug for hjælp til COLBOR CL60 stil et spørgsmål nedenfor, og andre brugere vil svare dig


Lettelse COLBOR Manualer

COLBOR

COLBOR CL60 Manual

2 September 2024
COLBOR

COLBOR CL100X Manual

2 September 2024
COLBOR

COLBOR W60R Manual

2 September 2024
COLBOR

COLBOR W100 Manual

2 September 2024
COLBOR

COLBOR W60 Manual

2 September 2024
COLBOR

COLBOR CL220M Manual

31 August 2024
COLBOR

COLBOR CL220R Manual

31 August 2024
COLBOR

COLBOR CL330 Manual

31 August 2024
COLBOR

COLBOR CL220 Manual

31 August 2024

Lettelse Manualer

Nyeste Lettelse Manualer

Schwaiger

Schwaiger CALE100 511 Manual

9 April 2025
ADB

ADB Orkis Fresnel Manual

8 April 2025
Claypaky

Claypaky Actoris ParLED Manual

8 April 2025
ET2

ET2 Waterfall E24846-90 Manual

8 April 2025
Dainolite

Dainolite V166-1W Manual

5 April 2025
Dainolite

Dainolite OFE-161P Manual

5 April 2025
Dainolite

Dainolite DMLED10-A-5D Manual

5 April 2025
Dainolite

Dainolite DM1958F Manual

5 April 2025
NUVO

NUVO Ballerina 60/1265 Manual

4 April 2025
NUVO

NUVO SF77/196 Manual

4 April 2025
