FEATURES

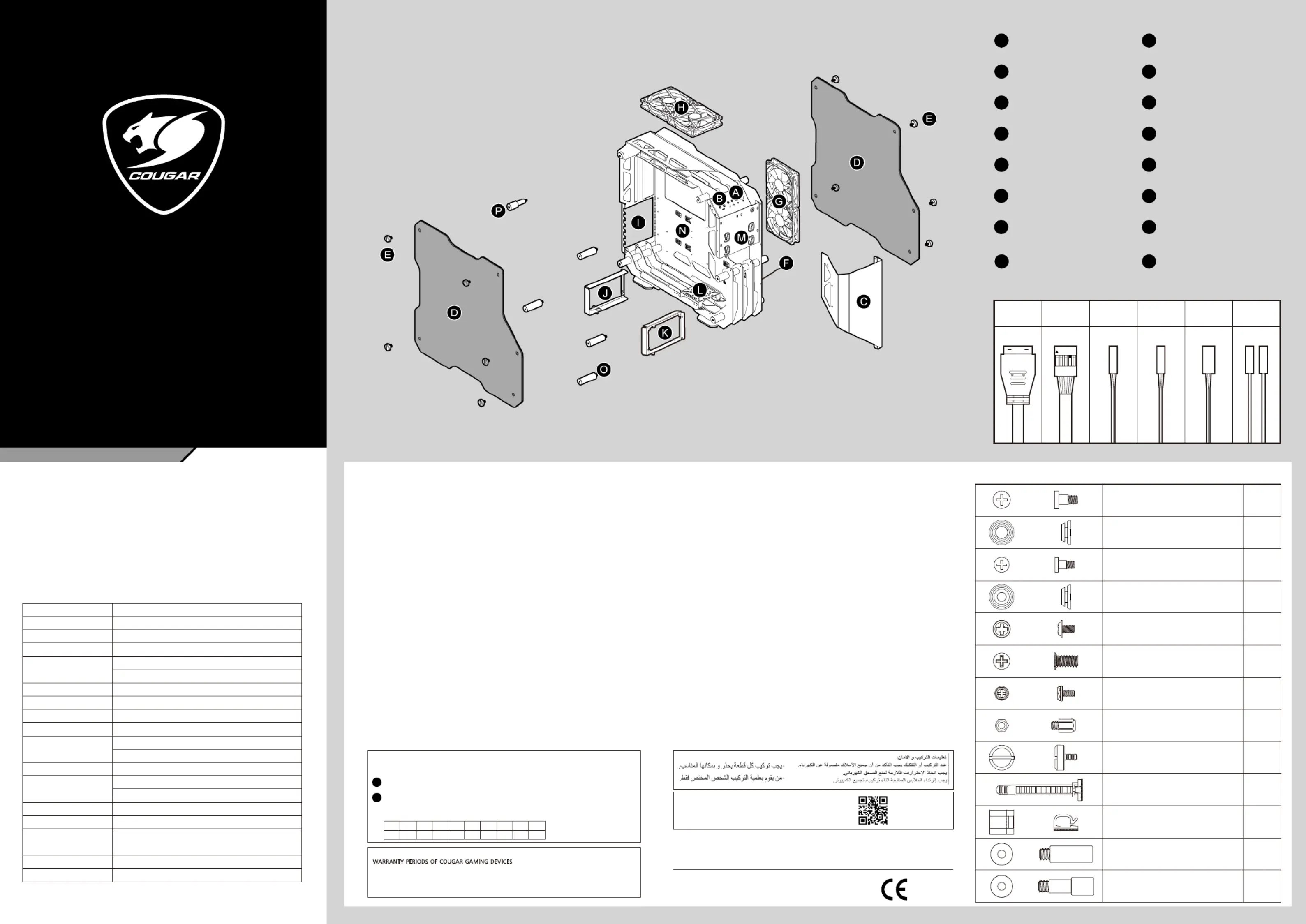

Assembly Drawing

Power button / Reset button

USB 3.0 / HD audio ports

Front panel

Tempered glass side panels

Thumb screws

2.5" HDD / SSD

mount for side panel

2 x 120mm fans for side panel

(optional, purchased separately)

2 x 120mm fans for top panel

(optional, purchased separately)

Expansion slots

Power supply bracket for Micro ATX

and Mini ITX motherboards

Power supply bracket for ATX

motherboard

Water cooling reservoir/

pump stand

3.5" HDD & 2.5" HDD / SSD

mount for front panel

3.5" HDD mount for side panel

Tempered glass columns-A

(For extending case width)

Tempered glass column-B

(For extending case width)

For more information, please visit

Compucase Enterprise Co.,Ltd.

www.cougarg aming.com

Made in China

Compucase Enterprise Co.,Ltd.

No. 225, Lane 54, An Ho Road Sec. 2 Tainan, Taiwan, R.O.C

Tel:+886-6-356-0606

Service E-Mail:service@cougargaming.com

COUGAR USA Technical Service

Tel: (833) 256-3778

Mail: rma@compucaseusa.com

https://cougargaming.com/support/contact/upload/

год и месяц изготовления продукции указаны в серийном номере продукта.

(существует 2 способа определения даты изготовления, оба способа описаны ниже)

После S/N: первые две цифры означают год, вторые две – месяц изготовления.

Например, S/N: H 000001 означает, что товар был произведен в феврале 2017 года.1702

После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже,

и означают год, последующие две цифры – месяц изготовления.

Например, S/N: D REVI000001 означает, что товар был произведен в феврале AG02

2017 года.

●

Например,

AG = 17 = 2017 год

ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ

A B C D E F G H I J

1 3 4 5 6 8 9 02 7

Model Name

Model No.

Case Form Factor

Motherboard Type

Dimension

I/O Panel

3.5" Drive Bay

2.5" Drive Bay

Expansion Slots

Cooling Fan Support

Maximum Number of Fans

Water Cooling Support

Max. Graphics Card Length

Max. CPU Cooler Height

Max. PSU Length

PSU

Tempered Glass Side Panel

Blazer Essence

CGR-5LMHO

Mid Tower

Mini ITX / Micro ATX / ATX

236 x 472 x 528 (mm)

9.3 x 18.6 x 20.8 (inch)

USB3.0 x 2, Mic x 1 / Audio x 1, Reset Button

2 Max.

3 Max.

Top : 120mm x 2

Right Side : 120mm x 2

4 Max.

Top : 240 / 120 (mm)

Right Side : 240 / 120 (mm)

310 (mm) / 12.2 (in)

150 (mm) / 5.9 (in)

160 (mm) / 6.3 (in) for Micro ATX and Mini ITX motherboards

140 (mm) / 5.5 (in) for ATX motherboard

Standard ATX PS2

Both Sides 4mm Thick

Specifications might vary depending on the country or region of sale.

• Tutto il telaio in metallo è realizzato con precisione con ﬁniture controllate da computer per

completare ogni dettaglio.

• Mostrate i vostri componenti attraverso il vetro temperato da 4mm con telaio in metallo,

realizzato per farvi presentare direttamente il vostro sistema di gioco di fascia alta.

• Semplice da assemblare grazie al design particolare, ed espandibile per gli appassionati.

• Supporta ﬁno a un radiatore da 240 mm

• Supporto per due HDDs da 3,5" o tre HDDs/SSDs da 2,5"

• Supporto per schede graﬁche ﬁno a 310mm di lunghezza.

• Due porte USB 3.0 sul pannello I/O anteriore

ITALIANO

PORTUGUÊS

• As placas de metal são fabricadas meticulosamente com máquinas avançadas para

reﬁnar cada detalhe.

• Coloque seus componentes em exibição através do lindo vidro temperado de 4mm

com moldura de metal para exibir diretamente o seu poderoso layout gamer de

última geração.

• Design de fácil montagem, com capacidade superior de expansão.

• Suporte para até um Radiador de 240mm

• Suporte para dois HDDs de 3.5” ou tres HDDs/SSDs de 2.5”

• Suporte até para Placas Gráﬁcas de 310mm de Comprimento.

• Duas portas USB 3.0 no painel frontal de I/O

• All the metal framing design is made meticulously for reﬁning every design detail.

• Put your components on display through beautiful 4mm thick tempered glass with

metal frame to showcase directly your high-end and powerful gaming system.

• Easy to assemble framing design with superior expandability for builders.

• Support for up to 240mm radiator

• Support for two 3.5" HDDs or three 2.5" HDDs/SSDs

• Support for up to 310mm long graphics cards.

• Two USB 3.0 ports at the front I/O panel

ENGLISH

中文

• 延续COUGAR一致出色的军事风格DNA与结构美学，全新的金属框架严格精制每一处细节。

• 将您的机箱组件放置在厚度4mm的钢化玻璃与金属框架中，能够展现出您高端与强大的电竞系统。

• 为改装玩家量身打造的简易组装框架设计与绝佳的扩充性。

• 最高可支援240mm的水冷散热器

• 支持2个 3.5" HDD硬盘或 3 个 2.5" HDD/SSD硬盘

• 支援长达310mm的显示卡

• 前面板I / O有两个USB 3.0端口

ESPAÑOL

• Las placas de metal son hechas meticulosamente con maquinas avanzadas para reﬁnar

cada detalle.

• Coloque tus componentes en exhibición a través del lindo vidrio temblado de 4mm

con marco de metal para lucir directamente tu poderoso sistema gamer de última

generación.

• Diseño de fácil montaje, con capacidad superior de expansión.

• Soporta hasta un Radiador de 240mm

• Soporte para dos HDDs de 3.5” o tres HDDs/SSDs de 2.5”

• Soporta Tarjetas Gráﬁcas de Hasta 310mm de Longitud

• Dos puertos USB 3.0 en el panel frontal de I/O

• Die gesamte platte aus metall wurde sorgfältig zur verfeinerung sämtlicher

designdetails bearbeitet.

• Stellen sie Ihre komponenten durch wunderschönes 4mm dickes gehärtetes glas

mit rahmen aus metall zur schau, für direkte einblicke in Ihr hochmodernes,

leistungsfähiges gaming-system.

• Einfach zu montierendes rahmendesign mit ausgezeichneter erweiterbarkeit für Builder.

• Unterstützt bis zu einen 240-mm-kühlkörper.

• Unterstützt zwei 3,5 zoll HDDs oder drei 2,5 zoll HDDs/SSDs

• Unterstützt graﬁkkarten mit einer länge von bis zu 310 mm.

• Zwei USB 3.0-anschlüsse an der vorderen I/O-leiste

DEUTSCH

Installing the Front I/O Connectors

GLOBAL WARRANTY POLICY

WARRANTY PERIODS OF COUGAR GAMING DEVICES

Product : COUGAR BLAZER ESSENCE

Warranty : 1 Year

*This warranty gives you specific legal rights. You may also have other rights granted under local law.

These rights may vary.

*Only for electrical components

ACCESSORY KIT

Metal Framing Design

Blazer Essenceʼs distinctive design based on a powerful metal frame and COUGARʼs

unique design DNA, presenting in every inch of its body. This case is a reﬁned art piece!

Superior Expandability

The unique COUGAR esthetics design with superior combination of metal framing and full

tempered glass panels allow you to show your high-end components for everybody to see.

It also allows you to create and amazing masterpiece beyond your imagination.

Superb Cooling Performance

Cooling is a critical factor for gamers, overclockers and PC enthusiasts in general. With

support for 240mm radiators and metal open-frame design to achieve extreme cooling

performance.

Ideal for Case Mods

Blazer Essenceʼs unique metal frame design breaks away from traditional case designs.

It provides an easy way to build and modify the case. Your bold modding concepts are

achievable with creation of unlimited. A modderʼs dream come true!

SUPERB OPEN-FRAME GAMING MID TOWER CASE

BLAZER

ESSENCE

USB 3.0 HD AUDIO

HD AUDIO

POWER SW

RESET SW H.D.D LED POWER LED

RESET SW

H.D.D LED

POWER LED

X 4

Tempered glass columns-A

(For extending case width)

Tempered glass column-B

(For extending case width)

X 1

X 12

X 123.5" HDD step screws

2.5" SSD screws

for the front panel & MB screws

X 22

Fan screws X 16

X 3Stand-off

X 5Cable hooks

X 5Cable ties

X 8

2.5" SSD screw rubbers

for the right panel

3.5" HDD screw rubbers

X 8

2.5" SSD step screws

for the right panel

X 10Thumb screws for glass panels

X 9Power supply screws

БЪЛГАРИЯ

• Подробни инструкции за употреба

изтеглете от: https://cougargaming.com/bg

България QR код

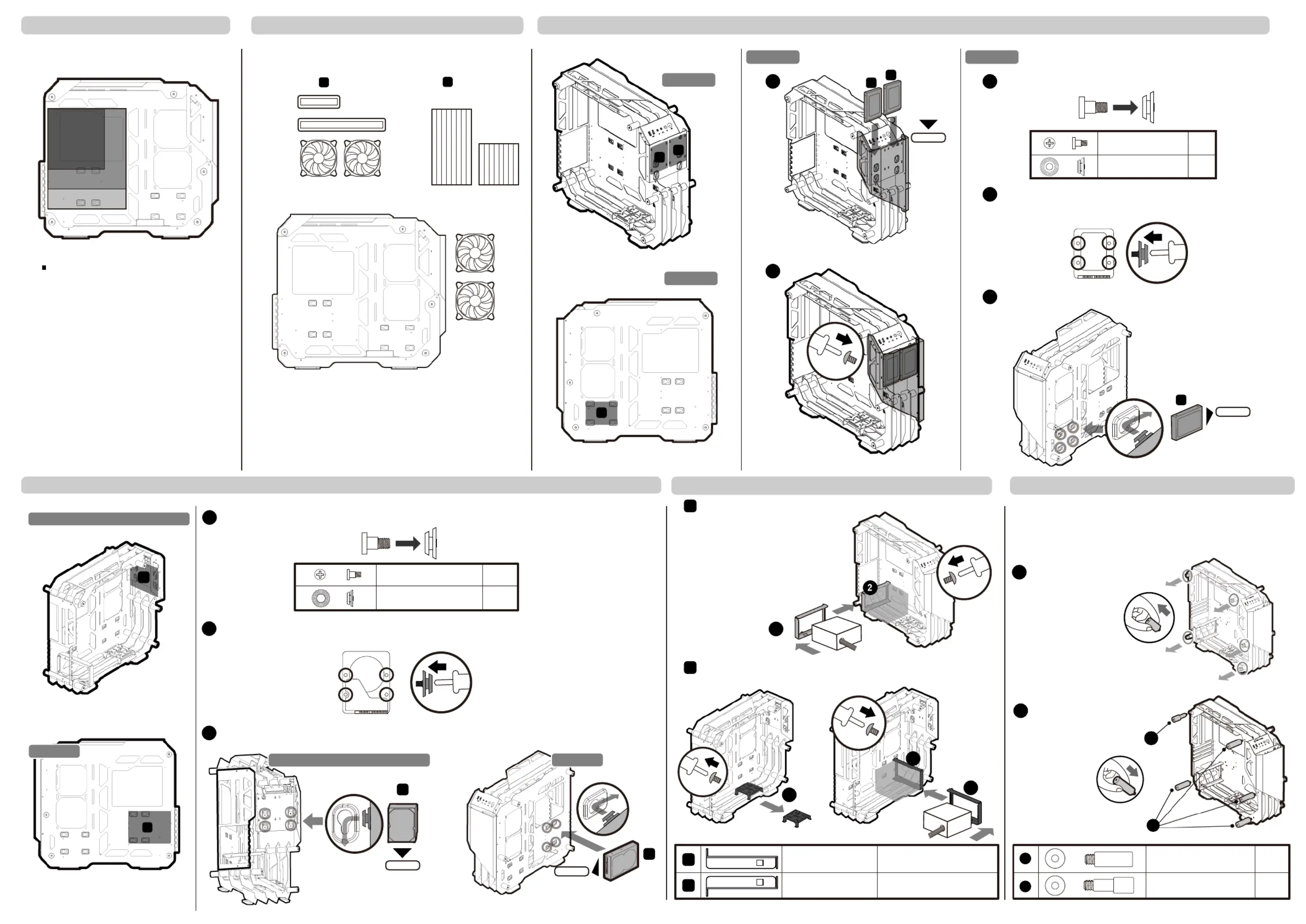

Installing a power supply

120

240

120

(Top)

120

240 120

(Right Side)

Installing water cooling radiators & cooling fans

Installing an motherboard

Installing tempered glass columns for extending case width

Installing an internal 2.5" HDD/SSD

Installing an internal 3.5" HDD

RIGHT

Mini-ITX

Micro ATX

ATX

Supports Mini ITX, Micro ATX, and

ATX motherboards.

Align the 3.5 HDD with the rubber screws" that correspond with the󵽱mounting holes at

the back of the front panel.

Slide the 3.5" HDD in the direction of the arrow.

Please install 3.5" HDD step screws on 3.5" HDD screw rubbers.

Please use PSU bracket M when you install Micro ATX

or Mini ITX motherboards.

Please remove the water cooling reservoir/pump stand first.

Then, use PSU bracket A when you install ATX motherboard.

FRONT

FRONT RIGHT

AT THE BACK OF THE FRONT PANEL

X 12

3.5" HDD screw rubbers

X 123.5" HDD step screws

RIGHT

X 4

Tempered glass columns-A

(For extending case width)

Tempered glass column-B

(For extending case width)

X 1

Max. PSU Length 160 (mm) / 6.3 (in)

For Micro ATX and Mini ITX

motherboards

For ATX motherboard

Max. PSU Length 140 (mm) / 5.5 (in)

If the GPU height or CPU cooler height is higher than the original left tempered

glass panel, please change tempered glass columns to extend the case width.

Install the tempered glass columns A

and B to extend the case width.

Please remove the original tempered glass

columns first.

Connectors

AT THE BACK OF THE FRONT PANEL

RIGHT

Please install 2.5" SSD step screws on 2.5" SSD screw rubbers.

X 8

2.5" SSD screw rubbers

for the right panel

X 8

2.5" SSD step screws

for the right panel

Slide the 2.5" SSD in the direction of the arrow.

Align the 2.5 SSD with the rubber screws that correspond "

with the mounting holes at the back of the right panel.

Connectors
