TRELUX RGB LIGHTING

COUGAR’s new Trelux technology provides Gemini T Pro with a powerful lighting system of its own:

three long RGB-powered lenses cover the front and top of the case. The Trelux dynamic RGB lighting

will amaze everybody!

Controllable directly through a convenient front panel button, Trelux can also work connected to a

COUGAR Core Box v2 or to a compatible motherboards’ 5V connection for system-wide lighting

integration.

GLASS WINGS

Two massive gull-wing tempered glass side panels flank Gemini T Pro. This unique design gives

you a clear view of the computer’s components and makes tool-less maintenance very convenient.

Apart from cooling, the two side fans facing the glass window allow you to set up a fantastic lighting

spectacle inside Gemini T Pro!

VERTICAL GPU SUPPORT

This revolutionary case is both about performance and aesthetics. To bring your system’s

awesomeness to the limit, Gemini T Pro supports vertical GPU installation. This joins the

two supported side fans to produce one of the most incredible side windows a PC case has

ever had.

INTELLIGENT COOLING

Up to nine fans and three water cooling radiators match Gemini T Pro’s support for the latest

components with top-end cooling capabilities. Two big frontal vents with detachable filters

guarantee a clear air intake, while two side vents on both sides of the top cover create an

excellent way for the exhaust to leave the case without dust getting in.

Specifications might vary depending on the country or region of sale.

FEATURES

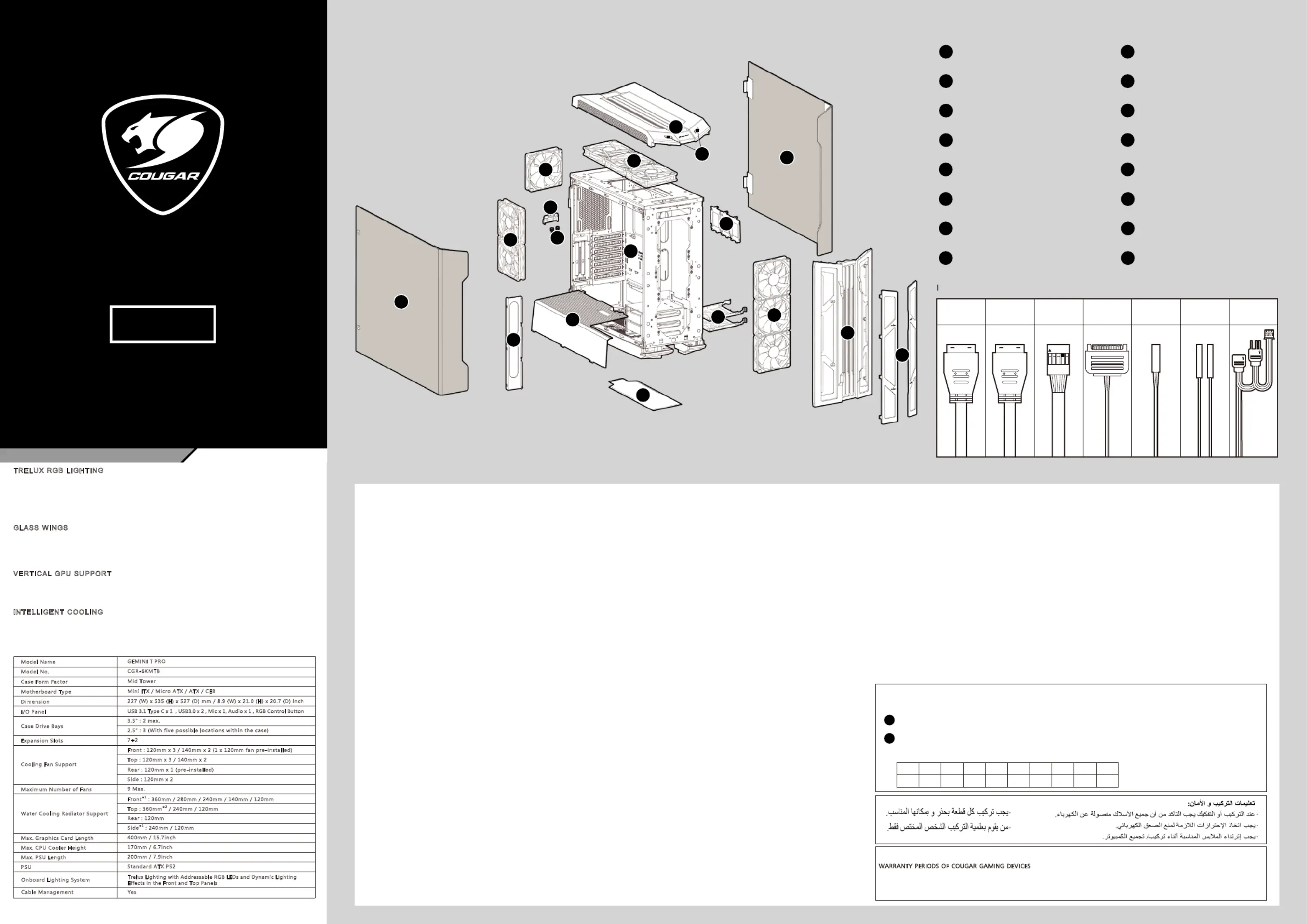

Assembly Drawing

Power button / RGB Control Button

Removable front panel

Type-C , USB3.0 x 2 , Mic x 1, Audio x 1

Power supply cover

Gull-wing opening tempered glass

side panels

Fan filters to prevent dust from getting

into the chassis

Vented slots

2.5" HDD/SSD trays

3.5" HDD trays

2 x 140 / 3 x 120mm fans for front panel

(1 x 120mm fan pre-installed)

1 x 120mm fan for rear panel

(1 x 120mm fan pre-installed)

2 x 120mm fan for side panel

(optional, purchased separately)

2 x 140 / 3 x 120mm fans for top panel

(optional, purchased separately)

Thumb screws

Slot cover

Cooling fan/radiator bracket

on the right side panel

• Trelux RGB System with 5V RGB Motherboard Synchronization

• Support for Vertical GPU (up to 400mm-long)

• Mini ITX / Micro ATX / ATX / CEB Motherboard Support

• Gull-Wing Opening Tempered Glass Side Panels

• Intelligent Cooling Design with Big Front Vents and Upper Side Vents

• Up to Nine Fans

• Up to Three Radiators (Max. Length 360mm)

• Up to Three 425mm Graphics Cards

• Convenient Upgrades and Maintenance

ENGLISH

• Trelux' RGB-System mit 5-V-RGB-Motherboard-Synchronisierung

• Unterstützt vertikale GPU (Länge bis 400 mm)

• Unterstützt Mini ITX / Micro ATX / ATX / CEB Motherboard

• Seitenblenden aus Hartglas mit Knickflügelöffnung

• Intelligentes Kühldesign mit großen Belüftungsöffnungen an Vorder- und

Oberseite

• Bis zu Neun Lüfter

• Bis zu Drei Kühlkörper (max. Länge des Kühlkörpers beträgt 360 mm)

• Bis zu drei 425 mm lange Grafikkarten

• Komfortable Aufrüstung und Wartung

DEUTSCH

• Sistema de Iluminación RGB Trelux (Soporta Sincronización de 5v RGB

con Placa Base)

• Soporta Instalación Vertical de GPU (Hasta 400mm de Longitud)

• Soporta Placa Madre Mini ITX / Micro ATX / ATX / CEB

• Paneles Laterales de Vidrio Templado con Diseño de Ala de Gaviota

• Diseño de Refrigeración Inteligente con Dos Grandes Respiraderos

Frontales y Dos Respiraderos en los Flancos de la Cubierta Superior

• Hasta Nueve Ventiladores

• Hasta Tres Radiadores (Longitud Máxima del Radiador: 360mm)

• Hasta Tres Tarjetas Gráficas de 425mm de Longitud

• Actualizaciones y Mantenimiento Fáciles y Rápidos

ESPAÑOL

• System RGB Trelux z synchronizacją podświetlenia płyty głównej RGB 5V

• Obsługa pionowego montażu karty graficznej (o długości do 400 mm)

• Obsługa płyt głównych Mini ITX / Micro ATX / ATX / CEB

• Otwierane skrzydłowo panele boczne ze szkła hartowanego

• Inteligentny układ chłodzenia z dużymi wentylatorami z przodu i na górze

boków

• Maks. Dziewięć wentylatorów

• Maks. Trzy radiatorów (radiator o maks. długości 360 mm)

• Maks. trzy karty graficzne 425 mm

• Wygodna rozbudowa i konserwacja

POLISH

• Sistema Trelux RGB com Sincronização de Placa-mãe 5v RGB

• Suporte para GPU Vertical (até 400mm de comprimento)

• Suporte para Placa-mãe Mini ITX / Micro ATX / ATX / CEB

• Paineis Laterais de Vidro Temperado de Abertura Tipo Asa

• Design de Refrigeração Inteligente com Ventoinhas Grandes Frontais

e Ventoinhas Grandes Superiores

• Até Nove Ventoinhas

• Até Três Radiadores (Radiador Max. 360mm de Comprimento)

• Até Três Placas Gráficas de 425mm

• Atualização e Manutenção Convenientes

PORTUGUÊS

РУССКИЙ

• Система Trelux RGB c синхронизацией RGB при подключении к

материнской плате (5V)

• Поддержка вертикальной установки графической к арты

(длиной до 400 мм)

• Поддержка форматов Mini ITX / Micro ATX / ATX / CEB

• Боковое «крылатое» открытие панелей из закаленного стекла

• Интеллектуальная система охлаждения с вентиляторами в

передней и верхней части корпуса

• До девяти вентиляторов

• До три радиаторов (радиатор максимальной длиной 360 мм)

• До трех 425-мм графических карт

• Удобное обновление и поддержка

• Système RVB Trelux avec synchronisation de carte mère RVB 5 V

• Prise en charge de GPU vertical (jusqu'à 400 mm de long)

• Prise en charge de cartes mères Mini ITX / Micro ATX / ATX / CEB

• Panneaux latéraux en verre trempé à ouverture papillon

• Conception intelligente du refroidissement avec grandes fentes

d'aération à l'avant et fentes d'aération latérales en hauteur

• Jusqu'à Neuf ventilateurs

• Jusqu'à Trois radiateurs (Longueur max. du radiateur 360 mm)

• Jusqu'à trois cartes graphiques de 425 mm

• Mises à niveau et maintenance pratiques

FRANÇAIS

• Sistema Trelux RGB con sincronizzazione scheda madre RGB 5v

• Supporto per GPU verticale (fino a 400 mm di lunghezza)

• Supporto per scheda madre Mini ITX / Micro ATX / ATX / CEB

• Pannelli laterali in vetro temperato con apertura ad ala di gabbiano

• Design di raffreddamento intelligente con grandi bocchette di ventilazione

anteriori e bocchette laterali superiori

• Fino a Nove ventole

• Fino a Tre radiatori (lunghezza massima del radiatore 360 mm)

• Fino a tre schede grafiche da 425 mm

• Aggiornamenti e manutenzione convenienti

ITALIANO

• Trelux RGB系统支援主机板灯效同步控制功能5V

• 400mm)支援显卡垂直安装(最高长度可达

• 支援Mini ITX / Micro ATX / ATX / CEB 主机板

• 鸥翼式钢化玻璃侧窗

• 智能散热设计搭配大型通风孔

• 9 最高支援个风扇

• 最高可安装 3 个水冷散热器(最大长度 360mm 水冷排)

• 最高可安装 3 425mm 组显卡

• 方便升级、轻松维护

中文

• Trelux RGB rendszer 5 V-os RGB alaplap-szinkronizálással

• Függőleges GPU támogatása (max. 400 mm hosszúságig)

• Mini ITX / Micro ATX / ATX / CEB alaplap támogatása

• Sirályszárnyas, edzett üvegből készült oldalsó panelek

• Intelligens hűtőrendszer nagy méretű elülső és felső-oldalsó

szellőzőnyílásokkal

• Maximum Kilenc ventilátor

• Maximum Három hűtőelem (az hűtőelem maximális

hosszúsága 360 mm)

• Maximum három 425 mm-es grafikus kártya

• Kényelmes bővíthetőség és karbantartás

HUNGARIAN

• "Trelux RGB" ‘’ 5V RGBシステムはのマザーボードの効果に同期します。

• 400mmグラフィックカードを垂直に取付できます。（最大まで対応可能）

• Mini ITX / Micro ATX / ATX / CEB マザーボードに対応しています。

• ガルウィングオープニング強化ガラスサイドウィンドウパネル装備

• 大きなフロントベントと上部サイドベントによって優れた放熱効果を確保

します。

• 9 最大個のファンを装着できます。

• 3 つの水冷ラジエーターを装着可能です。

（の水冷ラジエーターを装着可能）360mm

• 3 425mm最大つのグラフィックカードに対応できます。

• アップグレードとメンテナンスが容易です。

日本語

• 5V RGB 마더 보드 동기화 기능이 있는 Trelux RGB 시스템

• 수직 GPU 지원 (최대 400mm 길이)

• Mini ITX / Micro ATX / ATX / CEB 마더 보드 지원

• 위로 젖혀 열리는 걸 윙식의 강화 유리 측면 패널

• 대형의 전면 및 상부측 통풍구를 이용한 지능형 냉각 설계

• 최대 9 개의 팬

• 최대 3 개의 라디에이터 (라디에이터 최대 길이 360mm)

• 최대 3 개의 425mm 그래픽 카드

• 편리한 업그레이드 및 유지 관리

한국어

nstalling the Front I/O Connectors

USB 3.1

TYPE C

USB 3.0 HD AUDIO

HD AUDIO

POWER SW

POWER LED

POWER LED +

POWER LED

POWER

LIGHTING

CONTROL

GLOBAL WARRANTY POLICY

WARRANTY PERIODS OF COUGAR GAMING DEVICES

Product : COUGAR Gemini T Pro

Warranty : 1 Year

●

This warranty gives you specific legal rights. You may also have other rights granted under local law. These rights may vary.

●

Only for electrical components.

год и месяц изготовления продукции указаны в серийном номере продукта.

(существует 2 способа определения даты изготовления, оба способа описаны ниже)

После S/N: первые две цифры означают год, вторые две – месяц изготовления.

Например, S/N: H 000001 означает, что товар был произведен в феврале 2017 года.1702

После S/N: если указаны буквы, то две буквы представляют цифры из таблицы ниже,

и означают год,

последующие две цифры – месяц изготовления.

Например, S/N: D REVI000001 означает, что товар был произведен в феврале 2017 года.AG02

●

Например,

AG = 17 = 2017 год

ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ

A B C D E F G H I J

1 2 3 4 5 6 8 9 07

PRO

GEMINI T

Max. Graphics Card Length

Max. CPU Cooler Height

Max. PSU Length

PSU

Case Form Factor

Dimension

Motherboard Type

I/O Panel

Case Drive Bays

Expansion Slots

Model Name

Cooling Fan Support

Water Cooling Radiator Support

Maximum Number of Fans

Onboard Lighting System

Side

: 240mm / 120mm

400mm / 15.7inch

170mm / 6.7inch

200mm / 7.9inch

Standard ATX PS2

GEMINI T PRO

Model No.

CGR-6KMTB

Mid Tower

227 (W) x 535 (H) x 527 (D) mm / 8.9 (W) x 21.0 (H) x 20.7 (D) inch

7+2

Mini ITX / Micro ATX / ATX / CEB

USB 3.1 Type C x 1 , USB3.0 x 2 , Mic x 1, Audio x 1 , RGB Control Button

3.5" : 2 max.

Trelux Lighting with Addressable RGB LEDs and Dynamic Lighting

Effects in the Front and Top Panels

Cable Management Yes

2.5" : 3 (With five possible locations within the case)

Front : 120mm x 3 / 140mm x 2 (1 x 120mm fan pre-installed)

Rear : 120mm

Top : 360mm

/ 240mm / 120mm

Front

: 360mm / 280mm / 240mm / 140mm / 120mm

9 Max.

Top : 120mm x 3 / 140mm x 2

Rear : 120mm x 1 (pre-installed)

Side : 120mm x 2

1 . Front & Side panels : Please choose either of front or side to install a radiator.

2 . Top panel : Please choose either of top or a front to install a 360mm radiator.

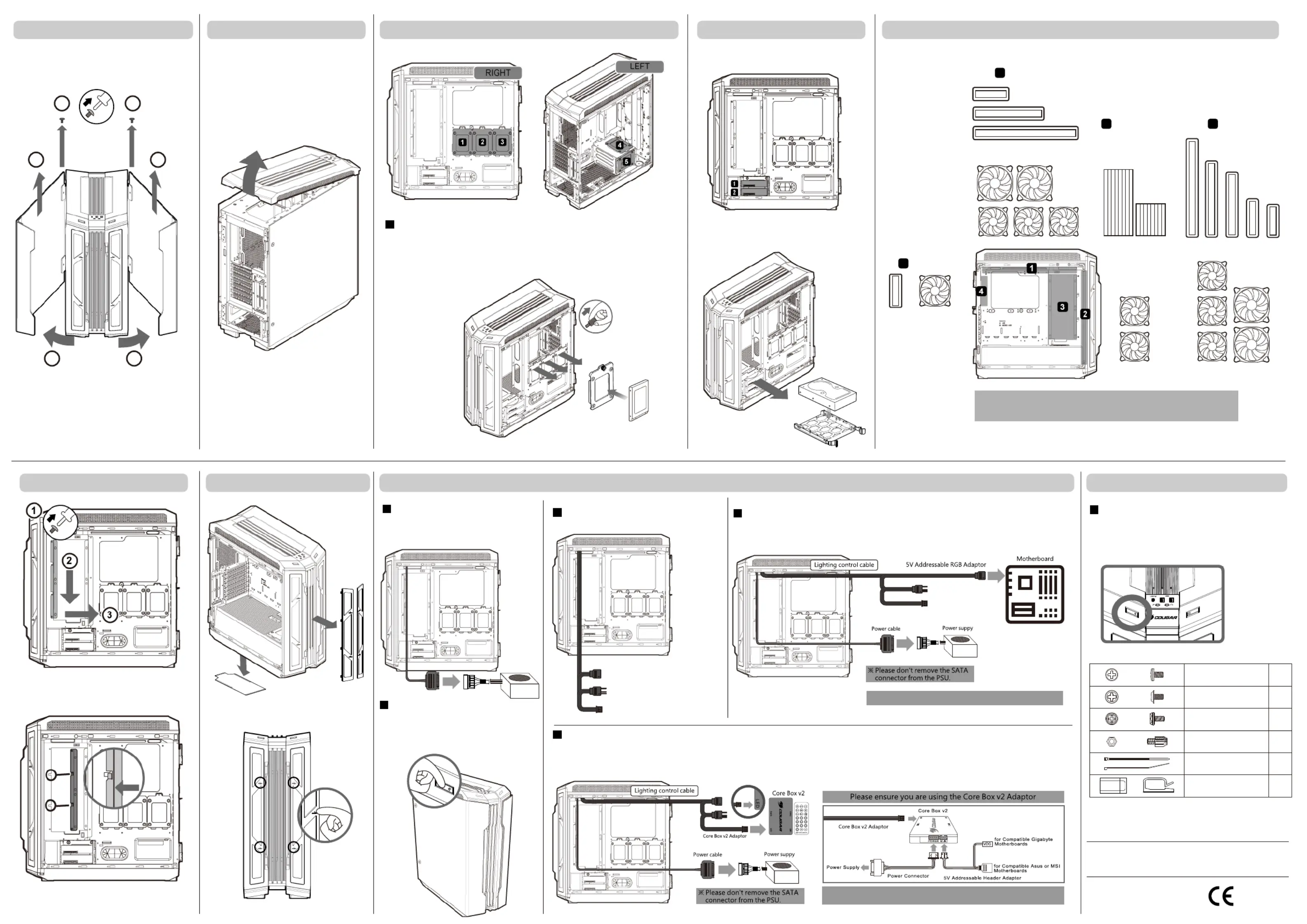

Gemini T Pro's Trelux lighting system offers you several ways to control it: Lighting Mode Indicator

Please connect the power cable of the I/O

panel to an appropriate SATA connector

from the PSU in order to use the case's

lighting functionality.

When using the first lighting mode

(i.e., control

through the I/O panel's button),

the lighting control

button to the left of the I/O panel will be lit. When

using the second or third mode, the LED of the

lighting control

button will be off.

Power suppy

Power cable

First Mode: Lighting Button

You can use the front panel's dedicated

button to switch between the fourteen

beautiful lighting effects we have preset

for you.

Removing the dust filtersRemoving cooling fan/radiator bracket

PUSH

For more information, please visit

Compucase Enterprise Co.,Ltd.

ww w .co u gar g ami n g.co m

Made in China

Compucase Enterprise Co.,Ltd.

No. 225, Lane 54, An Ho Road Sec. 2 Tainan, Taiwan, R.O.C

Tel:+886-6-356-0606

Service E-Mail:service@cougargaming.com

COUGAR USA Technical Service

Tel: (833) 256-3778

Mail: rma@compucaseusa.com

https://cougargaming.com/support/contact/upload/

ACCESSORY KIT

X 5Power supply screws

Motherboard / HDD screws X 18

X 12SSD screws

X 2Stand-off

X 4Cable ties

X 1Cable hook

※ Please align two hooks when you install

the bracket.

1. Please remove two screws from the bracket.

2. Pull down the bracket.

2.5" Storage Device Installation:

Three brackets for installing 2.5" SSD are included. Please choose three of the five

numbered locations

shown in the pictures above to install them. Only three

SSDs may be installed simultaneously.

SSD brackets are not sold separately.

Removing the side panels Removing the top panel

1 1

Installing water cooling radiators & cooling fansInstalling an internal 2.5" HDD/SSD Installing an internal 3.5" HDD

120

240

360

360 280 240 140 120240

120

140

120

140

120 120

(Top)

(Front)

(Right Side)

(Rear)

Second Mode: Motherboard Synchronization

Second, you can use the included adaptor (see picture below) to connect the Trelux

system to a compatible motherboard's 3-pin 5V Addressable RGB header and enjoy

system-wide RGB synchronization.

Lighting Control Cable Instructions

Third Mode: Core Box v2

You can also benefit from integrated control of Gemini T Pro's Trelux lighting system, up to eight fans and two RGB LED Strips by connecting the case with

the included adaptor to a COUGAR Core Box v2 (sold separately). This control box will allow you to enjoy 100 different synchronized lighting effects in
