FEATURES

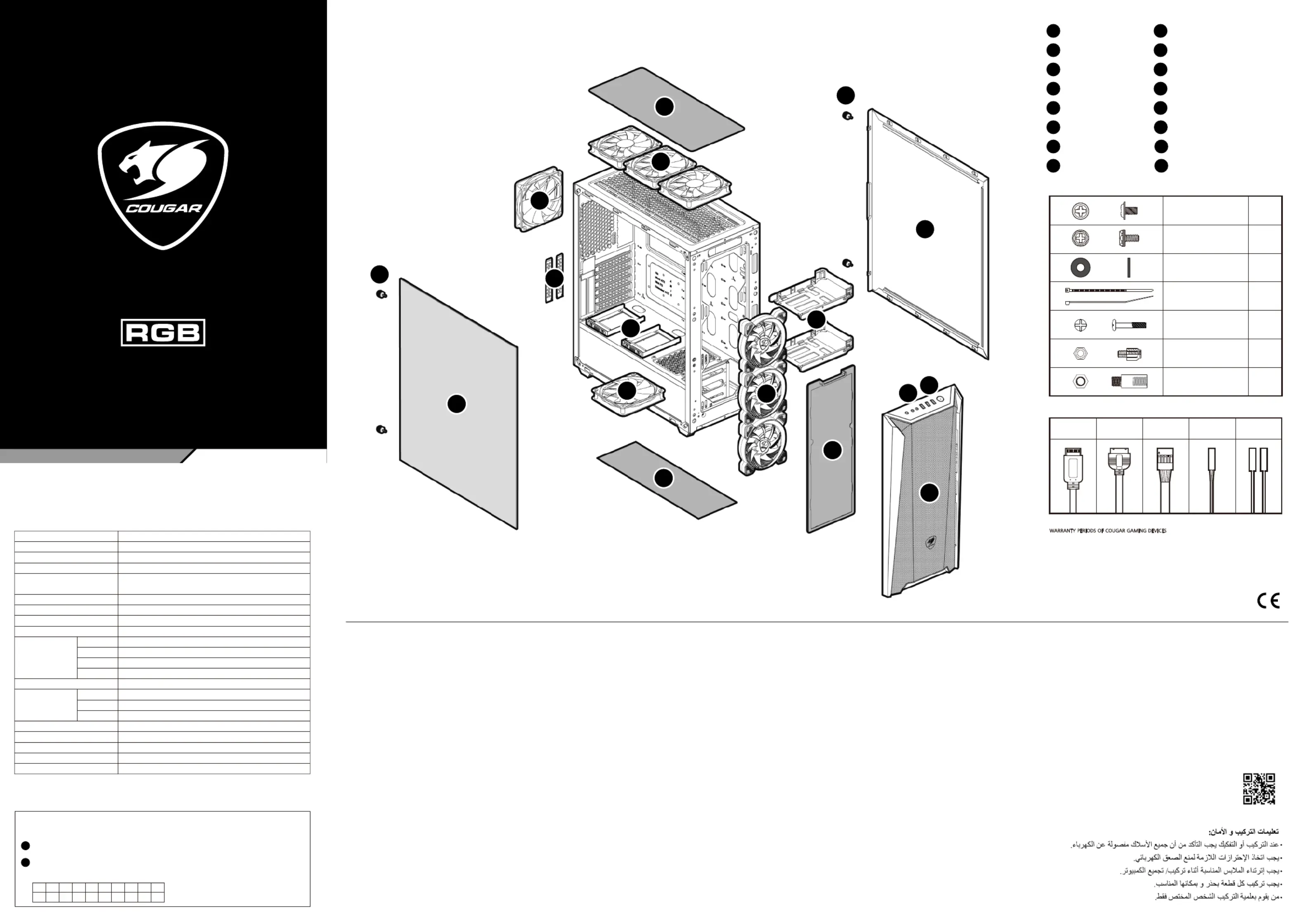

Assembly Drawing

●

Подробни инструкции за употреба

изтеглете от:https://cougargaming.com/bg

БЪЛГАРИЯ

България QR код

ENGLISH

●

Mesh front panel combines with excellent appearance and

sufficient airflow

●

Integrated RGB system with 5V ARGB motherboard

synchronization

●

Massive tempered glass left side panel

●

Support for up to E-ATX motherboard

●

Support for up to a 360mm water cooling radiator and eight fans

●

Support for up to 410mm graphics cards

●

Support for vertical GPU

POLISH

●

Przedni panel siatkowy łączący w sobie doskonały wygląd

i wystarczający przepływ powietrza

●

Zintegrowany system RGB zsynchronizowany z płytą główną

przez złącze ARGB 5V

●

Lewy panel ze szkła hartowanego

●

Obsługa płyt głównych do E-ATX

●

Obsługa chodnicy wodnej o szerokości do 360 mm i ośmiu wentylatorów

●

Obsługa kart graficznych o długości do 410 mm

●

Obsługa procesora graficznego montowanego pionowo

ITALIA

●

Il pannello anteriore in rete si combina con un aspetto

eccellente e un flusso d'aria sufficiente

●

Sistema RGB integrato con sincronizzazione della scheda

madre ARGB 5 V

●

Pannello sinistro in vetro temperato massiccio

●

Supporto fino a una scheda madre E-ATX

●

Supporto per un radiatore per raffreddamento ad acqua fino

a 360 mm e otto ventole

●

Supporto per schede grafiche fino a 410 mm

●

Supporto per GPU verticale

PORTUGUÊS

●

Painel frontal em malha combina com excelente aspecto

e fluxo de ar suficiente

●

Sistema RGB integrado com sincronização de placa mãe

de 5V ARGB

●

Painel esquerdo em vidro maciço temperado

●

Apoio até à placa-mãe E-ATX

●

Suporte para um radiador de arrefecimento a água até 360mm

e oito ventiladores

●

Suporte para placas gráficas até 410mm

●

Suporte para GPU vertical

РУССКИЙ

●

Сетчатый дизайн передней панели обеспечивает

достаточный поток воздуха

●

Интегрированная система RGB подсветки с 5V ARGB

синхронизацией материнской платы

●

Массивная боковая панель из закаленного стекла

●

Поддержка всех материнских плат до формата E-ATX

●

Поддержка водяного охлаждения радиатора размером до

360 мм и восьми вентиляторов

●

Поддержка всех видеокарт размером до 410 мм

●

Поддержка вертик ального графического процессора

DEUTSCH

●

Gitterfrontblende kombiniert ausgezeichnetes Aussehen

und ausreichenden Luftstrom

●

Integriertes RGB-System mit

5-V-ARGB-Motherboard-Synchronisierung

●

Linke Blende aus massivem Hartglas

●

Unterstützt Motherboards bis E-ATX

●

Unterstützt einen Wasserkühlkörper bis 360 mm und acht

Lüfterherboard

●

Unterstützt Grafikkarten bis 410 mm

●

Unterstützt vertikale GPU

ESPAÑOL

●

El panel frontal de malla se combina con una excelente

apariencia y suficiente flujo de aire

●

Sistema RGB integrado com sincronização de placa mãe

de 5V ARGB

●

Panel izquierdo de cristal templado masivo

●

Soporte para la placa madre de hasta E-ATX

●

Soporte para un radiador de refrigeración de agua de hasta

360 mm y ocho ventiladores

●

Soporte para tarjetas gráficas de hasta 410 mm

●

Soporte para la GPU vertical

FRANÇAIS

●

Le panneau frontal en maille combine une excellente

apparence avec un flux d'air suffisant

●

Système RGB intégré avec synchronisation de la carte

mère ARGB 5V

●

Panneau gauche en verre trempé massif

●

Prise en charge des cartes mères jusqu'à E-ATX

●

Prise en charge d'un radiateur de refroidissement à eau de

360 mm et de huit ventilateurs

●

Prise en charge des cartes graphiques jusqu'à 410 mm

●

Compatible avec les GPU verticaux

●

铁网面板结合美观设计与畅通气流

●

RGB整合系统支援5V ARGB主机板灯效同步控制功能

●

全景透视钢化玻璃左侧盖

●

最高支援E-ATX主机板

●

最高支援360mm水冷排与8个风扇

●

最高可安装410mm显卡

●

支援显卡垂直安装

中文

●

우수한 외관과 충분한 공기 흐름이 결합된 메쉬 전면 패널

●

5V ARGB 마더 보드 동기화 기능이있는 통합 RGB 시스템

●

좌측 패널의 크고 단단한 대형 강화유리

●

최대 E-ATX 마더보드 지원

●

최대 360mm 수랭식 라디에이터 및 팬 8개 지원

●

최대 410mm 그래픽 카드 지원

●

수직 GPU 지원

한국어

●

メッシュパネルで、放熱を最適化した設計によって優れた冷却性能を実現

●

ARGBシステムは5VのマザーボードのRGB効果に同期します

●

強化ガラスウィンドウでPCの内部が見えるので内部のパーツを引き立てます

●

E-ATXマザーボードに対応

●

8個のファンと360ｍｍの水冷ラジエーターを装着でき、優

れた放熱効果を確保します

●

最大410mmグラフィックカードに対応できます

●

グラフィックカードを垂直に取付可能

日本語

MX660 Mesh RGB

CGR-5BMSB-MESH-RGB

Mid-Tower

213 (W) x 495 (H) x 474 (D) mm

8.4 (W) x 19.5 (H) x 19 (D) in.

Mini ITX / Micro ATX / ATX / CEB / E-ATX

120mm x 1

120mm x 1 (for HDD Cooling)

8 Max.

*360mm / 280mm / 240mm / 140mm / 120 mm

120mm

200 (mm) / 7.9 in.

5+2 (converted from 3.5" drive bays) / (2 SSD trays included)

7+2

*VK120 ARGB Fans x 3 (pre-installed) / 140mm x 2

120mm x 3 / 140mm x 2

USB3.0 x 2, Type C 3.1 x 1, Mic x 1 / Audio x 1, RGB Button

Model Name

Model No.

Case Form Factor

Motherboard Type

Dimensions (WxHxD)

I/O Panel

3.5" Drive Bay

2.5" Drive Bay

Expansion Slots

Cooling Fan

Support

Water Cooling

Support

Maximum Number of Fans

Max. Graphics Card Length

Max. CPU Cooler Height

Max. PSU Length

* Please choose either of front or top to install a 360mm radiator.

* Top 360mm radiator supports within 30mm thickness.

* Please choose either of a TOP 360mm radiator or FRONT 120mm x 3 fans to install.

Specifications might vary depending on the country or region of sale.

410 (mm) / 16.1 in.

165 (mm) / 6.5 in.

Onboard Lighting System

RGB Sync with M/B

Yes

Rear

PSU cover

Front

Top

Rear

Front

Top

MX660 MESH

2 x 140mm /

VK120 ARGB Fans x 3(pre-installed)

Installing the Front I/O Connectors

USB 3.0Type-C 3.1 HD Audio

HD AUDIO

POWER SW

USB3.0

Power SW Power LED

POWER LED

Accessory kit

X 5

X 12

Power supply screws

2.5"

HDD

/ SSD EVA washers

X 17

Motherboard

/ SSD screws

Fan screws

(on PSU cover for

HDD cooling)

X 4

X 5

Cable ties

X 5

Stand-off

for motherboard

X 2

Stand-off

for VGA riser cable

Power button

/ RGB button

Removable front panel

USB3.0 x 2, Type C 3.1 x 1

Mic , Audio

Right side panel

Thumb screws

Tempered glass

left panel

Slot covers

1 x 120mm fan on PSU cover

for HDD Cooling

2.5" HDD/SSD trays

Air filter at the front

3.5" HDD trays (compatible

for 2.5" HDD/SSD)

Air filter at the bottom

Air filter on the top

120mm fan for rear panel

2 x 140mm / 3 x 120mm fans

Made in China

For more information, please visit

www.cougargaming.com

Compucase Enterprise Co.,Ltd.

No. 225, Lane 54, An Ho Road Sec. 2

Tainan, Taiwan, R.O.C

Tel:+886-6-356-0606

Service E-Mail:

service@cougargaming.com

COUGAR USA Technical Service

Tel: (833) 256-3778

Mail: rma@compucaseusa.com

https://cougargaming.com/support/

contact/upload/

GLOBAL WARRANT Y POLICY

WARRANTY PERIODS OF COUGAR GAMING DEVICES

Product : COUGAR PC Case

Warranty : 1 Year

This warranty gives you specific legal rights.

You may also have other rights

granted under local law.

These rights may vary.

*only for electrical components

год и месяц изготовления продукции указаны в серийном номере продукта.

(существует 2 способа определения даты изготовления, оба способа описаны ниже)

После S/N: первые две цифры означают год, вторые две – месяц изготовления.

Например, S/N: H 000001 означает, что товар был произведен в феврале 1702 2017 года.

После S/N:

если указаны буквы, то две буквы представляют цифры из таблицы ниже,

и означают год, последующие две цифры – месяц изготовления.

Например, S/N: D REVI000001 означает, что товар был произведен в феврале 2017 года.AG02

●

Например, AG=17=2017 год

ДАТА ИЗГОТОВЛЕНИЯ ПРОДУКЦИИ

A B E F G HC D I J

1 2 3 4 5 6 7 08 9

MX660 Mesh RGB is an upgraded mid-tower case, which continues COUGAR’s iconic style.

The massive mesh front panel with folding angles provides better air flow performance.

With three ARGB VK120 fans and a crystal clear tempered glass left panel, you are freely

to create a clear view of your computer’s internal components.

ADVANCED MID-TOWER CASE WITH POWERFUL AIRFLOW

RGB SW

button

Right

Left

Removing the side panels 2.5" HDD/SSD Installing 3.5" HDDInstalling

LeftRight Right Right

1 2

4 5

Right

Left

5 6

●

Please stick EVA washers on SSD holes

before installing 2.5" SSD.

2.5" HDD/SSD

EVA washers

Connectors

120

140

240

280

120

140

120

Top 360mm radiator supports

within 30mm thickness.

Please choose either of front or top to install a 360mm radiator.

Installing water cooling radiators & cooling fans

TOP

REAR

PSU COVER

nectors

PUSH &

HOLD the Bar

PUSH &

HOLD the Bar

PUSH &

HOLD the Bar

Lift up with 45°

Angle to Remove it

*360

*120 140

120140240280360

FRONT

* Please choose either of a

TOP 360mm radiator or

FRONT 120mm x 3 fans

to install.

Stand-off

for VGA riser cable

The vertical graphic

card and the PCI-E

riser cable are not

i n c l u d e d i n t h e

p a c k a g e , p l e a s e

purchase separately.

Please choose either

of a Vertical Graphic

Card or 2.5" SSD

trays on the PSU cover

to install.

Max. Graphics Card

Length :

410mm

Installing Vertical Graphic Card

5V Addressable

RGB adapter

Power

connector

1 2 3 4 5 6

Power cable

Power supply

Controlling lighting modes

FIRST MODE: SEVERAL LIGHTING EFFECTS

You can use the front panel’s RGB button to switch between several beautiful lighting effects we have preset for you.

SECOND MODE: MOTHERBOARD SYNCHRONIZATION

Please use the included adapter to connect to a compatible motherboard’s 3-pin

5V Addressable RGB header. Then, press and hold the RGB button for 3 seconds.

Power

cable

Power supply

Motherboard

5V Addressable

RGB adapter

5V Addressable RGB connector

If you press and hold the RGB button for

3 seconds again. It will be returned to the

First mode: Preset Lighting Effects

FIRST MODE

Several Lighting

Effects

Press the RGB button

for one second

1 sec

SECOND MODE

Motherboard

synchronization

Press and hold the RGB

button for 3 seconds

3 secs

Produkt Specifikationer

Mærke:	Cougar
Kategori:	Computertaske
Model:	MX660 Mesh RGB
Type:	PC
Bredde:	213 mm
Dybde:	495 mm
Højde:	474 mm
Vægt:	6300 g
Produktfarve:	Sort
Pakkevægt:	7500 g
Pakkedybde:	535 mm
Pakkebredde:	270 mm
Pakkehøjde:	520 mm
Formfaktor:	Desktop
Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte:	2
Lydindgang:	Ja
Lydudgang:	Ja
Strømforsyning inkluderet:	Ingen
Tænd/sluk-knap:	Ja
Antal 3.5" bays:	2
Understøttet motherboard, formfaktorer:	ATX, CEB, EATX, Micro ATX, Mini-ITX
Antal 2.5" bays:	5
Siderude:	Ja
Antal udvidelsesporte:	9
Maksimal højde på CPU-køler:	165 mm
Maksimal længde på grafikkort:	410 mm
Maksimal PSU længde:	200 mm
Understøttede HDD-størrelser:	2.5, 3.5 "
Frontventiler installeret:	3x 140 mm
Antal understøttede frontventilatorer (maks.):	3
Understøttede diametre for frontventilatorer:	120,140 mm
Antal understøttede bagerste ventilatorer (maks.):	1
Understøttede diametre for bagerste ventilatorer:	120 mm
Antal understøttede øverste ventilatorer (maks.):	3
Understøttede diametre for øverste ventilatorer:	120,140 mm
Kapacitet for flydende nedkøling:	Ja
Understøttede diametre for sideventilatorer:	120 mm
Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte:	1
Antal understøttede sideventilatorer (maks.):	1
RGB-kontrolknap:	Ja
Understøttede størrelser på frontradiator:	120,140,240,280,360 mm
Understøttede størrelser på bagradiator:	120 mm
De mest almindelige radiatorstørrelser understøttes:	120,140,240,280,360 mm
