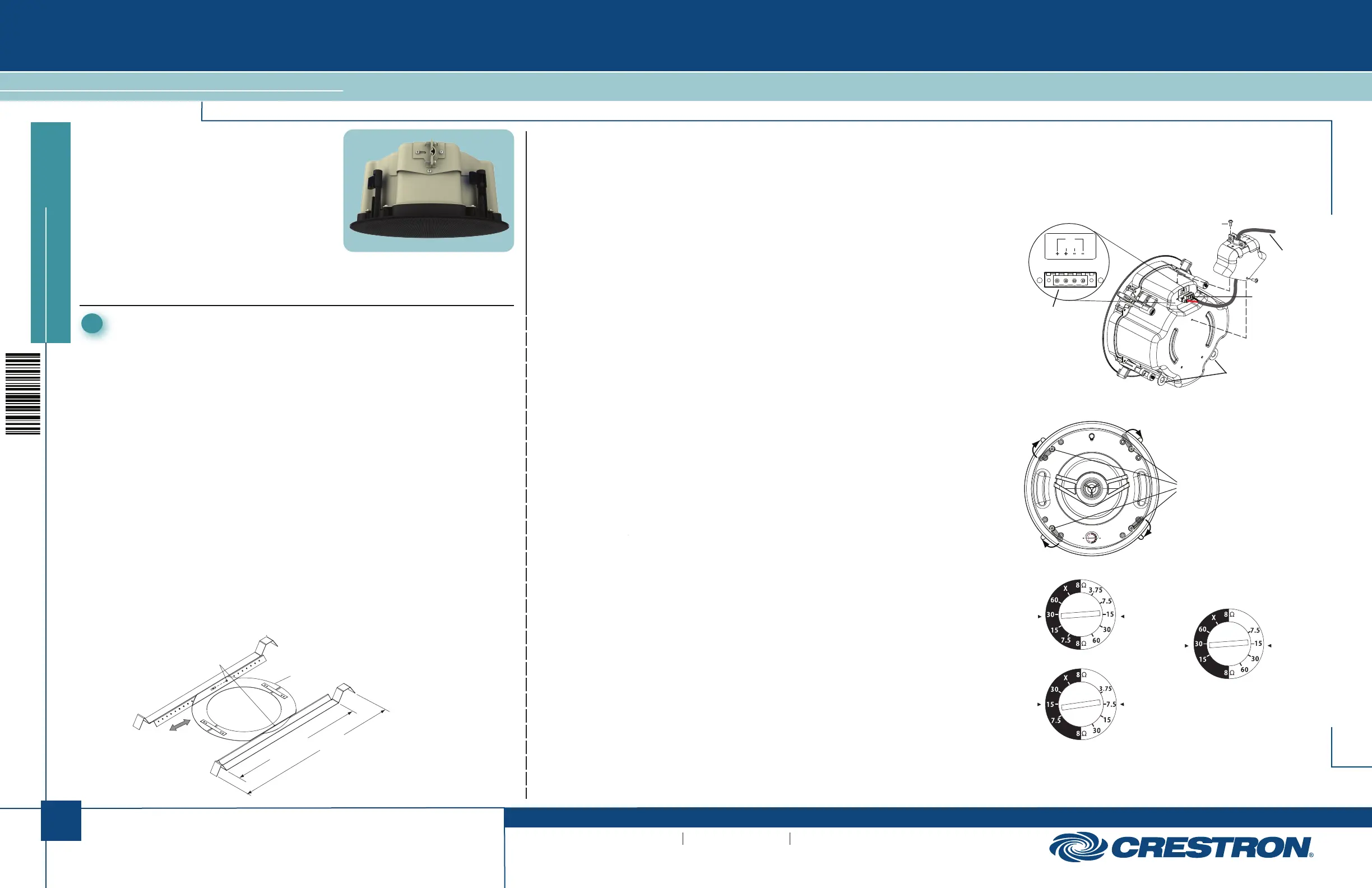

Saros® Low Profile & Saros Express Low Profile 2-Way In-Ceiling Speakers
quickstart guide
SAROS_IC6LPT/IC8LPT/ICE6LPT/ICE8LPT
www.crestron.com
Specifications subject to
change without notice.
SAROS_IC6LPT/IC8LPT/ICE6LPT/ICE8LPT
Saros 2-way in-ceiling speakers are available in white or
black and may be painted to blend with the ceiling surface.
QUICKSTART DOC. 7493B (2037420) 06.21
1
1Installation
Saros® speakers by Crestron® deliver professional grade
performance and flexible installation in a range of popular
sizes for demanding commercial applications.
Ideal for use in music, paging, and sound reinforcement
systems, Saros speakers are engineered to achieve smooth,
even coverage, high output, and clear, natural sound quality
through the employment of horn loaded dome tweeters,
high-efficiency damped cone woofers, ported enclosures, and
precisely tuned crossovers.
Prepare the Mounting Hole
Front View - Grille Removed
Tighten Screws
Before finalizing the speaker location, check to make sure there are no fixtures, pipes, air ducts,
joists, or other possible obstructions. If applicable, use a good quality stud finder to locate joists.
If there are no obstructions, use the supplied template to trace an outline of the mounting hole.
For drop tile ceilings, remove the ceiling tile and place on a flat surface to trace the mounting
hole. For drywall or standard construction ceilings, use the template to trace the mounting hole
directly on the ceiling.
Install the Speaker Cable
Run the speaker cable (not included) from the audio source to the speaker location, observing
all appropriate local codes. Strip the ends of the speaker cables approximately 1/8 in. to 3/16 in.
(~3 mm to ~5 mm) and twist the strands .
Install the Tile Bridge
The included tile bridge components provide proper support when the speaker is installed in a
typical drop tile ceiling. Refer to the illustration below.
1. Based on the location of the mounting hole determined in the “Prepare the Mounting Hole”
section above, use the two supplied screws to attach the support ring to the rails so that
when installed, the ring is aligned with the mounting hole and the rails rest on the ceiling
grid frame.
2. The support ring position on the rails is adjustable to enable off-center speaker positioning.
The tile bridge assembly can be folded to fit through the speaker cutout in blind-mount
situations.
Speaker Cable Connections
Mount or Remove the Speaker
The in-ceiling speaker includes four toggle clamps that simplify the mounting process. If the grille is
mounted on the speaker, remove it before proceeding. (Refer to “Install or Remove the Grille” above.)
1. Referring to the illustrations to the right, remove the screw securing the rear cover panel, and lift
the cover panel off to expose the supplied terminal block.
2. Route the speaker cable through the cover cable clamp and connect the wires to the terminal
block, using the outer terminals: red to and black to . Use the inner and IN + – + – THRU
terminals to connect a pass-through (parallel) speaker.
3. Allow some slack in the speaker cable and position the cover panel on the back, making certain
it engages the mounting clips. Secure the cover panel using the screw removed in step 1, and
tighten the cable clamp to secure the cable. Do not overtighten. Use a safety tether
( (not included)) attached to the rear enclosure to prevent the speaker from SPKA-ST-15
accidentally falling.
4. The toggle clamps offer two positions to accommodate both standard and extra thick surfaces up
to 2.4 in. (61 mm). For extra thick tiles, reset the toggle clamps to the upper position.
a. With the toggle clamps turned inward, insert the speaker into the opening.
b. Hold the speaker against the ceiling and begin tightening the four screws on the front of the
speaker. The toggle clamps first rotate into clamping position (as indicated in the front view
illustration to the right) and then begin holding the speaker to the ceiling.
c. Tighten the screws until the speaker is secure. Do not overtighten.
Tile Bridge Assembly
Install or Remove the Grille
The zero-bezel frameless grille is held in place by powerful magnets. A safety tether is included to
prevent the grille falling from the ceiling. With the tether attached, place the grille in position on the
speaker. To remove the grille, grip the edges and pull away from the speaker.
Paint the Speaker Grille
Painting the Speaker grille should be done prior to mounting.
1. Carefully remove the mesh on the underside of the grille and set it aside for reinstallation. It may be
necessary to use a knife or other sharp instrument to free an edge of the mesh so it can be peeled
away. Use care to avoid cutting or tearing the mesh.
2. Dry brush or lightly spray paint grille. Use care to avoid clogging the holes in the grille.
3. Once the paint is dry, reinstall the mesh to the underside.
Set the Transformer Tap Selector Switch
The speakers are equipped with a 70V/100V matching transformer for distributed audio systems. The
transformer tap selector switch on the front panel is used to set the speaker power level. Use a flat blade
screwdriver to adjust the switch.
1. For SAROS_IC6LPT and SAROS_IC8LPT 70V systems, use the left side settings and select from
3.75 7.5 15 30 60, , , , or watts.
2. For SAROS_IC6LPT and SAROS_IC8LPT 100V systems, use the right side settings and select
from , , , or position should not be used.7.5 15 30 60 watts. The X
3. For SAROS_ICE6LPT 70V systems, use the left side settings and select from , , , or 3.75 7.5 15 30
watts.
4. For SAROS_ICE6LPT 100V systems, use the right side settings and select from , , or 7.5 15 30
watts. The X position should not be used.
5. For SAROS_ICE8LPT 70V systems, use the right side settings and select from or 7.5, 15, 30, 60
watts.
6. For SAROS_ICE8LPT 100V systems, use the right side settings and select from or 15, 30, 60
watts. The X position should not be used.
The switch may also be set to operation, bypassing the transformer completely. This setting should 8Ω
be used only for 8 Ω audio systems.
70V 100V
Safety Tether
Rigging Points
Terminal
Block
Screw
Screw
Speaker
Cable
IN
THRU
Terminal Block
Not Shown
20.91 in.
(531 mm)
Support
Ring
Screws
(Supplied)
25.92 in.
659 mm
For SAROS_IC6LPT/IC8LPT
For SAROS_ICE6LPT
70V100V
For SAROS_ICE8LPT
70V100V
70V100V
QUICKSTART DOC. 7493B (2037420) 06.21
Saros® Low Profile & Saros Express Low Profile 2-Way In-Ceiling Speakers
quickstart guide
SAROS_IC6LPT/IC8LPT/ICE6LPT/ICE8LPT
www.crestron.com
Specifications subject to
change without notice.
SAROS_IC6LPT/IC8LPT/ICE6LPT/ICE8LPT
The specific patents that cover crestron products are listed at .patents.crestron.com
Crestron, the Crestron logo, and Saros are either trademarks or registered trademarks of
Crestron Electronics, Inc., in the United States and/or other countries. Other trademarks,
registered trademarks, and trade names may be used in this document to refer to either
the entities claiming the marks and names or their products. Crestron disclaims any
proprietary interest in the marks and names of others. Crestron is not responsible for
errors in typography or photography.
This document was writtren by the echnical Publications department at Crestron.T
©2021 Crestron Electronics, Inc.
3Specifications
2
SPECIFICATION
SAROS_IC6LPT/IC8LPT/ICE6LPT/ICE8LPT
SAROS IC6LPT SAROS_IC8LPT SAROS_ICE8LPT_The following table provides corrective action for possible trouble situations. If
further assistance is required, please contact a Crestron True Blue Support at
1-888-CRESTRON [1-888-273-7876].
Further Inquiries
To locate specific information or resolve questions after reviewing this guide,
contact Crestron True Blue Support at 1-888-CRESTRON [1-888-273-7876]
or, for assistance within a particular geographic region, refer to the listing of
Crestron worldwide offices at . www.crestron.com/offices
To post a question about Crestron products, log onto Crestron’s Online Help
at . First-time users must establish a user www.crestron.com/onlinehelp
account to fully benefit from all available features.
TROUBLE
POSSIBLE CAUSE(S)
CORRECTIVE ACTION
No sound or
intermittent
sound is
coming from
the speakers.
There is a cable
connection error.
Verify the cable connections
between the amplifier and
speakers.
The amplifier is not
receiving an input
signal or there is a
malfunction.
Verify that the amplifier is
functioning correctly, that it is
receiving an input signal, and
that the correct input source
is selected.
There is a faulty device
in the system.
Verify that all system devices
are functioning properly.
Constant noise
such as buzz,
hum, or hiss is
coming from
the speakers.
There is a system
grounding fault.
Verify that system grounding
is correct.
Low frequency
output is poor.
There is an incorrect
polarity connection at the
speaker or amplifier.
Verify the speaker
connection polarity ( on +
amplifier to on speaker).+
4Problem Solving
Troubleshooting
2Physical Views
Rear and Side View (Typical)
Construction
Enclosure Zinc-plated steel, plenum-rated, side-entry cable clamp
Baffle ABS UL94V-0 plastic
Grille Steel with textured finish, paintable, magnetically-held zero-bezel frameless, safety tether
Mounting Flush ceiling mount using 4 integral 2-step toggle clamps, 2.4 in. (61 mm) maximum surface thickness, tile
bridge included; (2) Rigging points for safety tether (SPKA-ST-15 sold separately).
Front View - Grille Removed (Typical)
10.64 in. (270 mm) not
including toggles
5.30 in. (135 mm)
9.70 in. (246 mm)
5.20 in. (132 mm)
9.2 lb (4.2 kg)
12.13 in. (308 mm) not
including toggles
5.30 in. (135 mm
11.20 in. (285 mm)
5.20 in. (132 mm)
10.8 lb (4.9 kg)
Dimensions
Diameter
Depth
Recommended
cutout diameter
Minimum mounting
depth
Weight
Connections
Input (1) 4-pin 5 mm detachable terminal block with screw-down flanges;
Speaker input with parallel pass-through;
Maximum Wire Size: 12 AWG
Controls
Transformer Tap (1) Recessed 5-position screwdriver adjustable rotary switch on baffle;
Used to select 70 /100 V tap settings or (bypass)V8Ω
Environmental
Temperature -2° to 120°F (-19° to 49°C)
Humidity 5% to 95% RH (non-condensing)
100V70V
8.0 in. (203 mm)
treated paper with ring
mode decoupled cloth
surround and steel basket
0.98 in. (25 mm) treated
cloth dome, horn-loaded
2.5 kHz
8 Ω nominal with
transformer set to 8Ω
7.5, 15, 30, 60 watts at
70V; 15, 30, 60 watts at
100V
80 Hz to 20 kHz (±3 dB)
65 Hz to 20 kHz (-10 dB)
60 watts program, (8 Ω)
89 dB @ (W/m)
95° conical (nominal)
8.0 in. (203 mm)
polypropylene with ring
mode decoupled cloth
surround and steel basket
0.98 in. (25 mm) titanium
dome, horn-loaded
2.5 kHz
8 Ω nominal with
transformer set to 8Ω
3.75, 7.5, 15, 30, 60 watts
at 70V; 7.5, 15, 30, 60
watts at 100V
65 Hz to 20 kHz (±3 dB)
55 Hz to 20 kHz (-10 dB)
50 watts program (8 Ω)
90 dB @ (W/m)
95° conical (nominal)
6.5 in. (165 mm)
polypropylene with ring
mode decoupled cloth
surround and steel basket
0.98 in. (25 mm) titanium
dome, horn-loaded
2.5 kHz
8 Ω nominal with
transformer set to 8Ω
3.75, 7.5, 15, 30, 60 watts
at 70V; 7.5, 15, 30, 60
watts at 100V
65 Hz to 20 kHz (±3 dB)
55 Hz to 20 kHz (-10 dB)
50 watts program, (8 Ω)
88 dB @ (W/m)
95° conical (nominal)
Woofer
Tweeter
Crossover Frequency
Impedance
Transformer Taps
Frequency Response
Frequency Range
Power Handling
Sensitivity
Coverage
6.5 in. (165 mm)
treated paper with ring
mode decoupled cloth
surround and steel basket
0.98 in. (25 mm) treated
cloth dome, horn-loaded
2.5 kHz
8 Ω nominal with
transformer set to 8Ω
3.75, 7.5, 15, 30 watts at
70V; 7.5, 15, 30 watts at
100V
85 Hz to 20 kHz (±3 dB)
70 Hz to 20 kHz (-10 dB)
60 watts program (8 Ω)
89 dB @ (W/m)
95° conical (nominal)
SAROS_ICE6LPT
12.13 in. (308 mm) not
including toggles
5.30 in. (135 mm)
11.20 in. (285 mm)
5.20 in. (132 mm)
11.1 lb (5.0 kg)
10.64 in. (270 mm) not
including toggles
5.30 in. (135 mm)
9.70 in. (246 mm)
5.20 in. (132 mm)
8.2 lb (3.7 kg)
Minimum
Mounting
Depth
Recommended
Cutout Diameter
Diameter
IN
THRU

Produkt Specifikationer

Mærke: Crestron
Kategori: Højttaler
Model: Saros ICE6LPT-W-T-EACH

Har du brug for hjælp?

Hvis du har brug for hjælp til Crestron Saros ICE6LPT-W-T-EACH stil et spørgsmål nedenfor, og andre brugere vil svare dig


Højttaler Crestron Manualer

Crestron

Crestron ULTIMATE IC3-SA-WOOFER Manual

28 August 2024
Crestron

Crestron ULTIMATE IC3-AW-SA-BOX-WOOFER Manual

28 August 2024
Crestron

Crestron ULTIMATE IC3-AW-SA-TWEETER Manual

28 August 2024
Crestron

Crestron ULTIMATE IWS82-AW-W-T-EACH Manual

26 August 2024
Crestron

Crestron ULTIMATE IWLCR62-W-T-EACH Manual

26 August 2024
Crestron

Crestron ULTIMATE ICS8-AW-W-T-EACH Manual

25 August 2024
Crestron

Crestron SAROS ICT5T-22 Manual

25 August 2024
Crestron

Crestron ULTIMATE IC6-AW-W-T-EACH Manual

25 August 2024
Crestron

Crestron ULTIMATE IC8-AW-W-T-EACH Manual

25 August 2024
Crestron

Crestron Ultimate IGS12T-PRIMED-EACH Manual

23 August 2024

Højttaler Manualer

Nyeste Højttaler Manualer

Fiodio

Fiodio F-130 Manual

14 Juni 2025
HEYSONG

HEYSONG Bubble Manual

14 Juni 2025
ANCOBER

ANCOBER ACB-001 Manual

14 Juni 2025
BOGASING

BOGASING G4 Manual

14 Juni 2025
Musicozy

Musicozy GH01 Manual

14 Juni 2025
ZAPUVO

ZAPUVO H77 Manual

14 Juni 2025
DinDin

DinDin BB-S3 Manual

14 Juni 2025
iFox Creations

iFox Creations iF012 Manual

14 Juni 2025
MUZEN

MUZEN MW-P1I Manual

14 Juni 2025
Tracer

Tracer Quanto 2.0 Manual

14 Juni 2025
