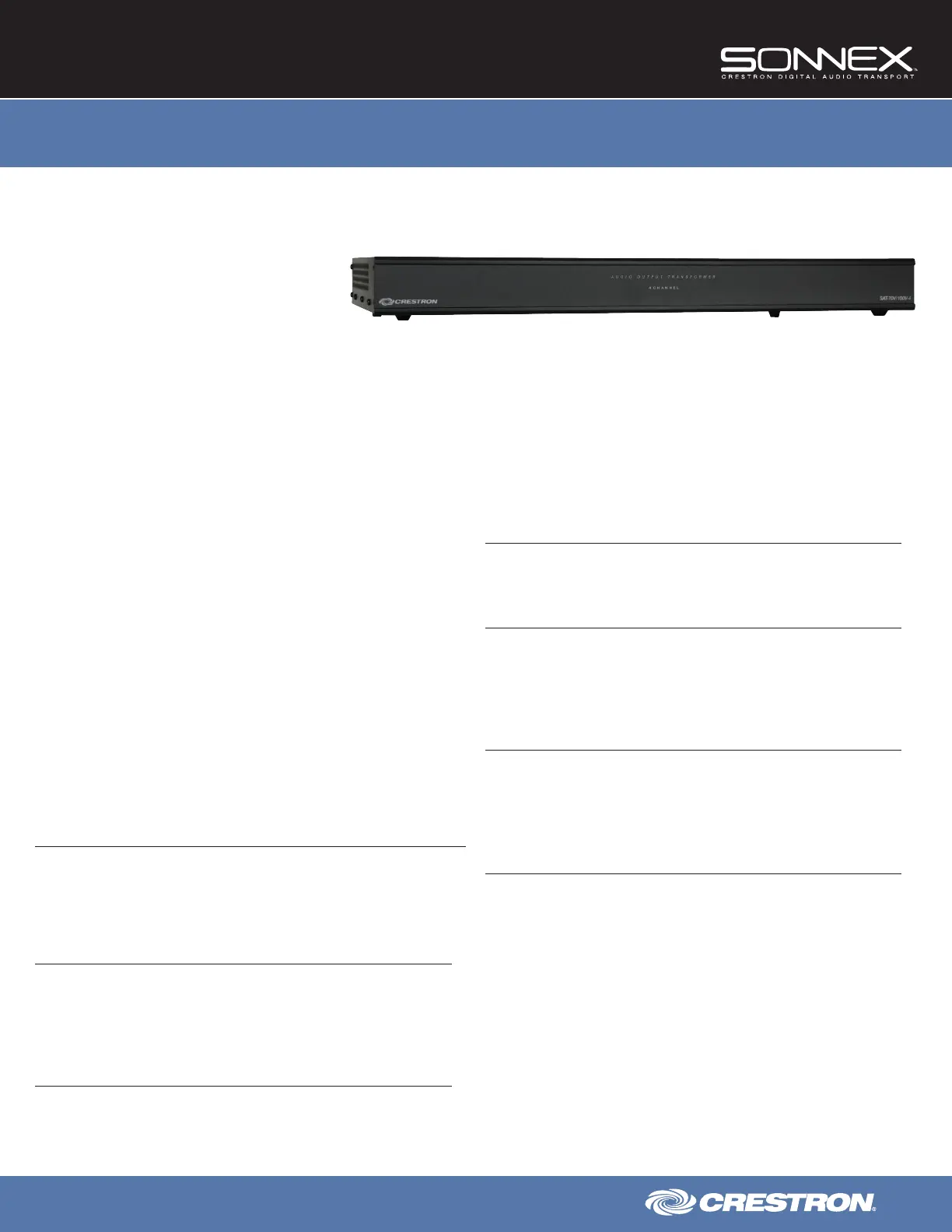

SAT-70V/100V
Sonnex® Output Transformers
crestron.com
| 800.237.2041
>Allows the use of 70 or 100 Volt speakers
with any Sonnex® system
>Enables the connection of multiple speakers
to a single amplifier output
>Enables the use of small gauge wire for
long runs
>Provides full transformer isolation
>Rated 120 Watts at 70 or 100 Volts per channel
>40 Hz to 20 kHz (±1 dB) frequency response
>2 and 4 channel models available
>Single-space rack mountable
Sonnex® Output Transformers (SAT-70V/100V) are designed for use with
the Crestron® Sonnex Multiroom Audio System ( ) and SWAMP-24X8
Expanders ( & SWAMPE-4 SWAMPE-8). Available with 2 or 4 channels,
these accessories enable the conversion of up to four amplifier output
channels to handle 70 or 100 Volt speakers. Also known as “constant-
voltage”, 70 Volt and 100 Volt speaker systems allow for long wire runs
using small-gauge wire, with the potential for connecting numerous
speakers per circuit (similar to light fixtures on a common electrical
circuit). Typical applications include outdoor speaker zones, retail spaces,
hallways and common areas.
Sonnex Output Transformers are designed for maximum performance in a
minimal space. Each channel handles a 120 Watt speaker load with a wide
frequency response of 40 Hz to 20 kHz (±1 dB). Full transformer isolation
ensures trouble-free operation for long and complex wire runs, and helps
protect the amplifier against electrical disturbances on the speaker line.
The 2-channel SAT-70V/100V-2 model can support a single stereo zone,
or two mono zones, of either 70V or 100V speakers. The 4-channel
SAT-70V/100V-4 supports two stereo zones, four mono zones, or a
combination on one stereo zone and two mono zones.
MODELS & ACCESSORIES
Available Models
SAT-70V/100V-2: 2-Channel Sonnex® Output Transformer
SAT-70V/100V-4: 4-Channel Sonnex® Output Transformer
SPECIFICATIONS
Audio
Input Power Rating: 120 Watts RMS at 8 Ohms per channel
Output Power Rating: 120 Watts at 70 or 100 Volts (Transformer isolated)
per channel
Frequency Response: 40 Hz to 20 kHz ±1 dB
Connectors
CH 1 – 4, IN: (2 or 4) 2-pin 7.62mm 15A detachable terminal blocks;
8 Ohm speaker level inputs;
Wire Size: Terminals accept up to 14 AWG
CH 1 – 4, OUT: (2 or 4) 3-pin 5mm detachable terminal blocks;
70V or 100V speaker level outputs;
Minimum Load Impedance: 41 Ohms @ 70V, 83 Ohms @ 100V;
Wire Size: Terminals accept up to 14 AWG
G: 6-32 screw, chassis ground lug
Environmental
Temperature: 41° to 113°F (5° to 45°C)
Humidity: 10% to 90% RH (non-condensing)
Enclosure
Chassis: Metal with black finish, vented sides
Front Panel: Metal, black finish with polycarbonate label overlay
Mounting: Freestanding or 1U 19-inch rack-mountable (adhesive feet and
rack ears included)
Dimensions
Height: 1.72 in (44 mm) without feet
Width: 19.00 in (483 mm);
17.28 in (439 mm) without rack ears
Depth: 10.01 in (255 mm)
Weight
SAT-70V/100V-2: 6.0 lb (2.73 kg)
SAT-70V/100V-2: 12.0 lb (5.45 kg)
Notes:
This product may be purchased from an authorized Crestron dealer. To find a dealer, please
contact the Crestron sales representative for your area. A list of sales representatives is available
online at www.crestron.com/salesreps or by calling 800-237-2041.
The specific patents that cover Crestron products are listed online at: .patents.crestron.com
Crestron, the Crestron logo, and Sonnex are either trademarks or registered trademarks of
Crestron Electronics, Inc. in the United States and/or other countries. Other trademarks,
registered trademarks, and trade names may be used in this document to refer to either the
entities claiming the marks and names or their products. Crestron disclaims any proprietary
interest in the marks and names of others. Crestron is not responsible for errors in typography or
photography. Specifications are subject to change without notice.
©2013 Crestron Electronics, Inc.
SAT-70V/100V Sonnex
®
Output Transformers
Crestron Electronics, Inc. 15 Volvo Drive | Rockleigh, NJ 07647
Tel: 800.237.2041 / 201.767.3400 | Fax: 201.767.1903
www.crestron.com
All brand names, product names and trademarks are the property of their respective owners.
©2013 Crestron Electronics, Inc.
Specifications subject to change without notice. Revised 06/25/13
SAT-70V/100V-4 – Rear View
SAT-70V/100V-2 – Rear View
