Place terminal in a secure
position so that it won’t
accidentally contact the
negative battery post
Power / Ground
cable size
It is critical to use the proper
power and ground cable. Select
the size listed here for your
amplier model. Always use high
quality copper cable.
Cable size recommendations for
multi amp systems are available
on our website.
Properly route power,
speaker and RCA cables
through the vehicle.
Choose a mounting location
that will provide adequate air
ventilation. Mount the amplier to
a secure surface. Do not mount
the amplier upside down.
Using spade terminals, connect the
+12V to the power cable from the
battery, the REM to the source unit
turn-on wire and the GND to the
chassis ground..
Strip each cable back approx 1/2”,
connect the +12V to the power
cable from the battery, the REM to
the source unit turn-on wire and the
GND to the chassis ground..
Bare metal
Connect the RCA cables to
the INPUT connectors. The
OUTPUT can be used to
provide input for a second
amplier.
The HI INPUT is for use with
source units that do not offer
RCA outputs. Use the supplied
harness to connect to the
source unit’s speaker output.
Connect the power cable to the
positive battery terminal. The
power cable must be fused
within 18 inches of the battery
terminal.
Re-connect the negative
battery terminal making sure it
is securely tightened.

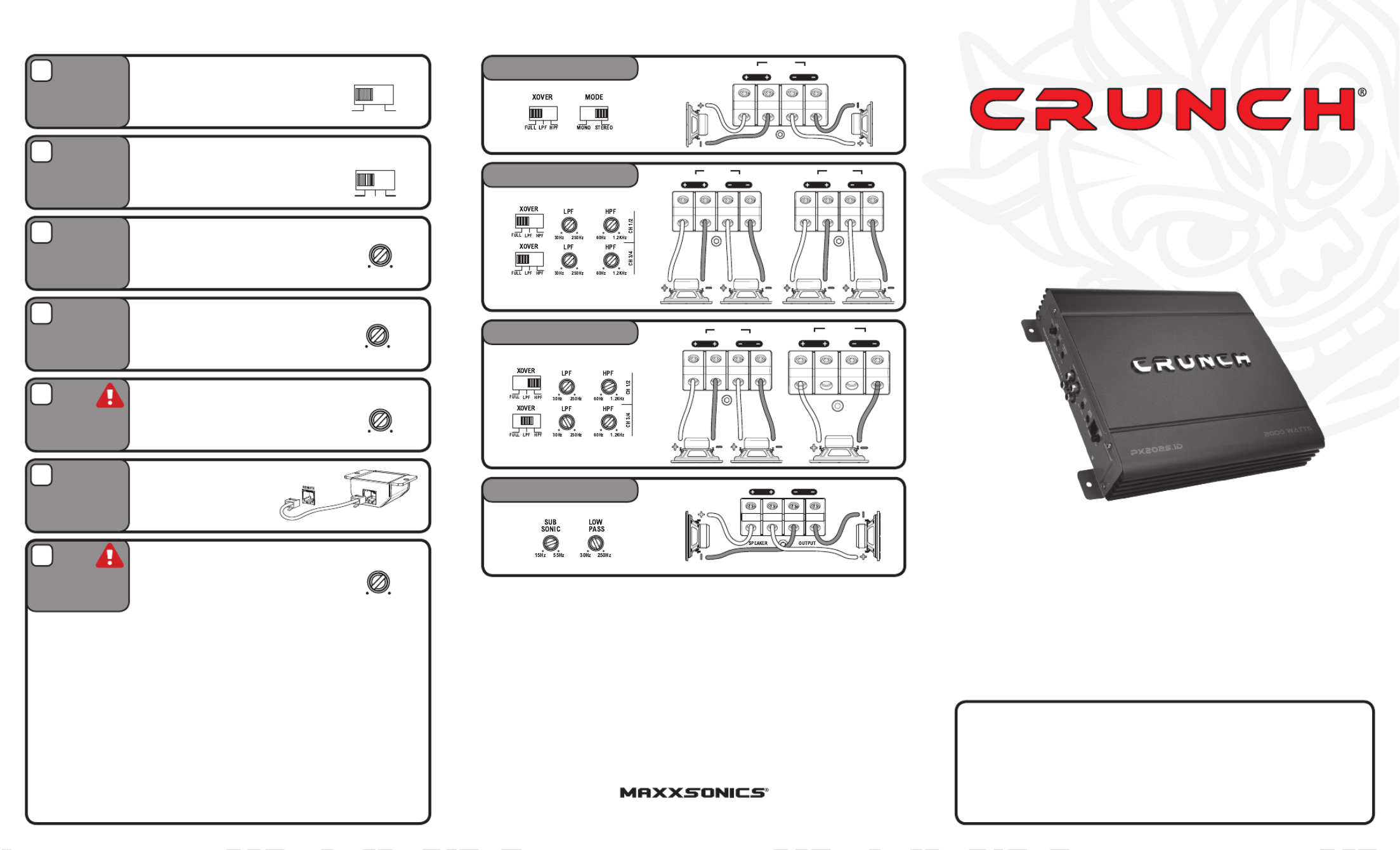

Using spade terminals,connect
the speaker cables to the speaker
output connectors. Follow the
diagram below that best ts your
speaker conguration.
The chassis ground connection
is critical to the performance
of the amplier. Choose a
location that is close to the
amplier. Completely scrape
away the paint and use a nut
and bolt if possible.
DO NOT USE AN EXISTING
FACTORY BOLT!
Disconnect
negative battery
terminal
Run Cables
Mount Amplier
Power
Connections
Smaller amps
Signal Input
Low Level RCA
Power
Connections
Larger amps
Signal Input
High Level
Positive Battery
Connection
Re-connect
Negative Battery
Terminal
Speaker
Connections
Chassis Ground
Be prepared to disarm your vehicle’s alarm and
to enter your radio / source unit code.
Stereo
Installation
Before you start
Monoblock single woofer multiple woofersMonoblock
Bridged
CAUTION
Many new and factory radios require a reset code when
disconnected from battery power. This is an anti-theft
feature. Before unplugging power, you must determine if
your radio/source unit requires a reset code. Check the
operation manual for your vehicle or contact the dealer.
1
2
3
5a
5b
6
7
10
11
94
Turn the LEVEL control completely
counter-clockwise to minimum.
Level Control
8
6V 0.2V
INPUT
LEVEL
Right + (gray) 4CH REAR
Ch3 Right + (orange)
Ch3 Right - (pink)
Chassis Ground (black)
Ch4 Left + (blue)
Ch4 Left - (yellow)
Connect to factory speaker wire directly
Right - (brown)
Left - (green)
Left + (white)
Chassis ground (black)
4ga
PX1025.2
PX1025.4
PX1025.1
PX2025.1D
1-40A
2-30A
1-40A
2-40A
Cable SizeFuse SizeModel
