PORSCHE
2013 - 2015 911
2014 - 2015 Boxster
2008 - 2015 Cayenne
2014 - 2015 Cayman
2010 - 2015 Panamera
Disclaimer: Depending on the HW version of your PCM system, this product may not support some versions.
Internal DVD player will not be
able to be watched while in
motion.
SAFETY PRECAUTIONS
1. Please read through the entire instruction manual before starting any of the installation procedures.
2. We recommend disconnecting the negative side of the battery until ready to code the vehicle.
3. Do not install any of the main modules near any major components or near the HVAC system,
as placing items near the HVAC may cause damage or overheating to the vehicle or interface.
4. We recommend not disconnecting any of the air bag connections behind the dash panels.
5. This product is under Crux’s 1 year manufacturer’s warranty. Warranty may be voided in the case where
the device shows proof of being opened or improper extreme force.
2015 911 GT3
2014 -
APPLICATION NOTES:
ONLY FOR VEHICLES WITHOUT
FACTORY REAR-VIEW CAMERA
WORKS FOR:
PCM 3.1 NAVIGATION RADIOS
PCM 3.0 NAVIGATION RADIOS
(Cayenne Only)
(from Software Version 4.xx ONLY)
(from Software Version 4.xx ONLY)
(from Software Version 4.xx ONLY)
Rear-View Integration Interface for
PORSCHE Vehicles with PCM-3 or PCM-3.1 Systems
PCM-3
R
INTERFACING SOLUTIONS
Sightline
REAR-VIEW INTEGRATION
Crux Interfacing Solutions • 6860 Canby Ave., Suite 116, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
1 of 10
rev.051718

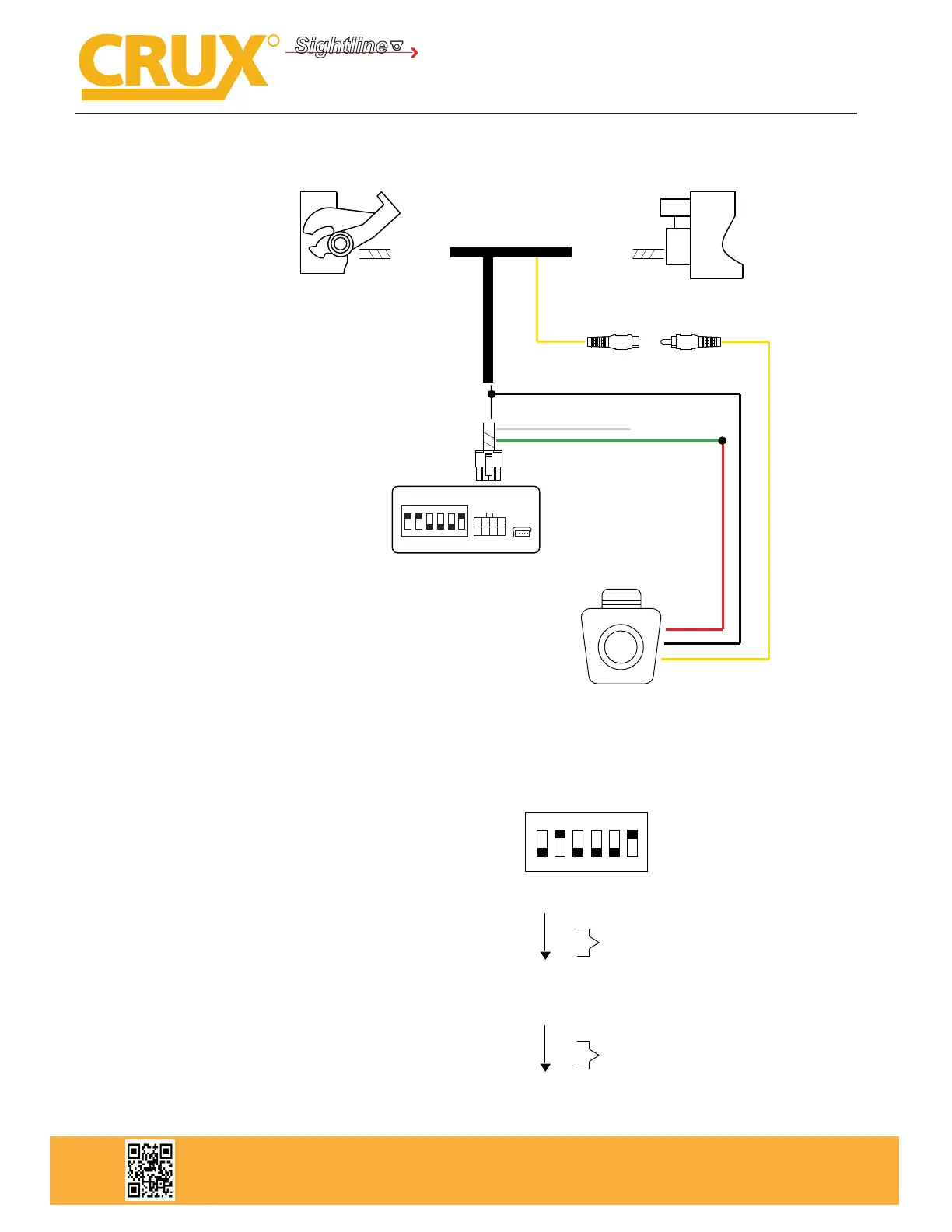

INSTALLATION OVERVIEW
ON
1 2 3 4 5 6
TO FACTORY
HARNESS
40-PIN
(male plug)
40-PIN
(female plug)
8-PIN
(male plug)
GREEN/ REVERSE WIRE
WHITE/ ALTERNATIVE CODING
CAN
INTERFACE
CAMERA
(NOT INCLUDED)
YELLOW / VIDEO SIGNALCAMERA INPUT
TAP BLACK/ CAMERA GROUND
4 5 6
ON
1 2 3
DIP 1 = ON
2 = ON
3
4
5
DIP 6 = ON
OFF
VIDEO
IN-MOTION
DIP 1 = OFF
2 = ON
3
4
5
DIP 6 = ON
OFF
NO
VIDEO
IN-MOTION
CAN
INTERFACE
DIP SWITCHES OVERVIEW
Make sure to set dip switch number 6
to “ON” position.
For the RVC feature, you will only
need to set dip switch “2” to ON.
NOTE ABOUT THE GREEN WIRE:
The GREEN wire provides 12v when the
REVERSE gear is engaged (Even with the ignition
OFF, the vehicle’s CAN-BUS is still active). The
GREEN wire will be deactivated when the vehicle
is placed into DRIVE and has a speed higher than
10m
ph.
CAMERA NOTE:
The REAR-VIEW CAMERA will be present when
the electronic BRAKE is disengaged.
Rear-View Integration Interface for
PORSCHE Vehicles with PCM-3 or PCM-3.1 Systems
PCM-3
R
INTERFACING SOLUTIONS
Sightline
REAR-VIEW INTEGRATION
Crux Interfacing Solutions • 6860 Canby Ave., Suite 116, Reseda, CA 91335
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
2 of 10
rev.051718
