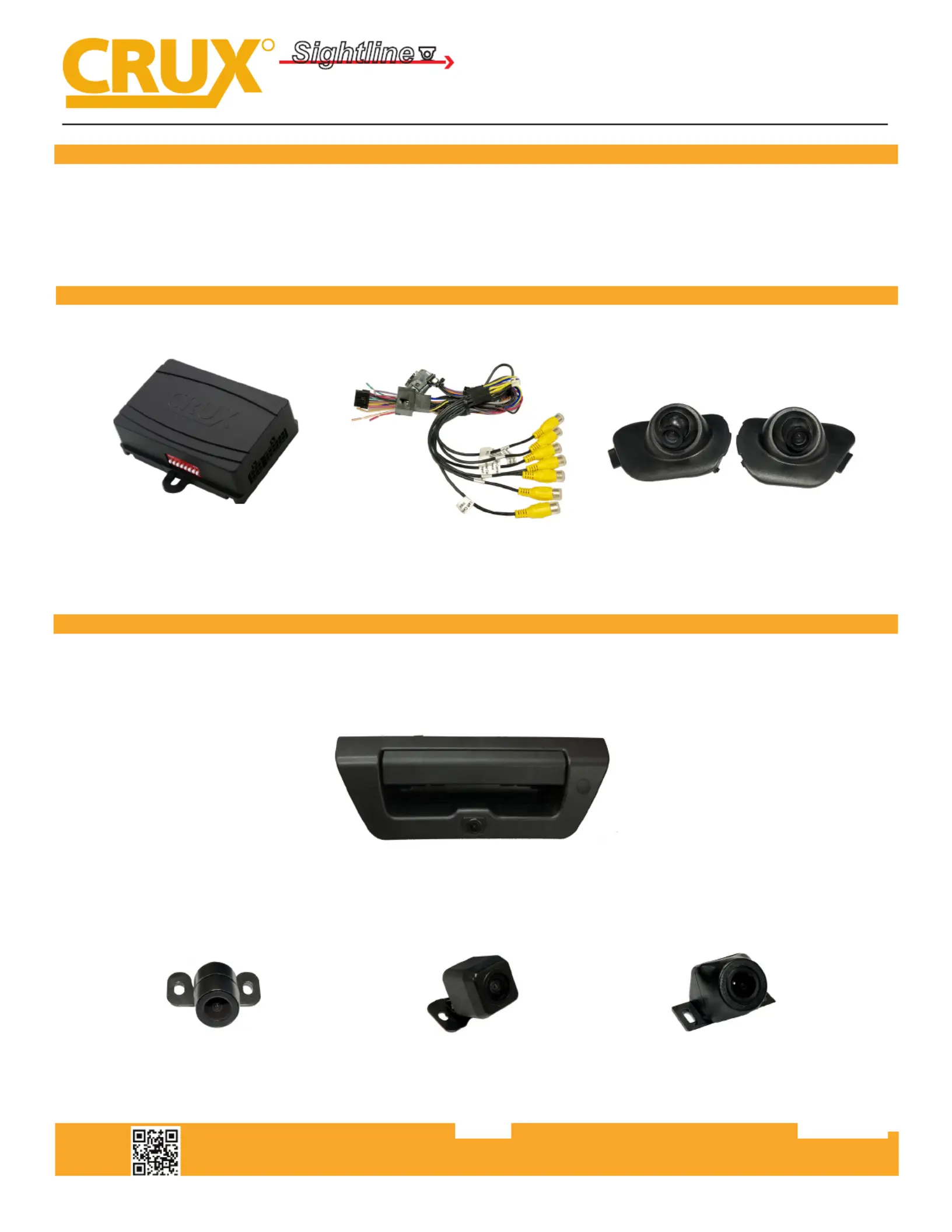

Side 1/5

CFD-15KL Tailgate Handle Camera

RFM-FD4

Multi View Integration Interface with

Side Mirror Mounted Cameras for Ford F150 with 4” Sync 3 Screen

INTERFACING SOLUTIONS

Sightline

Multi View Integration

- Adds a reverse camera input plus 6 video inputs.

- Uses the steering wheel control buons to toggle between the sources.

- Turn signals automacally trigger the corresponding side camera.

- Turn signal camera trigger can be turned on or o by using the SWC buon.

PRODUCT FEATURES:

PARTS INCLUDED:

RFM-FD4 Module RFM-FD4 Harness CSV-FD-15 F150 Side Mirror Camera

OPTIONAL ADD-ON CAMERAS:

Oponal add on cameras are available to complete the mul-view capability of the RFM-FD4. Cameras available

and sold separately include: (More cameras can be found at www.cruxinterfacing.com)

CFF-01 Bullet Type Front Camera

(Recommended)

CFF-02 Square Body Front Camera CFF-03 Grille Mount Front Camera

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

1 of 5 rev.020519

INSTALLATION DIAGRAM:

INTERFACING SOLUTIONS

Sightline

Multi View Integration

DIP SWITCH SETTINGS:

DIP# ON OFF

1No Funcon – Leave OFF

2Front Camera ON Front Camera OFF

3 Le Camera ON Le Camera OFF

4 Right Camera ON Right Camera OFF

5 Cargo Camera ON Cargo Camera OFF

6 Trailer Camera ON Trailer Camera OFF

7 Camera #7 ON Camera #7 OFF

8Set to ON

RFM-FD4

Multi View Integration Interface with

Side Mirror Mounted Cameras for Ford F150 with 4” Sync 3 Screen

Front Camera Input

Right Camera Input

Left Camera Input

Cargo Camera Input

Aftermarket Backup Camera Input

Trailer Camera Input

Camera #7 Input

Front and Rear Camera Power Output +12V (purple/white)

Left and Right Camera Power Output +12V (green/white)

Cargo and Trailer Camera Power Output +12V (orange/white)

Camera #7 Power Output +12V (red/white)

Right Turn Signal Input (grey/red)

Left Turn Signal Iput (pink/black)

To Vehicle Harness

Connect this 6-pin plug if OEM

backup camera is being used

12 PIN

To Radio

Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

2 of 5 rev.020519
