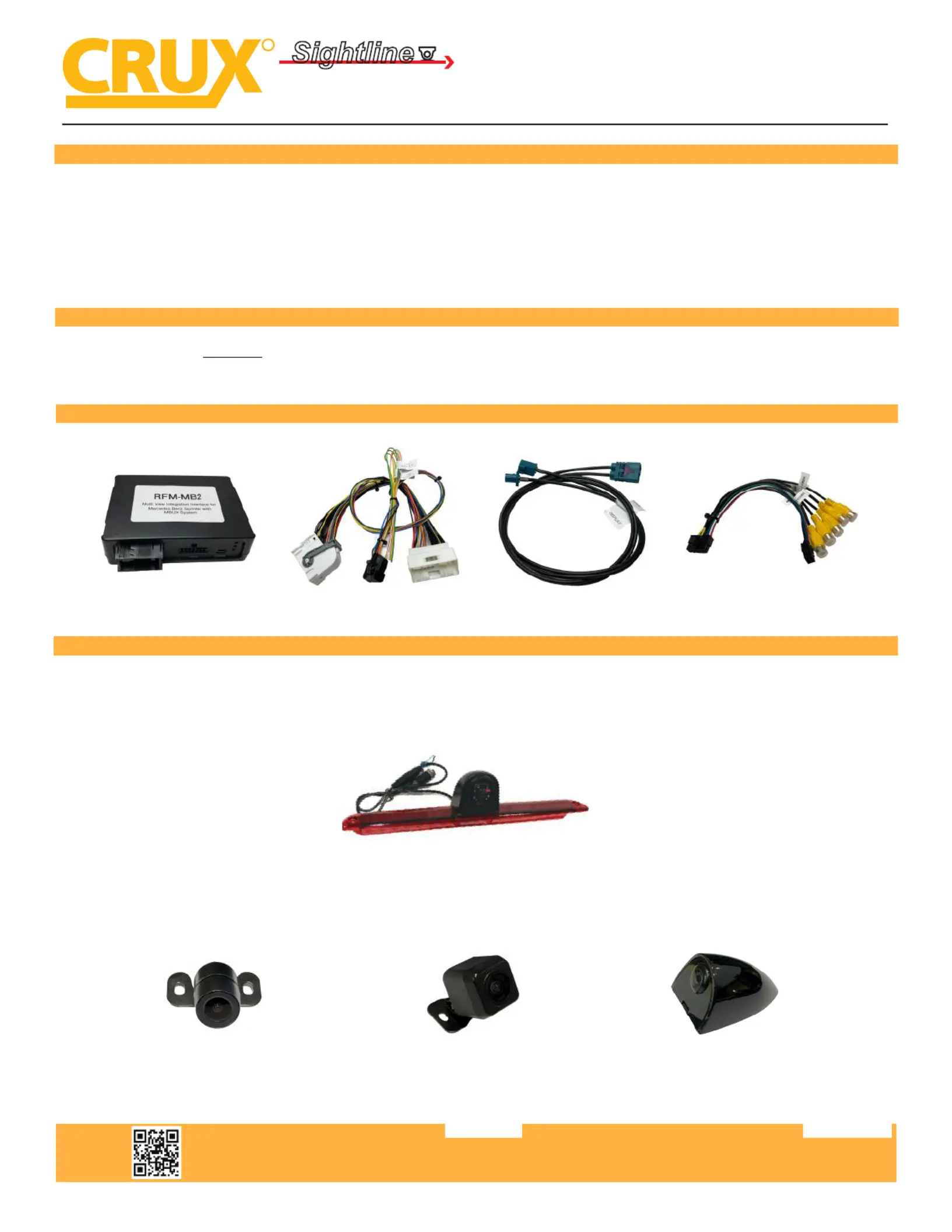

CMB-18S Third Brake Light Camera

RFM-MB2 Module RFM-MB2 Harness GMSL Video Cable Video Harness

RFM-MB2

Multi View Integration Interface for

Mercedes Benz Sprinter with MBUX System

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.04042024

1 of 7

- Adds front, right, le and rear camera inputs.

- Uses the steering wheel control buons to toggle between the camera sources.

- Turn signals automacally trigger the corresponding side camera.

- With OEM type interacve parking guide lines with calibraon funcon.

- On Screen Display set up.

PRODUCT FEATURES:

PARTS INCLUDED:

OPTIONAL ADD-ON CAMERAS:

Oponal add on cameras are available to complete the mul-view capability of the RFM-MB2. Cameras available

and sold separately include: (More cameras can be found at www.cruxinterfacing.com)

CFF-01 Bullet Type Front Camera CFF-02 Square Body Front Camera CSV-01 Fender Mount Camera

RADIO COMPATIBILITY:

7” MBUX Systems Navigaon.without

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.04042024

2 of 7

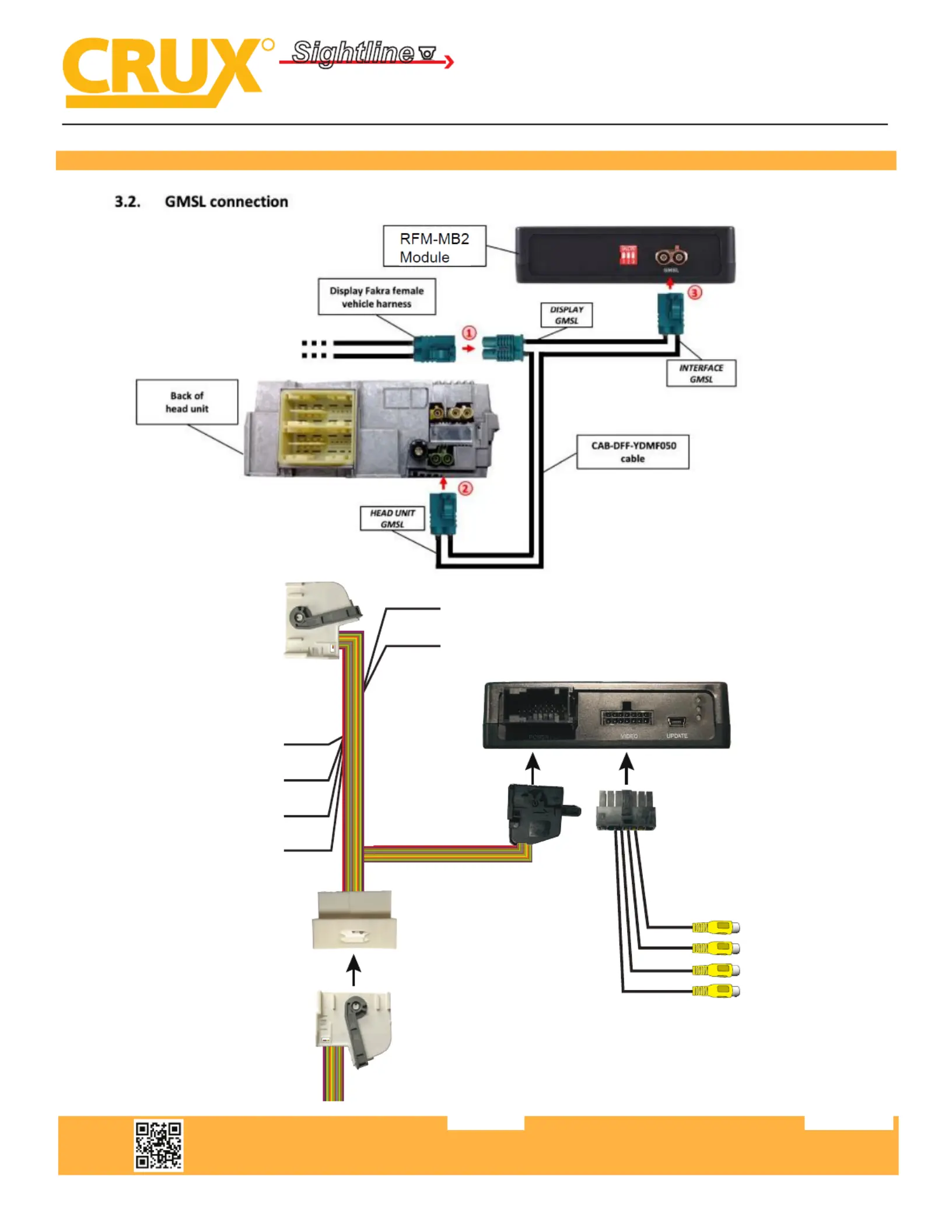

INSTALLATION DIAGRAM:

INTERFACING SOLUTIONS

Sightline

Multi View Integration

RFM-MB2

Multi View Integration Interface for

Mercedes Benz Sprinter with MBUX System

Front Camera Input

Rear Camera Input

Left Camera Input

Right Camera Input

Front Camera Analog Activation

+12V Trigger (White/Black)

Rear Camera Analog Activation

+12V Trigger (White)

Left Camera Analog Activation

+12V Trigger (Yellow/Green)

Right Camera Analog Activation

+12V Trigger (Yellow/Red)

Vehicle

Harness

+12V Output 1

(Pink)

+12V Output 2

(Green)
