Side 1/4

CDR-31C RAM

Cargo Camera

CDR-02 RAM Tailgate

Handle Camera

CUB-15 Adjustable Angle

Side Camera

CCH-01G Jeep Grand

Cherokee Backup Camera

RFM-UC1-AM

Multi View Camera Integration for Aftermarket Radios in

DODGE, JEEP & RAM Vehicles with Uconnect Systems

INTERFACING SOLUTIONS

Sightline

Multi View Integration

Crux Interfacing Solutions • 6860 Canby Ave., Suite 116, Reseda, CA 91335

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.061318

1 of 4

- Retains factory features in select Dodge, Jeep and RAM vehicles while funconing with an aermarket radio.

- Retains Steering Wheel Controls via built-in, pre-programmed interface.

- Retains factory 3.5mm Aux Port.

- Adds a reverse camera plus 6 video inputs.

- Uses the steering wheel controls buons to toggle between the sources.

- Turn signals automacally triggers the corresponding side camera.

- Turn signal camera trigger can be turned on or o by using the BACK buon on the radio.

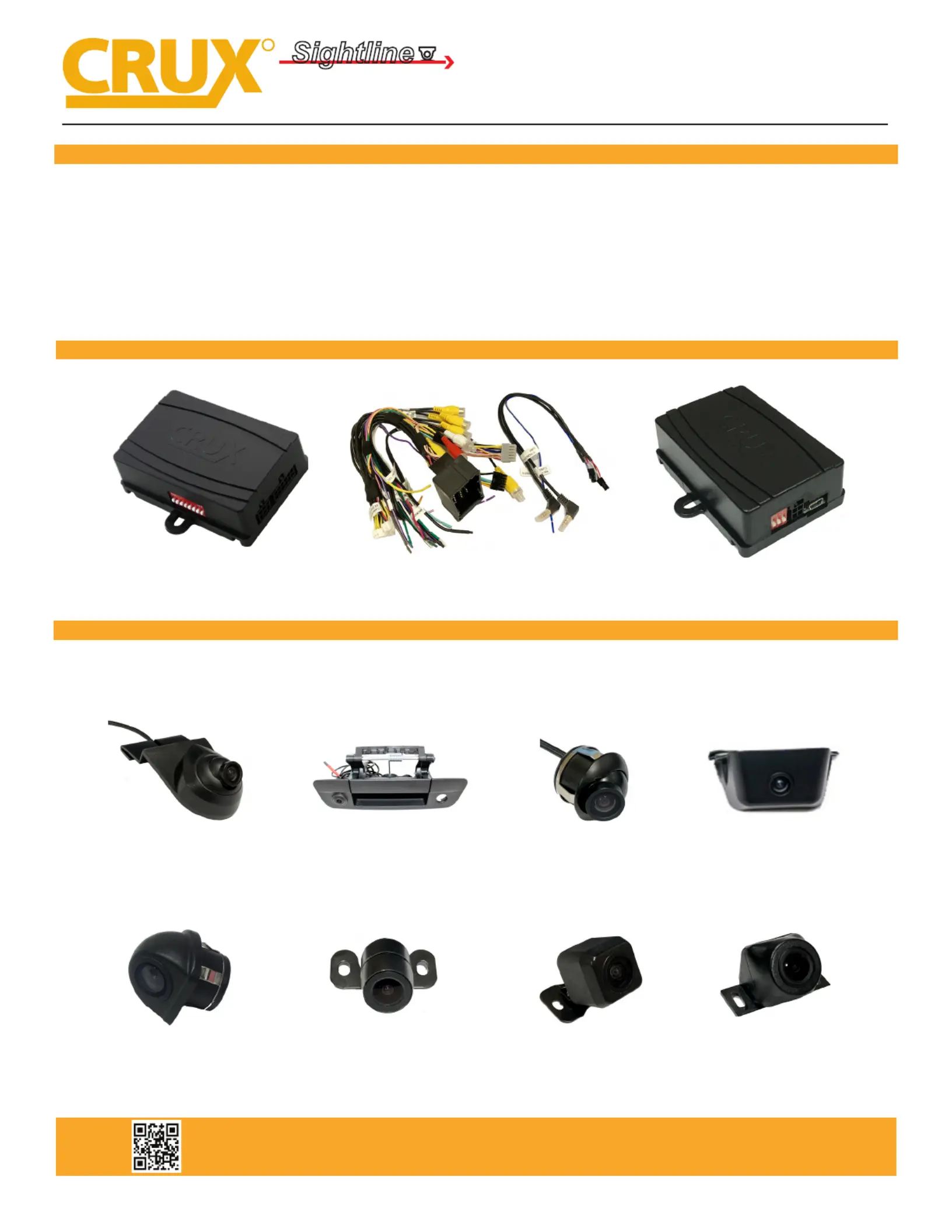

PRODUCT FEATURES:

PARTS INCLUDED:

RFM-UC1-AM Video Module RFM-UC1-AM Harness RFM-UC1-AM CAN Module

OPTIONAL ADD-ON CAMERAS:

Oponal add on cameras are available to complete the mul-view capability of the RFM-UC1-AM. Cameras

available and include:sold separately

CUL-16 Universal Lip Mount

Backup Camera

CFF-01 Bullet Type Front

Camera

CFF-02 Square Body Front

Camera

CFF-03 Grille Mount Front

Camera

Crux Interfacing Solutions • 6860 Canby Ave., Suite 116, Reseda, CA 91335

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.061318

2 of 4

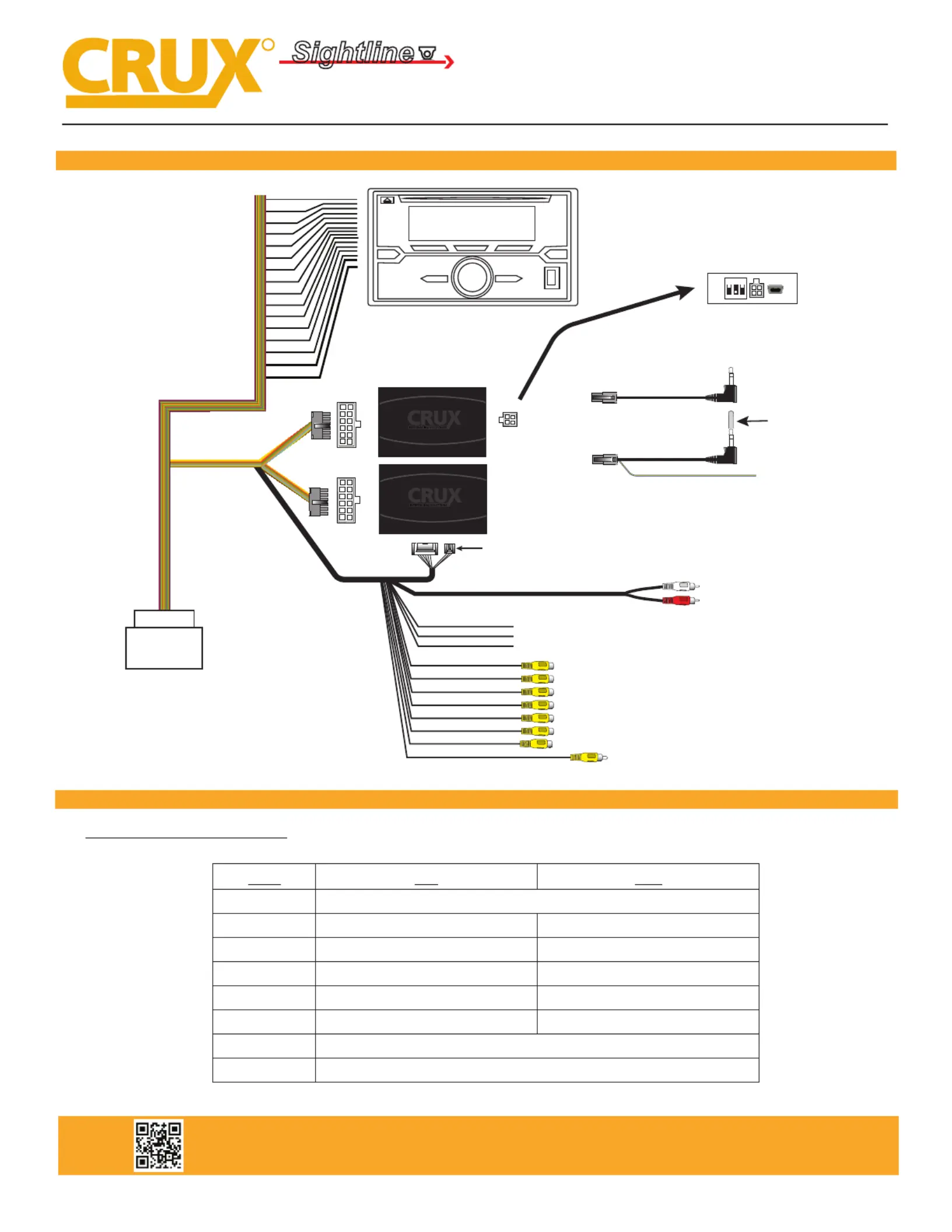

INSTALLATION DIAGRAM:

INTERFACING SOLUTIONS

Sightline

Multi View Integration

DIP SWITCH SETTINGS:

DIP# ON OFF

1No Funcon – Leave OFF

2 Front Camera ON Front Camera OFF

3Le Camera ON Le Camera OFF

4 Right Camera ON Right Camera OFF

5 Cargo Camera ON Cargo Camera OFF

6 Trailer Camera ON Trailer Camera OFF

7 Set to OFF

8 Set to ON

RFM-UC1-AM

Multi View Camera Integration for Aftermarket Radios in

DODGE, JEEP & RAM Vehicles with Uconnect Systems

Front Camera Input

Right Camera Input

Left Camera Input

Cargo Camera Input

Aftermarket Backup Camera Input

Trailer Camera Input

Auxiliary Video Input (No. 7)

Connect to aftermarket radio

AUX-Input to retain factory

3.5mm Aux port (if available)

Front and Rear Camera Power Output 12V (purple/white)

Left and Right Camera Power Output 12V (green/white)

Cargo and Trailer Camera Power Output 12V (orange/white)

To Vehicle Harness

Connect this 6-pin plug if OEM

backup camera is being used

4-Pin

Connector

Option A:

Option B:

Cap or insulate if

not being used

BLUE / YELLOW Insulate with tape

if not being used

3.5MM SWC CABLES (Option A or B)

Use the proper 3.5MM to 4-Pin cable for your radio.

Plug in the selected 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

1 2 3

AFTERMARKET

RADIO

Reverse Trigger Red/White

VSS (Vehicle Speed Sense) Light Green





























Camera Output (to aftermarket radio Camera Input)

RFM-UC1-AM

Video Module

RFM-UC1-AM

CAN Module

RFM-UC1-AM Video Module
