Enjoy the internet!

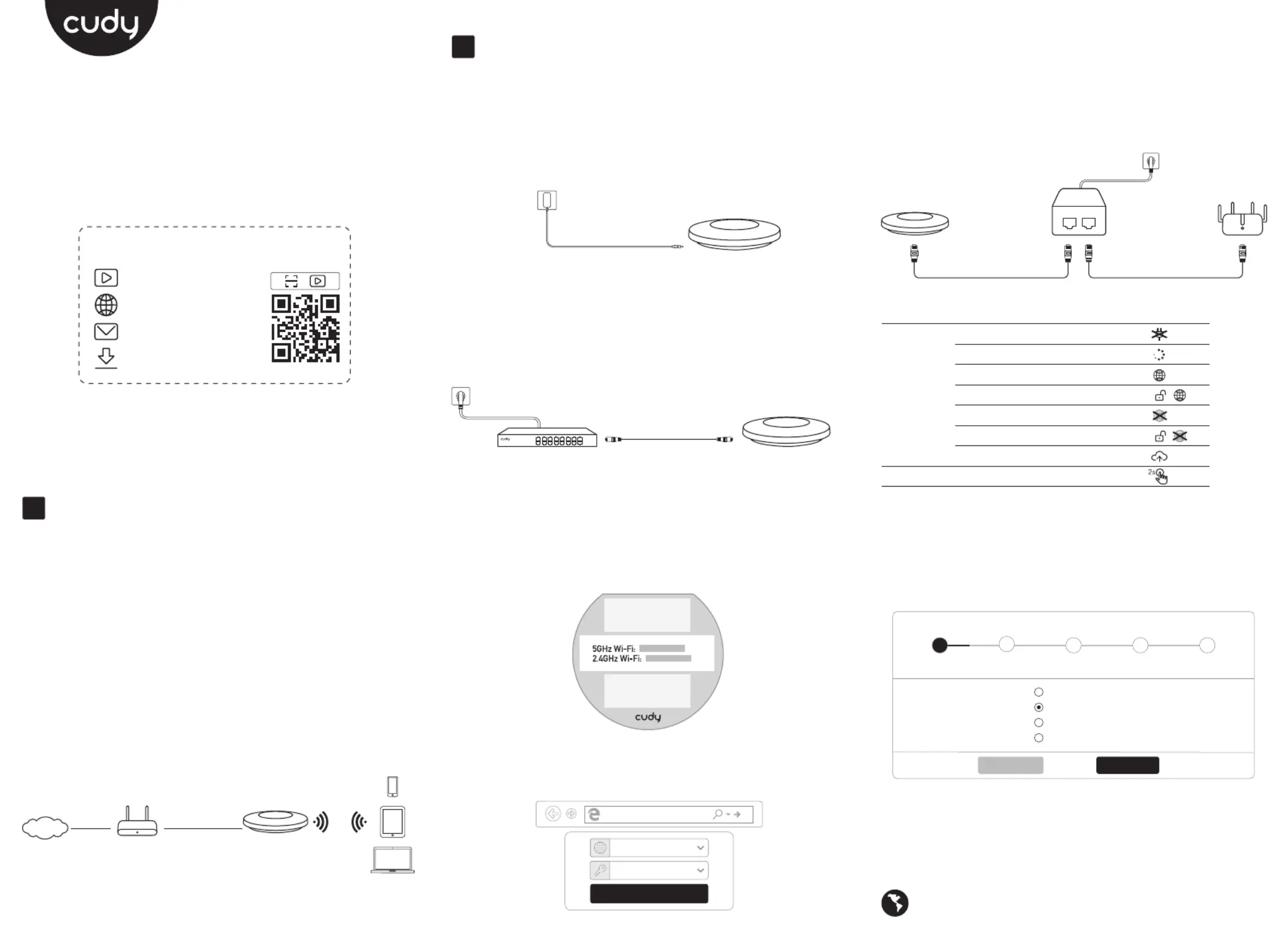

Quick Installation Guide

NEED TECH HELP?

810600195

www.cudy.com/qr_vg_ap

www.cudy.com

support@cudy.com

www.cudy.com/download

Power Supply1

PoE Switch

Method 2: Via PoE Switch

Connect an Ethernet cable from the PoE switch to the Ethernet port.

Method 1: Via Power Adapter

Plug one end of the provided power adapter into the DC POWER

port of the AP and the other end to a standard electrical wall outlet.

Power Adapter

Method 3: Via PoE Adapter

Connect an Ethernet cable drom the Ethernet port of the AP device

to the PoE port of the provided PoE adapter.

LED and Button

PoE Adapter

LAN

PoE LAN

Software Conﬁguration

Method 1: Standalone Mode

To configure and manage APs separately.

Choose from the following methods to configure your APs.

Clients

Router AP

Internet

LANWAN

Note 1：

1. Before you start, be sure to power up and connect your devices according to the

topology figure.

2. A DHCP server (typically a router with DHCP function enabled) is required to assign IP

addresses to the APs and clients in your local network.

Note 2：

If the router you use is a Cudy mesh WiFi router(firmware version:1.15.28 or later), then

the access point will auto work as an add-on mesh unit and share the same WiFi network

name and password with the Cudy router you connect.

1. Connect wirelessly by using the default SSID printed on the

bottom label of the product.

2. Launch a web browser and enter in the http://cudyap.net/

address bar. Use as log in Password .admin

http://cudyap.net/

English

admin

3. Click " ", the window below will pop up, please Quick Setup

follow the step-by-step instructions to set up the internet

connection.

Quick Setup

Mode Timezone Connections Wireless Summary

Exit

Wireless Router

Opertion Mode

Wireless Access Point

Wireless Extender

WISP

Off

Red

Blue

Flashing blue

Yellow

Flashing yellow

Red, blue, and yellow alternate

Red and blue alternate

LED

Reset Button

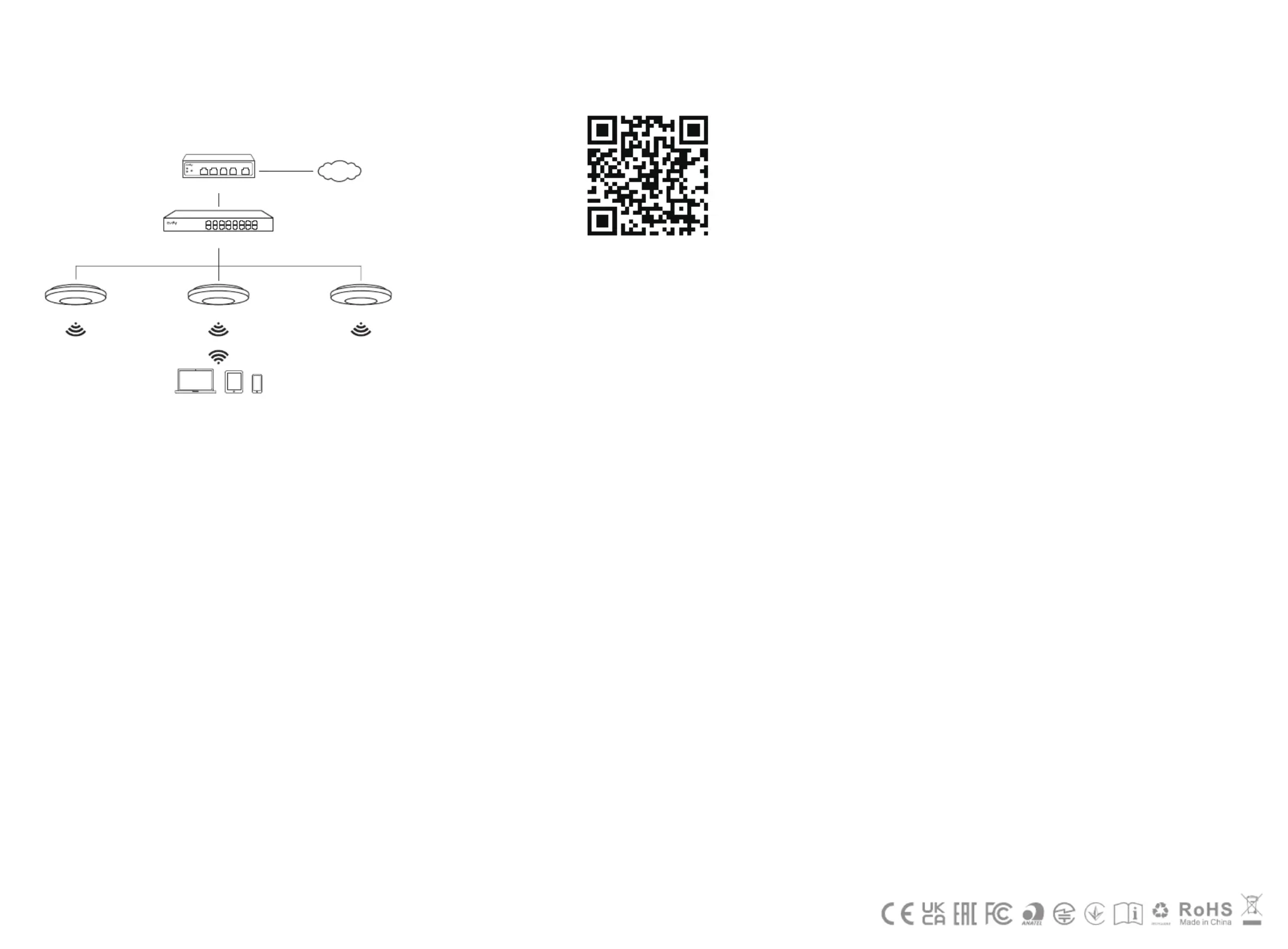

Method 2: Controller Mode

Note：

Before you start, be sure to power up and connect your devices

according to the tolpology figure. For Hardware Controller, refer to

its Installation Guide for details.

Switch (Optional)

AP AP AP

Cudy Controller or Mesh Router

Internet

Clients

WANLAN LAN LAN LAN

Scan QR code or visit https://www.cudy.com/apxz for the

hardware installation manual.

Hardware Installation

FCC Statements:

This device complies with part 15 of the FCC Rules. Operation is subject to

the following two conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

WEEE

According to the EU Directive on Waste Electrical and Electronic Equipment

(WEEE - 2012/19 / EU), this product must not be disposed of as normal

household waste.

Instead, they should be returned to the place of purchase or taken to a public

collection point for recyclable waste. By ensuring this product is disposed of

correctly, you will help prevent potential negative consequences for the

environment and human health, which could otherwise be caused by

inappropriate waste handling of this product. For more information, please

contact your local authority or the nearest collection point. Improper disposal

of this type of waste may result in penalties according to national regulations.

GNU General Public License Notice

The software code in this product was created by third parties and is licensed

under the GNU General Public License ("GPL"). If applicable, Cudy ("Cudy" in

this context refers to the Cudy entity offering respective software for

download or being in charge of the distribution of products that contain

respective code) makes the corresponding GPL source code available upon

request via the ofﬁcial website, either independently or with the assistance of

third parties (such as Shenzhen Cudy Technology Co., Ltd.).

For GPL-related questions, email support@cudy.com. In addition, Cudy offers

a GPL-Code-Centre under https://www.cudy.com/gplcodecenterdownload

where users can get the GPL source codes used in Cudy products for free.

Please note, that the GPL-Code-Centre is only provided as a courtesy to

Cudy's customers but may neither offer a full set of source codes used in all

products nor always provide the latest or actual version of such source

codes.

The GPL code used in this product is subject to the copyrights of one or

more authors and is supplied WITHOUT ANY WARRANTY.

EU Declaration of Conformity

1. English:

Cudy hereby declares that the device is in compliance with the essential requirements

and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity can be found at http://www.cudy.com/ce.

2. Deutsch:

Cudy erklärt hiermit, dass das Gerät den grundlegenden Anforderungen und anderen

relevanten Bestimmungen der Richtlinien 2014/53/EU, 2009/125/EG und 2011/65/EU

entspricht.

Die originale EU-Konformitätserklärung ﬁnden Sie unter http://www.cudy.com/ce.

3. Español:

Cudy declara por la presente que el dispositivo cumple con los requisitos esenciales y

otras disposiciones relevantes de las directivas 2014/53/EU, 2009/125/EC y 2011/65/EU.

La declaración de conformidad de la UE original se puede encontrar en

http://www.cudy.com/ce.

4. ltaliano:

Cudy dichiara che il dispositivo è conforme ai requisiti essenziali e ad altre disposizioni

pertinenti delle direttive 2014/53/UE, 2009/125/CE e 2011/65/UE.

La dichiarazione di conformità UE originale è disponibile all'indirizzo

http://www.cudy.com/ce.

5. Français:

Cudy déclare par la présente que l'appareil est conforme aux exigences essentielles et

aux autres dispositions pertinentes des directives 2014/53/UE, 2009/125/CE et

2011/65/UE.

La déclaration de conformité UE originale est disponible sur http://www.cudy.com/ce.

6.Ελληνικό:

Η Cudy δηλώνει με το παρόν ότι η συσκευή συμμορφώνεται με τις βασικές απαιτήσεις

και άλλες σχετικές διατάξεις των οδηγιών 2014/53/ΕΕ, 2009/125/ΕΚ και 2011/65/ΕΕ.

Η αρχική δήλωση συμμόρφωσης ΕΕ βρίσκεται στη διεύθυνση http://www.cudy.com/ce.

7. Nederlands:

Cudy verklaart hierbij dat het apparaat in overeenstemming is met de essentiële vereisten

en andere relevante bepalingen van de richtlijnen 2014/53/EU, 2009/125/EG en

2011/65/EU.

De originele EU-conformiteitsverklaring is te vinden op http://www.cudy.com/ce.

8. Português:

A Cudy declara que o dispositivo está em conformidade com os requisitos essenciais e

outras disposições relevantes das diretivas 2014/53/UE, 2009/125/EC e 2011/65/UE.

A declaração de conformidade original da UE pode ser encontrada em

http://www.cudy.com/ce.

9. Polski:

Cudy oświadcza niniejszym, że urządzenie jest zgodne z zasadniczymi wymaganiami i

innymi stosownymi postanowieniami dyrektyw 2014/53/UE, 2009/125/WE i 2011/65/UE.

Oryginalną deklarację zgodności UE można znaleźć na stronie http://www.cudy.com/ce.

10. Türkçe:

Cudy, cihazın 2014/53/EU, 2009/125/EC ve 2011/65/EU direktiﬂerinin temel gereksinim-

lerine ve diğer ilgili hükümlerine uygun olduğunu beyan eder.

Orijinal AB uygunluk beyanı http://www.cudy.com/ce adresinde bulunabilir.

11. Norsk:

Cudy erklærer herved at enheten er i samsvar med de grunnleggende kravene og andre

relevante bestemmelser i direktivene 2014/53/EU, 2009/125/EC og 2011/65/EU.

Den originale EU-samsvarserklæringen ﬁnner du på http://www.cudy.com/ce.

12. Dansk:

Cudy erklærer hermed, at enheden er i overensstemmelse med de væsentlige krav og

andre relevante bestemmelser i direktiverne 2014/53/EU, 2009/125/EC og 2011/65/EU.

Den originale EU-overensstemmelseserklæring kan ﬁndes på http://www.cudy.com/ce.

12. Dansk:

Cudy erklærer hermed, at enheden er i overensstemmelse med de væsentlige krav og

andre relevante bestemmelser i direktiverne 2014/53/EU, 2009/125/EC og 2011/65/EU.

Den originale EU-overensstemmelseserklæring kan ﬁndes på http://www.cudy.com/ce.

13. Suomi:

Cudy vakuuttaa täten, että laite on direktiivien 2014/53/EU, 2009/125/EC ja 2011/65/EU

olennaisten vaatimusten ja muiden asiaankuuluvien määräysten mukainen.

Alkuperäinen EU-vaatimustenmukaisuusvakuutus löytyy osoitteesta

ttp://www.cudy.com/ce.

14. Svenska:

Cudy intygar härmed att enheten överensstämmer med de väsentliga kraven och andra

relevanta bestämmelser i direktiven 2014/53/EU, 2009/125/EC och 2011/65/EU.

Den ursprungliga EU-försäkran om överensstämmelse ﬁnns på http://www.cudy.com/ce.

15. Čeština:

Cudy tímto prohlašuje, že zařízení je v souladu se základními požadavky a dalšími

příslušnými ustanoveními směrnic 2014/53/EU, 2009/125/ES a 2011/65/EU.

Originál EU prohlášení o shodě lze nalézt na http://www.cudy.com/ce.

16. Slovenčina:

Cudy týmto vyhlasuje, že zariadenie je v súlade so základnými požiadavkami a ďalšími

príslušnými ustanoveniami smerníc 2014/53/EÚ, 2009/125/ES a 2011/65/EÚ.

Originál EÚ vyhlásenia o zhode možno nájsť na http://www.cudy.com/ce.
