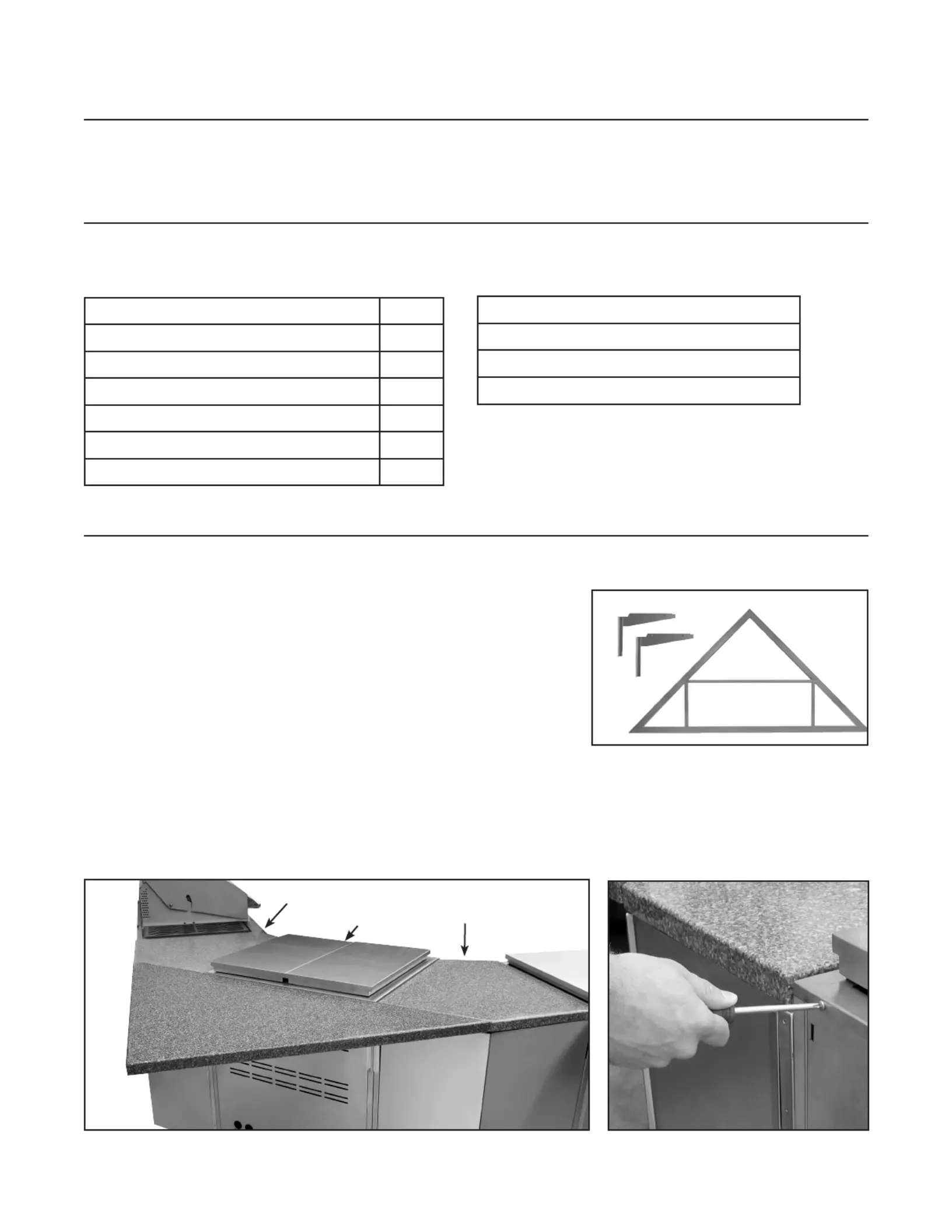

BNDCNR BEND CORNER BRACKET

INSTALLATION INSTRUCTIONS

Before you begin, read these instructions completely and carefully.

Getting Started

Remove packaging ■

CONTENTS

Eye Goggles

Screwdriver - Phillips #2

7/16” Socket and Ratchet Driver

7/16” Box or Open End Wrench

Description Qty

Bracket Top 1

Bracket Leg 2

Machine Screw #10-24 x 3/4” Phillips 4

Hex Nut 1/4-20 4

Washer 5/16 ID x 3/4 OD 4

Hex Bolt 1/4-20 x 3/4” 4

BND-CNR :

The BND-CNR is composed of three main pieces (one large 1.

bracket top and two bracket legs) that are held together using

four bolts and nuts. The bracket is mounted to the bend units

with four screws (Fig. 01).

Mounting of the BND-CNR bracket requires two CAD-BND 2.

bend units mounted with a CAD-30 cart between them and

any size CAD cart or refrigeration unit with wrapper on the

outer sides. When assembled, this conguration will provide

a solid base to which the BND-CNR bracket can be safely

mounted. The assembly should look similar to the image

below (Fig. 02).

Note: Before beginning installation, remove screws holding the rear of the center outdoor appli-

ance and cart to prevent damage (Fig. 03). Ensure the grill head is secured to the front of the

cart behind the drip pan.

Fig. 02

TOOLS NEEDED

Installation Instructions

Fig. 01

Fig. 03

Over. . .

CAD-BND CAD30 with

outdoor

appliance

CAD-BND

Fisher & Paykel Appliances, Inc.

5900 Skylab Road, Huntington Beach, CA 92647

Customer Care: 888.281.5698 • Fax: 714.372.7003

www.dcsappliances.com

P/N 242803 RA

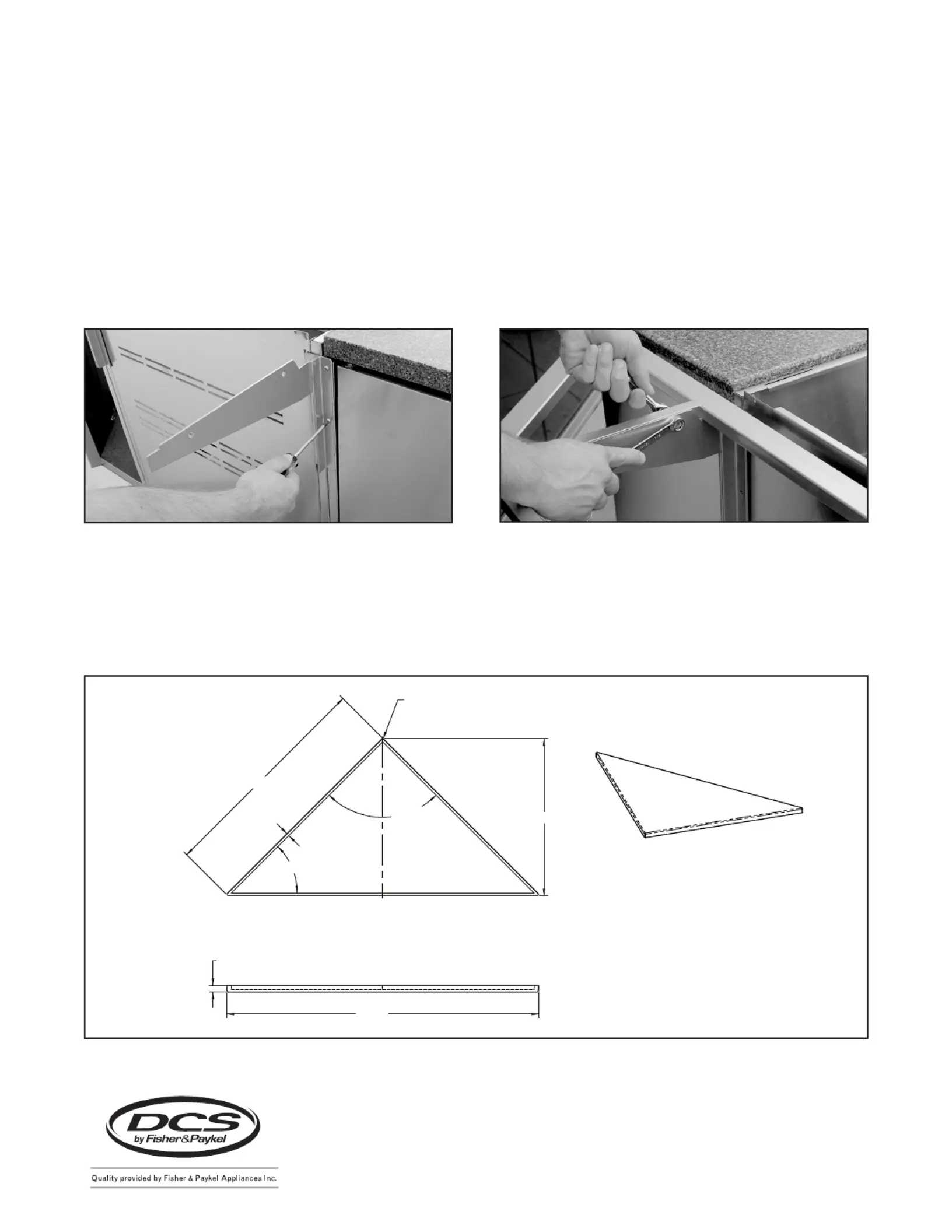

Attach the legs to the backs of the bend units using the provided mounting screws (#10-24 x 1/2” Phillips 3.

Machine Screws). Position the legs on the bend units so that the screws are fed through the outer holes

on the bracket legs (Fig. 04).

Once the legs are securely mounted to the bend units, place the large 4. bracket top on top of the legs

(Fig. 05). The bracket top should rest safely on the legs while you secure the parts together.

Note: DO NOT place any weight on the shelf until step 5 is complete.

With the large 5. bracket top in place, secure the bracket top to the bracket legs using the hex bolt (1/4-20 x

3/4”), the washers (5/16 x 3/4 ) and hex nuts (1/4-20); bolt through the protruding plates on the legs, into

the bracket top (Fig. 05). Once secure, the solid surface can then be placed on the bend corner bracket.

Fig. 04

Fig. 05

ACCEssORiEs REQuiRED:

Solid Surface for Corner Shelf (BND-CNRT) ■

For alternate types and/or colors of solid surface, contact your local manufacturer and provide the attached

drawing (Fig. 06).

43.42”

.50”

ALL WALLS

R .250

ON ALL CORNERS

AND TOP EDGES

30.85”

90.00°

45.00°

SYMM

*1.30”

61.19”

DIMENSIONS ARE CRITICAL

Fig. 06

CAD-30

(center)

Bend Unit
