Eastron SDM120-CTM User Manual

Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883

Add: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314000, China. Web: www.eastrongroup.com Email: sales@eastrongroup.com

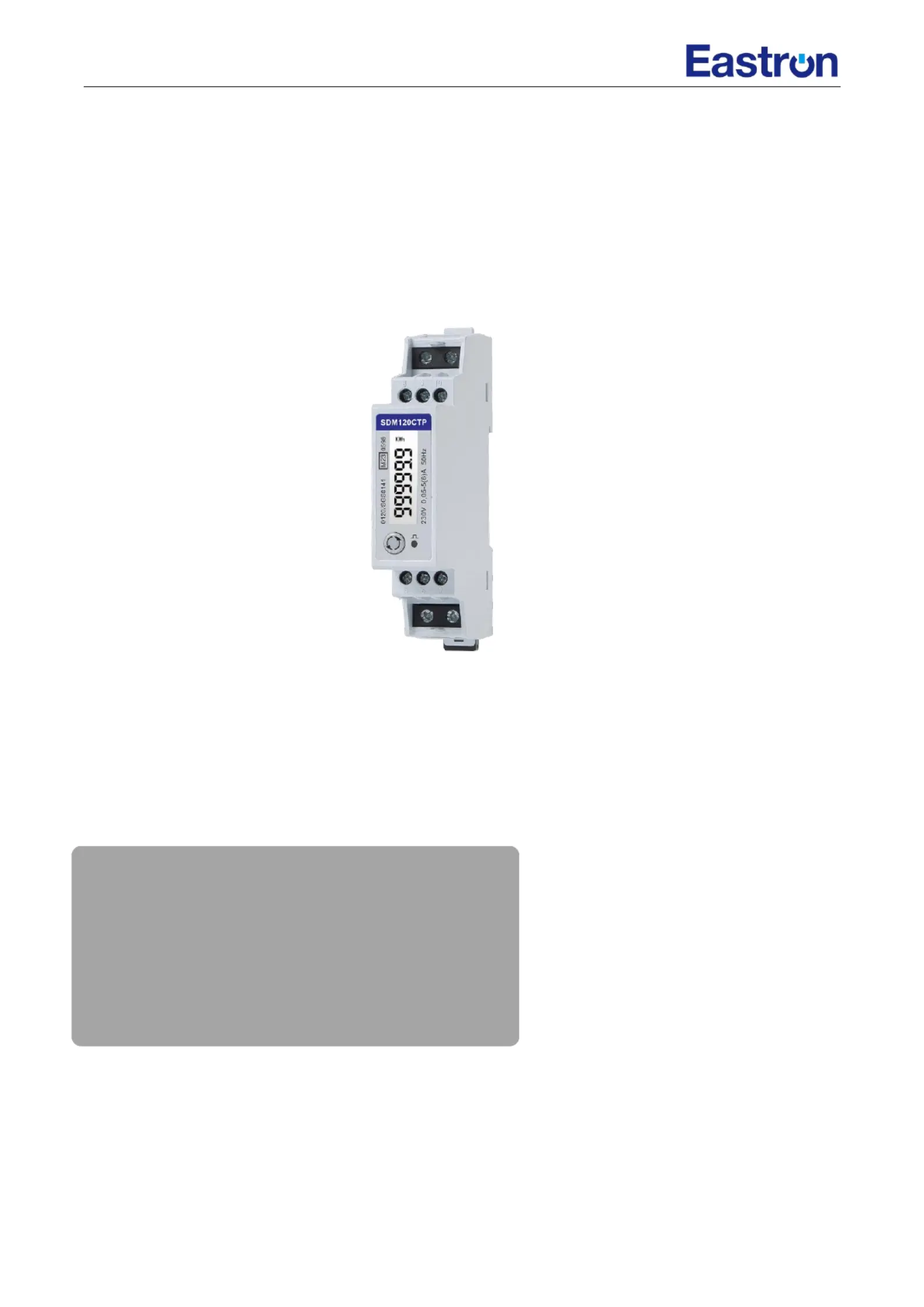

SDM120CTP

Single-Phase Multifunction DIN Rail Meter

Measures kWh, kVArh, kW, kVAr, kVA, PF, Hz, dmd, V, A, etc.

Bi-directional measurement IMP & EXP

Two pulse outputs

Din rail mounting 35mm

5A CT connection

Better than Class 1 accuracy

User Manual V1.0

Eastron SDM120-CTM User Manual

Zhejiang Eastron Electronic Co.,Ltd. Tel: 0086-573-83698881 Fax: 0086-573-83698883

Add: No.52 Dongjin Road, Nanhu, Jiaxing, Zhejiang, 314000, China. Web: www.eastrongroup.com Email: sales@eastrongroup.com

Application

The energy-meters are used to measure single-phase applications like residential, utility and Industrial. The unit

measures and displays various important electrical parameters. It equipped with a white back-lighted LCD screen

for prefect reading. As well as a RS485 communication port for remote reading and monitoring. Bi-directional

energy measurement makes it a good choice for solar PV energy metering. The compact design and din rail

installation provides an easy and economical solution for your metering demand.

PART 1 Specification

General Specifications

Voltage AC (Un) 230V

Voltage Range 176~276V AC

Base Current (Ib) 5A

Power consumption <2W/10VA

Frequency 50/ 60Hz(±10%)

AC voltage withstand 4KV for 1 minute

Impulse voltage withstand 6KV-1.2uS waveform

Overcurrent withstand 20Imax for 0.5s

Pulse output 1 1000 imp/kWh (export)

Pulse output 2 1000imp/kWh (import)

Display LCD with white backlit

Max. Reading 999999 kWh

Accuracy

Voltage 0.5% of range maximum

Current 0.5% of nominal

Frequency 0.2% of mid-frequency

Power factor 1% of Unity

Active power 1% of range maximum

Reactive power 1% of range maximum

Apparent power 1% of range maximum

Active energy Class 1 IEC62053-21

Class B EN50470-1/3

Reactive energy Class 2 IEC62053-23

Environment

Operating temperature -25 to +55℃ ℃

Storage and transportation temperature -40 to +70℃ ℃

Reference temperature 23 2℃± ℃
