© 2013 UTC Fire & Security. All rights reserved. 1 / 2 P/N 3101246 • REV 02 • REB 15FEB13
5552 and HPSA15 Series Speakers
Installation Sheet
Description
• 5552 Series and HPSA15 Series are high efficiency, UL
Listed double re-entrant type loudspeakers.
• They comply with the requirements of UL Standard 1480,
Fire Protective Signaling Speakers.
• They are designed to be used in conjunction with
compatible control equipment for high intelligibility
reproduction of audible emergency and protective signals
as well as voice messages.
• Includes a supervisory capacitor and is suitable for
installation in systems employing supervised circuitry
(25 V / 70.7 V). Maximum supervised circuit voltage is
24 VDC.
• For use in ambient temperature ranges from -40 C to ˚
66˚C.
Specifications
Power 15 W
RMS frequency response 400 to 4,000 Hz
Sound level 103 dB UL 10 ft. rating
Conduit connection For 1⁄2 in. conduit

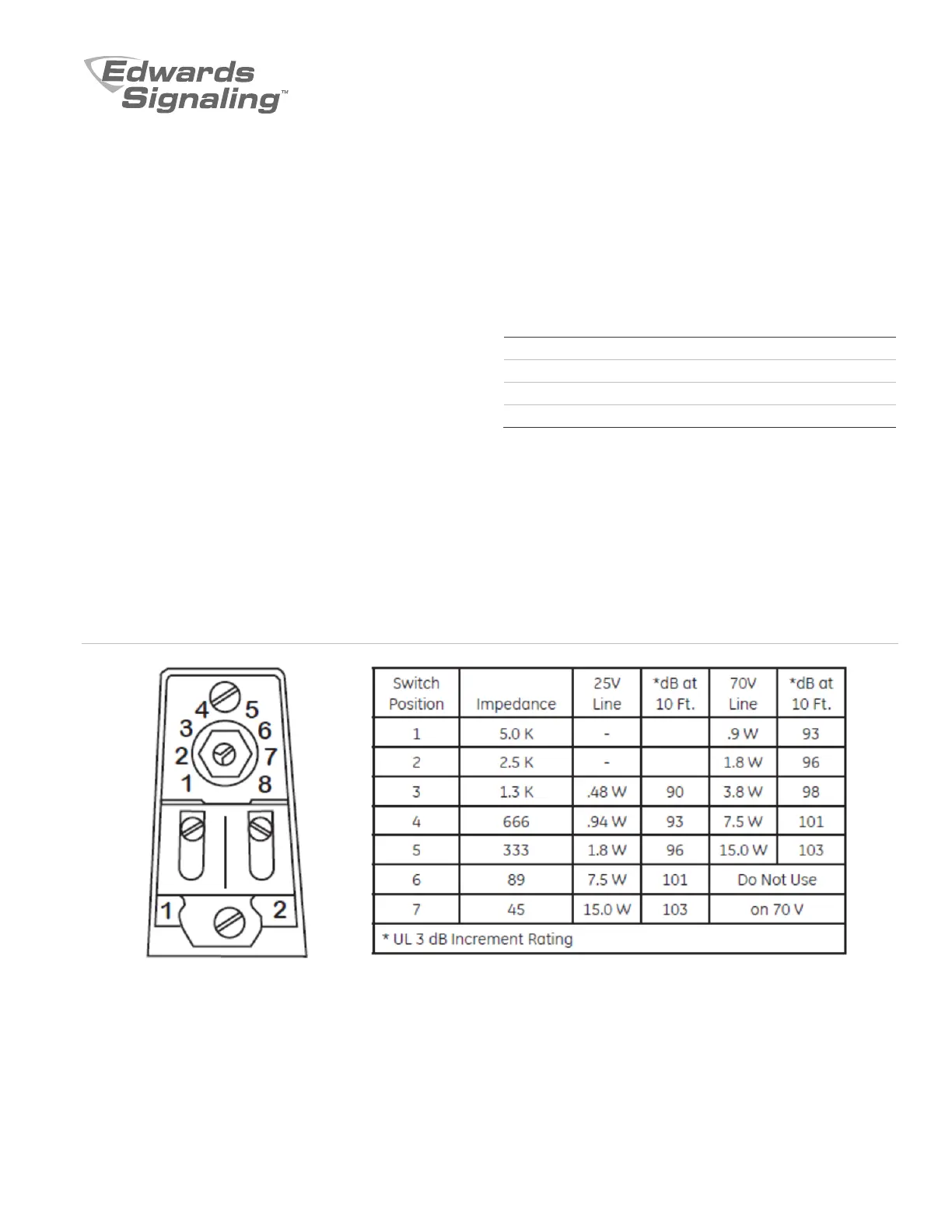

Figure 1: Power tap selector switch
Note: Terminal #2 is the positive terminal.
2 / 2 P/N 3101246 • REV 02 • REB 15FEB13
Figure 2: Mounting dimensions
To conform with UL requirements, wires must be connected as shown in wiring diagram (see Figure 3).
Note: The maximum wire size that can be connected to this device is 18 Gauge.
Figure 3: Wiring diagram
Caution: Do not loop wires under screw terminals. Break wire run to provide supervision of connection. Installation must comply
with all Building Codes and NFPA guidelines. Installation must adhere to N.E.C. and NFPA 70/72 wiring directives and comply with
all National and Local Building Codes.
Contact information
For contact information, see www.edwardssignaling.com
